Enhance kiosks with the Elo 1064L 10″ open-frame PCAP touch display. HD clarity, modular design, fanless reliability. Order now for UAE-wide delivery!
Overview

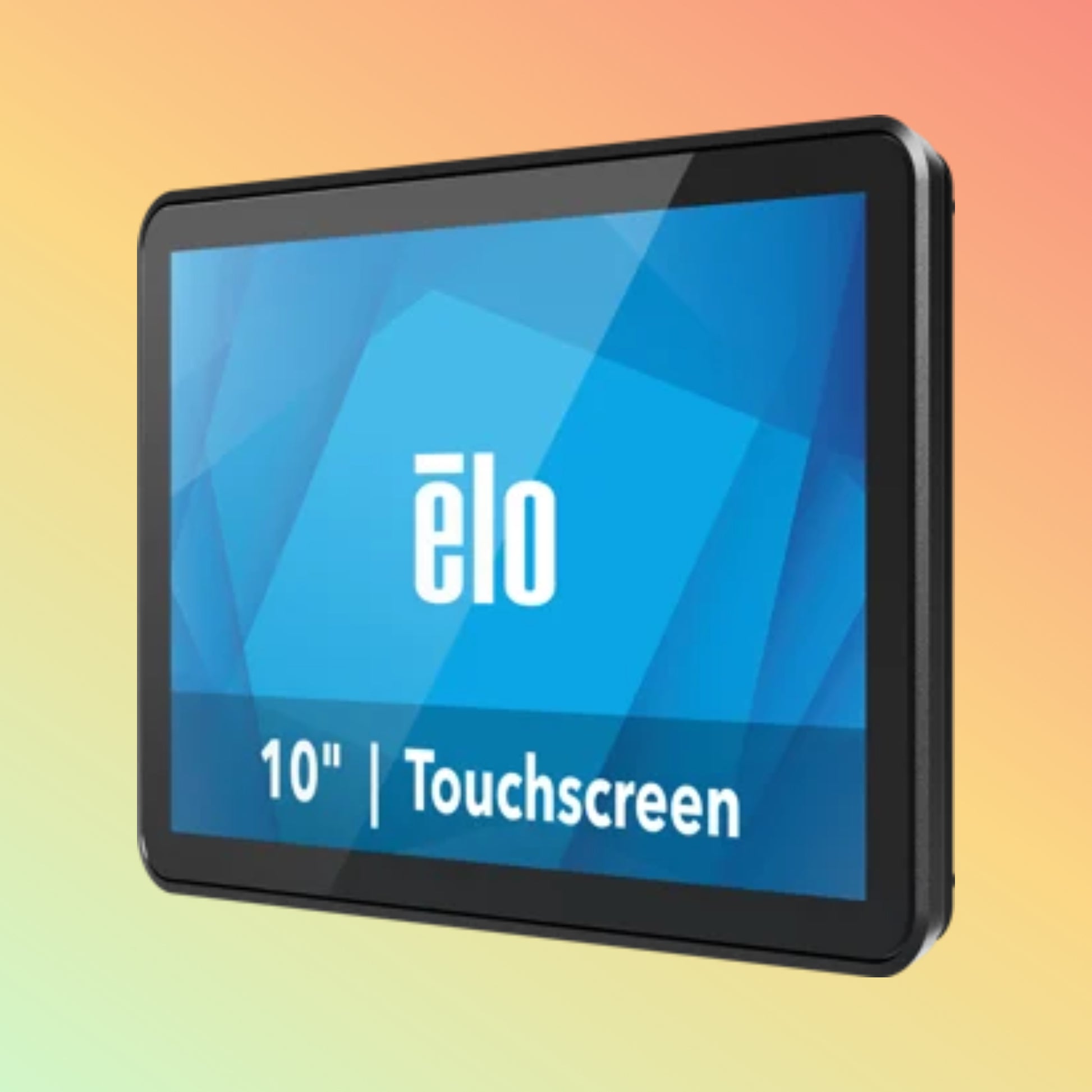

The Elo 1064L integrates a bright 10″ 1280×800 HD IPS panel with 10-point projected-capacitive (PCAP) touch in an 18 mm open-frame chassis. Built for OEMs and system integrators, it clips into kiosks, ticketing terminals, and industrial HMIs. Its fanless, passive-cooling design and edge-to-edge tempered glass deliver silent, 24/7 reliability.
Product Description
Purpose-built for high-traffic, continuous-use environments, the Elo 1064L features a Full HD-grade 1280×800 IPS screen and drift-free PCAP sensor supporting finger, glove, or stylus input. Standard HDMI and VGA video inputs plus USB touch I/O enable plug-and-play setup. The slim metal housing supports bezel, faceplate, or rear-mount kits without extra bulk. With no external modules required, it streamlines integration and reduces footprint.
Key Features
-
10.1″ HD (1280×800) IPS panel
-
10-point PCAP multi-touch accuracy
-
Edge-to-edge tempered, anti-glare safety glass
-
Slim 18 mm open-frame metal chassis
-
HDMI 1.4 & VGA (DB-15) video inputs
-
USB 2.0 touch interface (plug-and-play)
-
VESA 75×75 mm mounting pattern
-
Fanless, passive-cooling design for silent 24/7 use
Specifications
| Specification |
Details |
| Display Size |
10.1″ diagonal |
| Resolution |
1280×800 (HD) |
| Touch Technology |
10-point projected-capacitive |
| Brightness |
350 cd/m² |
| Contrast Ratio |
800:1 |
| Viewing Angle |
170° H / 160° V |
| Video Inputs |
HDMI 1.4, VGA (DB-15) |
| Touch I/O |
USB 2.0 Type B |
| Mounting |
VESA 75×75 mm, flush-mount kits |
| Power Input |
5 V DC via USB (optional adapter) |
| Operating Temp. |
0 °C to 50 °C |
| Weight |
~1.3 kg (unpackaged) |
Supported OS / Applications / Industries
OS Compatibility: Windows, macOS, Linux (HDMI + USB plug-and-play)
Applications: Self-service kiosks, POS stations, wayfinding, ticketing, digital menu boards
Industries: Retail, hospitality, healthcare, transportation, manufacturing
Benefits & Compatibility
-
Modular Integration: Adapts to bezel, faceplate or rear-mount enclosures
-
Silent Operation: Passive cooling vents eliminate fan noise
-
Durable Surface: Tempered glass resists scratches and spills
-
Fast Deployment: Standard HDMI/VGA and USB reliability
-
Fleet Management: Compatible with EloView® for remote monitoring
Purpose of Use
Ideal for OEMs and integrators, the Elo 1064L powers interactive endpoints where reliability, compactness, and user engagement are critical. Perfect for kiosks, HMI panels, and embedded signage.
How to Use
-
Mount via VESA 75×75 mm or flush-mount bracket.
-
Connect HDMI or VGA for video.
-
Plug in USB for touch data.
-
Power via USB port or 5 V DC adapter.
-
Calibrate touch with Elo Touch Tools if needed.
Packaging / Weight / Dimensions
-
Unit Weight: ~1.3 kg
-
Box Size: 350 × 260 × 120 mm
-
Includes: 1064L display, HDMI & USB cables, mounting brackets, quick-start guide
Warranty and FAQs
Warranty: 1-year limited hardware; extensions up to 3 years available.
FAQs:
-
Q: Does it support gloved touch?
A: Yes—PCAP recognizes gloves and stylus.
-
Q: Is it suitable for 24/7 use?
A: Yes—passive-cooling design enables continuous operation.
-
Q: How to protect against dust?
A: Use sealed bezel kits for full environmental sealing.
Performance, Quality, Durability & Reliability
Built with industrial-grade aluminum and ANSI-rated glass, the 1064L survives shock, vibration, and heavy use. Passive vents maintain optimal temperature, while rigorous burn-in testing ensures mission-critical uptime.
