Boost throughput with the Honeywell PD45S/PD45 – 4.1″ industrial printer. 6 ips, modular, rugged. Order now for UAE delivery!
Overview

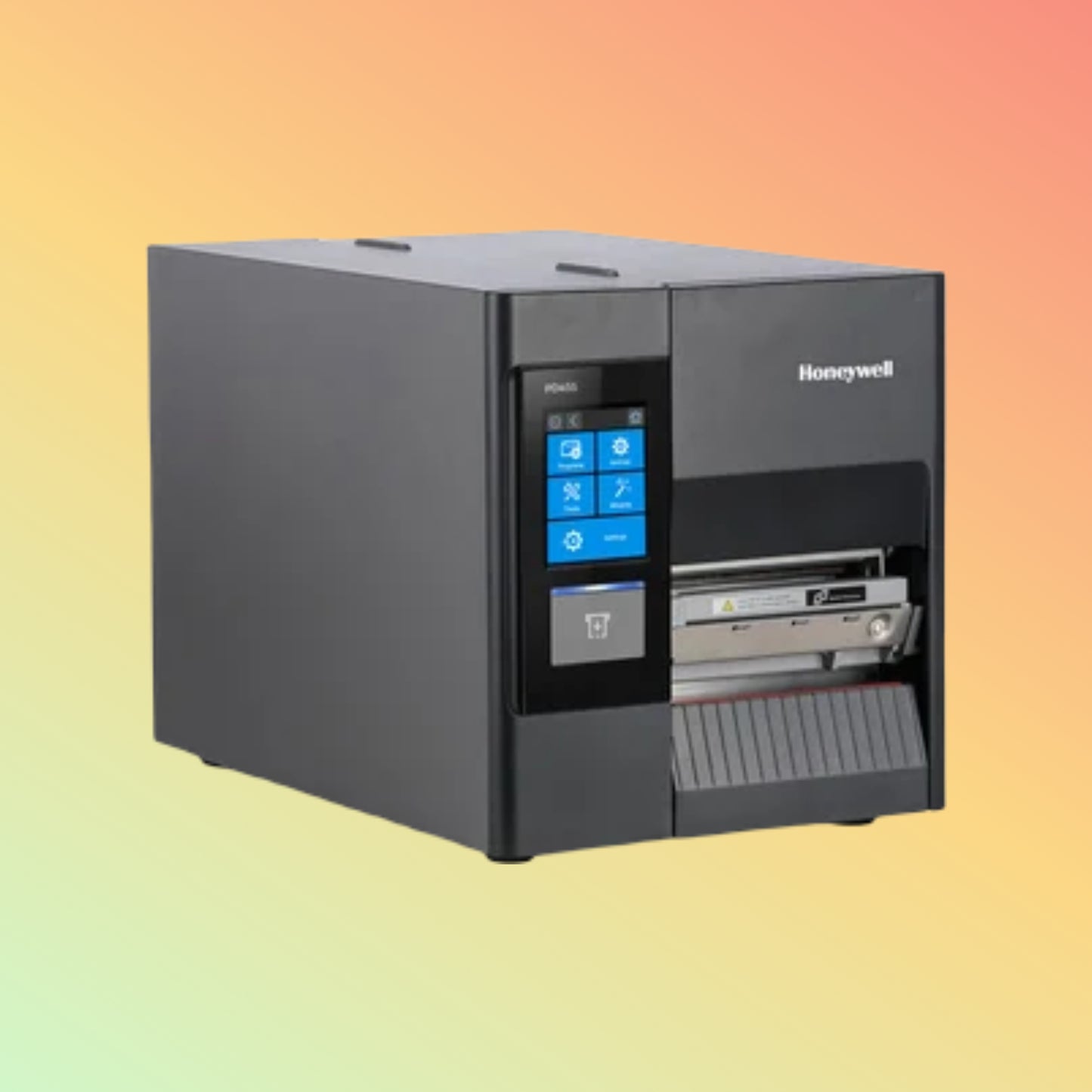

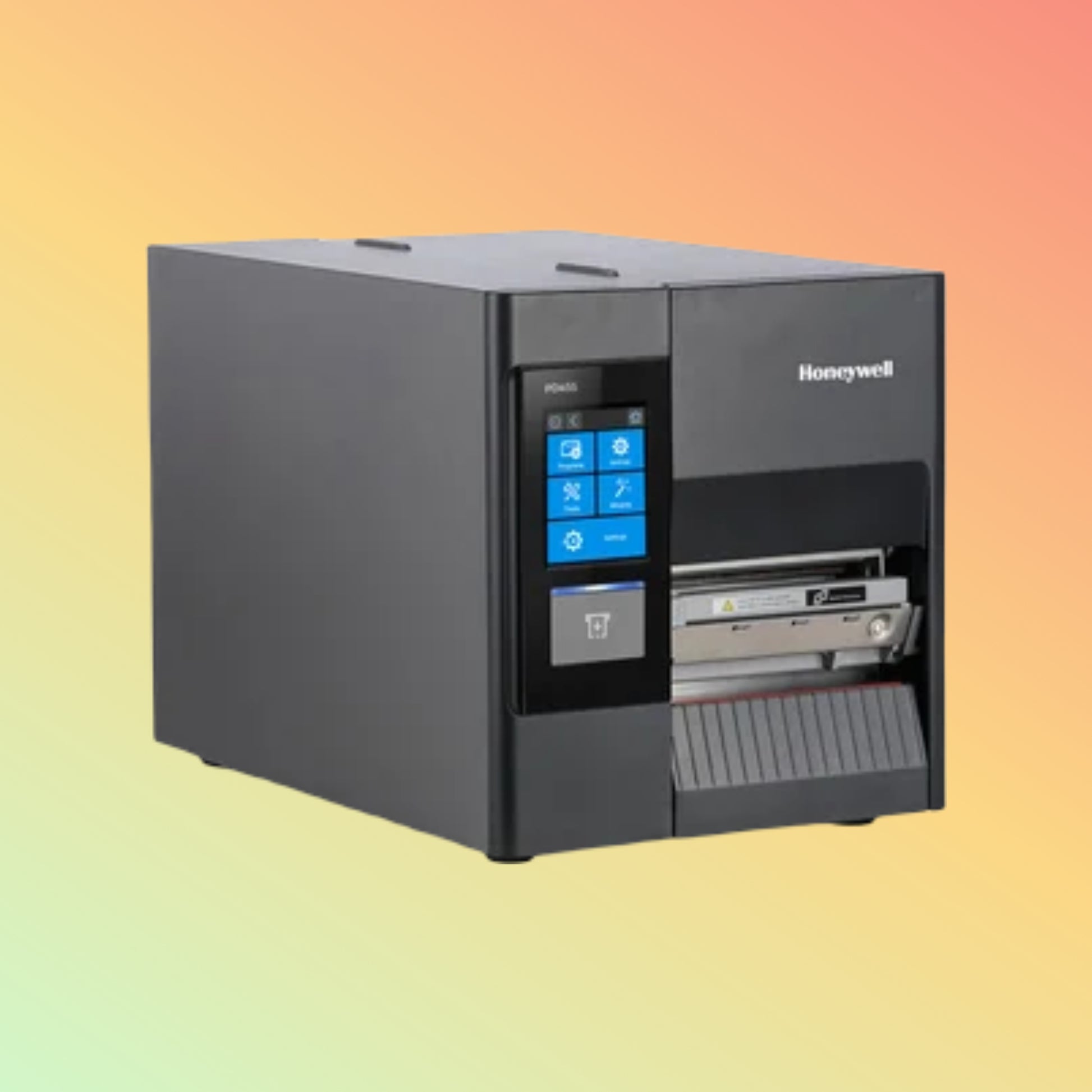

The Honeywell PD45S (smart label) and PD45 (standard) are 4.1″‑wide industrial printers engineered for high‑volume label production. Both deliver up to 6 ips print speed, 203 dpi (300 dpi optional), and field‑replaceable modules—ensuring uninterrupted operation in manufacturing, warehousing, and logistics.
Product Description
Built on Honeywell’s proven PX platform, the PD45S adds a color LCD touchscreen and onboard intelligence for device management and diagnostics. The PD45 offers core performance with a monochrome LCD. Both support direct‑thermal or thermal‑transfer media, drop‑in label and ribbon loading, and tool‑free swap of printhead, platen roller, and interface cards. Standard interfaces include Ethernet, USB, and serial; add Wi‑Fi or Bluetooth modules for wireless integration.
Key Features
-
Print Width: Up to 4.1″ (104 mm)
-
Print Speed: Up to 6 ips (152 mm/s)
-
Resolution: 203 dpi standard; 300 dpi optional
-
Media Handling: Direct‑thermal or thermal‑transfer (PD45C variant)
-
Display: PD45S – 4.3″ color touchscreen; PD45 – monochrome LCD
-
Modularity: Tool‑free replacement of printhead, platen, connectivity cards
-
Connectivity: Ethernet, USB‑Host/Device, Serial; optional Wi‑Fi 802.11ac/Bluetooth 4.2
-
Media Capacity: Rolls up to 8″ OD on 3″ core
-
Accessories: Cutter, label peeler, rewinder modules
Specifications
| Attribute |
PD45S / PD45 |
| Max Print Width |
4.1″ (104 mm) |
| Max Print Speed |
6 ips (152 mm/s) |
| Resolution |
203 dpi; 300 dpi optional |
| Media Type |
Direct‑thermal/thermal‑transfer |
| Ribbon Capacity |
Up to 450 m (PD45C with ribbon) |
| Memory |
512 MB Flash; 128 MB SDRAM |
| Interfaces |
Ethernet, USB‑Host/Device, Serial |
| Wireless Options |
Optional Wi‑Fi 802.11ac, Bluetooth 4.2 |
| Display |
4.3″ color touchscreen (PD45S) or LCD (PD45) |
| Dimensions (W×D×H) |
285×260×255 mm |
| Weight |
10.5 kg |
Supported OS / Application / Industries
-
Drivers & SDKs: Windows, Linux, Android, SAP, Oracle
-
Applications: Shipping & receiving, work‑in‑process, compliance labels, asset tracking
-
Industries: Manufacturing, warehousing, transportation, retail, healthcare
Benefits & Compatibility
-
Smart Management: PD45S powers remote device monitoring and diagnostics.
-
High Throughput: 6 ips speeds accelerate batch printing.
-
Field‑Serviceable: Modules swap on site—no downtime.
-
Rugged Design: Metal chassis and IP21 rating for harsh environments.
-
Legacy Support: Emulates EPL, ZPL for smooth migration.
Purpose of Use
Ideal for mid‑to‑high‑volume label production where reliability and uptime are critical. Choose PD45S for advanced management, or PD45 for core performance in direct‑thermal or transfer applications.
How to Use
-
Load label media (and ribbon for PD45C) via drop‑in path.
-
Configure print settings on touchscreen (PD45S) or LCD menu.
-
Connect to your network via Ethernet, USB, or optional wireless.
-
Send print jobs using native drivers or printer commands.
-
Replace printhead, platen, or connectivity cards in minutes without tools.
Packaging / Weight / Dimensions
-
Includes: Printer unit, power cord, quick‑start guide, sample media
-
Carton Size: 350×315×310 mm
-
Shipping Weight: 12 kg
Warranty & FAQs
Warranty: 2 Years Standard; extendable to 5 Years
FAQs:
-
Can I add Wi‑Fi later? Yes, via field‑installable module.
-
How long do printheads last? Up to 25 km of media or 1 M inches of ribbon.
-
Is PD45C ribbon‑transfer? Yes, PD45C supports thermal‑transfer with 450 m ribbon.
Performance, Quality, Durability & Reliability
Tested to MIL‑STD‑810G and IP21 standards, the PD45 series delivers consistent print quality under dust, vibration, and temperature extremes—ensuring minimal downtime.
Best Price Guarantee
NEOTECH offers the most competitive UAE pricing on Honeywell PD45S/PD45 printers. Found a lower quote? We’ll match or beat it—guaranteed.
Shop Today & Receive Your Delivery Across the UAE
Order before 2 PM UAE time for same‑day processing. Delivery in 2–3 days across Dubai, Abu Dhabi, Sharjah, and all Emirates—secure and trackable.
Request for Customer Reviews and Testimonials
Deployed PD45S or PD45? Share your feedback to help others choose the right industrial printer.
After Sales Support
NEOTECH’s UAE‑based team provides:
-
Firmware updates and diagnostics
-
Warranty and RMA processing
-
Spare parts and accessories supply
-
24/7 live chat and phone support
Get in Touch
Need expert advice on industrial printing? Contact our specialists for fast, tailored recommendations and demos.
Stock Availability
In stock now. Bulk and custom orders welcome—reserve yours today.
Disclaimer
Specifications subject to change without notice. Optional modules and accessories must be specified at order. Media compatibility varies by configuration.
