Panel Printer XJ-58IM

Print 58 mm labels on demand with the XJ-58IM panel printer. Fast 60 mm/sec, 203 dpi, IP54 front, USB/serial—ideal for kiosks & control panels.

Overview

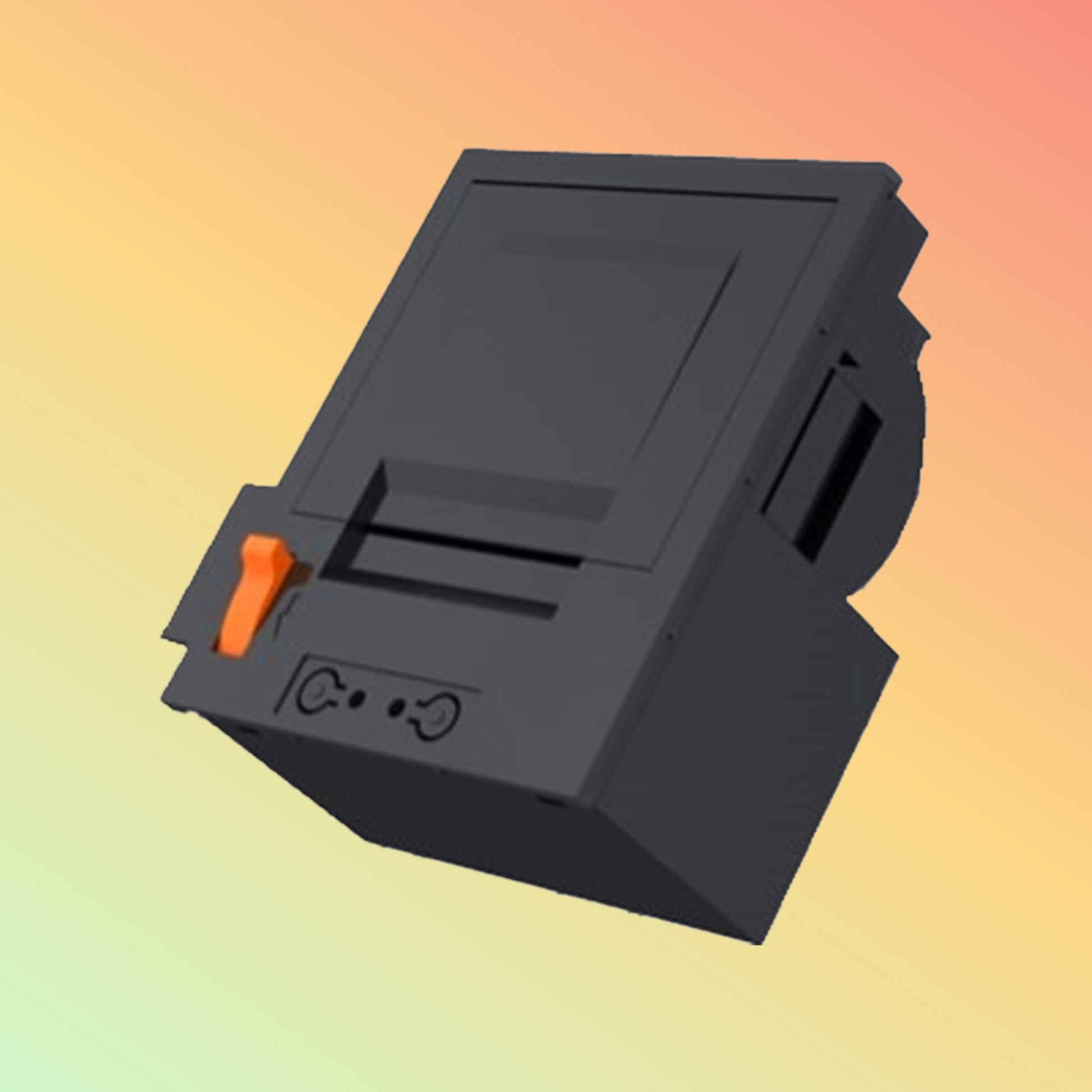

Meet the XJ-58IM, a slim thermal label printer designed to snap right into your control panel or kiosk. With 58 mm print width, 203 dpi clarity and up to 60 mm/sec speed, it delivers sharp text, barcodes or logos—no PC needed. Its IP54-rated front bezel keeps dust and splashes out, making it perfect for industrial floors or retail displays.

Product Description

The XJ-58IM blends rugged durability with sleek design. Install it into a 50 × 135 mm cutout, feed standard 58 mm rolls, and hit “Print.” An optional auto-cutter or peel-off module saves time. Connect via USB or RS-232 serial to your PLC, POS or Raspberry Pi. With a compact 110 mm depth and noise-dampened motor, it fits tight spaces and keeps noise below 55 dB.

Key Features

• Panel-Mount Form Factor: Fits 50 × 135 mm openings

• Print Speed: Up to 60 mm/sec for quick labels

• High Resolution: 203 dpi thermal head

• IP54 Front Bezel: Dust- and splash-resistant

• Auto Cutter & Peel-Off: Optional modules available

• Interfaces: USB 2.0 & RS-232 serial

• Media: Supports 58 mm-wide thermal rolls

• Compact Depth: 110 mm for tight enclosures

Specifications

Supported OS / Industries

• Stand-alone panel printing

• Windows, Linux, macOS via USB/Serial

• Factory automation & PLC panels

• Retail kiosks & self-service terminals

• Lab & medical equipment

Benefits & Compatibility

• Instant on-panel labeling where you need it

• Space-saving 110 mm depth fits tight spots

• Dust/splash protection for harsh environments

• Easy integration with USB or legacy serial

• Uses standard 58 mm thermal label rolls

Purpose of Use

Perfect for on-demand ticketing, shelf tags, wiring labels or diagnostic logs—right from your control panel.

How to Use

1. Mount into a 50 × 135 mm cutout

2. Connect 24 V DC power

3. Load 58 mm thermal roll

4. Plug in USB/Serial to your system

5. Send print job—get crisp labels instantly

Packaging / Weight / Dimension

• Includes: XJ-58IM unit, power cable, USB cable, starter roll, mounting bracket, user manual

• Carton Size: 200 × 140 × 230 mm

• Gross Weight: ~1.7 kg

Warranty and FAQs

• 1-Year Limited Warranty

• Tech Support via email & phone in UAE

• RMA Service for hardware fixes

FAQs

• Q: Can it print logos?
  A: Yes—prints graphics at 203 dpi.

• Q: Does it need a PC?
  A: No—just send data over USB/serial.

Performance, Quality & Reliability

Built for 24/7 use with an industrial thermal head rated for 50 km of printing. The IP54 bezel and dampened motor keep it running smoothly in dusty or wet zones.
