Upgrade kiosks with the Elo 0764L 7″ open-frame PCAP touch display. HD clarity, fanless reliability, modular design. Order now for UAE-wide delivery!
Overview

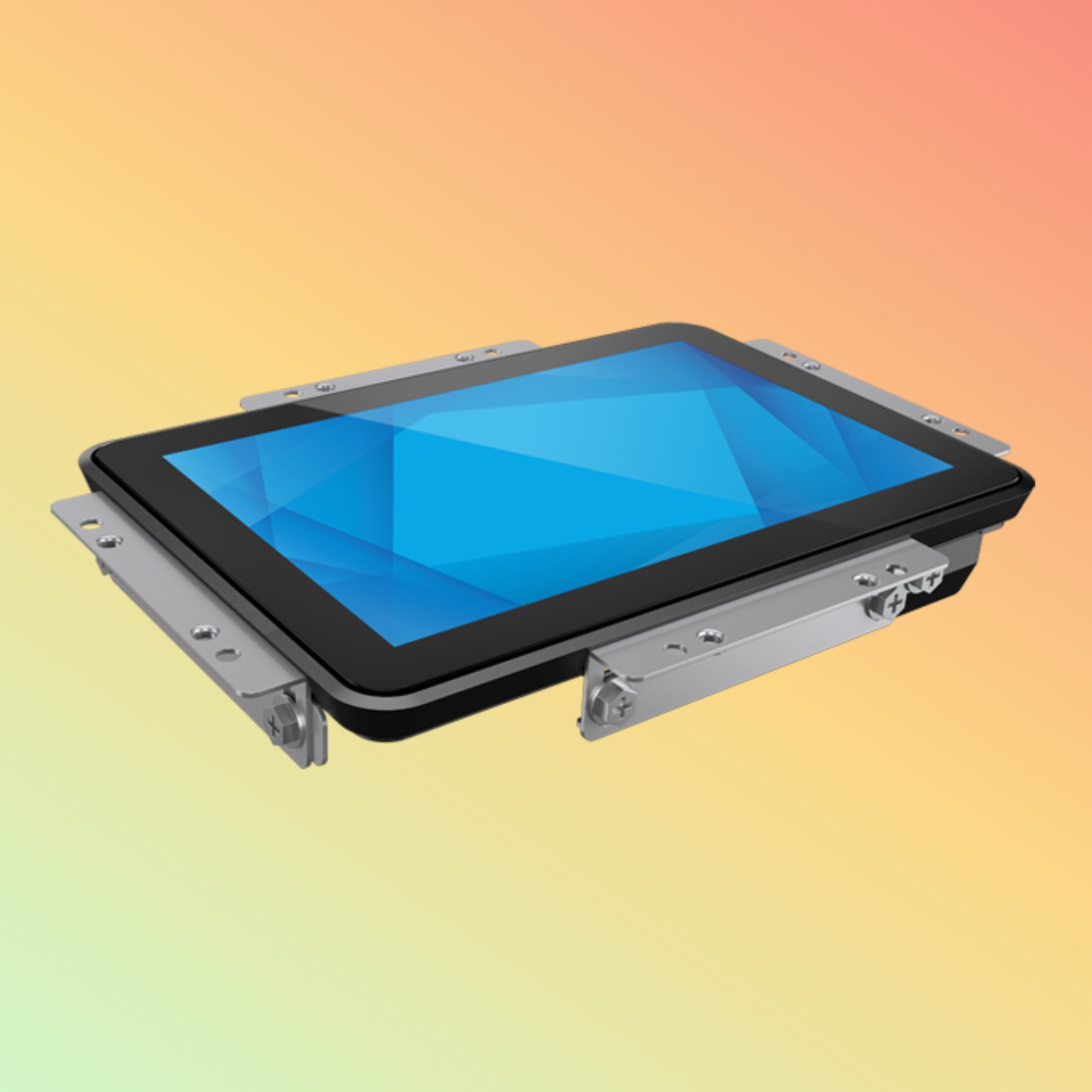

The Elo 0764L brings high-precision PCAP touch to a compact 7″ HD display. Designed for OEMs and integrators, it installs seamlessly into kiosks, ticketing terminals and HMI panels. Its slim, 18 mm open-frame chassis and edge-to-edge glass deliver a modern look. Fanless cooling ensures silent, 24/7 operation in any environment.
Product Description
Purpose-built for continuous, heavy-use applications, the Elo 0764L features a 1024×600 IPS panel and 10-point projected-capacitive sensor. Standard HDMI, VGA and USB interfaces make setup plug-and-play. Tempered, anti-glare glass protects the surface. Passive-cooling vents maintain optimal temperature without fans. This all-in-one module eliminates the need for external compute boxes.
Key Features
-
7″ HD (1024×600) IPS panel
-
10-point PCAP multi-touch accuracy
-
Edge-to-edge tempered, anti-glare safety glass
-
Slim 18 mm open-frame metal chassis
-
HDMI 1.4 & VGA (DB-15) video inputs
-
USB 2.0 Type B touch interface
-
VESA 75×75 mm mounting pattern
-
Fanless, passive-cooling design
Specifications
| Spec |
Details |
| Display Size |
7″ diagonal |
| Resolution |
1024×600 (HD) |
| Touch Technology |
10-point PCAP (USB 2.0) |
| Brightness |
350 cd/m² |
| Contrast Ratio |
800:1 |
| Viewing Angle |
170° H / 160° V |
| Video Inputs |
HDMI 1.4, VGA (DB-15) |
| Touch I/O |
USB 2.0 Type B |
| Mounting |
VESA 75×75 mm, flush-mount kits |
| Power Input |
5 V DC via USB (optional adapter) |
| Operating Temp. |
0 °C to 50 °C |
| Weight |
~0.8 kg (unpackaged) |
Supported OS / Applications / Industries
OS Compatibility: Windows, macOS, Linux (HDMI + USB)
Applications: Self-service kiosks, POS terminals, wayfinding, digital signage
Industries: Retail, hospitality, healthcare, transportation, manufacturing
Benefits & Compatibility
-
Modular Integration: Fits custom bezel or faceplate kits
-
Silent Operation: Passive cooling vents eliminate fan noise
-
Durable Design: Tempered glass resists scratches and spills
-
Plug-and-Play I/O: Standard HDMI/VGA and USB connections
-
Fleet Management: Compatible with EloView® for remote updates
Purpose of Use
Ideal for OEMs and integrators, the Elo 0764L powers interactive endpoints in tight spaces. It excels in compact kiosks, embedded HMIs and ticketing stations where reliability is critical.
How to Use
-
Attach via VESA 75×75 mm or flush-mount bracket.
-
Connect HDMI or VGA to your video source.
-
Plug USB for touch data.
-
Power via USB port or 5 V DC adapter.
-
Calibrate touch with Elo Touch Tools if needed.
Packaging / Weight / Dimensions
-
Unit Weight: ~0.8 kg
-
Carton Size: 300 × 220 × 100 mm
-
Includes: 0764L display, HDMI & USB cables, mounting brackets, quick-start guide
Warranty and FAQs
Warranty: 1-year limited hardware; extensions up to 3 years available.
FAQs:
-
Q: Does it support gloves?
A: Yes—PCAP detects gloves and stylus.
-
Q: Can it run 24/7?
A: Yes—passive-cooling design ensures continuous operation.
-
Q: How to protect against dust?
A: Use sealed bezel kits for full environmental sealing.
Performance, Quality, Durability & Reliability
Built with industrial-grade aluminum and ANSI-rated glass, the 0764L withstands shock, vibration and heavy use. Passive vents maintain peak performance, while burn-in testing guarantees uptime in mission-critical settings.
Best Price Guarantee
Spotted a lower price on an equivalent 7″ open-frame touch display in the UAE? We’ll match it—no questions asked. Shop confidently at NEOTECH.
Shop Today & Receive Your Delivery Across the UAE!
Order now for fast, secure shipping to Dubai, Abu Dhabi, Sharjah and beyond. Our logistics network ensures on-time delivery to every emirate.
Request for Customer Reviews & Testimonials
Deployed the Elo 0764L? Share your feedback to guide peers and shape future products. Your insights drive our innovation.
After Sales Support
Enjoy dedicated technical assistance, remote diagnostics and streamlined RMA processing. If phone or email support can’t resolve an issue, we’ll arrange prompt replacement.
Get in Touch
Need specs, pricing or integration advice? Contact our product specialists for tailored solutions and quotes. We’re here to help you succeed.
Stock Availability
Before ordering, please confirm current stock levels. We maintain accurate inventory data for seamless purchasing.
Disclaimer
All information is for general guidance and may change without notice. Product images are illustrative only. Verify specs, availability and pricing with our sales team before purchase.
