Rugged IP65 true-flat panel PC—10″/12″/15″ resistive & capacitive touch, Intel® J1900/i3/i5, Win10/Linux ready. Silent fanless CNC HMI solution.
Overview

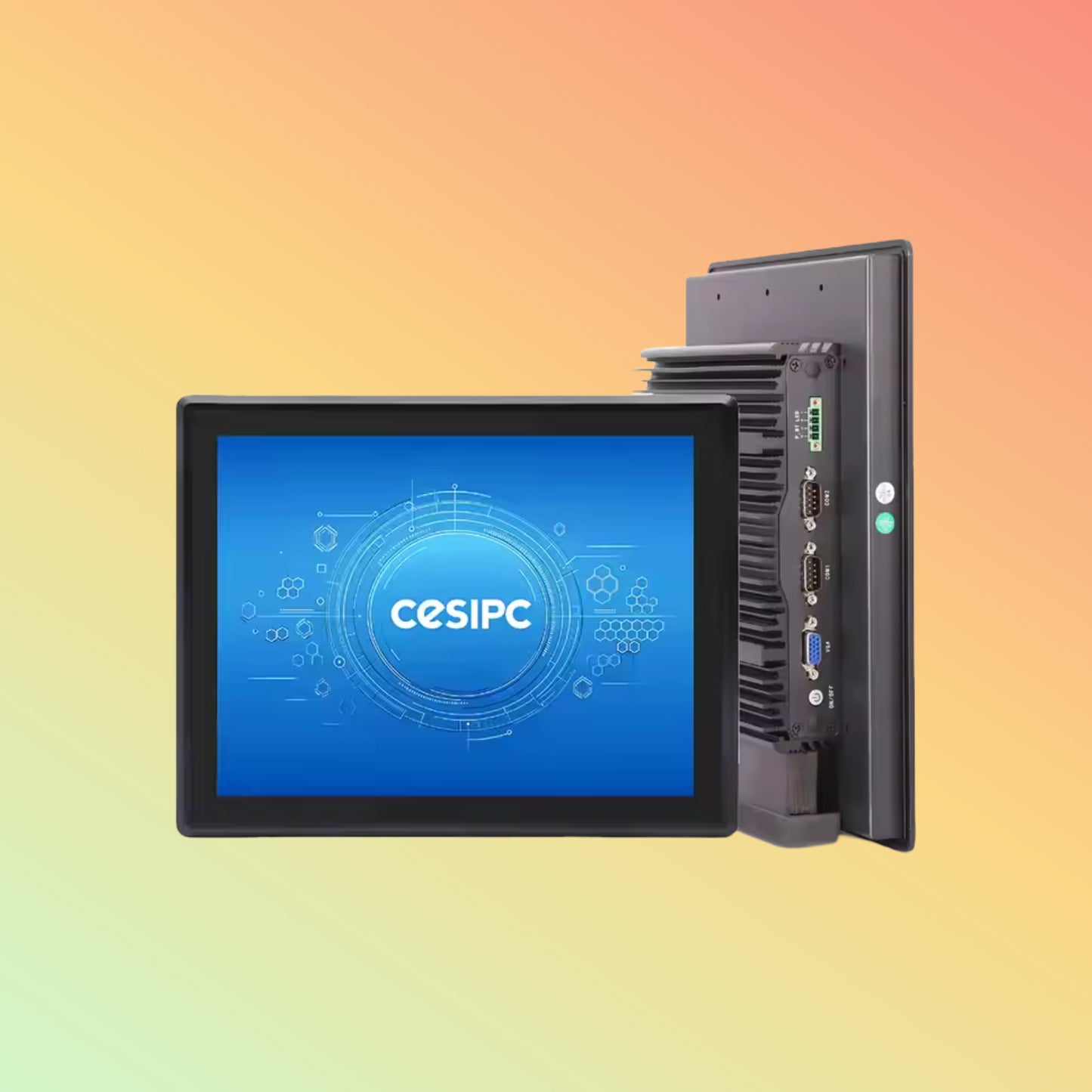

CESIPC’s IP65 Flat CNC Panel PC delivers seamless HMI for machine control, wash-down cells, and automation lines. Available in 10″, 12″ or 15″ sizes, choose Intel® J1900, Core™ i3 or i5. Dual touch modes (resistive & PCAP) and a sealed, fan-free chassis run Win10 IoT or Linux in harsh, dusty, or wet environments with zero maintenance.
Product Description
This all-in-one industrial computer integrates your choice of Intel® Celeron® J1900 (2.0 GHz), Core™ i3-10110U (2.1–4.1 GHz), or Core™ i5-10210U (1.6–4.2 GHz), paired with 4 GB–8 GB DDR4 and a 64 GB NVMe SSD (upgradeable). The true-flat 1280×800 (10″/12″) or 1920×1080 (15″) display toggles between 5-wire resistive touch for gloves and PCAP for multi-touch. IP65-rated die-cast aluminum housing, M12-sealed I/O (USB 3.0, GbE LAN, RS-232/485), HDMI, Wi-Fi/Bluetooth, and passive cooling ensure silent 24/7 uptime from –10 °C to +60 °C on 9–36 V DC.
Key Features
-
Dual-Mode Touch: 5-wire resistive + PCAP multi-touch
-
Size Options: 10″/12″ (1280×800), 15″ (1920×1080)
-
IP65 Fanless Chassis: wash-down & dust-proof, silent
-
CPU Choices: J1900 (2.0 GHz), i3-10110U, i5-10210U
-
Memory & Storage: 4–8 GB DDR4; 64 GB NVMe SSD (up to 512 GB)
-
M12-Sealed I/O: 2× USB 3.0, 1× GbE LAN, 1× RS-232/485
-
Video & Wireless: HDMI out; Wi-Fi 802.11ac & Bluetooth 5.0
-
Passive Cooling: zero moving parts, zero maintenance
-
Wide-Voltage Input: 9–36 V DC w/ surge & reverse-polarity protection
Specifications
| Feature |
Details |
| Display |
10″/12″ 1280×800 or 15″ 1920×1080 true-flat Resistive/PCAP |
| CPU |
J1900 (4C/4T, 2 GHz)
i3-10110U (2C/4T, 2.1–4.1 GHz)
i5-10210U (4C/8T, 1.6–4.2 GHz) |
| Memory |
4 GB–8 GB DDR4 |
| Storage |
64 GB NVMe SSD (upgradeable to 512 GB) |
| I/O Ports |
2× USB 3.0; 1× GbE LAN; 1× RS-232/485 (M12-sealed) |
| Video Out |
HDMI |
| Wireless |
Wi-Fi 802.11ac; Bluetooth 5.0 |
| Power Input |
9–36 V DC, surge & reverse-polarity protected |
| Protection |
IP65 front & full-body sealing |
| Operating Temp |
–10 °C to +60 °C |
| Mounting |
Panel-cut & VESA 75×75 mm brackets |
| Dimensions |
10″: 278×186×55 mm;
12″: 310×210×60 mm;
15″: 380×250×60 mm |
| Weight |
~2.2 kg (10″); ~2.8 kg (12″); ~4.5 kg (15″) |
Supported OS / Applications / Industries
-
OS: Windows 10 IoT, Linux (Ubuntu/Debian)
-
Use Cases: CNC HMI, SCADA control, wash-down stations
-
Industries: Manufacturing, automotive, food & beverage, robotics
Benefits & Compatibility
-
True-Flat UX: seamless resistive & capacitive touch under PPE
-
Zero-Maintenance: fanless design avoids clogging & noise
-
Wash-Down Rated: IP65 seals handle jets and sprays
-
CNC-Ready I/O: serial, USB, HDMI for legacy & modern devices
-
Flexible Mounting: panel or VESA, fits standard cutouts
Purpose of Use
Perfect as the operator interface on CNC machines, lathe stations, wash-down conveyors, and automated assembly lines—providing sealed, high-precision touch control for uptime-critical processes.
How to Use
-
Cut panel opening per supplied template
-
Mount with clamp brackets or VESA kit
-
Cable 9–36 V DC, network, USB/serial, and HDMI
-
Boot into Win10 IoT or Linux; launch your CNC/HMI software
-
Clean front with low-pressure spray—no fans to service
Warranty & FAQs
Warranty: 1 year standard; extensions to 3 years available.
FAQs:
After-Sales Support
24/7 remote diagnostics, firmware updates, and optional on-site service ensure continuous operation.
Get in Touch
Questions or custom configs? Email sales@neotech.ae for expert assistance.
Disclaimer
All specifications subject to change without notice. Images are illustrative—verify details with our sales team prior to deployment.
