Cardless NFC reader for Apple VAS & Google SmartTap. USB-based, compact & secure—ideal for kiosks, vending, ticketing & mobile loyalty apps.
✅ Overview
Unlock fast, contactless digital interactions with the WalletMate NFC Reader ACM1552U-ZW. Designed for seamless integration with Apple VAS and Google SmartTap, this USB module offers high-speed NFC communication for modern wallet-based user authentication.
Perfect for retail, loyalty programs, transportation terminals, and vending kiosks, this compact cardless NFC reader provides secure, fast, and future-ready performance.
✅ Product Description

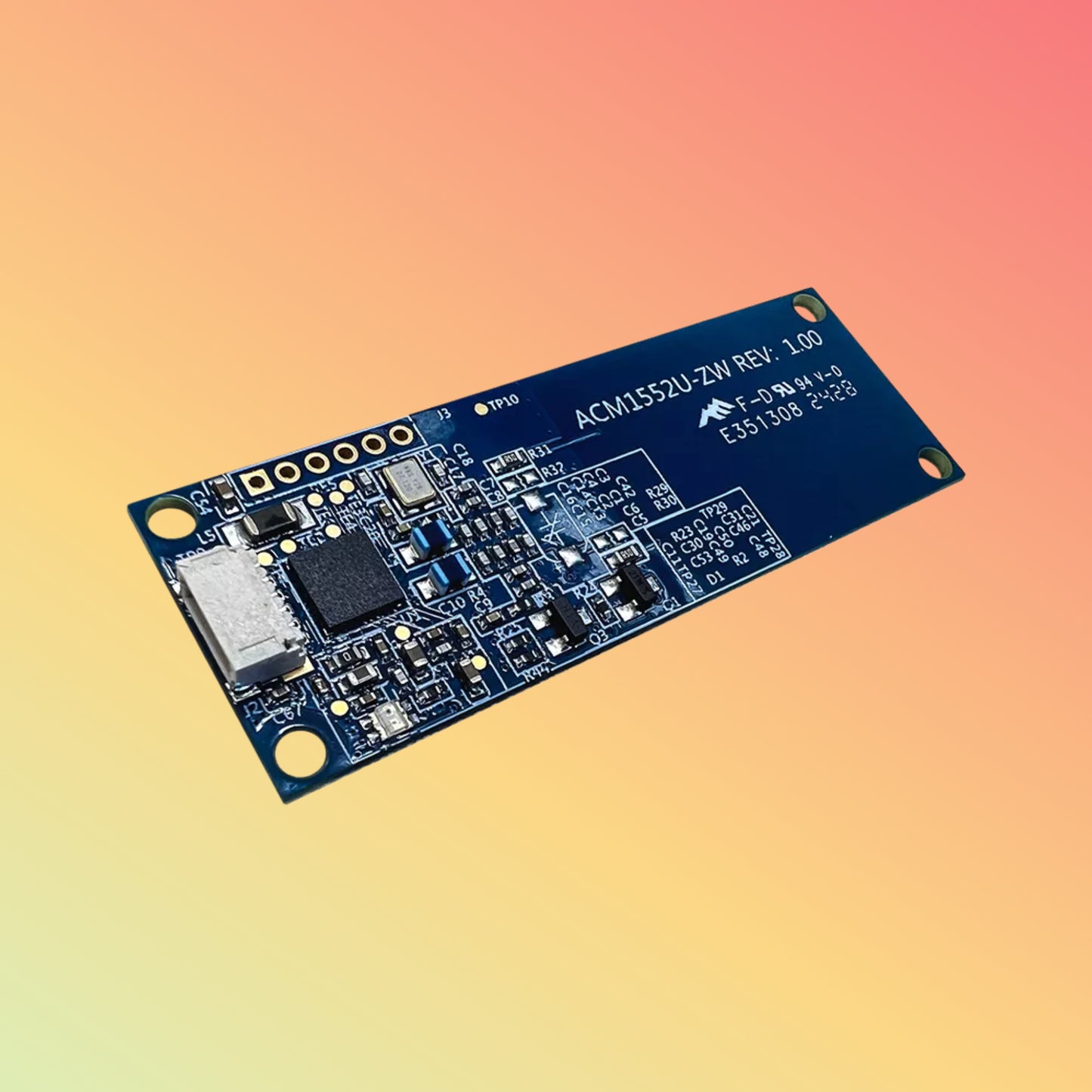

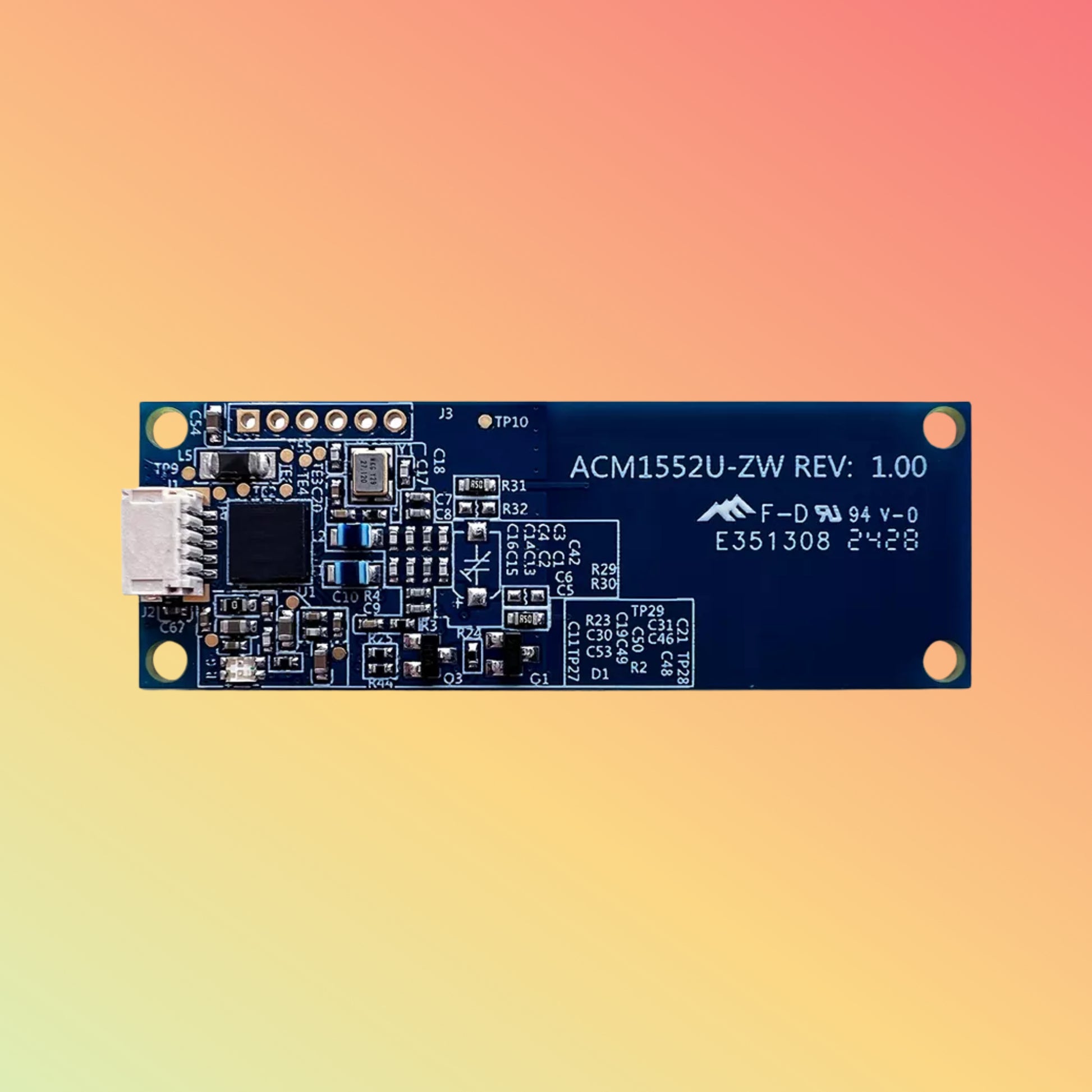

The WalletMate ACM1552U-ZW is a USB-powered contactless NFC module crafted for VAS wallet integration, allowing your systems to interact directly with Apple Wallet and Google Pay credentials—without the need for physical cards.
Built on the latest NFC Forum-compliant ISO14443 and ISO18092 protocols, it supports peer-to-peer communication, mobile pass validation, and ticketing from digital wallets—ideal for kiosk manufacturers, transport operators, and retailers aiming for digital transformation.
It also delivers strong encryption, ensuring secure and private exchanges with smartphones and wearables. With its compact form, it’s easily embedded into kiosks, terminals, or self-checkout systems.
✅ Key Features
-
Compatible with Apple VAS and Google SmartTap
-
Reads from iPhone, Android, NFC wearables
-
Supports MIFARE®, ISO14443A/B, Felica, and NFC P2P
-
High-speed data exchange via USB
-
Ideal for mobile loyalty, access control, and ticketing
-
Compact design for embedded systems
-
Enhanced security with AES/3DES encryption
✅ Specifications
-
Model: ACM1552U-ZW
-
Interface: USB 2.0 (Full Speed)
-
Frequency: 13.56 MHz
-
Supported Cards/Tech:
• Apple VAS (Wallet NFC)
• Google SmartTap
• ISO14443 Type A/B, Felica
• MIFARE Classic, DESFire
• ISO18092 NFC P2P
-
Baud Rate: Up to 424 Kbps
-
Operating Voltage: 5V DC
-
Operating Temp: -20°C to 60°C
-
Form Factor: Embedded PCB with connector
-
Certifications: CE, FCC, RoHS
✅ Supported OS / Applications / Industries
Compatible OS:
-
Windows 7/8/10/11
-
macOS
-
Linux
-
Android (via OTG)
Ideal For:
-
Digital loyalty programs
-
Transportation & transit systems
-
Smart kiosks & ticketing booths
-
Retail POS and vending
-
Event access control & e-ticket scanning
-
Hotels & smart check-in/out systems
✅ Benefits & Compatibility
-
Enables wallet-only access control—no physical card needed
-
Speeds up user flow in public venues
-
Easy integration with existing NFC infrastructures
-
Read capability from smartphones, wearables, smartwatches
-
Works across iOS and Android ecosystems
✅ Purpose of Use
Built for businesses adopting wallet-based access and verification, this module is essential for cashless, cardless check-in, ticket validation, and loyalty redemption in modern customer journeys.
✅ How to Use
-
Connect to a host system via USB
-
Embed into terminal or kiosk enclosure
-
Configure VAS SmartTap settings via SDK
-
Tap device with digital pass
-
Module authenticates and transmits data securely
SDKs are available for rapid integration with POS, app backends, or terminal software.
✅ Packaging / Weight / Dimension
-
Package Includes: NFC module, USB cable, installation manual
-
Unit Dimensions: 40mm x 40mm x 10mm
-
Weight: Approx. 25g
-
Shipping Weight: 80g with accessories
-
Package Type: Electrostatic-safe padded box
✅ Warranty and FAQs
Warranty: 1-Year Standard Warranty
FAQs:
Q1: Can it read NFC-enabled phone wallets?
✔ Yes. Supports both Apple VAS and Google SmartTap.
Q2: Is SDK provided?
✔ Yes. Includes API for easy developer integration.
Q3: Can I use it in outdoor kiosks?
✔ It works when protected in enclosures.
✅ Performance, Quality, Durability, and Reliability
Tested for continuous NFC interactions, this reader delivers low-latency responses, robust encryption, and consistent read performance across multiple NFC devices. Ideal for 24/7 unattended systems.
✅ Best Price Guarantee
Get the best deal in the UAE on this WalletMate NFC Reader. If you find it for less, we’ll match the price. Guaranteed savings with trusted quality.
✅ Shop Today & Receive Your Delivery Across the UAE!
We ship fast to Dubai, Abu Dhabi, Sharjah, and all Emirates. Rely on NEOTECH for quick, secure delivery of smart access control tech.
✅ Request for Customer Reviews and Testimonials
Using this NFC module in your smart solution? Drop us a quick review or testimonial to help others discover smarter access and interaction solutions.
✅ After Sales Support
NEOTECH provides dedicated after-sales service including email, chat, and phone support for troubleshooting and system integration guidance.
✅ Get in Touch
Have a project using SmartTap or Apple VAS? Let’s talk. Our team is here to help with product questions, SDK access, or volume pricing.
✅ Stock Availability
Available in stock. For bulk or custom integration projects, please confirm availability with our sales team before finalizing your order.
✅ Disclaimer
Product visuals are for reference only. Specs and availability may change without notice. Please confirm all technical and application details with NEOTECH prior to purchase.
