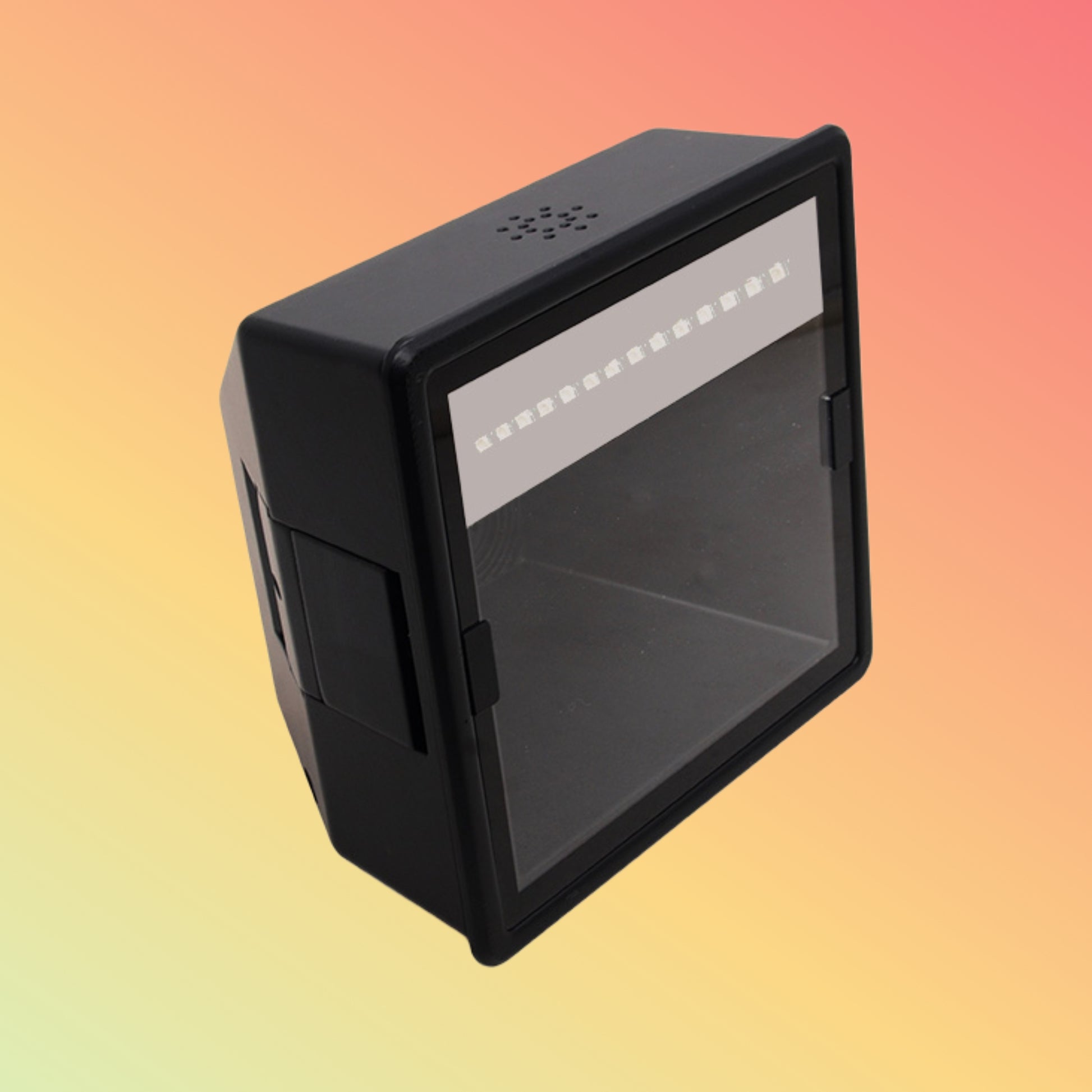

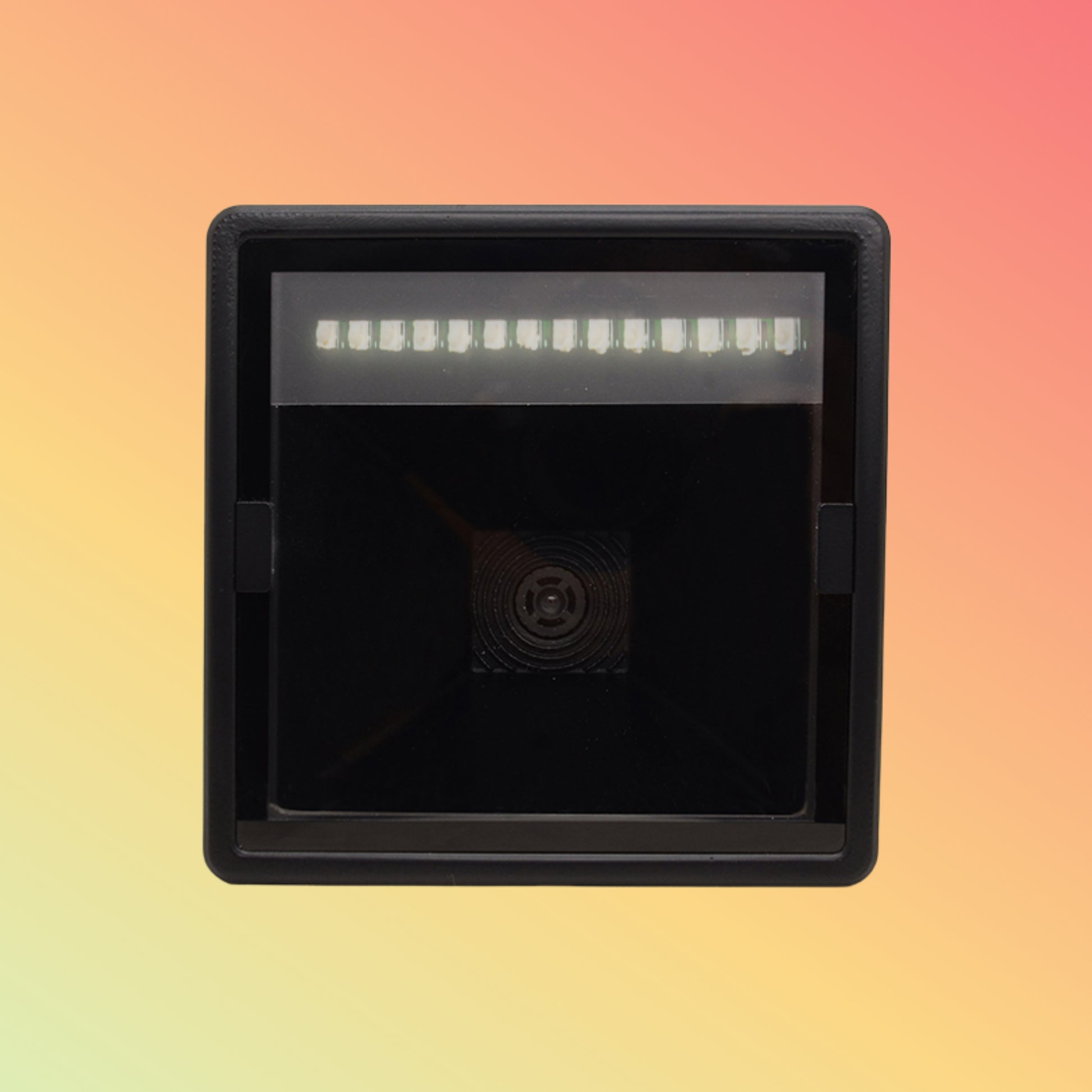

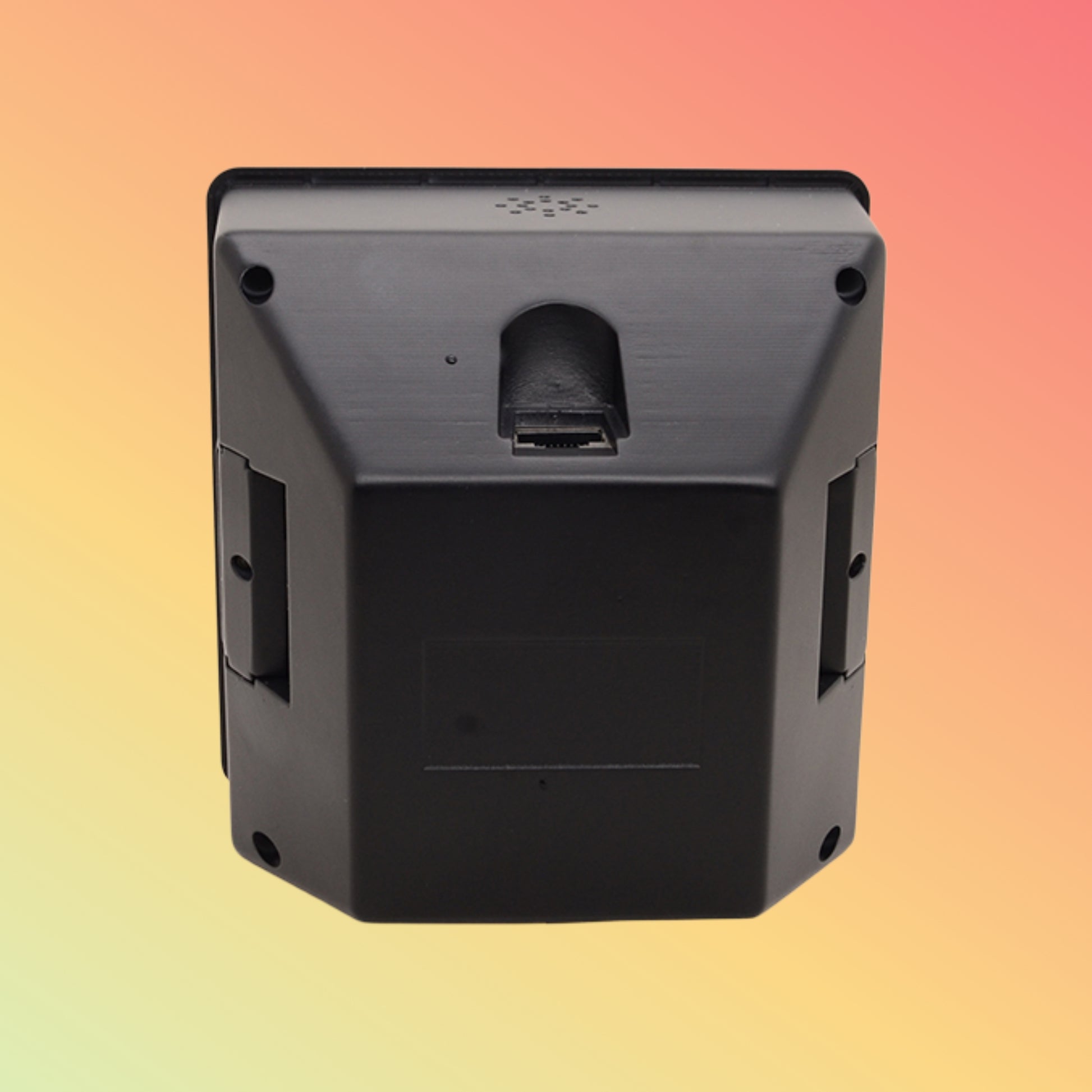

KS700H embedded 2D scanner—instant omni-directional QR/1D reads, USB/TTL interface, glass-through capable. Perfect for kiosks & ATMs.
Overview
Supercharge your kiosk or ATM with the Luckydoor KS700H—an ultra-compact module that reads 1D & 2D codes (QR, Data Matrix, PDF417) at any angle. Its high-sensitivity CMOS sensor and omni-directional optics deliver lightning-fast scans up to 120 scans/sec, even through up to 3 mm of glass. With plug-and-play USB HID, USB CDC or TTL serial, it integrates into any self-service hardware in seconds.
Product Description
The KS700H is built for harsh kiosk environments. Its embedded firmware decodes on-board—no host CPU needed. Mount it behind a protective window; its optics penetrate through glass and plastic. The small 50×30×15 mm footprint fits tight bezels, while the sealed design resists dust and splashes. Whether you’re vending tickets, dispensing cash, or validating IDs, the KS700H keeps your service frictionless.
Key Features
-
1D & 2D support: UPC/EAN, Code 128, QR, PDF417, Data Matrix
-
Omni-directional scan: no target alignment required
-
Glass-through: reads through up to 3 mm thickness
-
Fast decode: up to 120 scans/sec via CMOS
-
Interfaces: USB HID, USB CDC (virtual COM), TTL serial
-
Embedded decode: on-board firmware, no external drivers
-
Sealed module: dust- and splash-resistant (IP54)
-
Compact: 50×30×15 mm, 20 g
Specifications
| Parameter |
Details |
| Model |
KS700H |
| Sensor |
640×480 CMOS |
| Decode Rate |
120 scans/sec |
| Codes Supported |
1D: UPC/EAN, Code39/128, ITF; 2D: QR, PDF417, Data Matrix |
| Interfaces |
USB HID, USB CDC (virtual COM), TTL |
| Power |
5 V DC |
| Read Range |
10 mm–150 mm (code-dependent) |
| Window Thickness |
Up to 3 mm glass/plastic |
| Indicators |
Beeper (≥ 80 dB), LED (power/scan) |
| Operating Temp. |
0 °C–50 °C |
| Storage Temp. |
–20 °C–70 °C |
| Dimensions (L×W×H) |
50×30×15 mm |
| Weight |
20 g |
Supported OS / Applications / Industries
-
OS: Windows, Linux, Android, iOS (USB HID)
-
Apps: Kiosk firmware, POS systems, ticketing terminals
-
Industries: Banking, Retail, Transportation, Hospitality, Self-Service
Benefits & Compatibility
-
Invisible embed—mount behind glass or plastic
-
Angle-free scanning—boosts throughput at self-service points
-
Plug-and-play—HID or COM for instant integration
-
Offloads host CPU with on-board decode
-
Rugged & sealed—built for 24/7 public use
Purpose of Use
Perfect for ATMs, check-in kiosks, ticket dispensers, vending machines, and any self-service terminal where space, speed, and reliability are critical.
How to Use
-
Mount KS700H behind bezel or window
-
Connect 5 V DC power and data interface (USB or TTL)
-
Configure interface via onboard jumpers or config barcodes
-
Point device at code—no trigger needed
-
Data streams into your application instantly
Packaging / Weight / Dimension
Warranty & FAQs
-
Warranty: 1-year limited
-
FAQs
-
Q: Can it scan through plastic or glass?
A: Yes—up to 3 mm thickness.
-
Q: How do I switch interfaces?
A: Use on-board jumpers or scan the config barcode sheet.
-
Q: Does it handle low-contrast codes?
A: Yep—built-in exposure and image tuning.
Performance, Quality, Durability & Reliability
Rated IP54, the KS700H resists dust and light splashes. With an MTBF ≥ 15 000 hrs and industrial-grade optics, it delivers consistent, high-quality reads in demanding public environments.
Best Price Guarantee
Found a lower price on the same spec module? NEOTECH will match it—no drama.
Shop Today & Receive Your Delivery Across the UAE!
Order the KS700H now for express shipping to Dubai, Abu Dhabi, Sharjah, and beyond. Keep your kiosks online 24/7.
Request for Customer Reviews & Testimonials
Installed KS700H? Drop a quick review to help other integrators choose the best embed scanner.
After-Sales Support
Need integration tips or troubleshooting? Our UAE support team is one call or email away. If remote help can’t fix it, we’ll guide you through a smooth RMA.
Get in Touch
For bulk quotes, custom firmware, or SDK integration, contact NEOTECH’s engineers for samples, demos, and pro advice.
Stock Availability
Check live inventory with our sales team before ordering—lead times may vary for custom configurations.
Disclaimer
Specs, pricing, and availability are subject to change without notice. Images are illustrative; actual module may vary. Verify details with NEOTECH before purchase.
