M140 M.2 NVMe PCIe Gen3 SSD—3,500 MB/s read, 2,500 MB/s write, 256 GB/512 GB/1 TB, DRAM-less, low-power. Shop at NEOTECH.
Overview

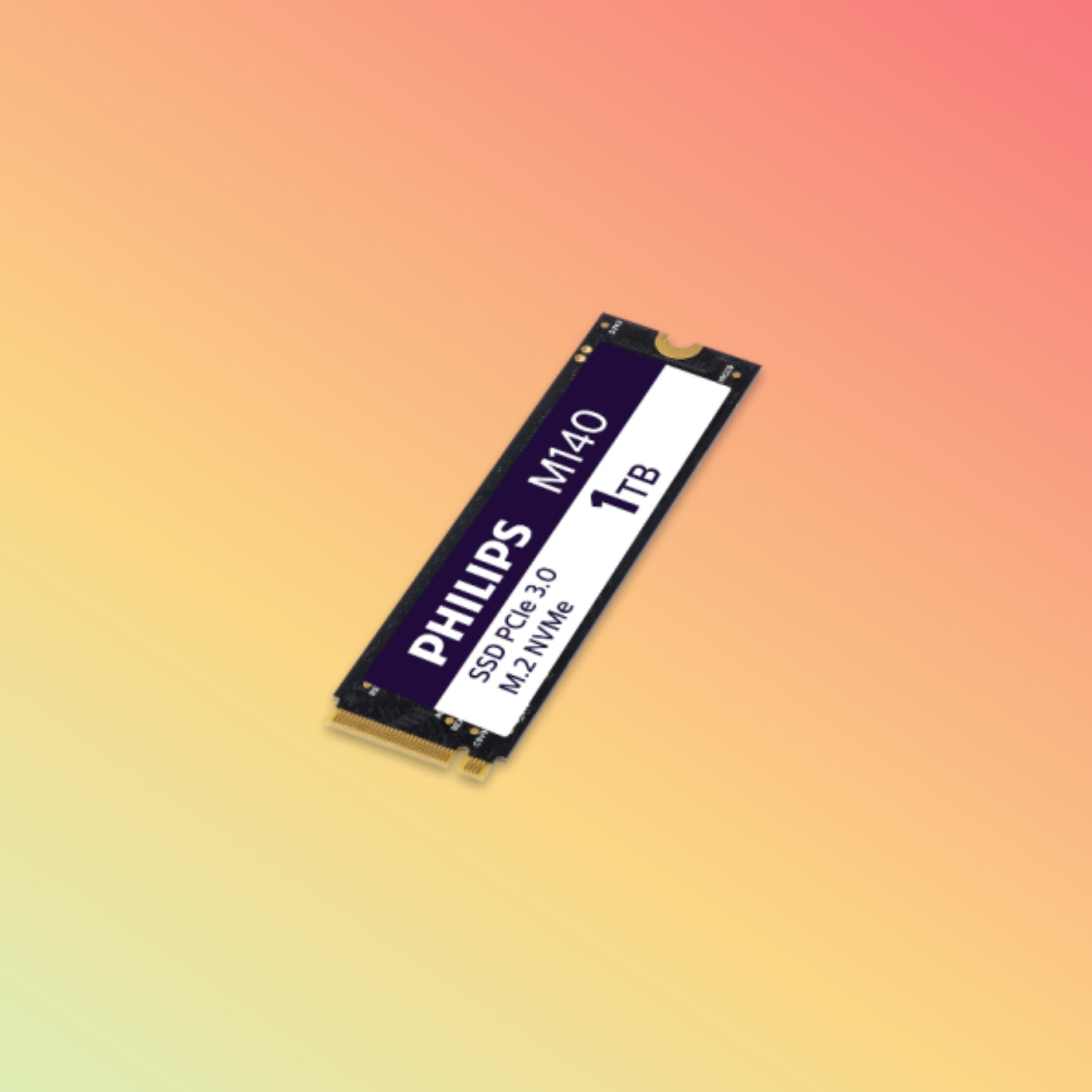

Level up boot times and app loads with the Philips M140. This M.2 2280 NVMe drive taps PCIe Gen3×4 lanes for up to 3,500 MB/s sequential read and 2,500 MB/s write. Available in 256 GB, 512 GB, or 1 TB, it’s DRAM-less with SLC caching and ultra-low idle power—ideal for laptops, desktops, and gaming rigs.
Product Description
The M140 features 3D NAND flash and a high-efficiency controller in an M.2 2280 form factor. Thanks to its DRAM-less design with onboard SLC cache, it slashes random read/write latency for snappy responsiveness while sipping just 5 mW idle power. Supports SMART, TRIM, and LDPC error correction for reliability and endurance up to 600 TBW (1 TB model).
Key Features
-
PCIe Gen3×4 NVMe 1.3 interface
-
Sequential read: up to 3,500 MB/s
-
Sequential write: up to 2,500 MB/s
-
Capacities: 256 GB, 512 GB, 1 TB
-
DRAM-less with SLC caching for low latency
-
Low idle power: ~5 mW in DEVSLP mode
-
Endurance: up to 600 TBW (1 TB)
-
Features: SMART, TRIM, LDPC ECC
Specifications
| Parameter |
Details |
| Model |
PH-M140 |
| Form Factor |
M.2 2280 |
| Interface |
PCIe Gen3×4, NVMe 1.3 |
| Read Speed |
Up to 3,500 MB/s |
| Write Speed |
Up to 2,500 MB/s |
| NAND |
3D TLC with SLC cache |
| DRAM |
DRAM-less |
| Capacities |
256 GB, 512 GB, 1 TB |
| Endurance (TBW) |
150 TBW (256 GB), 300 TBW (512 GB), 600 TBW (1 TB) |
| Idle Power |
~5 mW (DEVSLP) |
| Operating Temp. |
0 °C–70 °C |
| Dimensions |
80 × 22 × 2.3 mm |
| Warranty |
5 years |
Supported OS / Applications
-
OS: Windows 7+, macOS 10.12+, Linux kernel 4.4+
-
Use Cases: OS boot drive, application load, gaming, content creation, light server
Benefits & Compatibility
-
Extreme speeds cut load times
-
Low power extends laptop battery life
-
Compact M.2 fits ultrabooks & desktops
-
High endurance for heavy workloads
-
Plug-and-play—no heatsink required
Purpose of Use
Perfect for upgrading system drives in ultrabooks, desktops, workstations, and entry-level servers where speed and efficiency matter.
How to Use
-
Power off your PC or laptop and open the M.2 slot cover
-
Insert the M140 into the M.2 2280 slot at 30°
-
Fasten with the mounting screw
-
Boot into BIOS to confirm detection
-
Install your OS or clone your old drive
Packaging / Weight / Dimensions
-
Includes: Philips M140 SSD, M.2 screw, Quick Start guide
-
Dimensions: 80 × 22 × 2.3 mm
-
Weight: ~8 g
Warranty & FAQs
-
Warranty: 5-year limited
-
FAQs:
-
Q: Do I need a heatsink?
A: No—the DRAM-less design runs cool.
-
Q: Can I use in PS5?
A: No—PS5 requires Gen4. Use in PC or laptop.
-
Q: Does it support encryption?
A: Supports host-based TCG Opal 2.0.
Performance, Quality & Reliability
Tested under JEDEC standards for shock, vibration, and MTBF ≥ 1.5 million hours. LDPC ECC ensures data integrity for years of heavy use.
Best Price Guarantee
Spotted a lower price on an equivalent NVMe SSD? NEOTECH will match it—no drama.
Shop Today & Delivery Across the UAE!
Order your M140 now for express shipping to Dubai, Abu Dhabi, Sharjah, Ajman & beyond. Track in real time.
Customer Reviews & Testimonials
Upgraded your rig? Drop a quick review on our site and help others speed up.
After-Sales Support
Need firmware, installation help, or diagnostics? Our UAE support team is a call or email away. We’ll guide you through any RMA as needed.
Get in Touch
For bulk orders, custom branding, or integration advice, contact our sales team for samples, quotes & pro tips.
Stock Availability
Confirm live inventory with our sales team before ordering—high capacities may have lead times.
Disclaimer
Specs, pricing, and availability subject to change without notice. Images are illustrative; actual product may vary. Always verify details with NEOTECH before purchase.
