KP22 ATM kiosk printer module—fast 200 mm/s thermal printing, 80 mm roll, RS232/USB/LAN. Compact, reliable engine for 24/7 self-service.
Overview

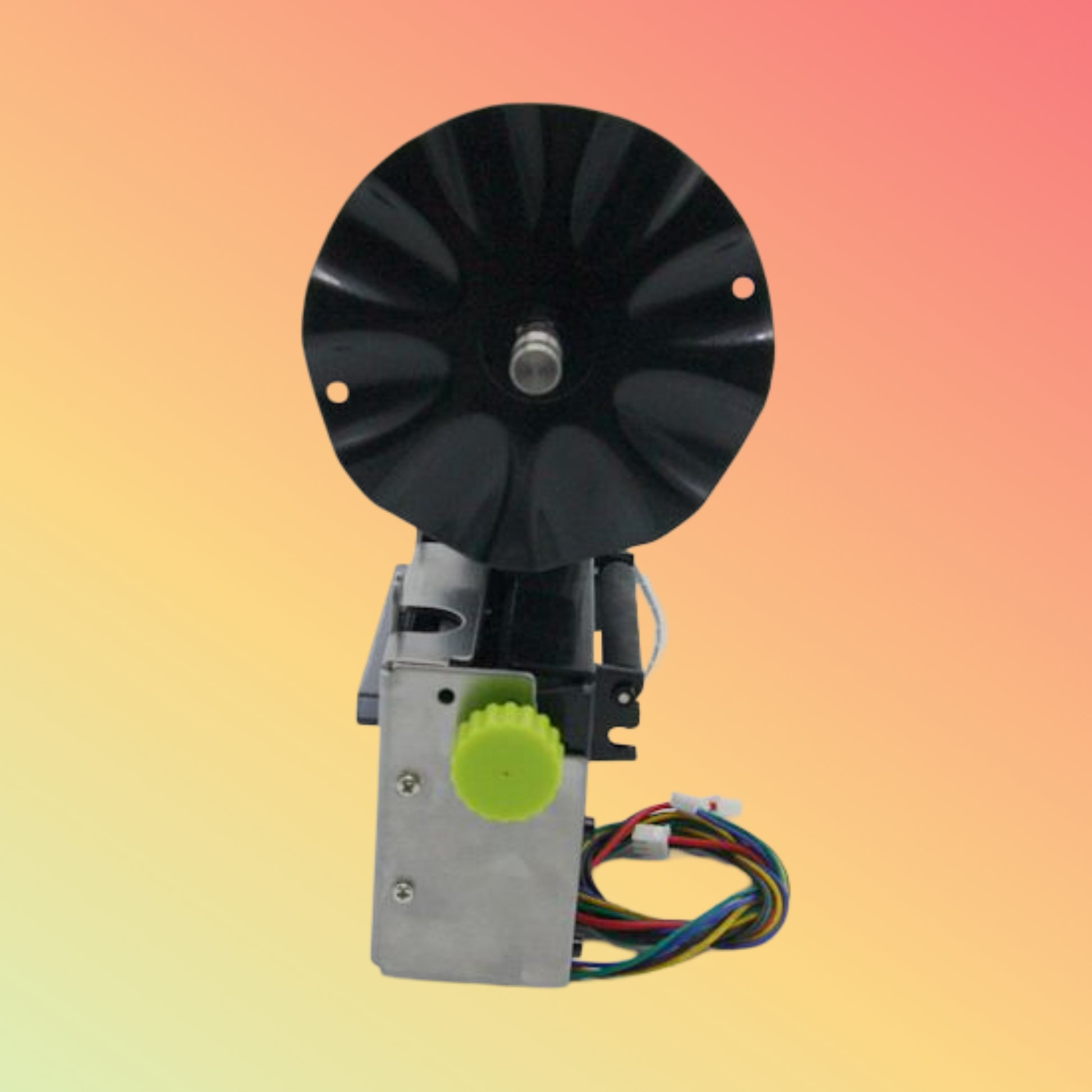

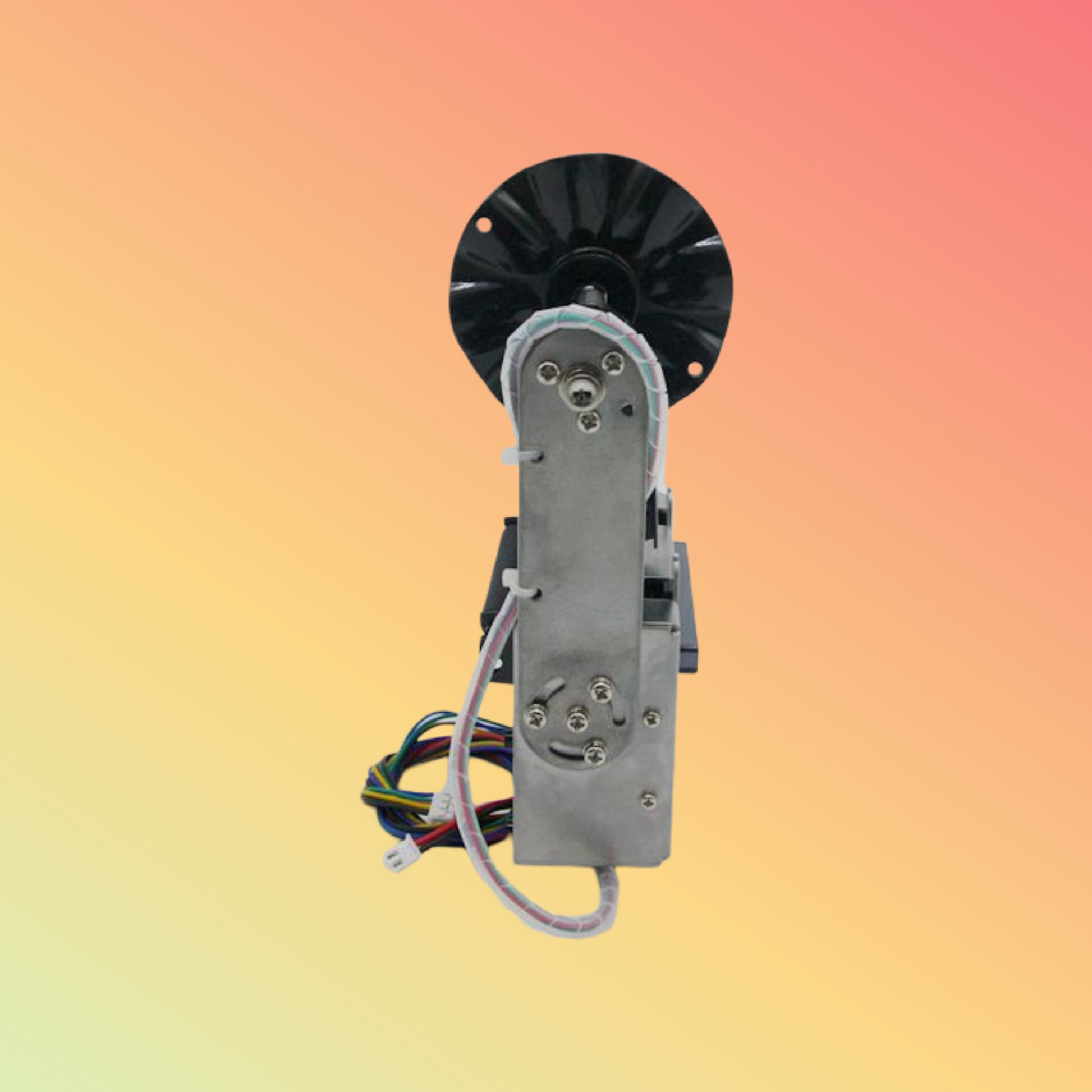

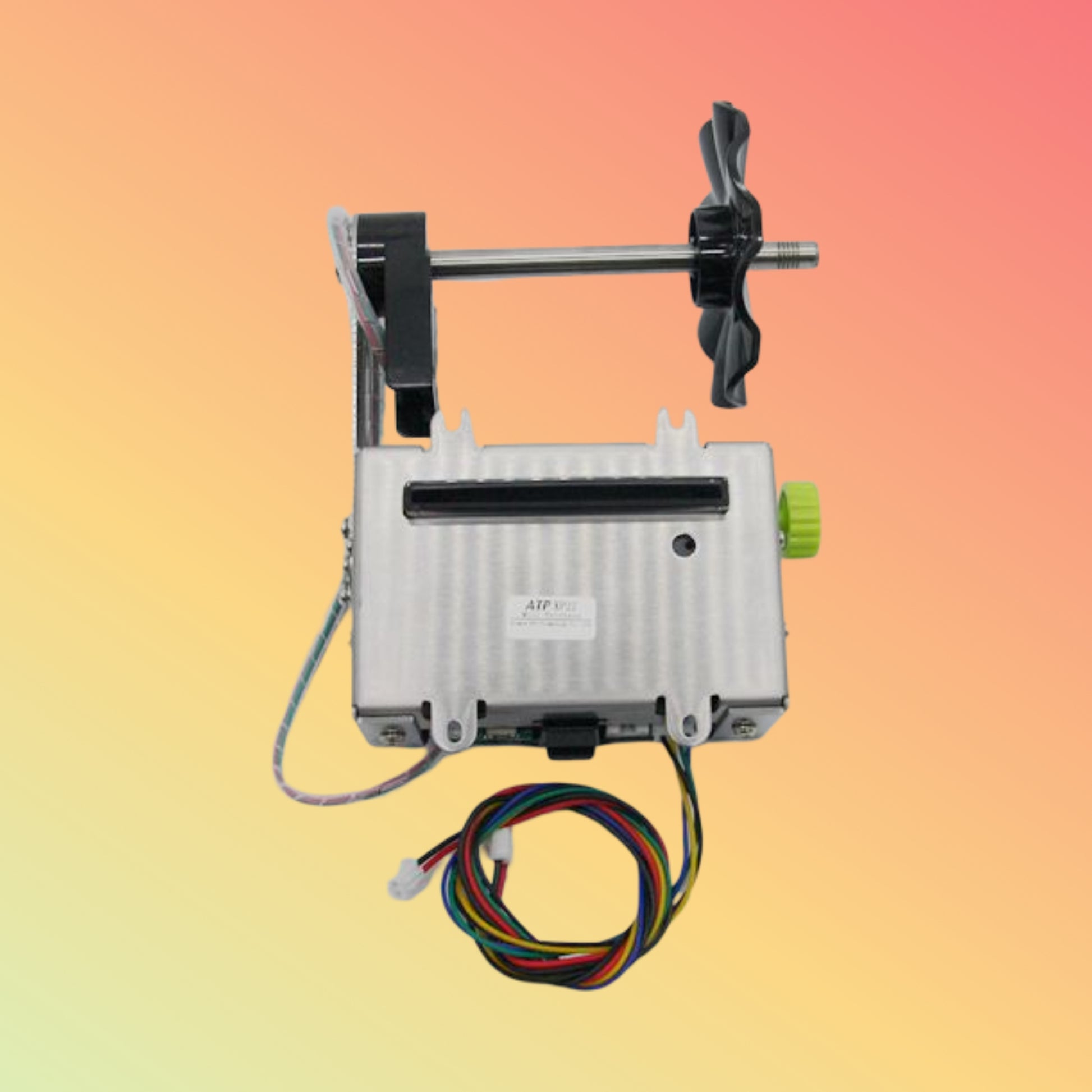

Give your ATM or kiosk a power boost with the NEOTECH KP22 Printer Module. This direct-thermal print engine spits out receipts, vouchers, and tickets at 200 mm/s on 80 mm paper. With RS232, USB and optional LAN interfaces, it snaps into any self-service setup. Its metal frame and jam-free path deliver round-the-clock uptime in banking, transit, retail, and more.
Product Description
The KP22 is engineered for relentless, high-volume duty. It handles standard 80 mm rolls on a 12.7 mm core, prints crisp 203 dpi text, barcodes, and logos, and offers full- or partial-cut auto-cutter options. Its industrial motor and precision rollers minimize jams and maintenance, while an MTBF rated at ≥ 25,000 hours means your kiosks stay online.
Key Features
-
Direct-thermal printing at up to 200 mm/s
-
80 mm paper width on 12.7 mm core
-
203 dpi resolution for sharp output
-
RS232, USB 2.0 & optional Ethernet ports
-
Full-cut or partial-cut auto-cutter
-
Metal chassis with ≥ 25,000 hr MTBF
-
Jam-free paper path with precision rollers
-
Compact, 200 × 120 × 100 mm footprint
Specifications
| Parameter |
Details |
| Model |
KP22 |
| Print Speed |
Up to 200 mm/s |
| Resolution |
203 dpi |
| Paper Width |
80 mm |
| Core Diameter |
12.7 mm (0.5″) |
| Interfaces |
RS232, USB 2.0, Ethernet (opt) |
| Cutter Options |
Full-cut / Partial-cut |
| MTBF |
≥ 25,000 hours |
| Operating Temp. |
0 °C – 50 °C |
| Storage Temp. |
– 20 °C – 60 °C |
| Dimensions (L×W×H) |
200 × 120 × 100 mm |
| Weight |
1.15 kg |
Supported OS / Applications / Industries
-
OS: Windows, Linux, Android (via SDK)
-
Apps: ATM firmware, kiosk software, POS terminals
-
Industries: Banking, Ticketing, Retail, Vending, Transportation
Benefits & Compatibility
-
Plug-and-play with standard self-service controllers
-
Low upkeep thanks to jam-free design
-
High uptime driven by industrial MTBF
-
Clean cuts via auto-cutter options
-
Small footprint fits tight enclosures
Purpose of Use
Built for 24/7 self-service: ATMs, ticketing kiosks, payment booths, vending machines, parking terminals.
How to Use
-
Mount KP22 inside your kiosk chassis
-
Connect RS232, USB, or Ethernet to host
-
Load an 80 mm thermal roll (12.7 mm core)
-
Configure via SDK/driver settings
-
Power on and run a test print
-
Replace cutter blade per maintenance guide
Packaging / Weight / Dimension
-
Includes: KP22 module, interface cables, mounting kit, user manual
-
Module size: 200 × 120 × 100 mm
-
Module weight: 1.15 kg
-
Package weight: ~1.5 kg
Warranty & FAQs
Performance, Quality, Durability & Reliability
With a 25,000-hour MTBF and precision print head, KP22 delivers consistent, high-quality output even under heavy use. Its metal housing and reinforced gears stand up to harsh kiosk environments.
Best Price Guarantee
Found a lower price on the same spec module? NEOTECH will match it—no hassle.
Shop Today & Receive Your Delivery Across the UAE!
Order KP22 now for express shipping to Dubai, Abu Dhabi, Sharjah, and beyond. Keep your kiosks running without pause.
Request for Customer Reviews & Testimonials
Installed KP22? Drop a quick review and share how it’s powering your self-service apps.
After-Sales Support
Our UAE support team is on call via phone, email, or live chat. We’ll help with integration, troubleshooting, and RMA if needed.
Get in Touch
Bulk quotes, SDK access, or custom firmware? Contact NEOTECH’s engineers for samples, demos, and pro tips.
Stock Availability
Check live inventory with our sales team before ordering—custom cutter or firmware options may affect lead times.
Disclaimer
Specs, pricing, and availability are subject to change without notice. Images are illustrative; actual module may vary. Verify all details before purchase.
