Compact Elo PayPoint® Plus Android Rev B POS: 15″ touchscreen, EMV, MSR, NFC, Android 11, fanless, PoE+. Order UAE-wide.
Overview

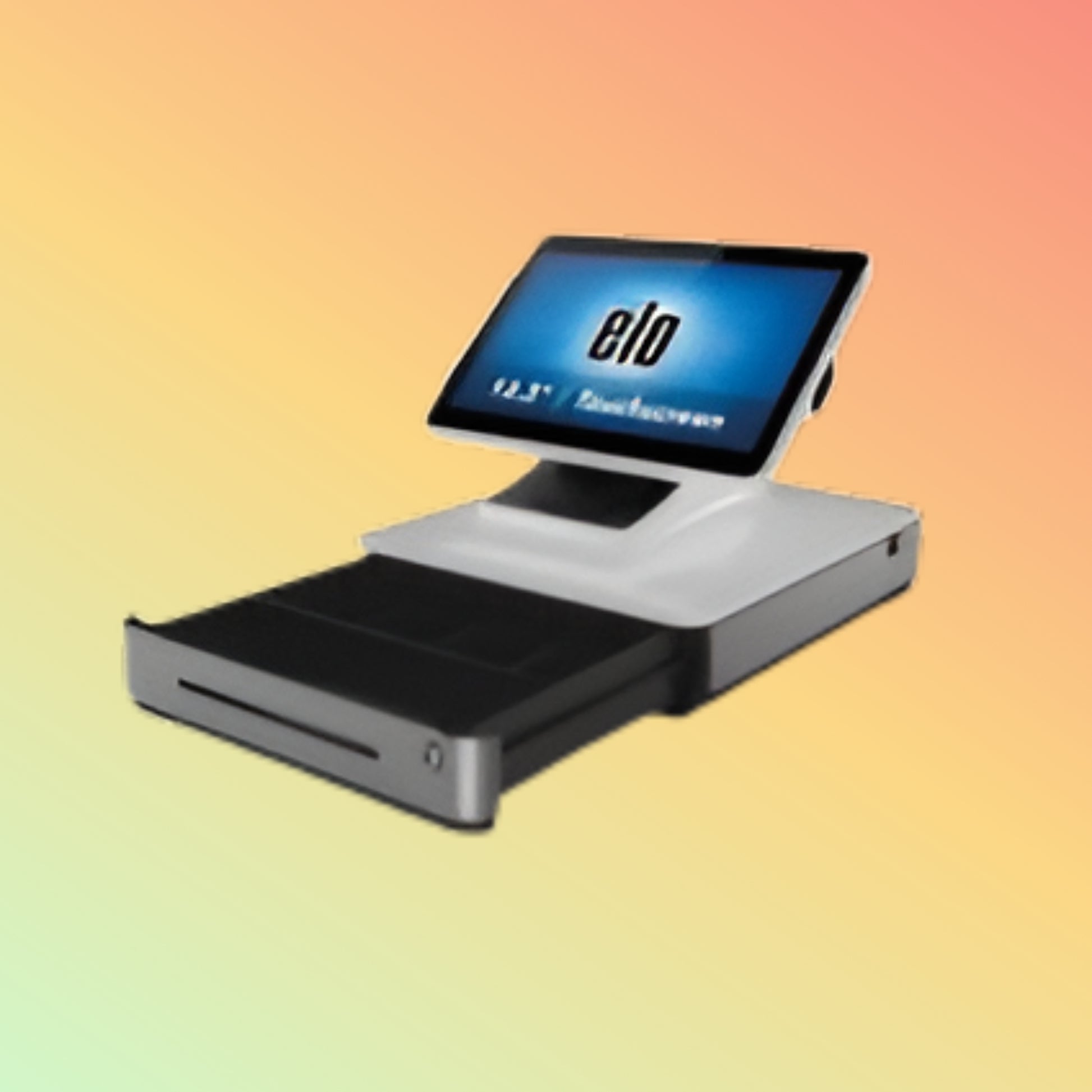

Elo PayPoint® Plus Android Rev B is a sleek, all-in-one POS terminal built for modern checkout. It packs a 15″ PCAP touchscreen, Android 11 platform, integrated EMV PIN pad, 3-track MSR and NFC reader into a fanless chassis. PoE+ capability and VESA-mount versatility streamline deployment. It’s silent, robust and ready for pop-up retail, F&B and hospitality.
Product Description
This Rev B edition boots in seconds on Android 11, powered by an octa-core ARM CPU. A hot-swap battery option extends mobile check-out, while dual-band Wi-Fi, Bluetooth 5.2 and optional LTE keep you connected. The built-in 80 mm thermal printer prints receipts at 203 dpi. Drop-in paper loading and tool-free access simplify maintenance. Elo’s POS SDK enables rapid app integration, so you’ll be live in minutes.
Key Features
-
15″ PCAP Touchscreen: True-flat glass, 10-point multi-touch
-
Android 11 OS: Secure, familiar interface with Elo POS SDK
-
Integrated Payments: EMV PIN pad, ISO 3-track MSR, NFC contactless
-
All-in-One Printing: 80 mm thermal printer, jam-resistant design
-
Fanless, Dust-Proof: Silent operation, minimal maintenance
-
Connectivity: PoE+ or DC 12 V, Wi-Fi 5, BT 5.2, optional LTE Cat 4
-
Battery: 7 000 mAh hot-swappable Li-Ion pack for full-shift uptime
-
Mounting: VESA 75×75 mm or countertop—flexible setup
Specifications
| Spec |
Detail |
| OS |
Android 11 |
| CPU |
8× ARM Cortex-A53 @ 1.8 GHz |
| RAM |
2 GB LPDDR4 |
| Storage |
32 GB eMMC; microSD up to 128 GB |
| Display |
15″ FHD (1920×1080), PCAP, 10-point touch |
| Printer |
80 mm direct-thermal, 203 dpi |
| MSR |
ISO 3-track, encrypted option |
| NFC |
EMV-certified contactless (PayWave, payPASS, etc.) |
| Wireless |
Wi-Fi 5 (802.11ac), Bluetooth 5.2, LTE Cat 4 (opt.) |
| Battery |
7 000 mAh hot-swap, 8 h active use |
| Ports |
USB-C, optional Ethernet dock, audio jack |
| Security |
ARM TrustZone, TPM 2.0, PCI PTS 5.x |
| Dimensions |
360×240×40 mm |
| Weight |
~1.8 kg (with battery) |
Supported OS / Applications / Industries
-
OS: Android 11 (upgradeable)
-
Applications: Mobile POS, table-ordering, queue busting, field sales
-
Industries: Retail pop-up, quick-service restaurants, hospitality, events
Benefits & Compatibility
-
Mobile-First Design: Hot-swap battery + LTE option = true portability
-
All-in-One Checkout: EMV, mag-stripe & contactless on single device
-
Silent & Clean: Fanless for quiet, dust-free service areas
-
Plug-and-Play: PoE+ power/data over one cable, VESA mount ready
-
Developer Tools: Elo POS SDK & APIs for seamless app integration
Purpose of Use
Perfect for dynamic retail and hospitality workflows—table-side service, curbside pickup or pop-up checkout where speed, reliability and mobility matter most.
How to Use
-
Charge & Power: Insert battery or connect PoE+ dock.
-
Network Setup: Join Wi-Fi or insert SIM for LTE.
-
Configure OS: Complete Android setup and lock to POS app.
-
Load Paper: Drop in thermal roll—no tools needed.
-
Process Payments: Swipe, chip or tap; print receipt and go.
Goofy Tip: When your battery’s low, swap it mid-shift—no reboot, no stress.
Packaging / Weight / Dimensions
-
Includes: PayPoint Plus unit, battery, USB-C cable, quick-start guide
-
Package Dimensions: 400×300×120 mm
-
Package Weight: ~2.5 kg
Warranty and FAQs
Warranty: 1 year hardware; optional 3 year upgrade
FAQs:
Performance, Quality, Durability, and Reliability
Drop-resistant to 1.2 m and IP42 splash-proof, PayPoint Plus keeps churning transactions in harsh environments. Thermal module runs cool under marathon print jobs.
