High-res 500 DPI fingerprint module with USB & UART. Fast 0.2 s scan, HID/TTL output, IP54. Plug, play, deploy. Shop HFP-288 UAE now!
✅ Overview
Boost your device’s security with NEOTECH’s HFP-288—a slick 500 DPI fingerprint scanner module that snaps crystal-clear prints in under 0.2 seconds. With both USB-HID and UART/TTL outputs, it fits seamlessly into kiosks, controllers, or embedded systems. Its IP54 casing handles dust and splashes, so it stays reliable in any setting.
✅ Product Description

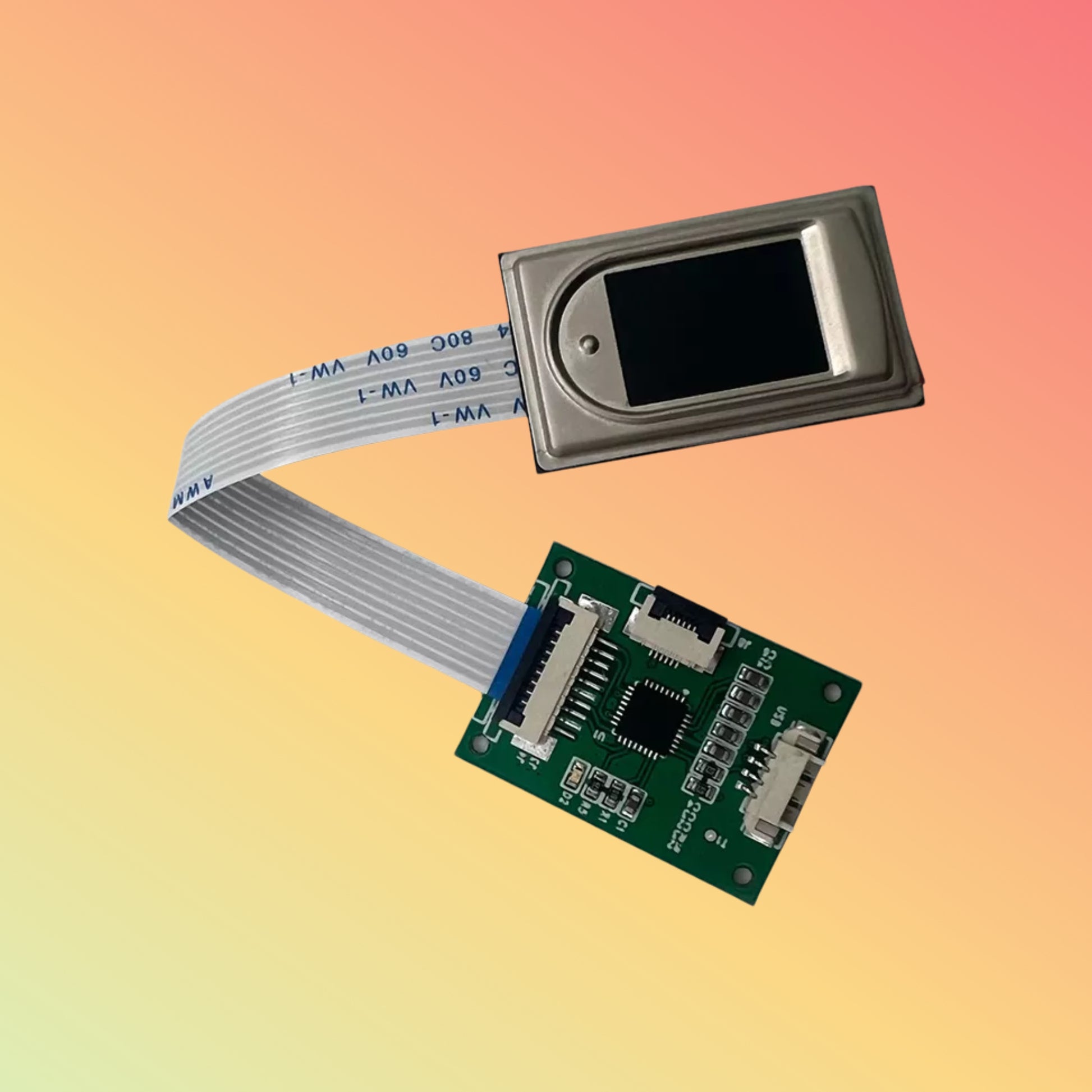

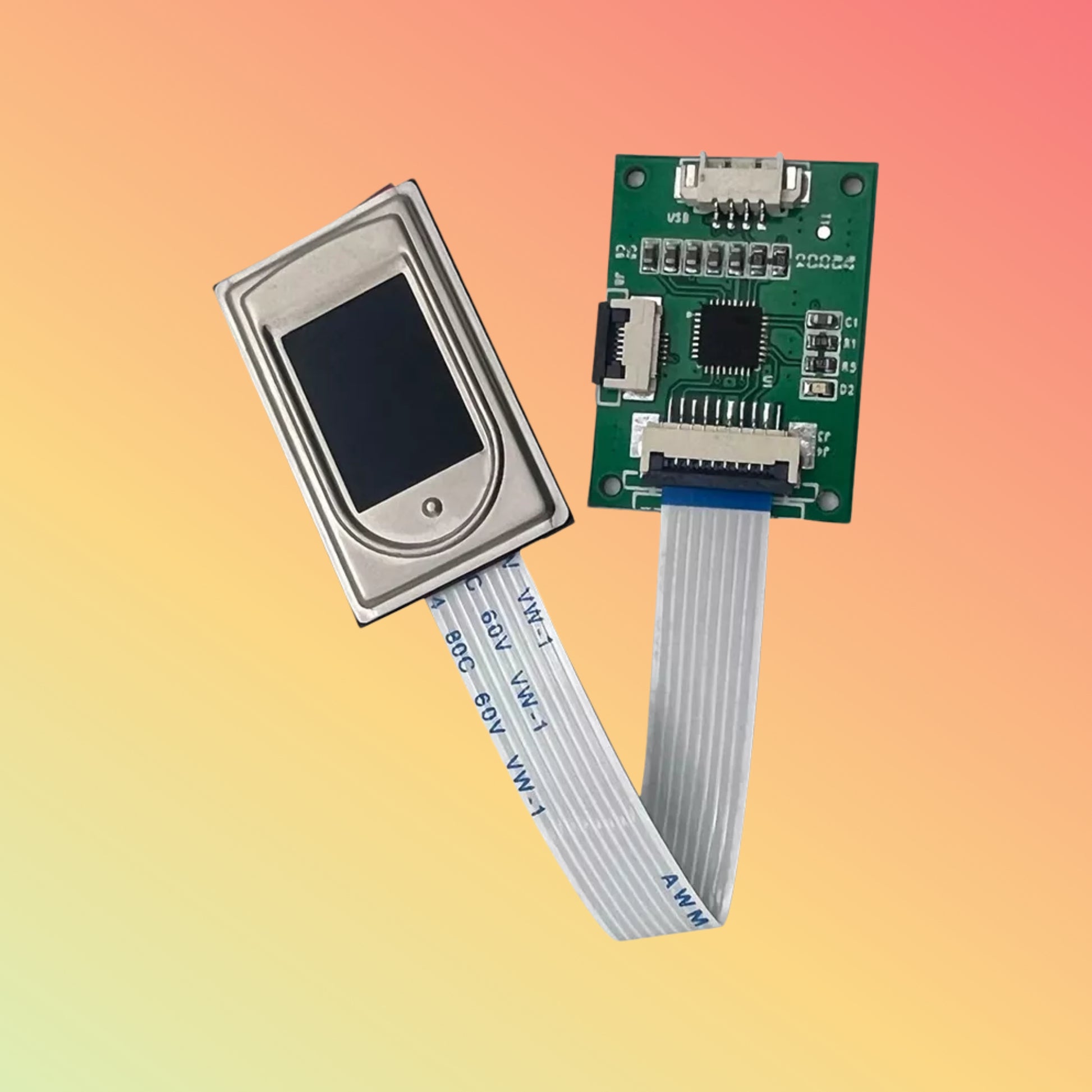

HFP-288 packs a high-precision optical sensor and onboard processor into a compact PCB module. It delivers rapid, accurate fingerprint captures—even on worn or dry prints. Choose USB-HID for driver-free PC integration or UART/TTL for microcontroller projects. An easy-to-read LED confirms each scan, while its rugged housing endures daily use. Ideal for time-attendance terminals, secure door locks, or any device needing biometric auth.
✅ Key Features
-
500 DPI Optical Sensor for ultra-sharp fingerprint images
-
Fast Scan: < 0.2 s capture time
-
Dual Interface: USB 2.0 HID & UART/TTL serial output
-
Embedded Processor: On-board template generation
-
IP54 Housing: Dust-proof and splash-resistant
-
LED Indicator: Instant success/fail feedback
-
Mountable PCB: Easy integration into custom hardware
-
Low Power: Ideal for battery-powered devices
✅ Specifications
-
Sensor Resolution: 500 DPI
-
Scan Speed: < 0.2 s per fingerprint
-
Interface: USB 2.0 HID; UART/TTL (3.3 V)
-
Template Format: ANSI/INCITS 378
-
FAR/FRR: < 0.01 % / < 0.1 %
-
Operating Voltage: 3.3 – 5 V DC
-
Current Draw: < 100 mA active
-
Dimensions: 45 × 28 × 12 mm (PCB)
-
Operating Temp: –10 °C to 50 °C
-
Enclosure: IP54-rated polymer
✅ Supported OS / Applications / Industries
-
OS & Hosts: Windows, Linux, Android (via USB HID)
-
MCU Platforms: Arduino, ESP32, STM32 (UART)
-
Applications: Time & attendance, access control, embedded security, vending machines
-
Industries: Corporate, Healthcare, Education, Manufacturing, Smart Homes
✅ Benefits & Compatibility
-
Plug-and-Play: HID mode means zero drivers for PCs
-
Flexible Integration: UART port for custom firmware projects
-
Accurate Auth: High DPI boosts template matching
-
Rugged Use: IP54 seal tolerates workshop and outdoor installs
-
Low Power: Perfect for mains-or-battery devices
✅ Purpose of Use
Engineered for any embedded or desktop system requiring fast, reliable biometric authentication—whether it’s a secure door lock, a visitor kiosk, or an IoT device.
✅ How to Use
-
Mount HFP-288 module on your PCB or housing
-
Wire USB-HID or UART (TX/RX) to host
-
Power 3.3 – 5 V DC and wait for LED idle
-

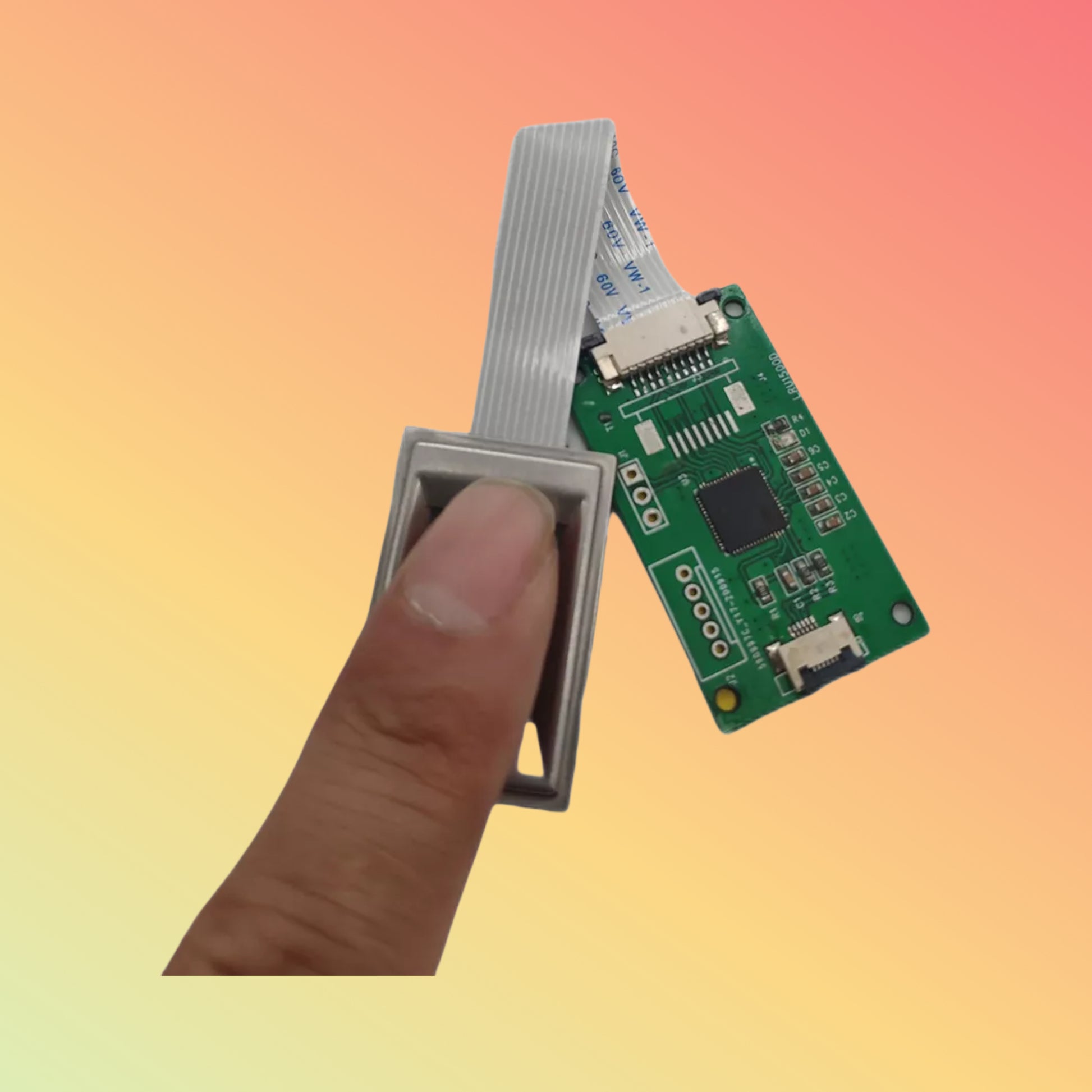

Present finger—module scans in < 0.2 s
-
Host reads template via USB or serial port
✅ Packaging / Weight / Dimension
-
Includes: HFP-288 module, mounting screws, quick-start guide
-
Module Size: 45 × 28 × 12 mm
-
Net Weight: 12 g
✅ Warranty and FAQs
✅ Performance, Quality, Durability & Reliability
Tested for over 200 000 scan cycles, HFP-288’s precision sensor and sealed housing ensure long-term reliability—even in dusty or damp environments.
✅ Best Price Guarantee
Spotted a lower UAE price? Send proof and we’ll match it—NEOTECH guarantees you the best deal.
✅ Shop Today & Receive Your Delivery Across the UAE!
Order now for express shipping to Dubai, Abu Dhabi, Sharjah, and beyond. Get your HFP-288 module delivered fast.
✅ Request for Customer Reviews and Testimonials
Integrating HFP-288? Drop a quick review and help others see how it streamlined their biometric projects.
✅ After Sales Support
Our tech team is on call via chat, email, or phone—ready to help with integration, firmware, or troubleshooting.
✅ Get in Touch
Bulk orders or custom firmware? Contact us and we’ll assist you promptly.
✅ Stock Availability
High demand—confirm stock before placing large or urgent orders to secure your modules.
✅ Disclaimer
Specifications and images are for reference and may change without notice. Verify final details with our sales team before purchase
