Overview

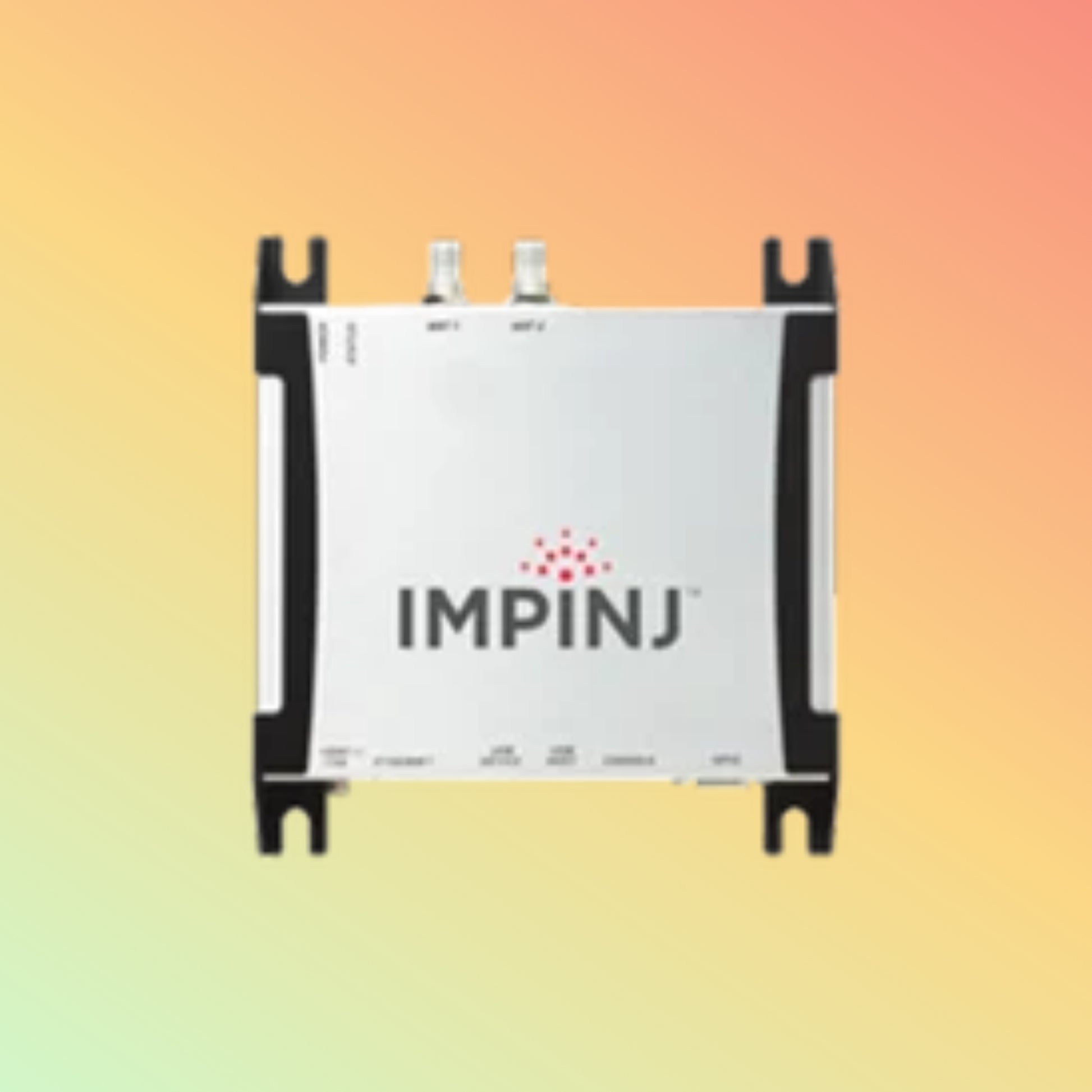

The Impinj R220 (FCC) IPJ‑REV‑R220‑USA2M1 is a compact, fixed‑mount UHF RAIN RFID reader engineered for high‑volume, entry‑level deployments. FCC‑certified for North America, it delivers up to 27 dBm RF output, seamless integration with Speedway Antenna Hubs, and enterprise‑grade reliability in a small footprint.
Product Description
Built for simple, cost‑effective installations, the R220 supports one or two antennas via antenna ports or external PoE+ hubs. Powered via PoE or DC‑in, it connects directly to Impinj’s cloud‑managed ecosystem for zero‑touch provisioning, real‑time monitoring, and firmware updates. Ideal for retail portals, shelf‑level counting, and conveyor checkpoints, the R220 offers robust performance with minimal setup.
Key Features
-
FCC‑certified fixed RAIN RFID reader (902–928 MHz)
-
Up to 27 dBm RF transmit power for reliable reads
-
1× integrated antenna port; expandable via Impinj hub
-
Power over Ethernet (802.3af) or 12 V DC input
-
Compact IP52‑rated housing for indoor use
-
Zero‑touch provisioning via Impinj Cloud or CMS
-
Real‑time diagnostics: read rate, temperature, link status
-
Integration with Impinj Speedway Antenna Hubs and gateways
Specifications
| Feature |
Details |
| Model |
IPJ‑REV‑R220‑USA2M1 |
| Frequency Range |
902–928 MHz (FCC) |
| RF Output Power |
Up to 27 dBm |
| Antenna Ports |
1× RP‑SMA; support for 2 via hub |
| Power |
PoE (802.3af) or 12 V DC |
| Network |
10/100 Mbps Ethernet |
| Housing |
IP52 rated; indoor use |
| Management |
Impinj Cloud, Mako CMS, SSH |
| Mounting |
DIN‑rail, wall, or flat surface |
| Dimensions (W×D×H) |
142 × 98 × 34 mm |
| Weight |
0.6 kg |
| Operating Temp |
–20 °C to 55 °C |
Supported Systems / Applications / Industries
Integration
-
Works with Impinj Antenna Hubs (IPJ‑A6001, IPJ‑A6010)
-
Compatible with Impinj ItemSense, AWS IoT, Azure IoT
Applications
-
Retail self‑checkout portals
-
Shelf‑level cycle counting
-
Conveyor and dock‑door tracking
-
Asset management checkpoints
Industries
Benefits & Compatibility
-
Cost‑Effective Scale: Entry‑level reader for single‑antenna use or hub‑expanded setups
-
Easy Deployment: PoE power and zero‑touch provisioning streamline rollout
-
Reliable Reads: Up to 27 dBm output for consistent tag capture
-
Compact Design: Small IP52 enclosure fits tight spaces
-
Cloud‑Managed: Real‑time monitoring and remote firmware updates
Purpose of Use
Ideal for businesses seeking a simple, reliable fixed‑reader solution. Deploy the R220 at portals, shelves, or conveyors to automate tag reads, improve inventory accuracy, and drive track‑and‑trace initiatives.
How to Use
-
Mount the reader on a wall, rack, or DIN‑rail.
-
Connect Ethernet (with PoE) or DC power and network cable.
-
Plug your antenna (or hub) into the RP‑SMA port.
-
Register device in Impinj Cloud or CMS for auto‑provisioning.
-
Monitor read performance and health remotely.
Packaging / Weight / Dimensions
Warranty & FAQs
Warranty
– 3‑Year Impinj manufacturer warranty via NEOTECH. Extended support available.
FAQs
Q: Can I power the R220 with PoE+?
A: It supports PoE (802.3af), not PoE+. For higher power, use DC input.
Q: How many antennas can it drive?
A: Directly one; expand to two via Impinj Antenna Hub.
Q: Is outdoor use supported?
A: It’s IP52‑rated—indoor use only. Use outdoor‑rated models for exterior installs.
Performance, Quality, Durability & Reliability
Engineered for continuous operation, the R220 features industrial‑grade components, active thermal management, and robust diagnostic reporting to ensure uptime and consistent read performance.
