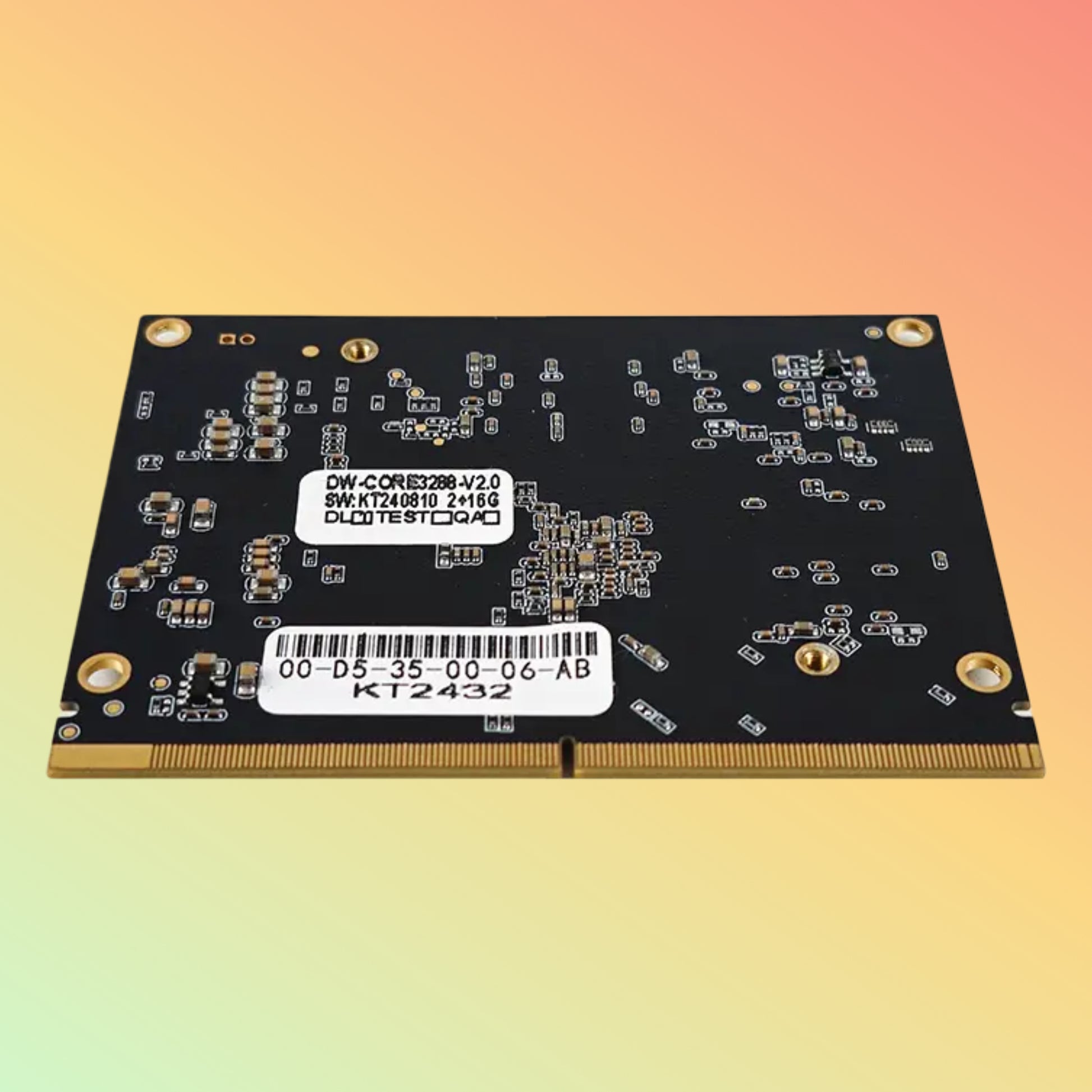

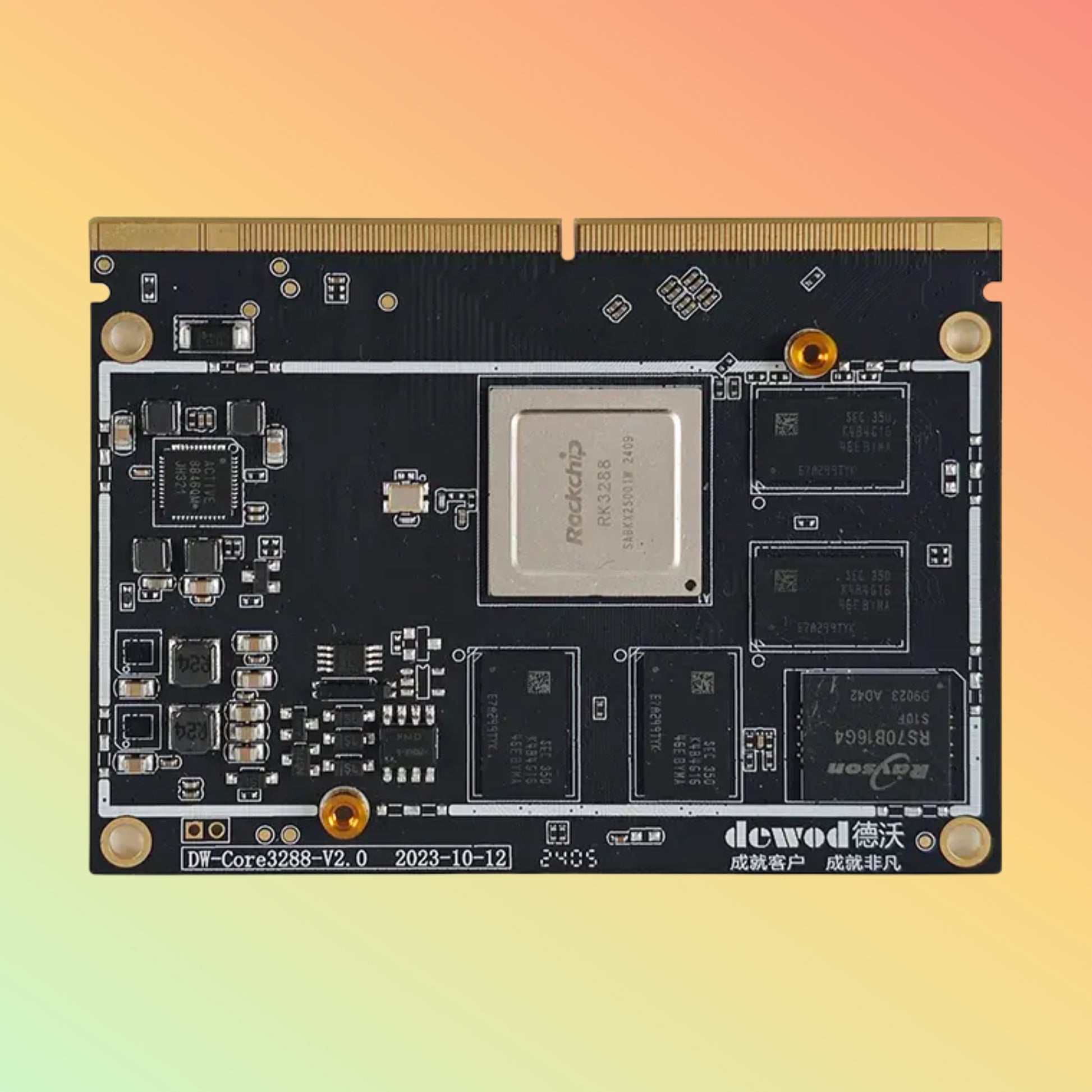

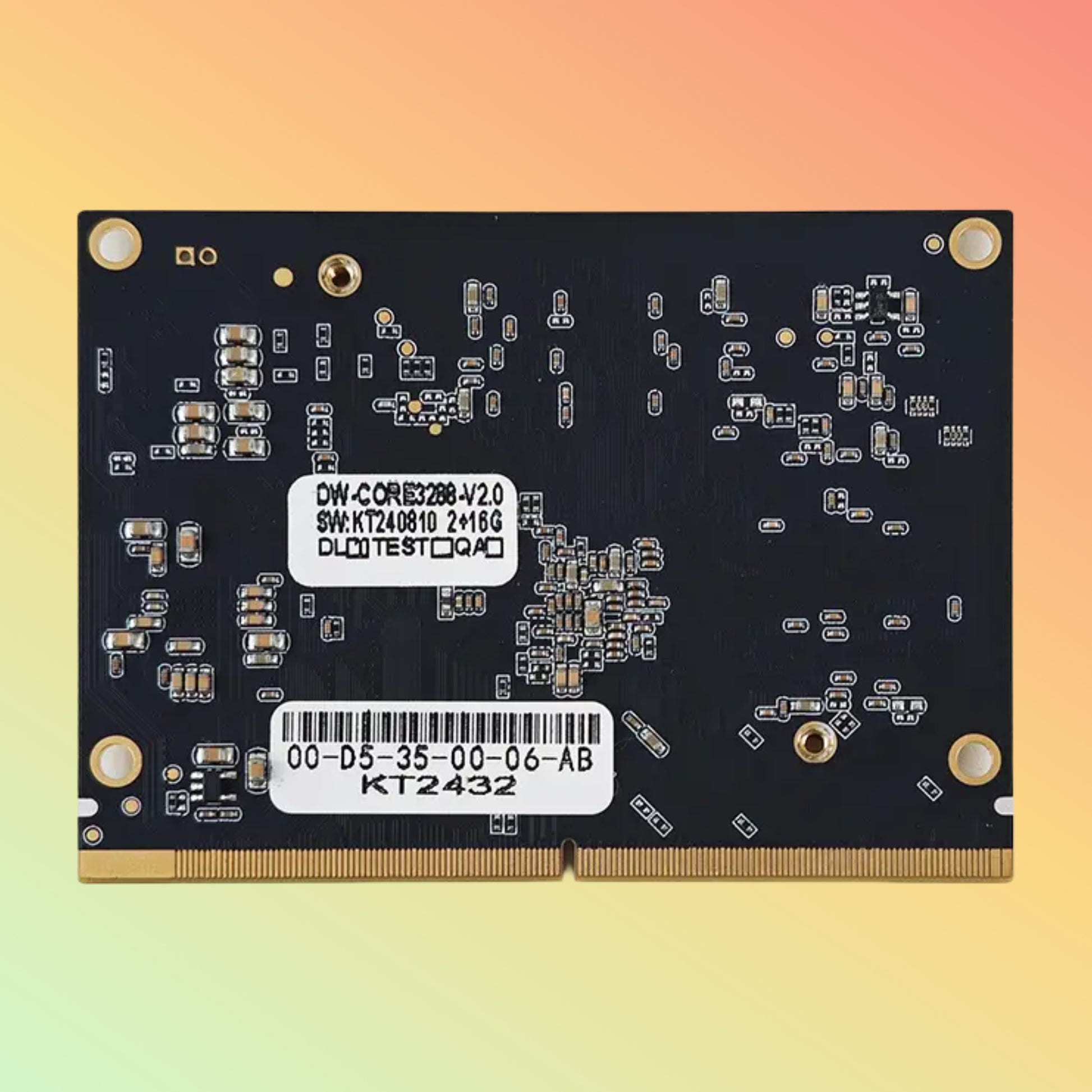

DEWOD K3288 Core Board – Compact Cortex-A17 Processor Module

DEWOD K3288 core board with quad-core Cortex-A17 processor. Compact, powerful & ideal for embedded, AI & kiosk projects. Shop now at NEOTECH UAE.

Overview

The DEWOD K3288 Core Board is a compact embedded processor module powered by the RK3288 Quad-Core Cortex-A17 @ 1.8GHz. Designed for AI, IoT, industrial automation, and multimedia systems, it offers powerful performance in a small form factor for easy integration.

Product Description

Built on the Rockchip RK3288 platform, the K3288 core board provides a balance of high-speed processing, GPU acceleration, and Android/Linux compatibility. With its Mali-T764 GPU, it supports 4K video decoding, making it ideal for digital signage, kiosks, robotics, and AI-driven applications. Its stamp hole design ensures reliable integration into embedded boards and custom hardware.

Key Features

• RK3288 Quad-Core Cortex-A17 processor @ 1.8GHz

• Mali-T764 GPU with 4K video playback

• Compact core board module (embedded-ready)

• Supports Android 7.1 & Linux OS

• Multiple I/O interfaces via carrier board (USB, HDMI, LAN, RS232, GPIO)

• Energy-efficient, fanless design

• Long-term industrial reliability

Specifications

• CPU: Rockchip RK3288 Quad-Core Cortex-A17, 1.8GHz

• GPU: Mali-T764 with 4K video decode support

• Memory: 2GB / 4GB DDR3

• Storage: 8GB / 16GB eMMC (expandable)

• OS Support: Android 7.1 / Linux (Ubuntu, Debian, Buildroot)

• Video Output: HDMI, eDP, LVDS (via carrier board)

• Connectivity: USB, LAN, RS232, GPIO (via expansion)

• Power Supply: DC 5V / 12V

• Form Factor: Compact core processor board

Supported OS / Applications / Industries

• Operating Systems: Android, Linux

• Applications: IoT gateways, Digital signage, Interactive kiosks, Robotics, AI vision, Automation controllers

• Industries: Retail, Healthcare, Education, Transportation, Manufacturing, Smart city solutions

Benefits & Compatibility

• Compact embedded design for easy integration into carrier boards

• Quad-core Cortex-A17 power ensures smooth multitasking

• GPU acceleration enables multimedia and AI-driven workloads

• Compatible with NEOTECH’s embedded mainboards, IoT devices, and AI computing platforms

Purpose of Use

Ideal for digital signage players, smart vending machines, access control systems, robotic controllers, and AI-enabled kiosks.

How to Use

1. Integrate the core board into your carrier/mainboard.

2. Connect display, storage, and peripherals.

3. Load Android/Linux OS.

4. Deploy applications for IoT, AI, or embedded automation.

Packaging / Weight / Dimensions

• Packaging: Anti-static protective box

• Weight: ~0.12 kg

• Dimensions: ~65 × 55 mm (compact module)

Warranty & FAQs

• Warranty: 1-year standard warranty

• FAQs:

  • Does it support 4K video? Yes, via Mali-T764 GPU.

  • Is it Android/Linux compatible? Yes, both OS supported.

  • Can it run 24/7? Yes, designed for embedded applications.

Performance, Quality, Durability & Reliability

The DEWOD K3288 Core Board delivers stable quad-core performance, long lifecycle reliability, and compact integration. Designed for continuous industrial operation, it is trusted for embedded AI and kiosk solutions.

Best Price Guarantee

NEOTECH offers the lowest UAE market price. Found it cheaper? We’ll match it.

Shop Today & Receive Your Delivery Across the UAE

Available now for fast shipping to Dubai, Abu Dhabi, Sharjah, and all Emirates.

Request for Customer Reviews and Testimonials

Using this core board? Share your experience to help other developers and businesses.

After Sales Support

NEOTECH provides SDKs, technical documents, and integration support for K3288-based modules.

Get in Touch

See more at NEOTECH embedded core boards and AI-ready Android/Linux modules.

Stock Availability

The DEWOD K3288 Core Board is in stock and ready to ship.

Disclaimer

Specifications may change without notice. Images shown are for reference only.
