Triple-track magnetic stripe card reader with 170mm slot. Secure and reliable swipe reader for POS, kiosks, and banking terminals. USB/RS232 options.
✅ Overview

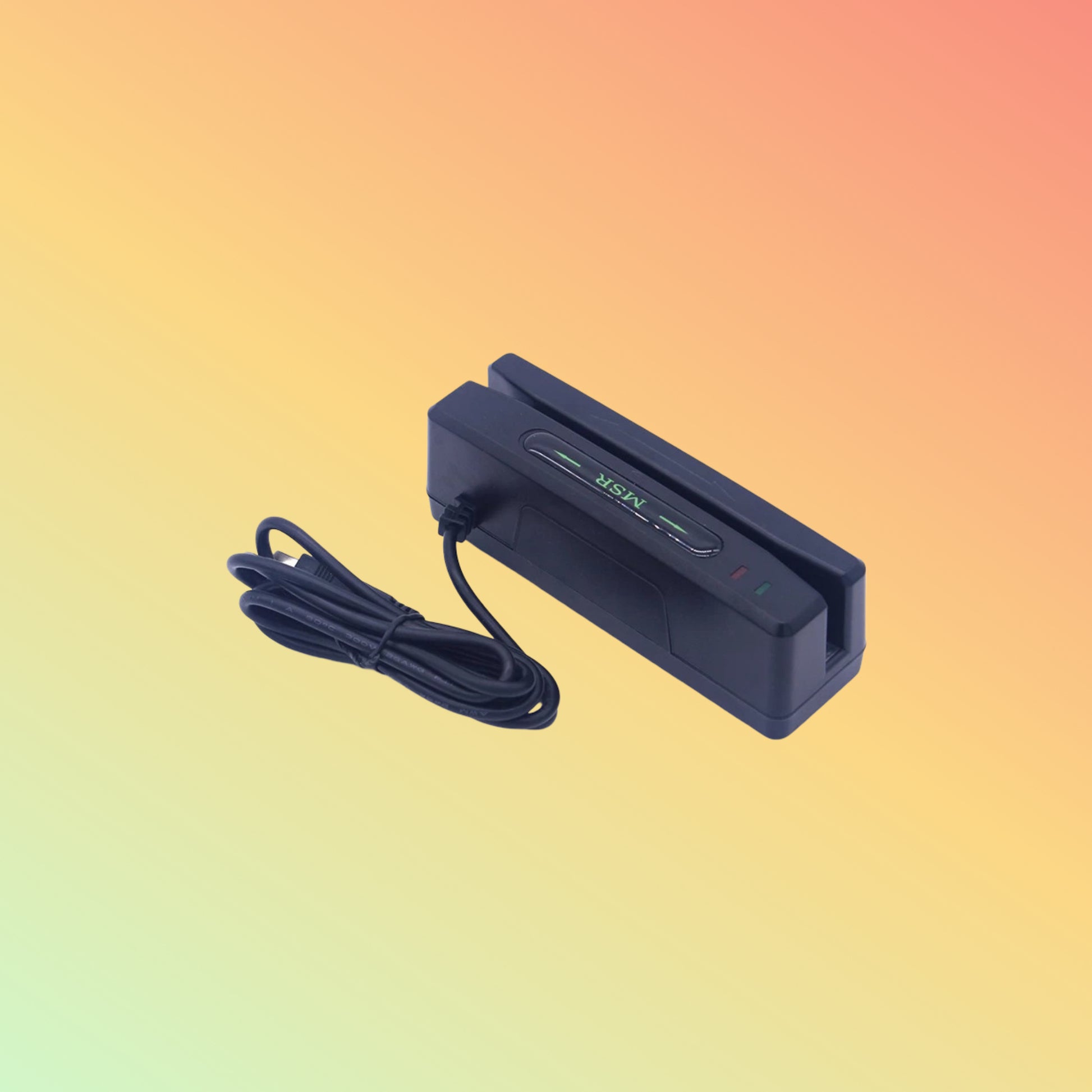

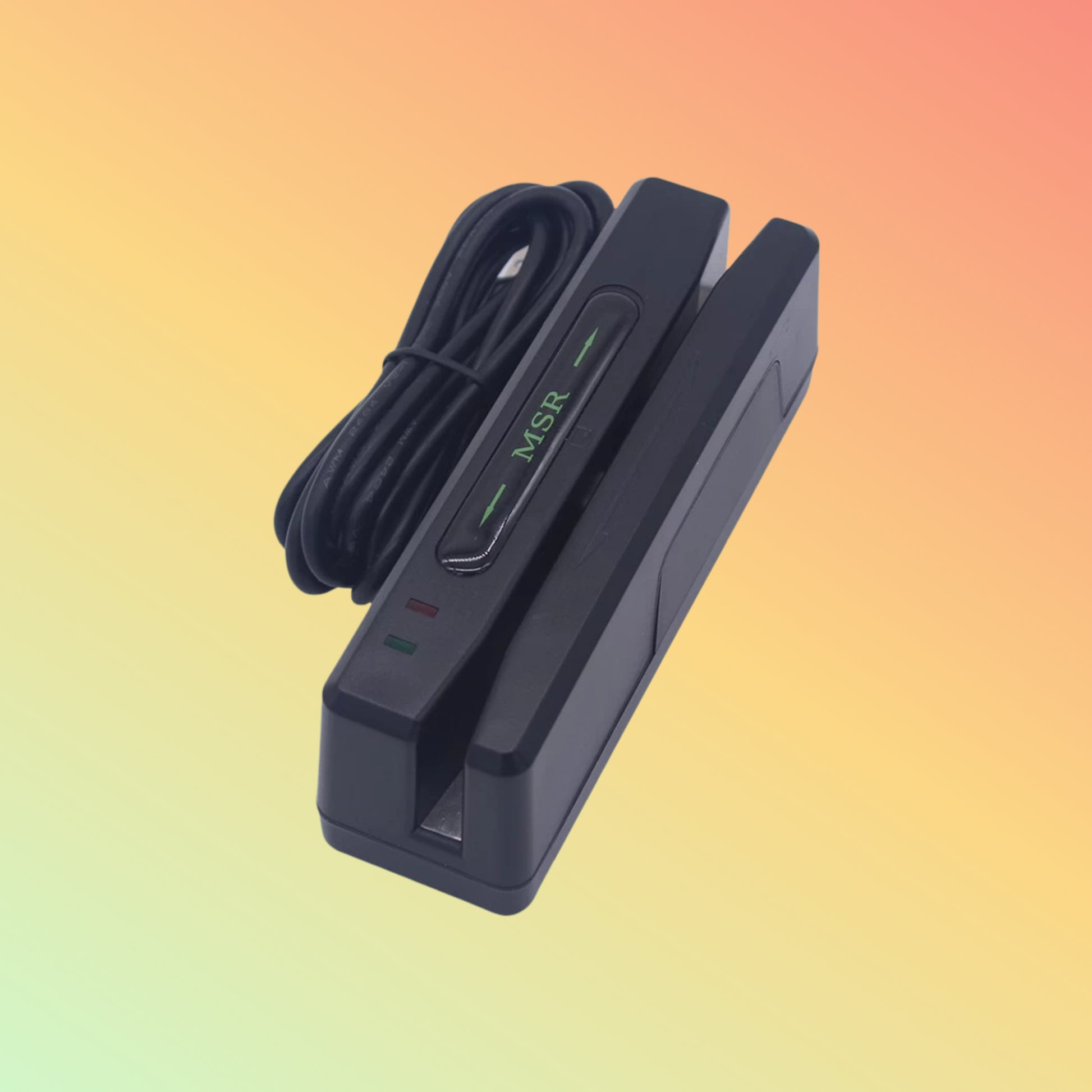

The Ocom CR7400 is a durable and accurate 170mm magnetic stripe card reader supporting Track 1, 2, and 3. Designed for retail POS systems, kiosks, financial terminals, and access control points, this reader delivers fast, secure, and error-free card data input with USB or RS232 connectivity.
✅ Product Description
Built for high-traffic commercial environments, the CR7400 offers bi-directional card reading with high decoding accuracy. The 170mm swipe slot allows smooth operation for all standard magnetic stripe cards, including payment, loyalty, membership, and ID cards.
Its plug-and-play design supports USB HID or RS232 interface for quick setup with most POS and kiosk systems. With support for ISO/ANSI standard cards, it's ideal for systems requiring fast, secure card data capture.
✅ Key Features
-
Triple-track magnetic stripe reader (Tracks 1/2/3)
-
170mm card swipe length for smooth swiping
-
Bi-directional swipe support
-
High decoding accuracy with noise filtering
-
Supports ISO7811, AAMVA standards
-
USB HID or RS232 interface options
-
Compact, mountable design for POS & kiosks
-
Plug-and-play installation with driver-free setup
✅ Specifications
-
Supported Tracks: Track 1, Track 2, Track 3
-
Card Standards: ISO7811, AAMVA
-
Swipe Method: Manual bi-directional swipe
-
Swipe Speed: 10–150 cm/sec
-
Slot Length: 170mm
-
Interface Options: USB HID / RS232 (optional)
-
Power Supply: USB-powered or 5V DC (RS232)
-
Dimensions: 170 × 45 × 40 mm
-
Weight: ~250g
-
Material: ABS industrial-grade plastic
-
Certifications: CE, FCC, RoHS
✅ Supported OS / Applications / Industries
-
Applications:
-
POS terminals for card-based payments
-
Secure logins via ID/membership cards
-
Kiosk authentication and access systems
-
Loyalty program registration
-
ATM card data entry terminals
-
Industries:
-
System Compatibility:
-
Works with Windows, Linux, Android (USB OTG)
-
Compatible with POS, banking, and kiosk software platforms
✅ Benefits & Compatibility
-
Enables quick and secure card data input
-
Compatible with payment, loyalty, ID, and member cards
-
Mountable for kiosks or desktop counters
-
Works with legacy and modern systems via USB or RS232
-
Low-maintenance, industrial-grade durability
✅ Purpose of Use
Perfect for retail POS, banking verification, access control terminals, and self-service kiosks needing reliable magnetic stripe card reading with secure input across all three standard tracks.
✅ How to Use
-
Connect via USB or RS232
-
Open your POS or card processing software
-
Swipe card across the 170mm slot (either direction)
-
Card data is captured and processed in real-time
-
Reader ready for next transaction
✅ Packaging / Weight / Dimension
-
Net Weight: ~250g
-
Package Dimensions: 190 × 70 × 50 mm
-
Gross Weight: ~350g
-
Box Contents: CR7400 card reader, USB/RS232 cable, quick start guide
✅ Warranty and FAQs
Warranty: 12-month manufacturer warranty
FAQs:
Q: Can this read driver’s licenses and ID cards?
A: Yes — it supports AAMVA standard cards used for IDs.
Q: Is any driver required for USB version?
A: No — the USB HID model is plug-and-play on Windows/Linux.
Q: Can it be mounted on a kiosk surface?

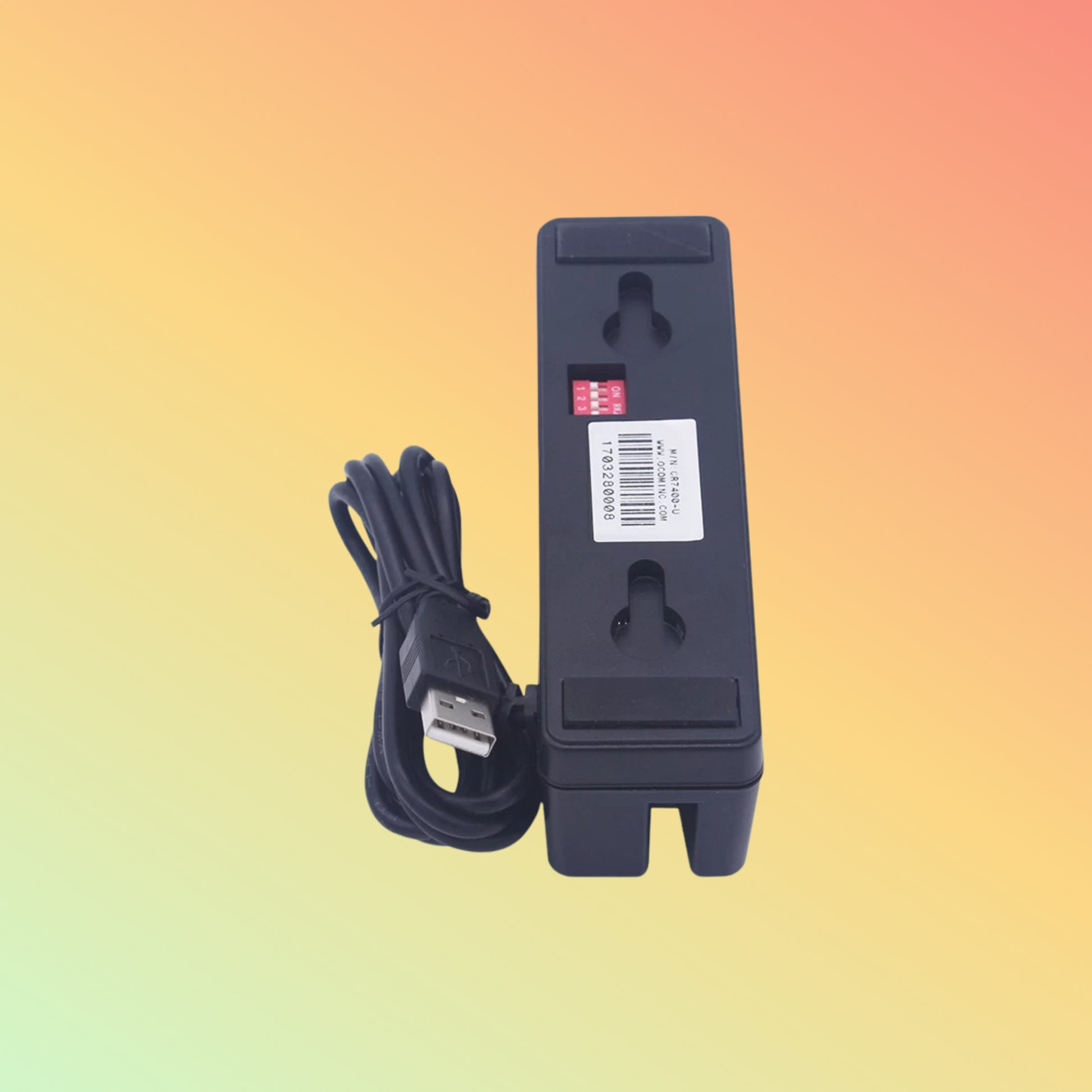

A: Yes — mounting holes and brackets are supported.
✅ Performance, Quality, Durability, and Reliability
With high-sensitivity heads, a rugged housing, and error-correction decoding, the CR7400 delivers accurate reads, reduced swipe errors, and long-lasting reliability for commercial-grade use.
✅ Best Price Guarantee
NEOTECH offers the lowest UAE price on CR7400. Found it cheaper? We’ll match it — and include after-sales integration support.
✅ Shop Today & Receive Your Delivery Across the UAE!
We ship to Dubai, Sharjah, Abu Dhabi, Ajman, and more. Orders usually dispatched in 2–4 working days for in-stock models.
✅ Request for Customer Reviews and Testimonials
Using the CR7400 in your POS system or kiosk? Leave a quick review and let others know how it enhanced your card processing operations.
✅ After Sales Support
Get full support from NEOTECH: setup help, firmware support, compatibility testing, and best practices for use in your business.
✅ Get in Touch
Need help choosing between CR7400 and other MSR readers? Our experts can recommend the best solution based on your software and system.
✅ Stock Availability
CR7400 is typically in stock. For large rollouts or same-week delivery, please contact our team to confirm real-time availability.
✅ Disclaimer
Product specifications and visuals may vary slightly. Confirm technical details with NEOTECH before finalizing purchase.
