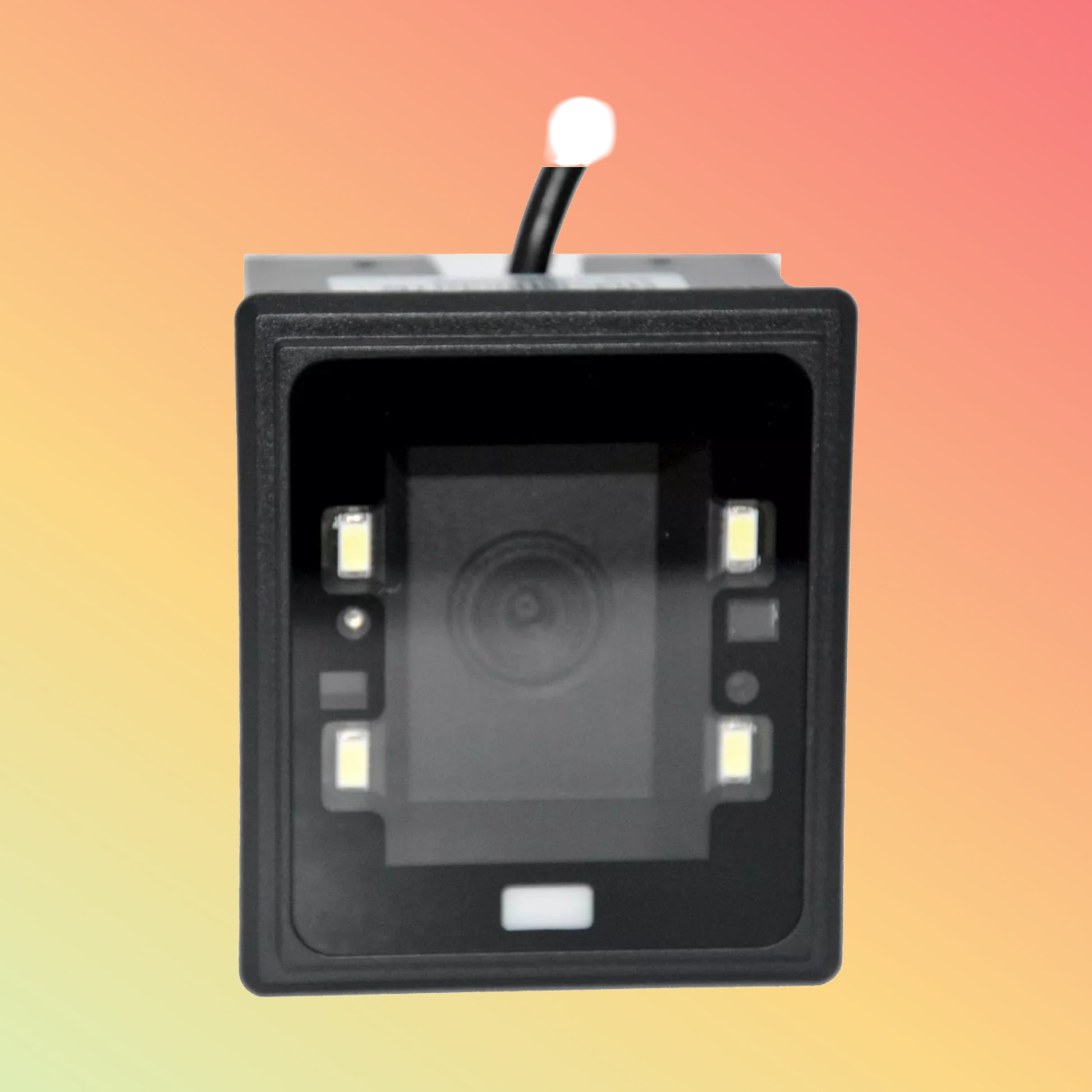

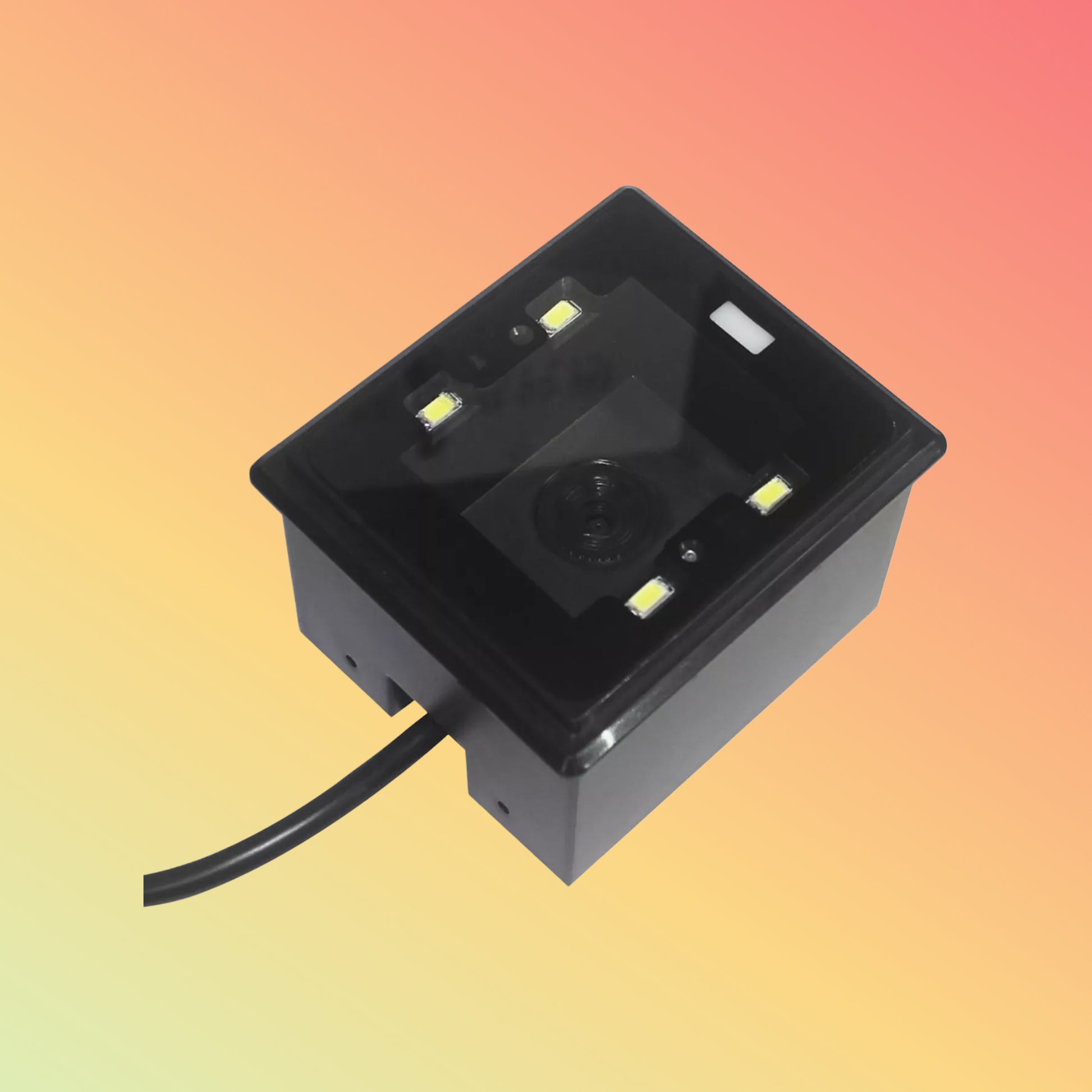

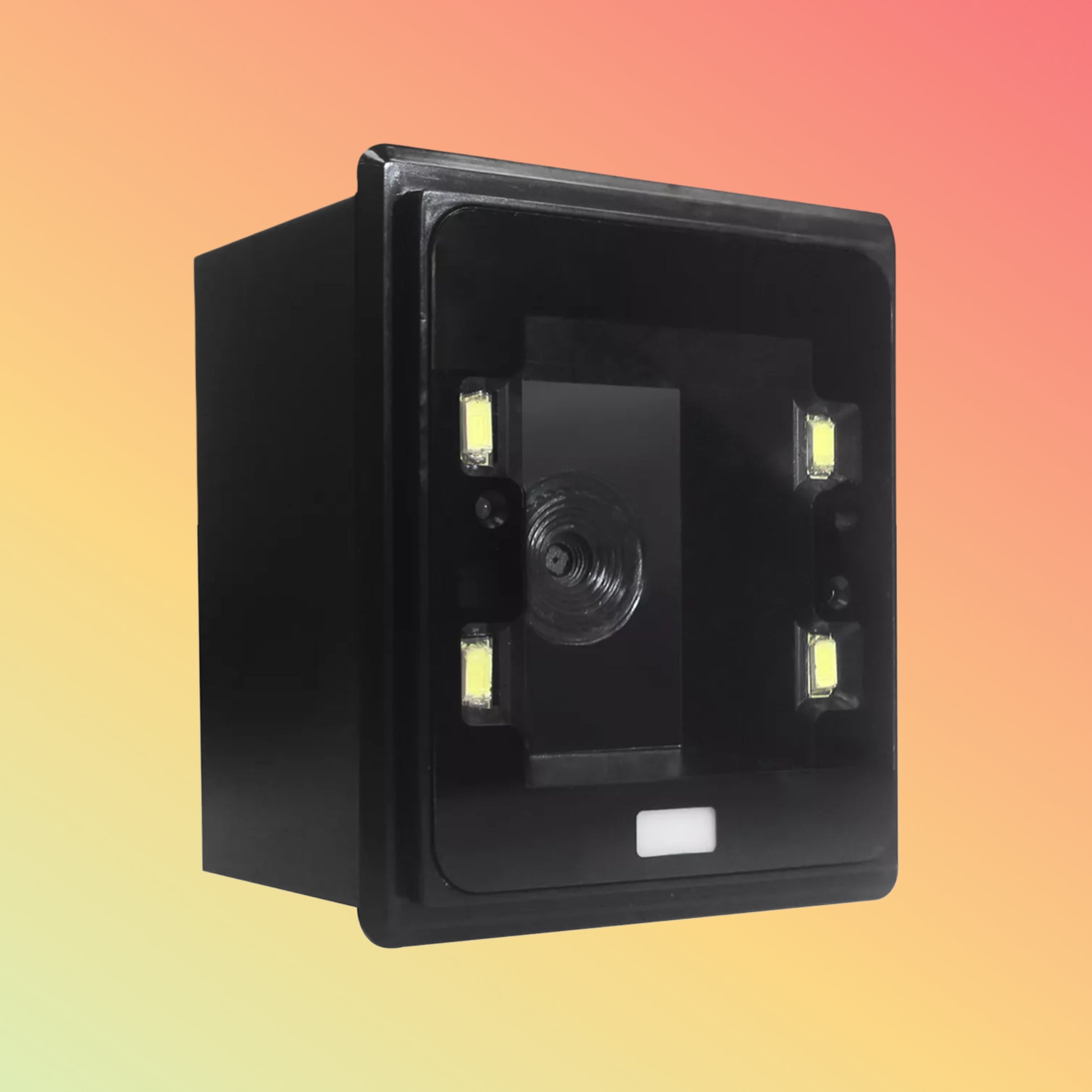

Embedded CMOS USB Automatic 2D Scan Module for Self-Service Machines HS-2012

High-speed embedded 2D USB scanner for kiosks and terminals. Compact CMOS module for QR, PDF417, Data Matrix. Buy HS-2012 now at NEOTECH UAE.

✅ Overview

Boost your self-service solutions with the NEOTECH HS-2012—an embedded USB 2D barcode scan module designed for kiosks, ticketing machines, and OEM terminals. This compact CMOS-based module offers fast and accurate scanning of all mainstream 1D and 2D barcodes, including QR, Data Matrix, and PDF417. Built for seamless integration, it’s your go-to solution for smart automation.

✅ Product Description

The HS-2012 is a next-gen embedded CMOS USB scan module that delivers lightning-fast barcode reading for all popular 2D and 1D codes. Compact and rugged, this scanner is built to integrate into self-service machines, vending kiosks, ATMs, or any device requiring high-efficiency code scanning.

Its advanced image decoding algorithm ensures reliable reading of smudged, scratched, or low-contrast barcodes on both paper and digital screens. With plug-and-play USB connectivity and low power consumption, the HS-2012 is ideal for OEM applications where space and performance both matter.

✅ Key Features

• Embedded design for seamless integration

• CMOS sensor for high-speed decoding

• USB 2.0 plug-and-play interface

• Reads 1D & 2D barcodes including QR, PDF417, Data Matrix

• Supports screen and paper scanning

• Auto-sensing with no physical button required

• Compact design for kiosks, ATMs & POS systems

• Low power consumption for energy-efficient terminals

✅ Specifications

• Sensor Type: CMOS

• Interface: USB 2.0

• Barcode Support: 1D: Code 128, Code 39, EAN-13, etc.
  2D: QR, PDF417, Data Matrix

• Image Resolution: 640x480 pixels

• Scan Angle: Roll ±360°, Pitch ±60°, Yaw ±70°

• Reading Speed: 300 scans/sec

• Light Source: White LED + IR

• Voltage Input: 5V (USB powered)

• Working Temp: -10°C to +50°C

• Dimensions: 56mm x 46mm x 22mm

• Weight: 80g

✅ Supported OS / Application / Industries

• OS: Windows, Linux, Android-compatible

• Applications:

  • Self-service kiosks

  • Vending machines

  • Smart lockers

  • Ticketing systems

  • POS terminals

• Industries: Retail, Banking, Transportation, Healthcare, Public Services

✅ Benefits & Compatibility

• Instantly scans codes from mobile or paper

• Built for automation: no button press needed

• Reads poor-quality and distorted codes easily

• Energy-efficient and compact for embedded use

• Easily connects with most kiosk and POS systems

• Speeds up customer interaction in unattended setups

✅ Purpose of Use

Ideal for integration into self-service kiosks and machines needing automatic barcode reading. Suitable for smart lockers, check-in counters, and ticket terminals.

✅ How to Use

1. Mount inside your self-service or kiosk system

2. Connect USB to the host system

3. Place barcode in front of scanner—auto-trigger activates

4. Barcode is read and transmitted instantly

5. Data is processed by the connected software/system

✅ Packaging / Weight / Dimension

• Contents: HS-2012 scanner module, USB cable, install guide

• Weight: 80g

• Size: 56 x 46 x 22 mm

• Packaging: Foam-protected box for safe shipping

✅ Warranty and FAQs

• Warranty: 12 months from date of purchase

• FAQs:

  • Q: Can it scan codes from smartphone screens? Yes

  • Q: Is it suitable for vending machines? Absolutely

  • Q: Does it need a trigger button? No, fully automatic

Need more answers? Visit NEOTECH Support

✅ Performance, Quality, Durability & Reliability

Backed by thousands of successful installations, the HS-2012 is built to last. Its auto-sensing capability reduces wear, while high-speed decoding ensures minimal user delay. Durable components support 24/7 operations in public-facing systems.

✅ Best Price Guarantee

We guarantee the best deal across Dubai and the UAE. Found a better price? Let us know—we’ll match it. NEOTECH delivers value without compromise.

✅ Shop Today & Receive Your Delivery Across the UAE!

We deliver fast and safe across the UAE: Dubai, Sharjah, Abu Dhabi, and beyond. Shop now and enhance your smart terminals with NEOTECH.

✅ Request for Customer Reviews and Testimonials

Used the HS-2012 in your kiosk project? Leave a quick review! Help others see how this scanner performs in real-world conditions.

✅ After Sales Support

Have questions post-purchase? Our tech team is on standby via email or WhatsApp to assist with setup, integration, or troubleshooting.

✅ Get in Touch

Want bulk pricing or technical docs? Contact us and we’ll guide you through setup or project planning.

✅ Stock Availability

Stock moves fast—please confirm availability before placing large or urgent orders. Our sales team is here to assist you immediately.

✅ Disclaimer

All product details are provided for reference only and may change without notice. Images are for illustration purposes. Confirm technical specs before ordering.
