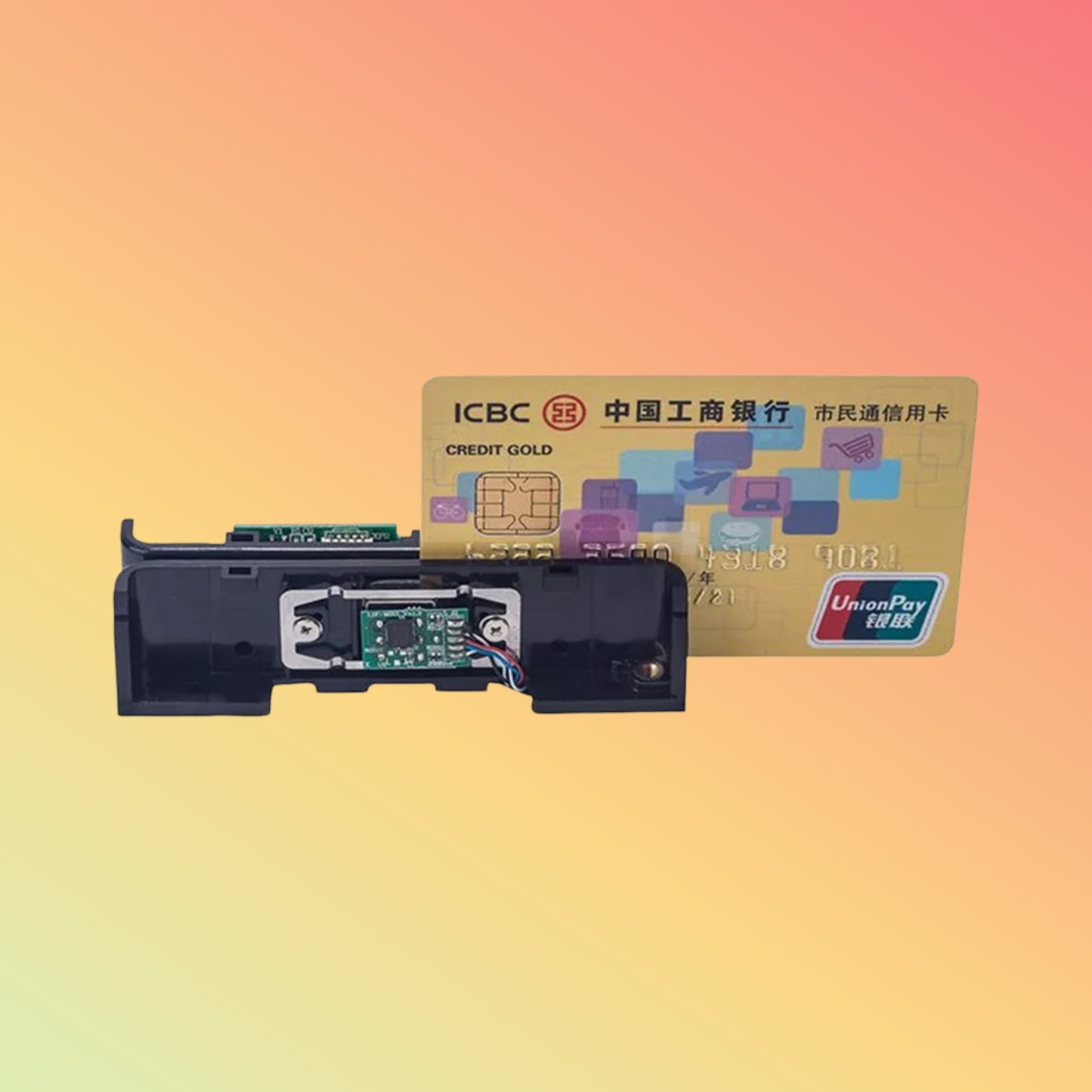

90mm USB RS232 Bi-direction Magnetic Card Reader Module MSR90M

90 mm MSR90M bi-directional magnetic card reader with USB & RS232. Fast reads, ISO support. Ideal for kiosks & POS. Shop NEOTECH UAE now!

✅ Overview

The NEOTECH MSR90M is a sleek, 90 mm bi-directional magnetic stripe reader module that handles fast, reliable reads of ISO 7811 Track 1/2/3 cards. With both USB and RS232 interfaces, it slots right into POS systems, kiosks, and self-service terminals. Plug-and-play simplicity meets pro-grade performance.

✅ Product Description

The MSR90M module delivers precision card data capture at swipe speeds from 5 to 60 cm/s. It supports all three magnetic tracks bi-directionally, ensuring you read cards whether users swipe forward or backward. The dual-interface design means you can integrate via USB HID or legacy RS232. Housed in a durable ABS shell, this reader’s low-profile footprint fits tight OEM spaces. Developers love its hassle-free integration on Windows, Linux, and embedded platforms.

✅ Key Features

• 90 mm Bi-Directional Swipe – read cards in either direction

• Triple-Track Support – ISO 7811 Tracks 1/2/3

• Dual Interface – USB 2.0 HID & RS232 serial

• Wide Swipe Speed – 5–60 cm/s for smooth reads

• ABS Housing – robust, low-profile design

• LED Indicator – read success/fail feedback

• Cross-Platform – drivers for Windows, Linux, macOS

✅ Specifications

• Card Standard: ISO 7811 Tracks 1/2/3

• Interface: USB 2.0 (HID), RS232 (TTL level)

• Swipe Speed: 5–60 cm/s

• Life Cycle: ≥500 000 swipes

• Voltage: 5 V DC (USB powered)

• Dimensions: 110 × 23 × 23 mm (L × W × H)

• Weight: 45 g

✅ Supported OS / Applications / Industries

• OS: Windows 7/10/11, Linux, macOS, Android (OTG)

• Applications: POS terminals, ticket kiosks, membership check-in, vending machines

• Industries: Retail, Hospitality, Transportation, Healthcare, Finance

✅ Benefits & Compatibility

• Plug-and-Play – instant deployment on standard USB ports

• Legacy Support – RS232 for older systems

• User-Friendly – reads both swipe directions

• Compact Footprint – fits embedded OEM designs

• Reliable – high swipe-cycle rating for heavy use

✅ Purpose of Use

Ideal for any device or terminal that needs to capture magnetic-stripe data quickly and reliably, from retail checkouts to self-service kiosks and secure access systems.

✅ How to Use

1. Connect MSR90M via USB or RS232 cable

2. Power the host device; reader’s LED lights up

3. Swipe card in either direction through the 90 mm slot

4. LED confirms data read; host system processes track data

✅ Packaging / Weight / Dimension

• Includes: MSR90M module, USB 2.0 cable, RS232 cable, mounting bracket, quick-start guide

• Net Weight: 45 g

• Package Size: 150 × 80 × 30 mm

✅ Warranty and FAQs

• Warranty: 1-Year NEOTECH coverage

• FAQs

  • Q: Can it read reversed swipes? Yup, bi-directional support.

  • Q: Does it need drivers? USB HID is driver-free; RS232 needs standard serial settings.

  • Q: Swipe speed limits? Best reads at 5–60 cm/s for accuracy.

✅ Performance, Quality, Durability & Reliability

Rated for over 500 000 swipes, the MSR90M’s precision read head and sturdy housing ensure consistent performance even under heavy daily use.

✅ Best Price Guarantee

Spotted a lower UAE price? Send proof and we’ll match it. NEOTECH always keeps our pricing real.

✅ Shop Today & Receive Your Delivery Across the UAE!

Order now for express shipping across Dubai, Abu Dhabi, Sharjah, and beyond. Get your MSR90M delivered fast!

✅ Request for Customer Reviews and Testimonials

Using the MSR90M? Drop a quick review to let others know how it nailed your card-reading needs.

✅ After Sales Support

Our tech squad is on call via chat, email, or phone—ready to help with integration, configuration, or spare parts.

✅ Get in Touch

Bulk orders or custom integration? Contact us and we’ll hook you up ASAP.

✅ Stock Availability

High demand—confirm stock before placing large or urgent orders to secure your module.

✅ Disclaimer

All specs and images are for reference and may change without notice. Verify final details with our sales team before purchase
