Overview

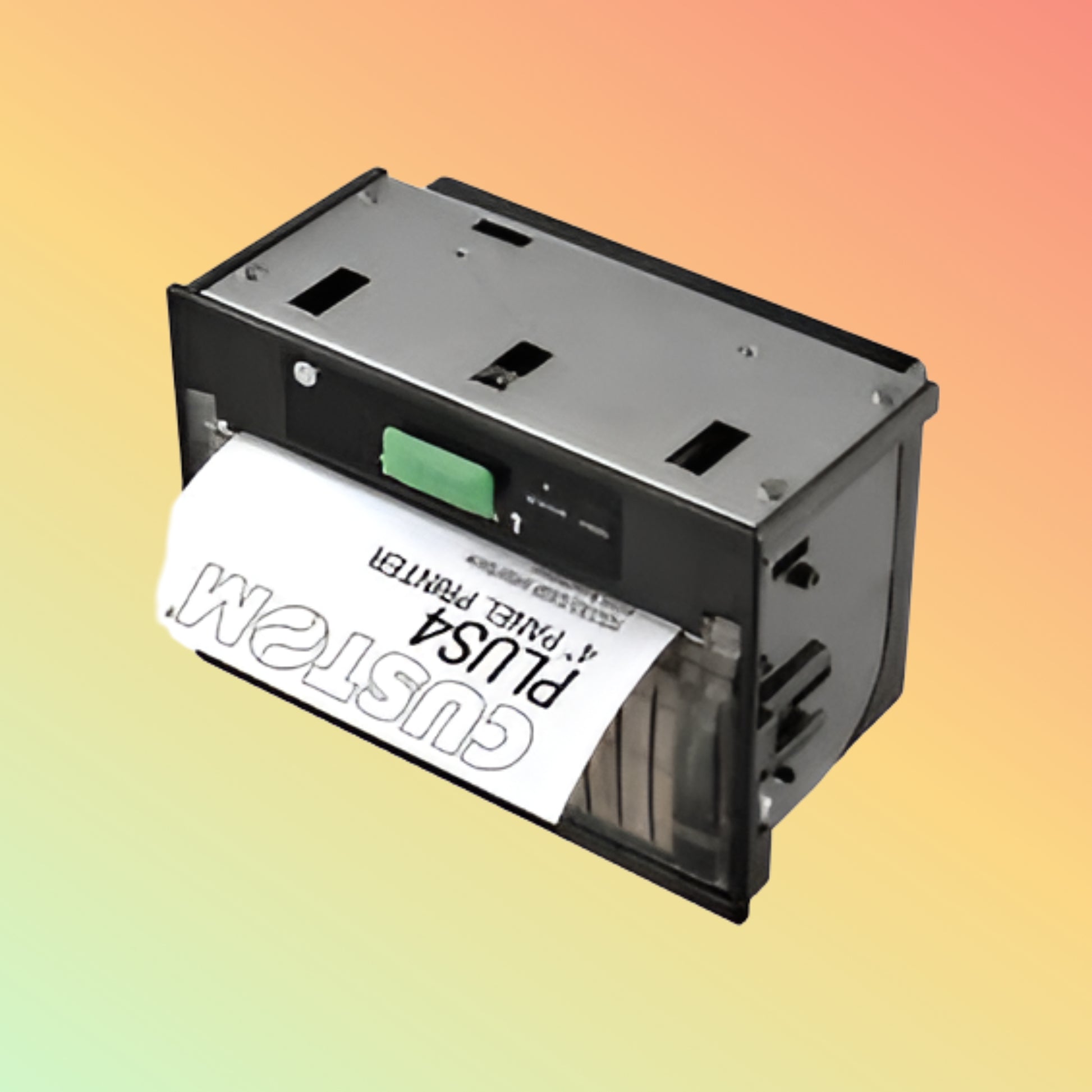

The Custom America PLUS4 delivers mission-critical printing where space is at a premium. Its IP54-rated front fascia and panel-mount form factor ensure reliable, dust- and splash-resistant operation. Plug-and-play interfaces—USB, RS-232, Ethernet—drive seamless integration with your control systems, maximizing operational excellence.
Product Description
PLUS4 is engineered for industrial control panels, kiosks, and self-service terminals. The flush-mount design (144×144 mm cut-out) installs effortlessly, while the full-metal chassis and sealed front prevent contaminants from interrupting uptime. With 203 DPI thermal printing at speeds up to 80 mm/s, it balances clarity and velocity. Built-in paper-end and paper-near-end sensors plus an auto cutter streamline maintenance, reducing downtime and boosting ROI.
Key Features
-
Panel-Mount Design – Fits 144×144 mm cut-out for clean integration
-
IP54 Front Rating – Dust and splash resistance for harsh environments
-
Multi-Interface – USB 2.0, RS-232, Ethernet for versatile connectivity
-
Thermal Printing – 203 DPI clarity at up to 80 mm/s
-
Auto Cutter – Reliable guillotine-style paper trim
-
Sensors & LEDs – Paper-end, paper-near-end detection; status indicators
Specifications
-
Print Method: Thermal line printing
-
Resolution: 203 DPI
-
Speed: Up to 80 mm/s
-
Media Width: 58 mm
-
Cut-Out: 144 × 144 mm panel opening
-
Interfaces: USB 2.0, RS-232, Ethernet (10/100 Mbps)
-
Power: 24 V DC, 2 A
-
Material: Sealed metal chassis with IP54 front
-
Dimensions: Panel depth 100 mm; overall 144 × 144 × 100 mm
-
Weight: 1.2 kg
-
Operating Temp: 0–50 °C
Supported OS / Application / Industries
-
OS: Windows, Linux, Android
-
Applications: Industrial HMI, kiosk receipt printing, control-panel logging
-
Industries: Manufacturing, Utilities, Transportation, Self-service kiosks
Benefits & Compatibility
-
Seamless Integration: Standard drivers and protocols for quick deployment
-
Robust Uptime: IP-rated front and metal housing minimize service calls
-
Scalable Solution: Ethernet interface for remote fleet management
-
Low TCO: Auto cutter and sensors cut maintenance overhead
Purpose of Use
Ideal for:
-
Control-panel event logging
-
Kiosk and access-control ticketing
-
Factory-floor label and report printing
-
Self-service terminals in transportation hubs
How to Use
-
Cut panel opening to 144×144 mm.
-
Insert printer and secure with mounting brackets.
-
Connect 24 V DC power and data cable (USB/RS-232/Ethernet).
-
Install drivers or configure via web utility (Ethernet).
For integration best practices, contact our experts.
Packaging / Weight / Dimension
-
Box Includes: PLUS4 printer, mounting brackets, power cable, USB & RS-232 cables, quick-start guide
-
Packed Weight: 2.0 kg
-
Box Size: 180 × 180 × 140 mm
-
Protection: Foam inserts and sealed carton
Warranty and FAQs
FAQs:
-
Can PLUS4 be serviced in the field? Yes—front swaps without panel removal.
-
Is PoE supported? No; requires dedicated 24 V DC input.
-
Does it handle coated media? Yes, up to 80 μm thickness.
More info at our Support Center.
Performance, Quality, Durability & Reliability
Tested for over 50 km of media and 1M cutter cycles, PLUS4 meets IEC drop and vibration standards. Guaranteed 24/7 operation in harsh plant-floor conditions with minimal jam risk.
