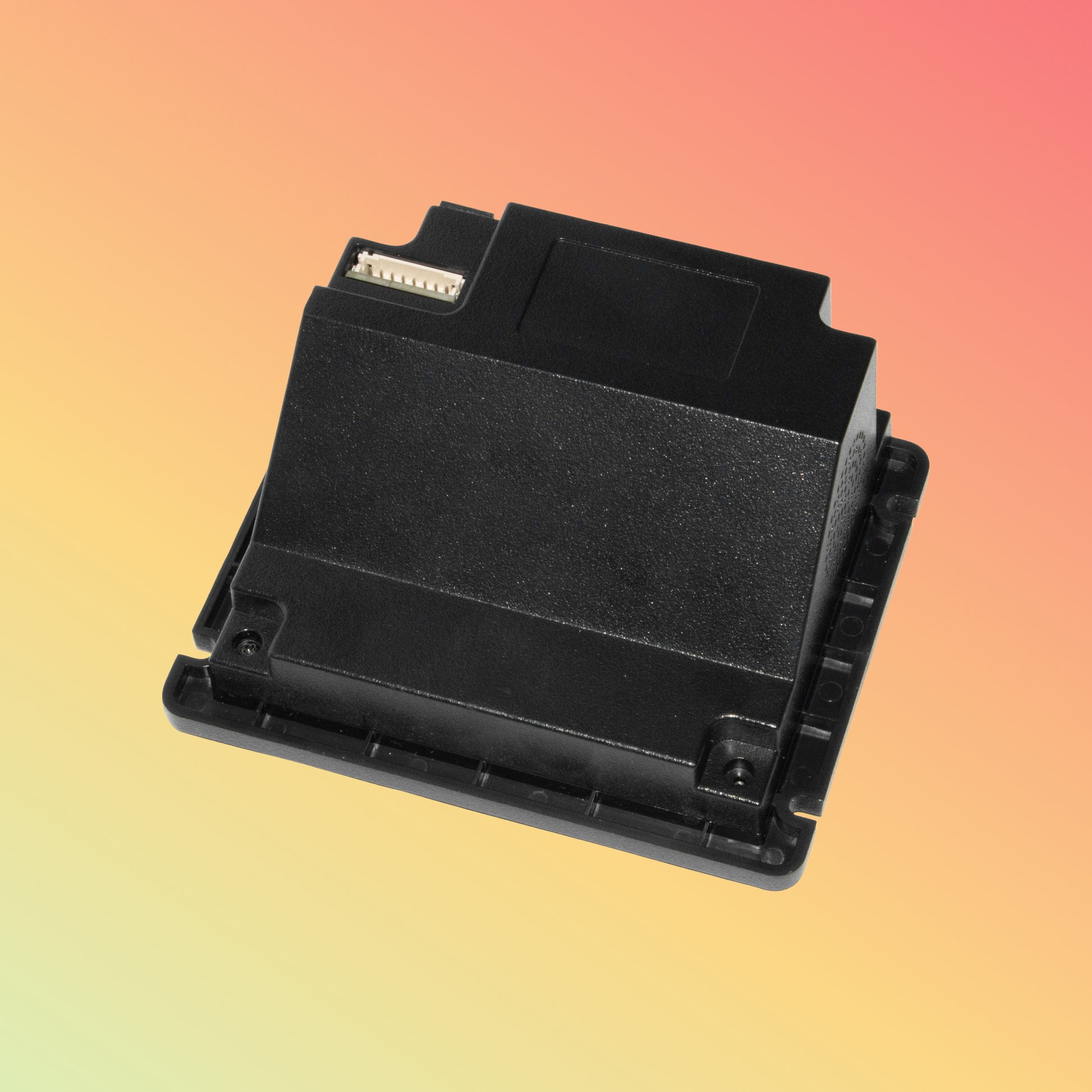

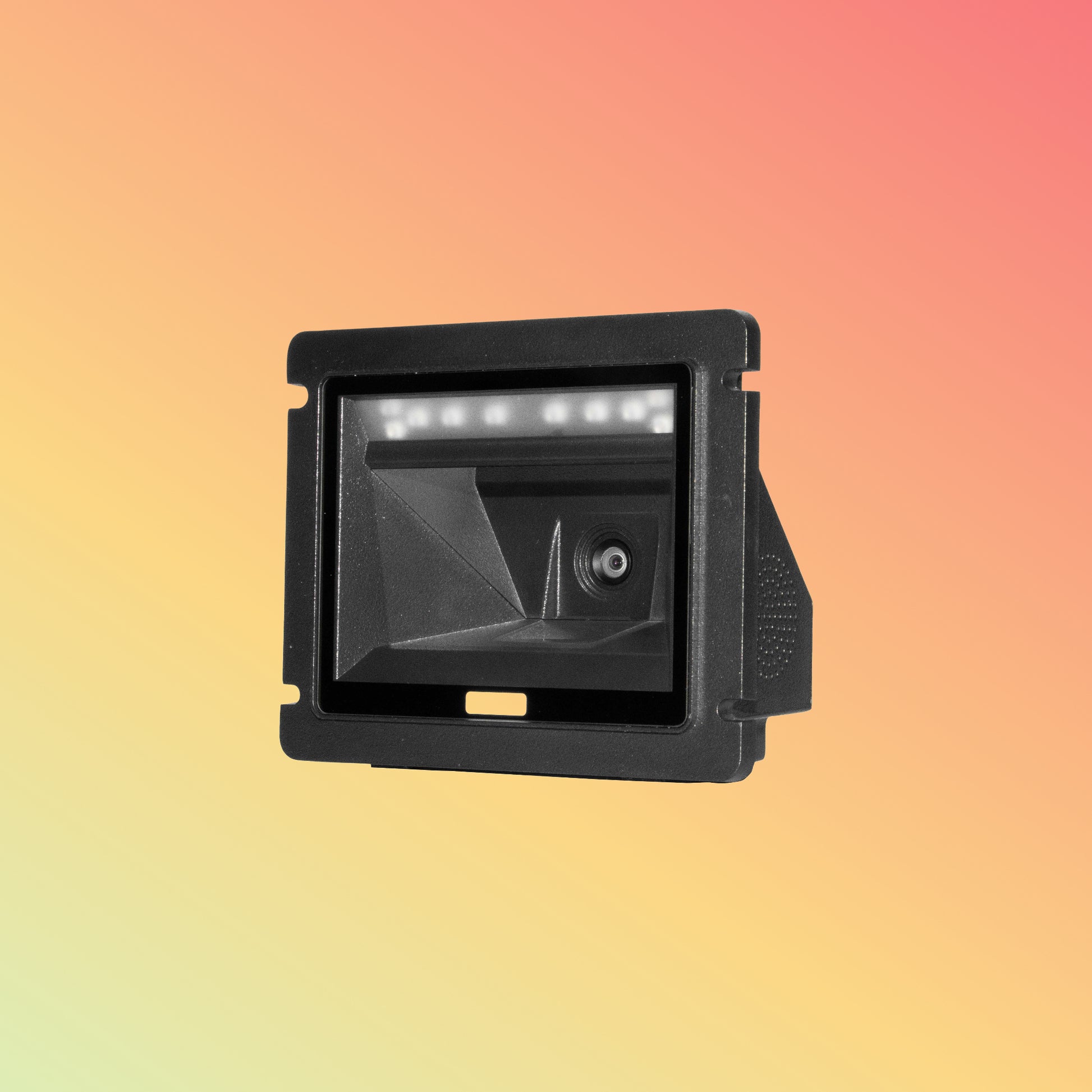

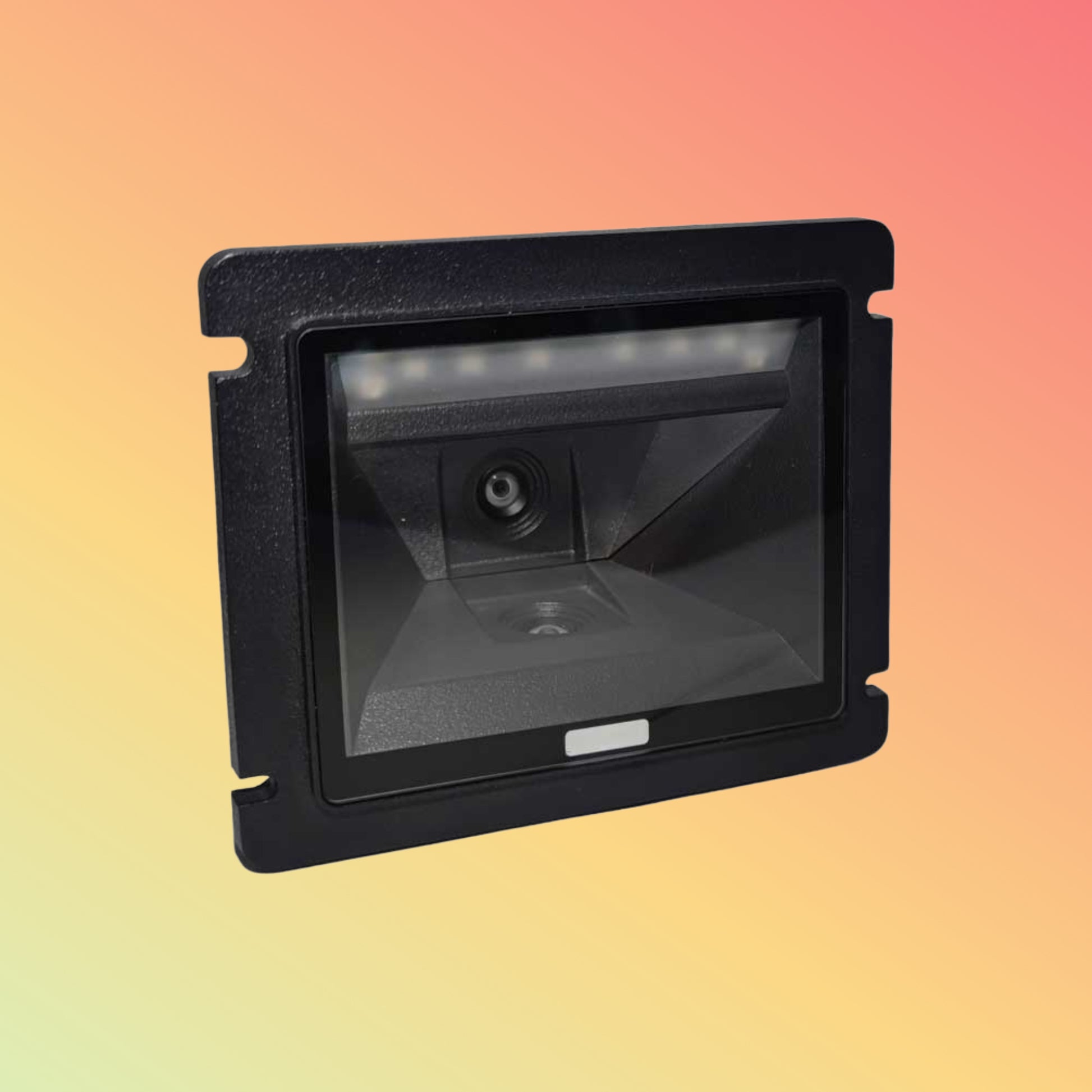

HENEX H60 Embedded 2D Scanner Module

Compact NEOTECH HENEX H60 embedded 2D scanner module. High-speed decode, UART/USB interface, low-power design. Ideal for kiosks, POS, and OEMs.

Overview

The NEOTECH HENEX H60 is a miniaturized 2D scanning engine built for seamless integration. It decodes QR, DataMatrix, PDF417, UPC and other barcodes at over 100 scans/sec. With low power draw and flexible UART/USB interfaces, it slots into kiosks, handhelds, and OEM devices. Its compact size and robust decode performance make it a go-to for space-constrained designs.

Product Description

H60 packs a high-res CMOS sensor and an optimized decode algorithm into a 30 × 20 mm module. It supports UART, USB-CDC and TTL-RS232, plus a GPIO trigger. The module uses under 200 mA in active mode and drops to sleep in microamps. Built-in error correction handles poor prints or low-contrast codes. Whether you’re building ticketing machines, handheld terminals or smart lockers, H60 slides into your PCB footprint and delivers reliable scanning without the bulk.

Key Features

• Ultra-compact 30 × 20 × 4 mm scan module

• Fast decode: ≥100 scans/sec at 640 × 480 px

• Flexible interfaces: UART, USB-CDC, TTL-RS232

• Low power: 200 mA active, <10 µA sleep

• Wide symbology support: QR, PDF417, DataMatrix, UPC, EAN

• Built-in error correction for damaged codes

Specifications

Supported OS/Application/Industries

• Hosts: Embedded Linux, Windows Embedded, Android, RTOS

• Apps: Kiosks, POS terminals, ticketing machines, handheld PDAs

• Industries: Retail, logistics, self-service, industrial automation

Benefits & Compatibility

• Saves PCB space with tiny footprint

• Plugs into standard UART or USB ports

• Low-power suits battery-driven devices

• Handles damaged or low-contrast codes

Purpose of Use

Ideal for OEMs building:

• Self-service kiosks and vending machines

• Rugged handheld data-capture devices

• Point-of-sale and ticketing terminals

• Industrial controllers and access gates

How to Use

1. Mount module footprint on PCB.

2. Wire VCC (3.3–5.5 V), GND, TX/RX (UART) or USB data lines.

3. Pull GPIO high to trigger a scan.

4. Read decoded data via serial or USB CDC.

5. Sleep with GPIO or serial command to save power.

Packaging/Weight/Dimension

• Includes: H60 module, adhesive foam pad, datasheet PDF

• Module Size: 30 × 20 × 4 mm

• Weight: < 5 g

Warranty and FAQs

• Warranty: 1-year limited hardware support

• FAQs:

  • Q: Can it scan under artificial light?
    A: Yes, integrated LED illumination works in low-light.

  • Q: Is USB-CDC driver needed?
    A: No—native CDC class on Windows and Linux.

  • Q: How do I adjust scanning range?
    A: Set focus via optional lens shims; see datasheet.

Performance, Quality, Durability, and Reliability

Tested for 10 million trigger cycles and rated for industrial temps. OEM-grade electronics and a sealed IR filter ensure stable decode in dust, vibration and thermal extremes.

Best Price Guarantee

We track UAE market modules daily. Find a lower verified rate? We’ll match it so you always get the best deal.

Shop Today & Receive Your Delivery Across the UAE!

Order the H60 module now for fast, secure delivery across Dubai, Abu Dhabi, Sharjah and all emirates. Your module ships same day.

Request for Customer Reviews and Testimonials

Integrating H60 in your device? Share a quick testimonial to help other designers choose right and join the NEOTECH community.

After Sales Support

Get expert support via email, phone or live chat for integration tips, firmware samples or RMA. We’re here to ensure your design ships on time.

Get in Touch

Questions or volume quotes? Contact us here. We’ll help with specs, pricing or custom firmware.

Stock Availability

Stock updates daily. For urgent or large orders, confirm module availability via our contact page before placing your order.

Disclaimer

All info is for general reference and may change without notice. Module images are illustrative. Verify specs, pricing and stock with NEOTECH sales before buying.
