Delight visitors with the Pavilion Kiosk. Modular I/O, robust build, intuitive touch interface. Order today!
Overview

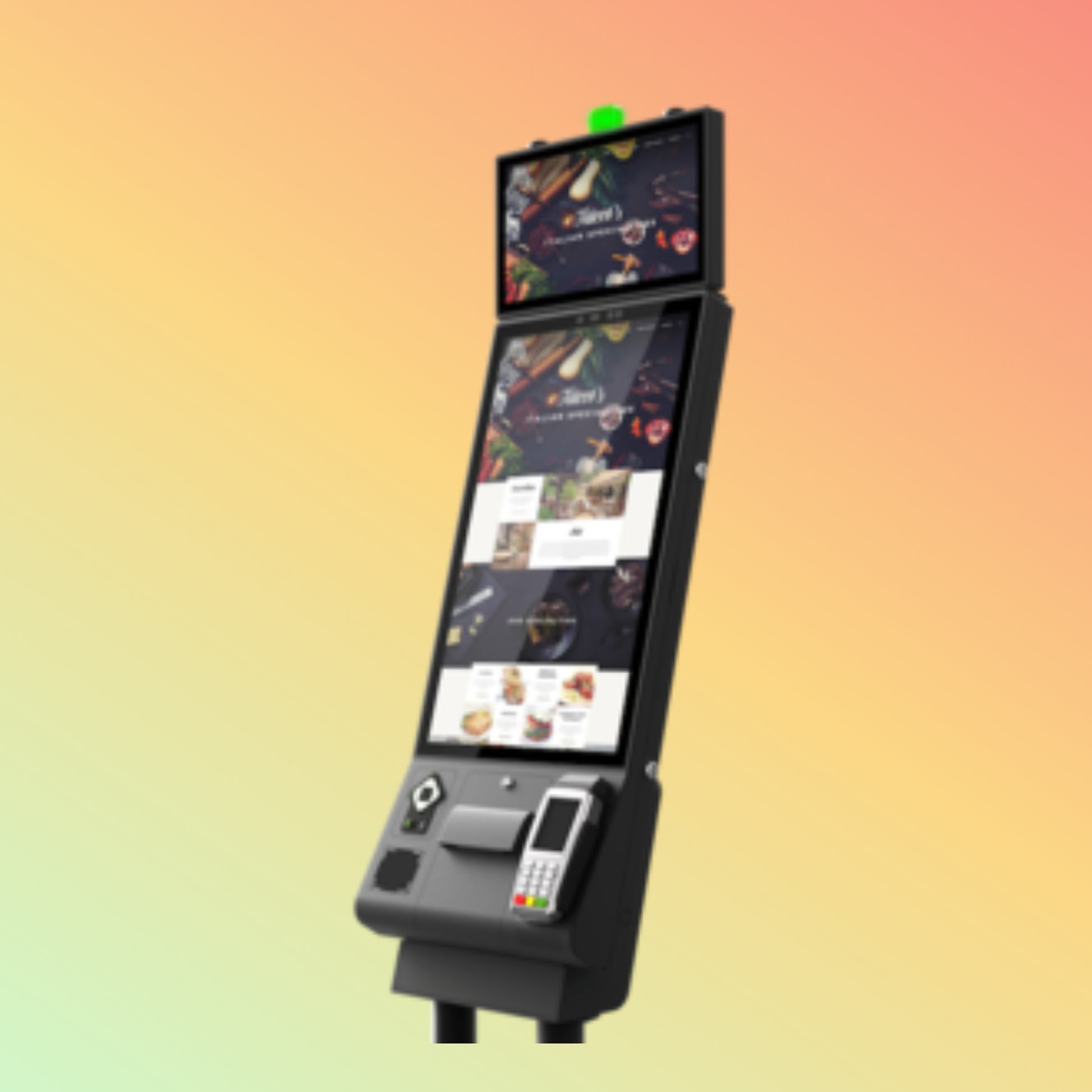

The Touch Dynamic Pavilion Kiosk is a modern, all-in-one self-service station built for reliability and style. It features a large P-Cap touchscreen and a sturdy, IP54-rated frame. Use it in retail, hospitality, or corporate lobbies.
Product Description
Crafted from powder-coated steel and tempered glass, the Pavilion Kiosk blends durability with a slim profile. It houses a 23.8″ Full HD multi-touch display and an Intel® Celeron® J4125 quad-core processor. Hot-swap bays let you add payment readers, barcode scanners, or printers in seconds. PoE-ready Ethernet and Wi-Fi support network setups with minimal cabling. Setup takes minutes; ROI starts right away.
Key Features
-
23.8″ Full HD multi-touch P-Cap display
-
Intel® Celeron® J4125 Quad-Core CPU
-
Fanless, IP54-rated front panel
-
Two tool-free hot-swap I/O bays
-
PoE-ready Gigabit Ethernet and Wi-Fi 6
-
VESA 75×75 mm and floor-stand options
-
Android 11 or Windows 10 IoT support
-
Integrated stereo speakers and mic
Specifications
| Specification |
Details |
| Display |
23.8″ IPS, 1920×1080, 400 cd/m² |
| Touch Technology |
10-point P-Cap, glove-friendly |
| Processor |
Intel® Celeron® J4125 (4C/4T, 1.5–2.7 GHz) |
| Memory & Storage |
4 GB DDR4 (up to 8 GB) + 64 GB eMMC + M.2 slot |
| I/O Bays |
2 × hot-swap bays |
| Fixed Ports |
2×USB 3.0, 1×USB-C PD, 1×Gigabit LAN |
| Wireless |
Wi-Fi 6 (802.11ax), Bluetooth 5.2 |
| Power Input |
12–36 V DC terminal block |
| Mounting Options |
VESA 75×75 mm, floor stand |
| Dimensions (W×H×D) |
570×330×65 mm |
| Weight |
8.5 kg |
Supported OS / Applications / Industries
-
OS: Android 11, Windows 10 IoT
-
Applications: Self-checkout, ticketing, info kiosks, digital signage
-
Industries: Retail, hospitality, transit hubs, healthcare, corporate
Benefits & Compatibility
-
Rapid deployment with PoE and Wi-Fi
-
Scales from simple info points to full POS lanes
-
Works with Edge Ultra Kiosk Solutions
-
Low maintenance: fanless design limits dust buildup
-
Modular upgrades extend lifecycle and ROI
Purpose of Use
Ideal for:
-
Self-service checkout and returns
-
Interactive wayfinding in malls and campuses
-
Ticketing at events and transit stations
-
Visitor check-in and hotel lobby info
-
Digital menu and loyalty points
How to Use
-
Place on floor stand or mount via VESA.
-
Connect power and network.
-
Snap in modules like card readers.
-
Power on and select OS.
-
Launch your kiosk app—live in minutes.
Packaging / Weight / Dimensions
Warranty & FAQs
Warranty: 2 years hardware, 1 year module support
FAQs:
-
Can I use NFC payments?
✔ Yes, via hot-swap reader module.
-
Is the screen vandal-resistant?
✔ Meets IK06 impact rating.
-
Does it support portrait mode?
✔ Yes, with VESA rotation.
Performance, Quality, Durability & Reliability
Tested to MIL-STD-810G and IP54 standards. The Pavilion Kiosk runs silent with no fan failures. Expect 99.9% uptime in heavy-use zones.
Best Price Guarantee
We match any lower quote for Pavilion Kiosk—no questions asked.
Shop Today & Receive Your Delivery Across the UAE
Order now for fast shipping to Dubai, Abu Dhabi, Sharjah, and beyond. We handle customs and last-mile logistics.
Request for Customer Reviews and Testimonials
Deployed Pavilion Kiosk? Leave a review and help peers pick the right solution.
After Sales Support
Our tech team is on call via email, phone, or live chat for setup, troubleshooting, and module swaps.
Get in Touch
Questions on kiosk software or branding? Contact our kiosk specialists for guidance.
Stock Availability
Stocks update daily. For urgent projects, confirm availability before checkout. Bulk or custom orders may require 10–15 business days.
Disclaimer
All specs and images are for general info and may change without notice. Verify final details and pricing with our sales team before ordering.
