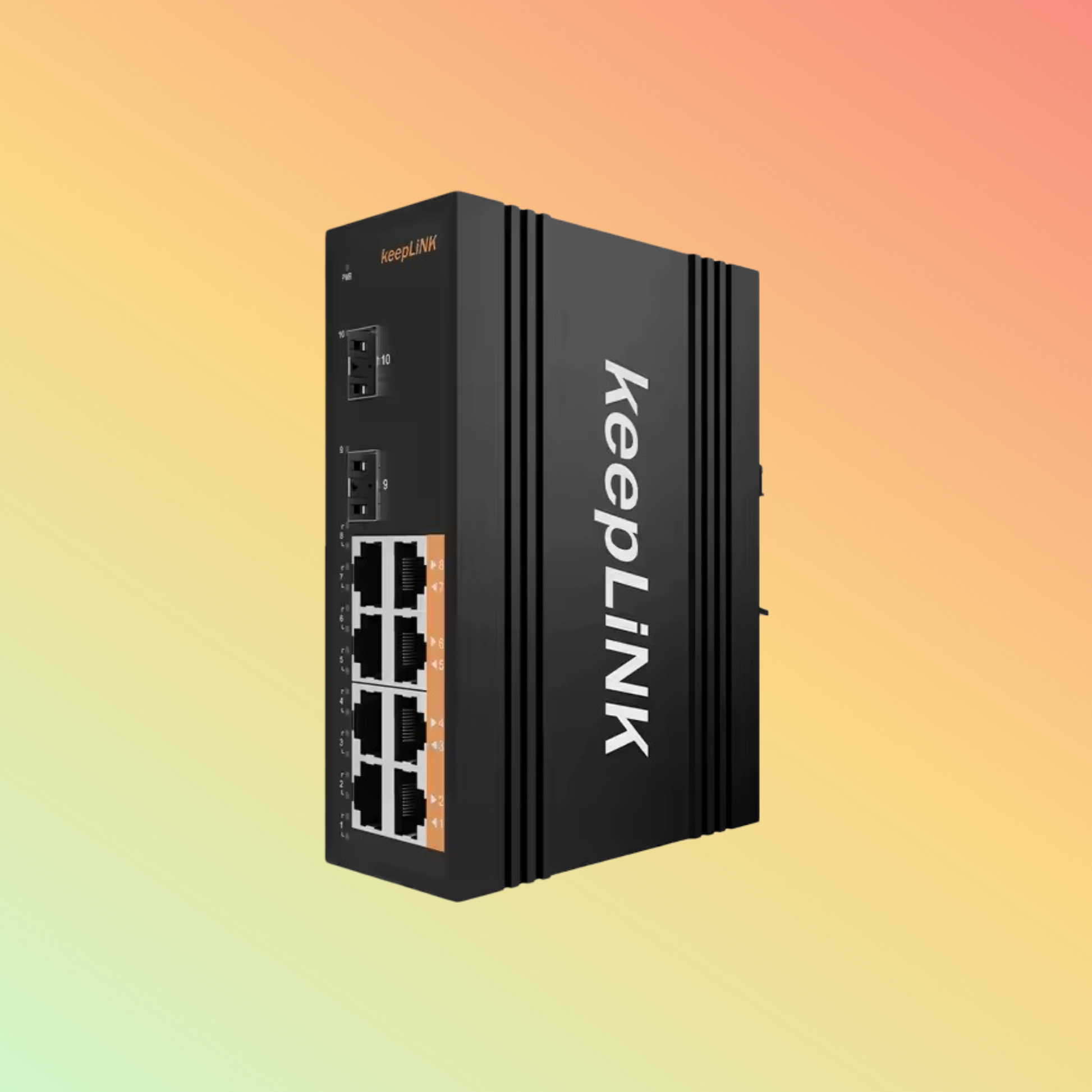

Unmanaged 10/100/1000M 8 Ports Industrial PoE Ethernet Switch DIN Rail IP40 for Outdoor CCTV LED Screen

Unmanaged 8-Port PoE Gigabit Industrial Switch with DIN-Rail mount & IP40 rating. Built for outdoor CCTV, LED screens. In stock now at NEOTECH UAE.

✅ Overview

Power and connect your outdoor CCTV systems or LED display networks with this robust 8-Port Industrial PoE Ethernet Switch. Featuring full Gigabit ports, DIN-rail mounting, and a weather-resistant IP40-rated housing, this unmanaged switch is built for remote, rugged environments.

✅ Product Description

This industrial PoE switch features 8 x 10/100/1000 Mbps RJ45 ports with integrated PoE (IEEE 802.3af/at) to deliver both power and data over a single cable. Designed for harsh deployments like surveillance poles and outdoor LED signage, the unit operates in extreme temperatures and offers protection from electrical surges and static discharge.

Its passive cooling system and compact DIN-rail-mountable chassis make it ideal for small cabinets and outdoor enclosures. This is a true plug-and-play solution—no setup or software needed.

✅ Key Features

• 8 x Gigabit RJ45 ports (PoE-enabled)

• IEEE 802.3af/at compliant (15.4W/30W per port)

• Unmanaged design for easy plug-and-play

• IP40-rated aluminum housing for durability

• DIN-rail or wall-mountable

• Wide DC power input: 48–57V DC

• Operating temperature: -40°C to 75°C

• ESD, surge, and lightning protection

• Fanless design for silent operation

✅ Specifications

• Ports: 8 x 10/100/1000 Mbps RJ45 (PoE)

• PoE Budget: Up to 120W total

• Switching Capacity: 16 Gbps

• Forwarding Rate: 11.9 Mpps

• Power Input: 48–57V DC (terminal block)

• Cooling: Passive, fanless

• Material: Aluminum alloy industrial enclosure

• Mounting: DIN-rail / wall

• Protection Level: IP40

• Dimensions: 145mm x 100mm x 40mm

• Weight: ~0.65 kg

✅ Supported OS/Application/Industries

• OS Compatibility: Fully OS-independent

• Applications: Outdoor IP cameras, LED displays, access points, sensor hubs

• Industries: Smart Cities, Public Transport, Retail, Energy, Advertising

✅ Benefits & Compatibility

• Combines power and data through a single cable

• Instantly powers IP cameras or smart signage without external adapters

• Works seamlessly with standard PoE IP devices

• Great for street monitoring, building facades, transport stations

• Supports wide voltage power systems and solar setups

✅ Purpose of Use

Ideal for powering and networking outdoor CCTV cameras, LED signboards, APs, or IoT devices in traffic systems or remote buildings. A reliable choice for non-stop 24/7 deployments.

✅ How to Use

1. Mount unit via DIN-rail or wall bracket

2. Connect RJ45 PoE-powered devices (IP cams, LED controllers)

3. Power with 48–57V DC via terminal block

4. System auto-detects and runs instantly—no setup needed

✅ Packaging/Weight/Dimension

• Dimensions: 145 x 100 x 40 mm

• Weight: ~0.65 kg

• Package Includes: Switch, terminal block, DIN-rail clip, quick-start guide

✅ Warranty and FAQs

Warranty: 1-Year replacement warranty
FAQs:
Q1: Are all ports PoE?
A1: Yes, all 8 ports provide PoE power.
Q2: Can I use 12V power input?
A2: No, 48V–57V DC is required for PoE.
Q3: Is it suitable for traffic pole mount?
A3: Yes, with an outdoor-rated enclosure.

✅ Performance, Quality, Durability, and Reliability

Built to industrial standards, this switch delivers rock-solid uptime in demanding outdoor environments. Silent, low-maintenance, and engineered for harsh field conditions.

✅ Best Price Guarantee

Get the best deal on industrial PoE switches. NEOTECH matches any verified price in the UAE.

✅ Shop Today & Receive Your Delivery Across the UAE!

Place your order now for fast, secure delivery in Dubai, Abu Dhabi, Sharjah, and beyond. Reliable packaging and expert support guaranteed.

✅ Request for Customer Reviews and Testimonials

Using this for your CCTV or digital signage project? Share your story to help others find a dependable PoE networking solution.

✅ After Sales Support

Need power configuration help or compatibility guidance? Our NEOTECH team is ready with expert after-sales support.

✅ Get in Touch

Looking for project quotes, compatibility checks, or tech specs? Contact NEOTECH today—we’re here to help.

✅ Stock Availability

This model is in stock and ready to ship. For bulk orders, project deployments, or urgent delivery, please confirm availability with our team.

✅ Disclaimer

Specs and visuals are for reference only and may change without notice. Please confirm key details before final purchase.
