Convert your Elo touchscreen into a Linux-powered terminal. Quad-core ARM, 2 GB RAM, 16 GB eMMC, Wi-Fi/Bluetooth. Order for UAE-wide delivery!
Overview

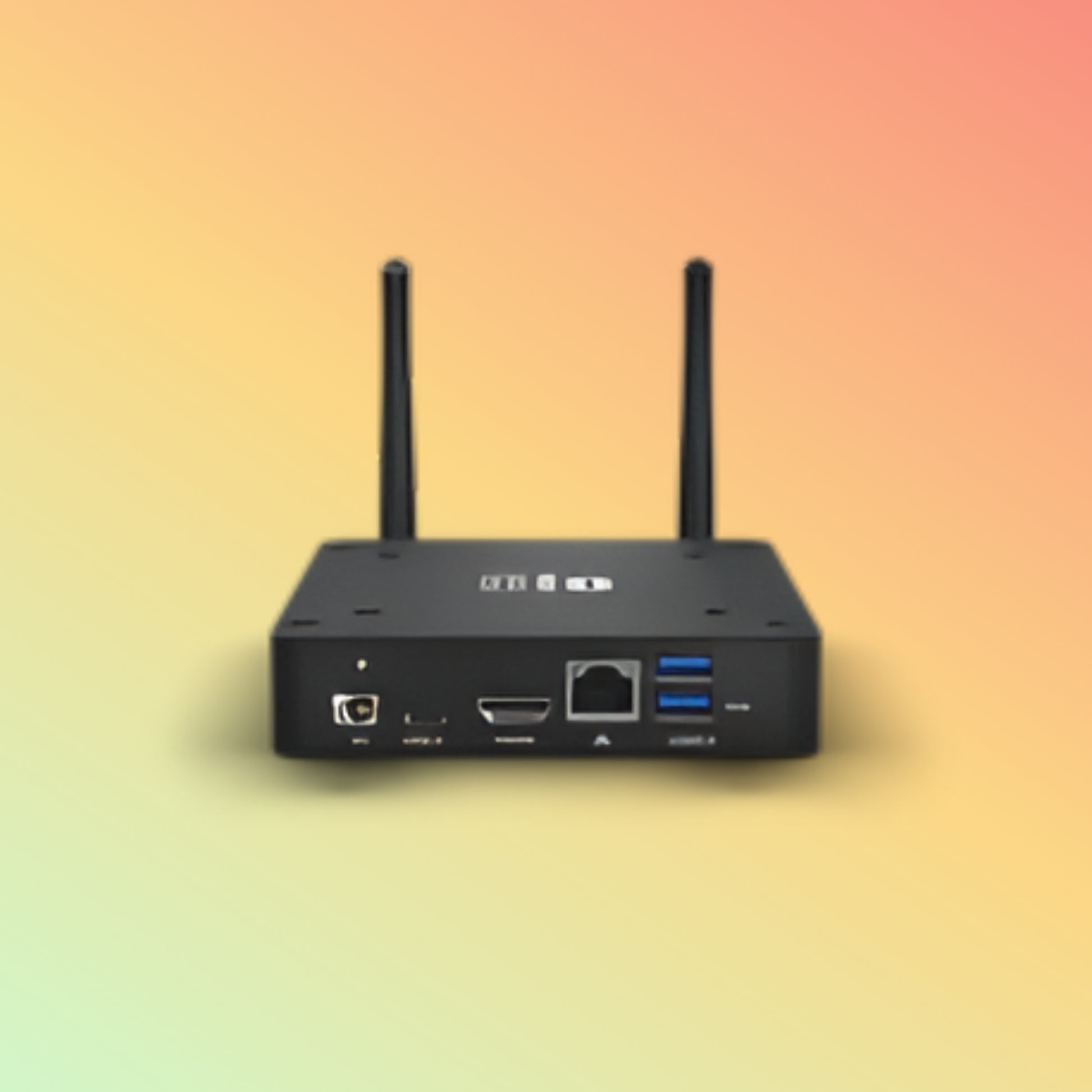

The Elo Linux Backpack transforms compatible Elo touch displays into standalone Linux workstations. Powered by a quad-core ARM® processor and Debian-based OS, it delivers fast boot, seamless updates and secure connectivity. Its slim, fanless design mounts behind the display, eliminating external PCs and streamlining installations in kiosks, retail, healthcare and industrial settings.
Product Description
Designed as a plug-in module, the Elo Linux Backpack integrates all compute hardware into a compact metal enclosure. It runs a hardened Linux distribution with full support for touchscreen drivers, network protocols and containerized apps. Connect via PoE+ or 12 V DC, then plug in HDMI and USB—all cables lock in place for tamper-resistance. With onboard Wi-Fi 5, Bluetooth 5.0 and Gigabit Ethernet, deployment is plug-and-play. Remote management tools enable OS patching and app updates without downtime.
Key Features
-
Quad-Core ARM Cortex-A53 at 1.8 GHz for responsive performance
-
2 GB DDR4 RAM & 16 GB eMMC storage (expandable via microSD)
-
Debian-Based Linux OS with touchscreen and network drivers pre-installed
-
PoE+ & 12 V DC power options for flexible installations
-
Wi-Fi 5 & Bluetooth 5.0 for wireless connectivity
-
Gigabit Ethernet with locking RJ45 for secure network
-
HDMI & USB 2.0/3.0 Ports for display and peripheral support
-
Fanless, VESA-Mountable metal enclosure for silent, behind-display mounting
Specifications
| Specification |
Details |
| Processor |
ARM Cortex-A53 quad-core, 1.8 GHz |
| Memory |
2 GB DDR4 |
| Storage |
16 GB eMMC (microSD slot up to 128 GB) |
| OS |
Debian-based Linux with Yocto build |
| Network |
Wi-Fi 5 (802.11ac), Bluetooth 5.0, Gigabit Ethernet |
| Video Out |
HDMI 1.4 |
| I/O Ports |
2× USB 3.0, 2× USB 2.0 |
| Power |
PoE+ (802.3at) or 12 V DC |
| Mounting |
VESA 75×75 / 100×100 mm |
| Dimensions |
120 × 90 × 25 mm |
| Weight |
0.35 kg |
| Operating Temp. |
0 °C to 50 °C |
| Certifications |
CE, FCC, RoHS |
Supported OS / Applications / Industries
OS Compatibility: Debian Linux (Yocto)
Applications: Self-service kiosks, digital signage, industrial control, point-of-sale, wayfinding
Industries: Retail, hospitality, healthcare, manufacturing, transportation
Benefits & Compatibility
-
All-in-One Solution: Eliminates external PCs for a neat, integrated setup
-
Secure & Manageable: Linux security patches and remote update tools
-
Silent Operation: Fanless design prevents noise and dust ingress
-
Flexible Power: Choose PoE+ or DC adapter for your deployment
-
Standard Mounting: Fits behind any VESA-compatible Elo display
Purpose of Use
Ideal for transforming Elo touchscreens into dedicated Linux terminals. Deploy interactive applications, run custom scripts or containerized services—without external hardware clutter.
How to Use
-
Mount the Backpack to the display’s VESA plate.
-
Connect HDMI and USB.
-
Power via PoE+ switch or 12 V DC adapter.
-
Boot into Linux; complete network setup.
-
Install or deploy applications via SSH or management console.
Packaging / Weight / Dimensions
-
Box Weight: 0.6 kg
-
Box Dimensions: 150 × 110 × 50 mm
-
Included: Linux Backpack module, PoE injector bracket, DC adapter, mounting screws, quick-start guide
Warranty and FAQs
Warranty: 1-year limited; extensions available up to 3 years.
FAQs:
Q: Can I run Docker containers?
A: Yes, Docker is pre-supported on the Linux image.
Q: Is VPN supported?
A: OpenVPN and WireGuard packages are available.
Q: How do I update the OS?
A: Use apt or the remote management portal for unattended updates.
Performance, Quality, Durability & Reliability
Manufactured with industrial-grade components and tested for shock, vibration and temperature extremes. Continuous burn-in testing ensures reliability in mission-critical applications.
Best Price Guarantee
Found a lower price on an equivalent Linux compute module in the UAE? We’ll match it—no questions asked. Shop confidently with NEOTECH.
Shop Today & Receive Your Delivery Across the UAE!
Order now for fast, secure shipping to Dubai, Abu Dhabi, Sharjah and all emirates. Our logistics network ensures on-time delivery to your site.
Request for Customer Reviews & Testimonials
Deploy the Elo Linux Backpack? Share your feedback to help peers and refine our product. Your insights drive our next innovations.
After Sales Support
Enjoy dedicated post-sale technical support, remote diagnostics and streamlined RMA processing. If email or phone support can’t resolve, we’ll arrange prompt replacement.
Get in Touch
Need specs, integration advice or volume quotes? Contact our product specialists for tailored solutions. We’re here to ensure your success.
Stock Availability
Before you order, please confirm current stock levels. We maintain real-time inventory to ensure seamless purchasing.
Disclaimer
All information is for general guidance and may change without notice. Product images are illustrative. Verify specs, availability and pricing with our sales team before purchase.
