HENEX H1203 2D Scan Egine Module

Compact HENEX H1210 2D scan engine module for space-constrained devices. High-speed decode, UART/USB, low-power. Ideal for OEM and embedded systems.

Overview

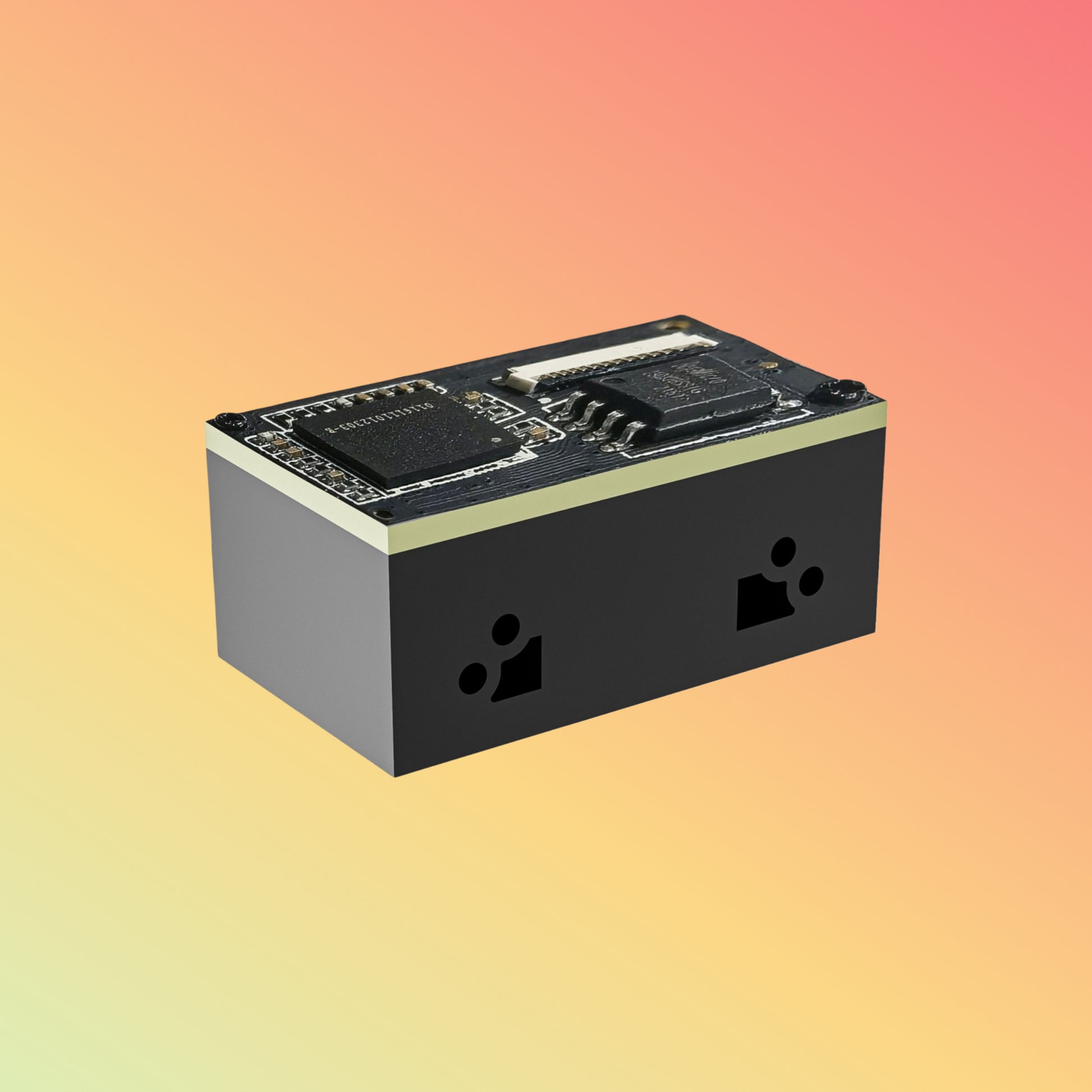

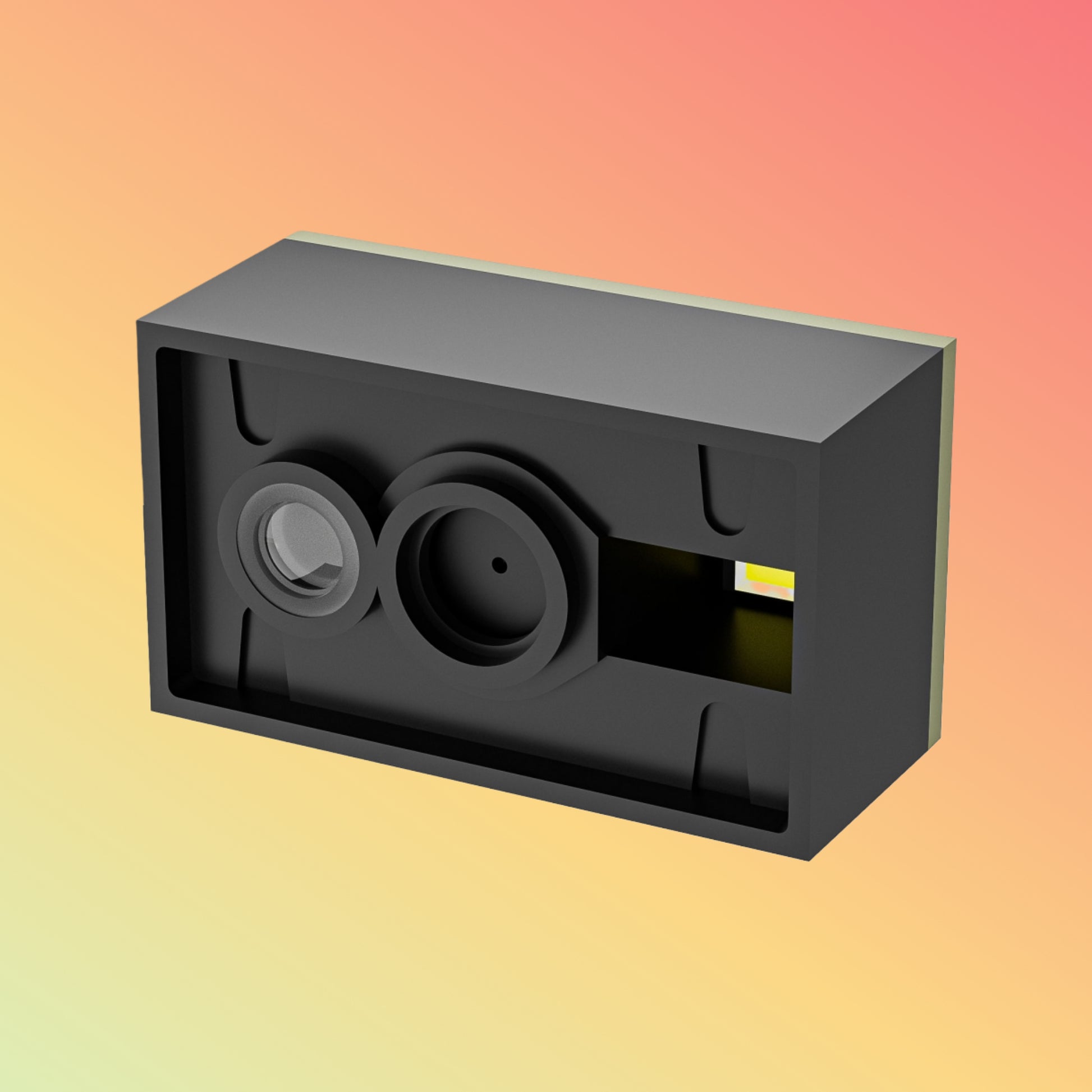

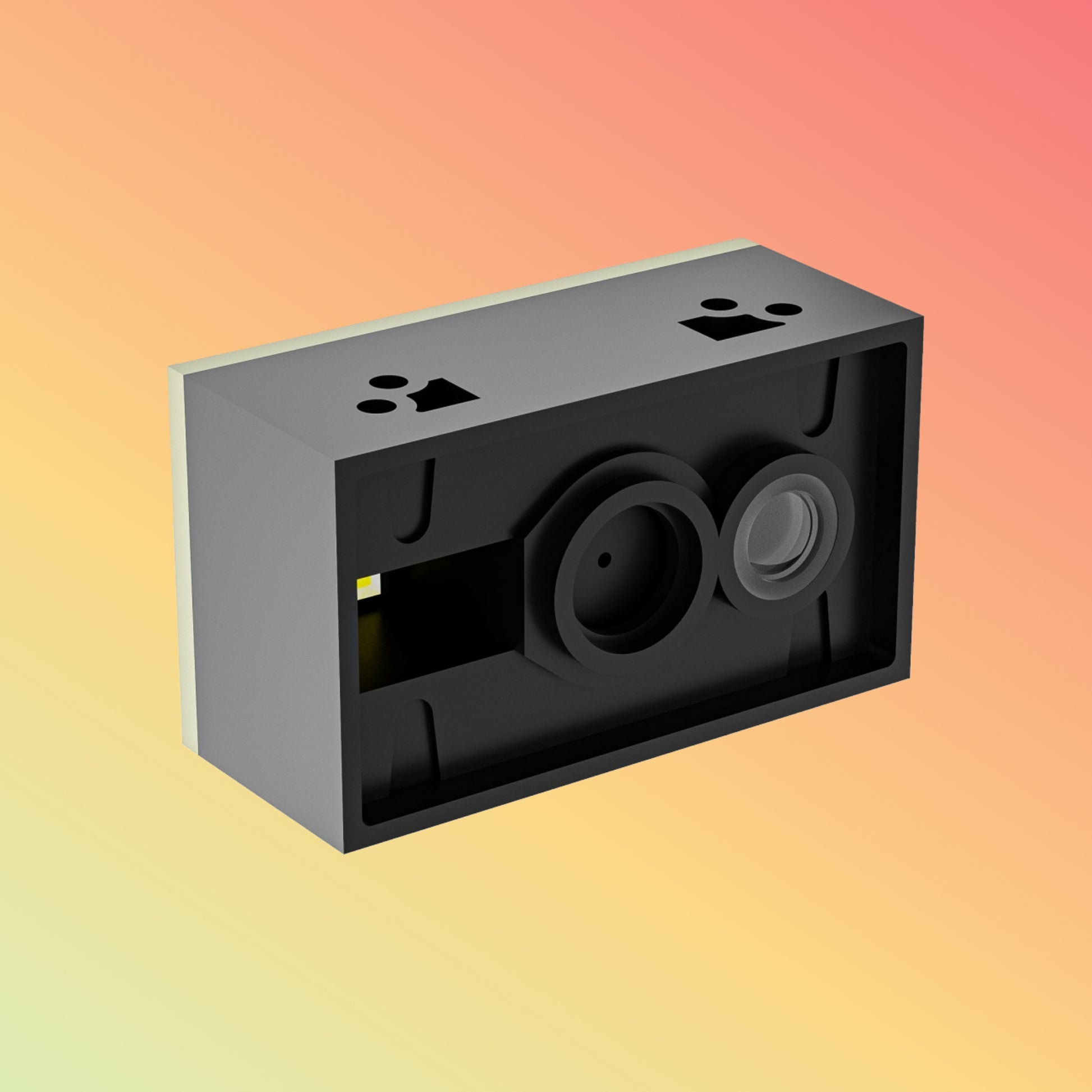

The HENEX H1210 is a mini-form-factor 2D scan engine that packs serious punch. In a 25×18×4 mm footprint, it rips through QR, DataMatrix, PDF417, UPC and EAN codes at over 120 scans/sec. Its tiny size and flexible interfaces make it perfect for integration into kiosks, handheld terminals and IoT devices.

Product Description

NEOTECH’s H1210 combines a high-res 640×480 px CMOS sensor with optimized decode firmware. It supports UART (TTL-RS232) and USB-CDC, plus a GPIO trigger. Active mode draws under 200 mA; deep sleep drops to microamps. Built-in LED illumination boosts performance in low light, while error-correction handles faded or damaged codes. Slide it onto your PCB and deliver reliable scanning without bulk.

Key Features

• Ultra-Compact: 25 × 18 × 4 mm module for tight OEM layouts

• Fast Decode: ≥ 120 scans/sec ensures no bottlenecks

• Dual Interfaces: UART TTL-RS232 & USB-CDC for design freedom

• Low-Power Operation: 200 mA active, < 10 µA sleep

• Wide Symbology: QR, DataMatrix, PDF417, UPC, EAN

• Integrated Illumination: bright LED for dark environments

Specifications

Supported OS / Applications / Industries

• Hosts: Embedded Linux, Windows Embedded, Android, RTOS

• Use Cases: Self-service kiosks, handheld PDAs, smart lockers

• Industries: Retail, logistics, industrial automation, healthcare

Benefits & Compatibility

• Space-Saving module fits tight PCB footprints

• Dual-Mode Connectivity simplifies wiring in diverse designs

• Power-Efficient for battery-driven products

• Robust Decoding handles low-contrast or damaged labels

Purpose of Use

Ideal for embedding scan functionality into:

• Self-checkout and ticketing kiosks

• Rugged handheld devices

• Vending and parcel locker systems

• Industrial control and access panels

How to Use

1. Mount H1210 footprint on PCB, secure with adhesive pad.

2. Wire VCC (3.3–5.5 V), GND, TX/RX for UART or USB-CDC lines.

3. Pull trigger GPIO high (or send serial command) to scan.

4. Read decoded output via serial or USB interface.

5. Enter sleep via GPIO/command to conserve power.

Packaging / Weight / Dimension

• Includes: H1210 module, adhesive pad, integration datasheet

• Module Size: 25 × 18 × 4 mm

• Weight: < 4 g

Warranty and FAQs

• Warranty: 1-year limited hardware support

• FAQs:

  • Q: Is a driver needed for USB-CDC?
    A: No—native CDC class on Windows and Linux.

  • Q: Can it scan in low light?
    A: Yes, its built-in LED ensures clear captures.

  • Q: How to adjust focus?
    A: Use optional lens shims per datasheet instructions.

Performance, Quality, Durability, and Reliability

Tested for over 10 million trigger cycles under –20 °C to 60 °C. Industrial-grade components and IR-filtered optics ensure stable decode in dusty, vibrating or temperature-extreme environments. Meets RoHS and CE standards.
