High-speed 250mm/s 80mm embedded receipt printer for kiosks. Ideal for self-service terminals and ticketing. Reliable, fast, and ESC/POS ready.
✅ Overview

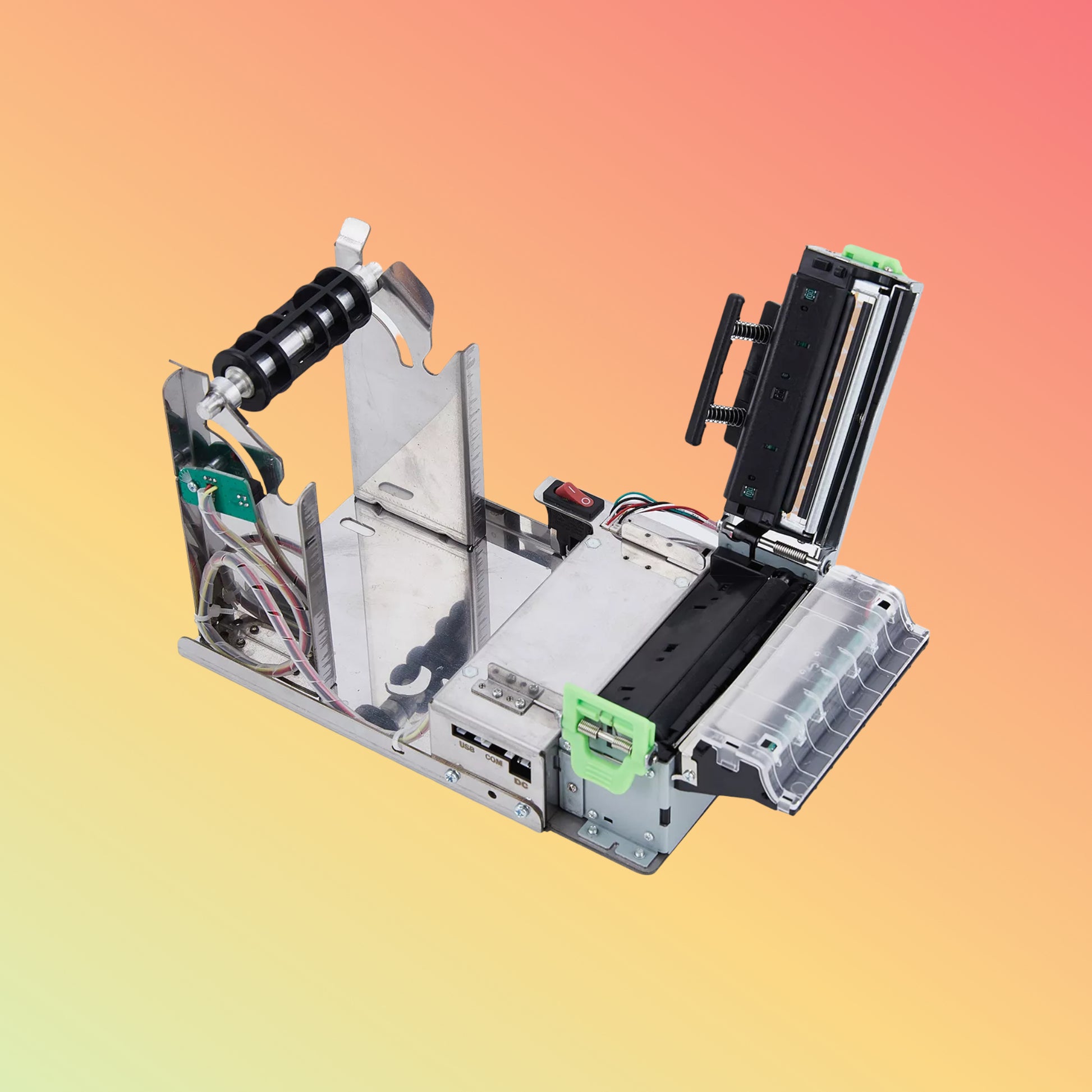

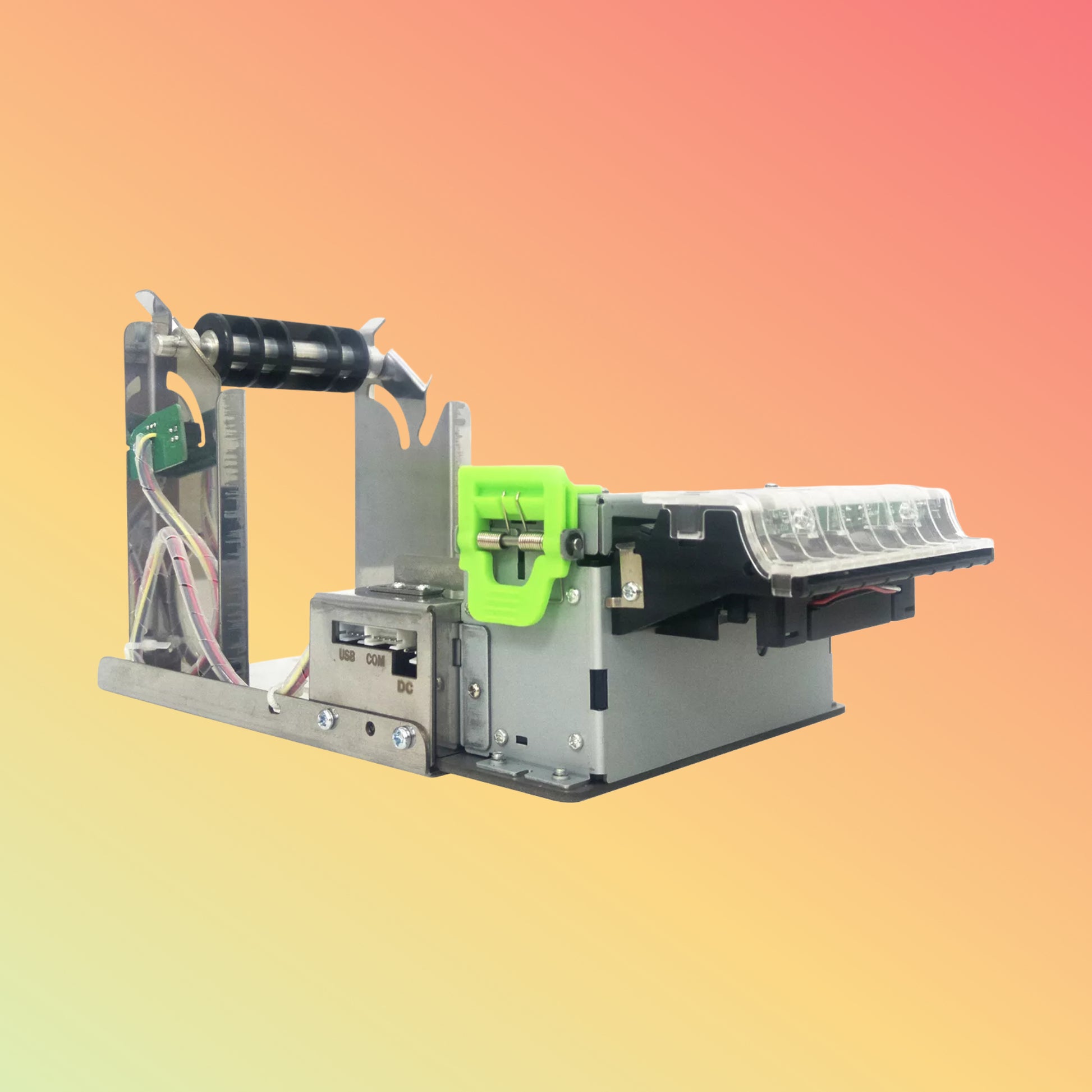

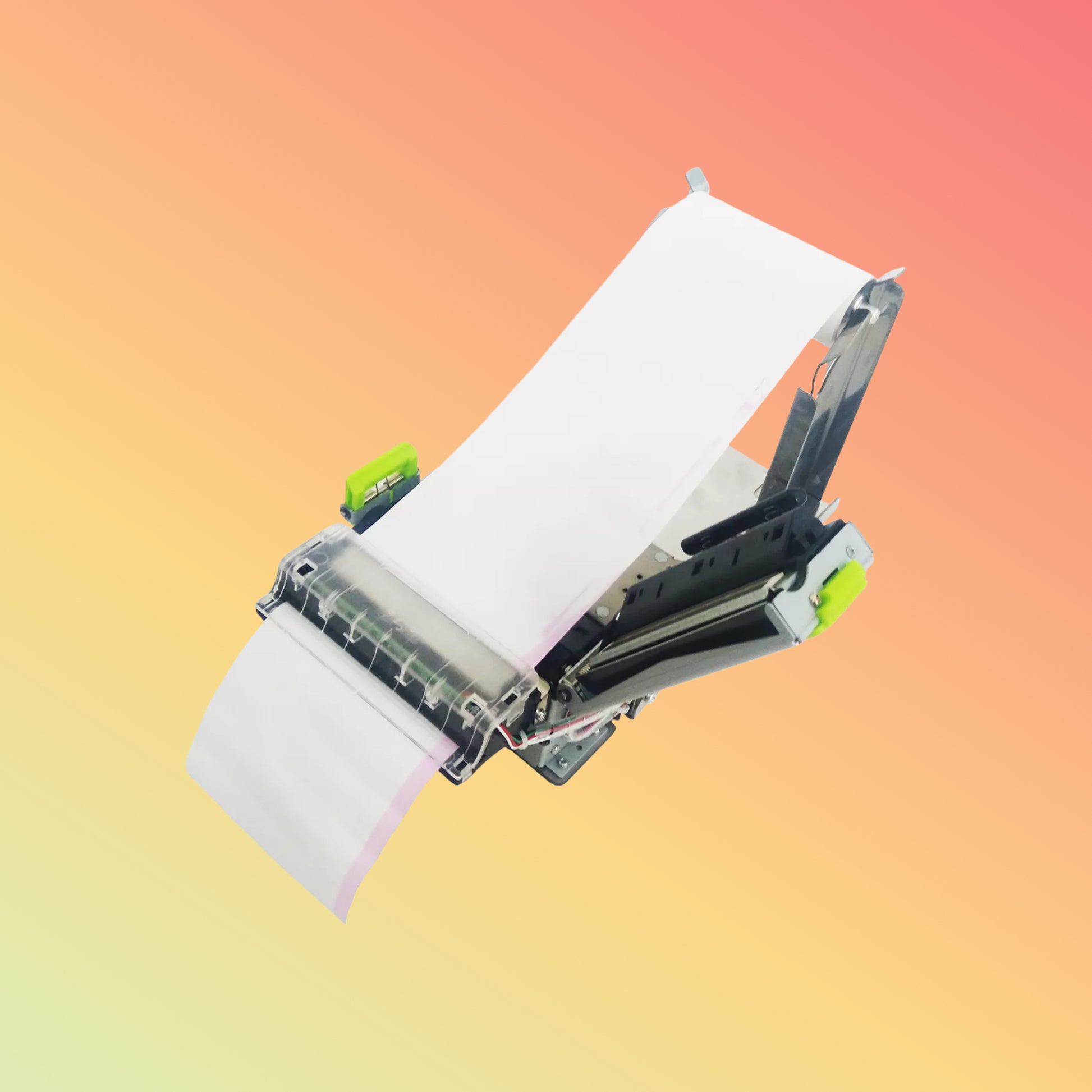

The HCC-EU807 Embedded Kiosk Printer Module is a powerful, high-speed thermal receipt printer built for self-service terminals, vending machines, and automated kiosks. With support for 80mm wide thermal paper, 250mm/s print speed, and ESC/POS compatibility, it’s a perfect fit for demanding environments where speed and precision matter.
✅ Product Description
Designed for integration into public-use terminals, the HCC-EU807 offers blazing-fast 250mm/s printing, 203dpi resolution, and full ESC/POS command compatibility. Whether for ticketing kiosks, bill payment machines, or retail checkout stations, this embedded printer delivers crisp, high-speed output with exceptional reliability.
Its auto-cutter enables clean receipt dispensing, while the front paper-loading design simplifies maintenance in closed environments. USB, RS232, and TTL interface options ensure flexible compatibility for developers and OEM integrators.
✅ Key Features
-
⚡ Superfast 250mm/s Print Speed – Reduces queue times
-
🧾 Supports 80mm Thermal Paper – Full-width receipts
-
🖨️ 203dpi Resolution – Sharp logos, barcodes & text
-
✂️ Built-in Auto Cutter – Full or partial cutting
-
🔌 USB, RS232, TTL Interfaces – Multiple integration options
-
🧠 ESC/POS Command Set – Seamless POS integration
-
📦 Front Paper Loading – Easy access in embedded setups
-
🔧 OEM-Friendly Design – Ideal for ATMs, kiosks & terminals
✅ Specifications
-
Print Technology: Direct Thermal
-
Resolution: 203dpi
-
Print Speed: Up to 250mm/sec
-
Paper Width: 80mm (max 72mm printable)
-
Interfaces: USB, RS232 (serial), TTL
-
Cutter Type: Full/Partial Auto Cutter
-
Command Compatibility: ESC/POS
-
Dimensions: 150 x 140 x 100 mm
-
Weight: Approx. 1.5 kg
✅ Supported OS / Applications / Industries
-
Supported OS: Windows, Linux
-
Applications: Ticketing, Self-Service Payment, Vending, Transportation
-
Industries: Banking, Public Transit, Hospitality, Retail Automation
✅ Benefits & Compatibility
-
🏪 Perfect for unattended kiosk setups
-
🧾 Prints receipts, tickets, barcodes, and QR codes
-
💡 Compact form for tight enclosure integration
-
🔋 No ink required—low maintenance thermal technology
-
🔌 Flexible connection options with POS software, Arduino, or SBCs
✅ Purpose of Use
Optimized for self-service kiosks that require high-speed printing, like ticket vending machines, queue management systems, hotel check-in terminals, and bank kiosks.
✅ How to Use
-
Embed the unit in the kiosk chassis
-
Connect interface to mainboard (USB/TTL/Serial)
-
Load 80mm thermal paper roll via front tray
-
Use ESC/POS software or SDK to send print data
-
Print receipts, barcodes, or tickets with auto cut
✅ Packaging / Weight / Dimension
-
Unit Weight: 1.5 kg
-
Size: 150mm (W) x 140mm (D) x 100mm (H)
-
Box Includes: Printer module, test paper roll, power cable, driver CD (if applicable), user guide
-
Packaging: Anti-static, foam-protected OEM packaging
✅ Warranty and FAQs
Warranty: 12-month limited warranty for manufacturing defects
FAQs:
-
Does it print graphics and QR codes? Yes
-
Can I integrate with Raspberry Pi or Android box? Yes, via USB or TTL
-
Is it suitable for harsh environments? Yes, with proper kiosk housing
For setup help, visit the NEOTECH Contact Page
✅ Performance, Quality, Durability, and Reliability
Engineered for continuous printing in demanding public spaces, the HCC-EU807 delivers consistent, high-quality output with long-lasting cutter performance and minimal error rates.
✅ Best Price Guarantee
We offer the lowest market rates in the UAE for kiosk-grade receipt printers. If you find the HCC-EU807 cheaper elsewhere—we’ll beat it.
✅ Shop Today & Receive Your Delivery Across the UAE!
Fast shipping to Dubai, Abu Dhabi, Sharjah, and all major cities. Units are pre-tested and packed safely for OEM and integrator deployment.
✅ Request for Customer Reviews and Testimonials
Using the HCC-EU807 in your project? Share your feedback to help other developers choose a reliable embedded printing solution.
✅ After Sales Support
We offer full technical integration support, wiring guidance, and driver assistance to ensure smooth deployment in your self-service environment.
✅ Get in Touch
Have a custom integration in mind or need large volume pricing? Connect with our hardware team via the NEOTECH Contact Page.
✅ Stock Availability
In stock for standard models. Custom firmware/interface requests may require 10–15 business days. Please confirm with our sales team before ordering.
✅ Disclaimer
Product specs, prices, and packaging details are subject to change without notice. Always confirm current configuration with NEOTECH prior to purchase.
