Boost Elo I/O with Backpack 5®: adds USB, serial, Ethernet, audio ports in a compact, bus‑powered module. Order now.
Overview

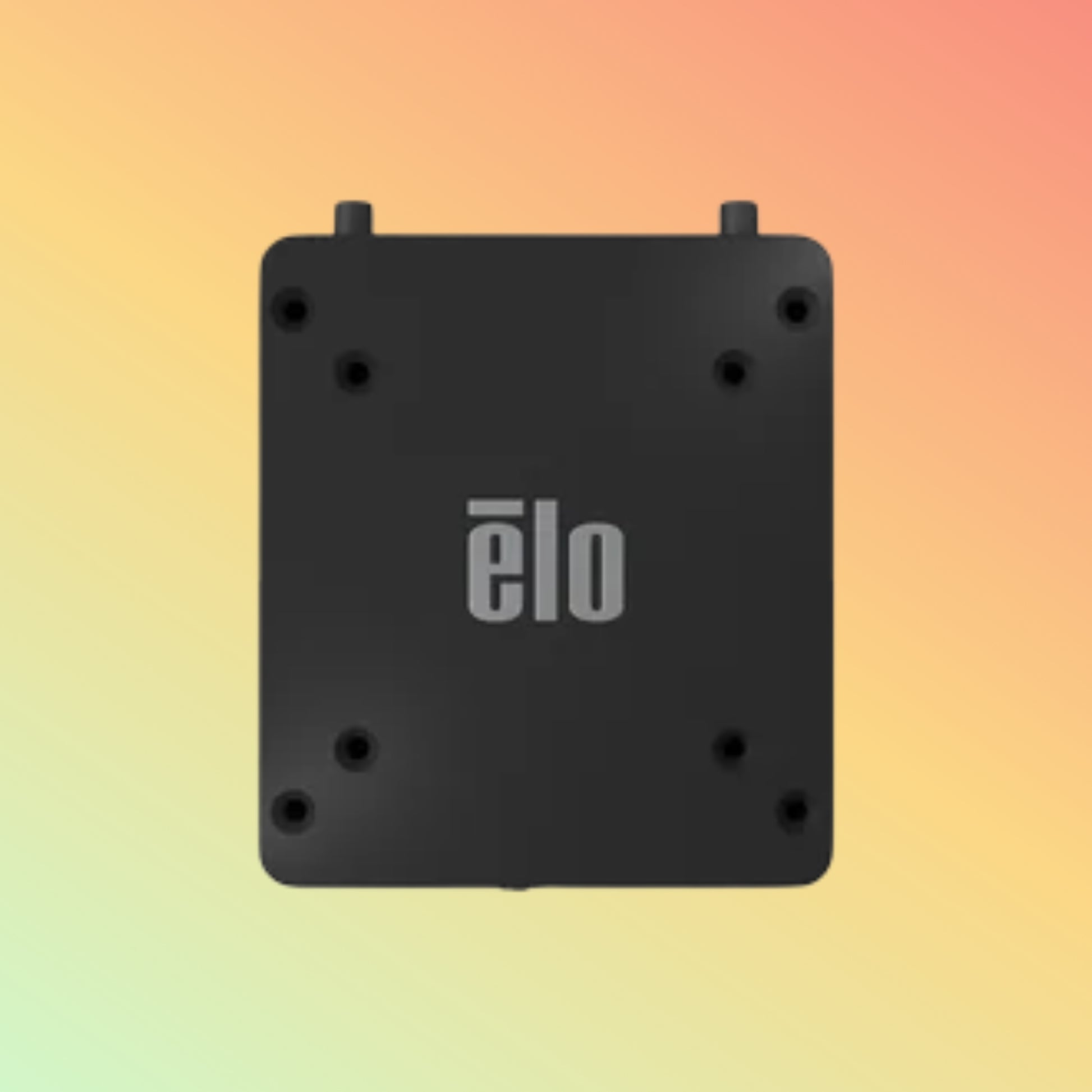

The Elo Backpack 5® is a versatile expansion module designed for Elo I‑Series and all‑in‑one touchscreen systems. It delivers five additional interfaces—USB‑A, USB‑C, RS‑232 serial, Gigabit Ethernet, and 3.5 mm audio—in a rugged, bus‑powered enclosure that snaps neatly behind the display.
Product Description
Backpack 5® integrates seamlessly into Elo touch computers via the dedicated expansion slot. No extra power or bulky hubs required. Its slim, tool‑free mounting bracket installs in seconds. The module’s metal housing and locking connectors ensure reliable operation in retail kiosks, hospitality terminals, and industrial controls without adding desk clutter.
Key Features
-
USB 3.0 Type‑A: 2× high‑speed ports (5 Gbps)
-
USB C: 1× host/data port (5 Gbps)
-
Serial: 1× RS‑232 DB‑9 for legacy devices
-
Ethernet: 1× Gigabit RJ‑45 for wired LAN
-
Audio: 1× 3.5 mm headset/mic combo jack
-
Bus‑Powered: Draws power from host—no wall adapter
-
Tool‑Free Installation: Quick‑attach behind display
-
Compatibility: Elo I‑Series and select Elo all‑in‑ones
-
Rugged Design: Metal enclosure, IP30 rating
Specifications
| Attribute |
Details |
| USB 3.0 Type‑A |
2× ports (5 Gbps) |
| USB C |
1× port (5 Gbps) |
| Serial |
1× RS‑232 DB‑9 |
| Ethernet |
1× 10/100/1000 Mbps RJ‑45 |
| Audio |
1× 3.5 mm TRRS combo jack |
| Power |
Bus‑powered via host USB interface |
| OS Support |
Windows 10/11, Android 8–12 |
| Mounting |
Tool‑free bracket, VESA‑compatible |
| Enclosure Rating |
Metal, IP30 |
| Dimensions (WxDxH) |
115×65×25 mm |
| Weight |
0.22 kg |
Supported Systems / Applications / Industries
-
Compatible Elo Models: I‑Series 10.1″ & 15.6″ (Android/Windows), Elo Pay M100, Elo all‑in‑one touch PCs
-
Applications: POS, self‑service kiosks, digital signage, industrial HMI
-
Industries: Retail, hospitality, healthcare, manufacturing, education
Benefits & Compatibility
-
Expanded Peripherals: Connect scanners, printers, cameras, headsets, and legacy devices.
-
Neat Integration: Installs behind screen—no extra desk footprint.
-
Plug‑and‑Play: Drivers auto‑install on supported OS versions.
-
Robust Construction: Metal housing withstands daily wear.
-
Cable Management: Internal routing keeps cables out of sight.
Purpose of Use
Ideal for installations needing additional ports—without external hubs—in busy environments. Use it to power barcode scanners, card readers, headsets, and network connections directly from your Elo touchscreen.
How to Use
-
Power off your Elo touch system.
-
Attach the tool‑free bracket to the expansion slot.
-
Connect the module’s ribbon cable to the host port.
-
Snap the module into the bracket.
-
Power on—new ports are ready for immediate use.
Packaging / Weight / Dimensions
-
Includes: Backpack 5® module, tool‑free mounting bracket, quick‑start guide
-
Module Size: 115×65×25 mm
-
Shipping Weight: 0.3 kg
-
Packaging: Recyclable box with foam insert
Warranty & FAQs
Warranty: 2 Year Elo / NEOTECH authorized warranty
FAQs:
-
Q: Does it work with Elo Pay tablets?
A: Compatible with Elo I‑Series and Elo Pay M100/P50 via slots.
-
Q: Is external power required?
A: No—powered by host USB bus.
-
Q: Which OS drivers?
A: Native support on Windows 10/11 and Android 8.0+.
Performance, Quality, Durability & Reliability
Tested to Elo’s industrial standards, Backpack 5® resists vibration, heat, and daily wear. Locking connectors prevent accidental disconnects in high‑traffic kiosks and point‑of‑sale lanes.
Best Price Guarantee
NEOTECH offers the most competitive UAE pricing on the Elo Backpack 5® module. If you find a lower price, we’ll match or beat it plus include local support.
Shop Today & Receive Your Delivery Across the UAE
Order before 2 PM for same‑day processing. Delivery in 2–3 days across Dubai, Abu Dhabi, Sharjah, and all Emirates with secure packaging and tracking.
Request for Customer Reviews and Testimonials
Installed Backpack 5® in your Elo systems? Share your feedback to help others optimize their touchscreen deployments.
After Sales Support
NEOTECH’s UAE‑based team provides:
-
Live chat and phone assistance
-
Driver and firmware updates
-
RMA and warranty processing
-
Spare parts and accessory sourcing
Get in Touch
Need help expanding your Elo touchscreen I/O? Contact our experts for fast, tailored recommendations and demos.
Stock Availability
In stock now. Limited units—order today to enhance your Elo systems without delay.
Disclaimer
Specifications subject to change. Verify compatibility with your specific Elo model before purchase.
