Compact 5-Port Industrial Switch with optional PoE. Unmanaged, rugged, and built for industrial-grade performance. Fast UAE shipping. Order now from NEOTECH!
✅ Overview

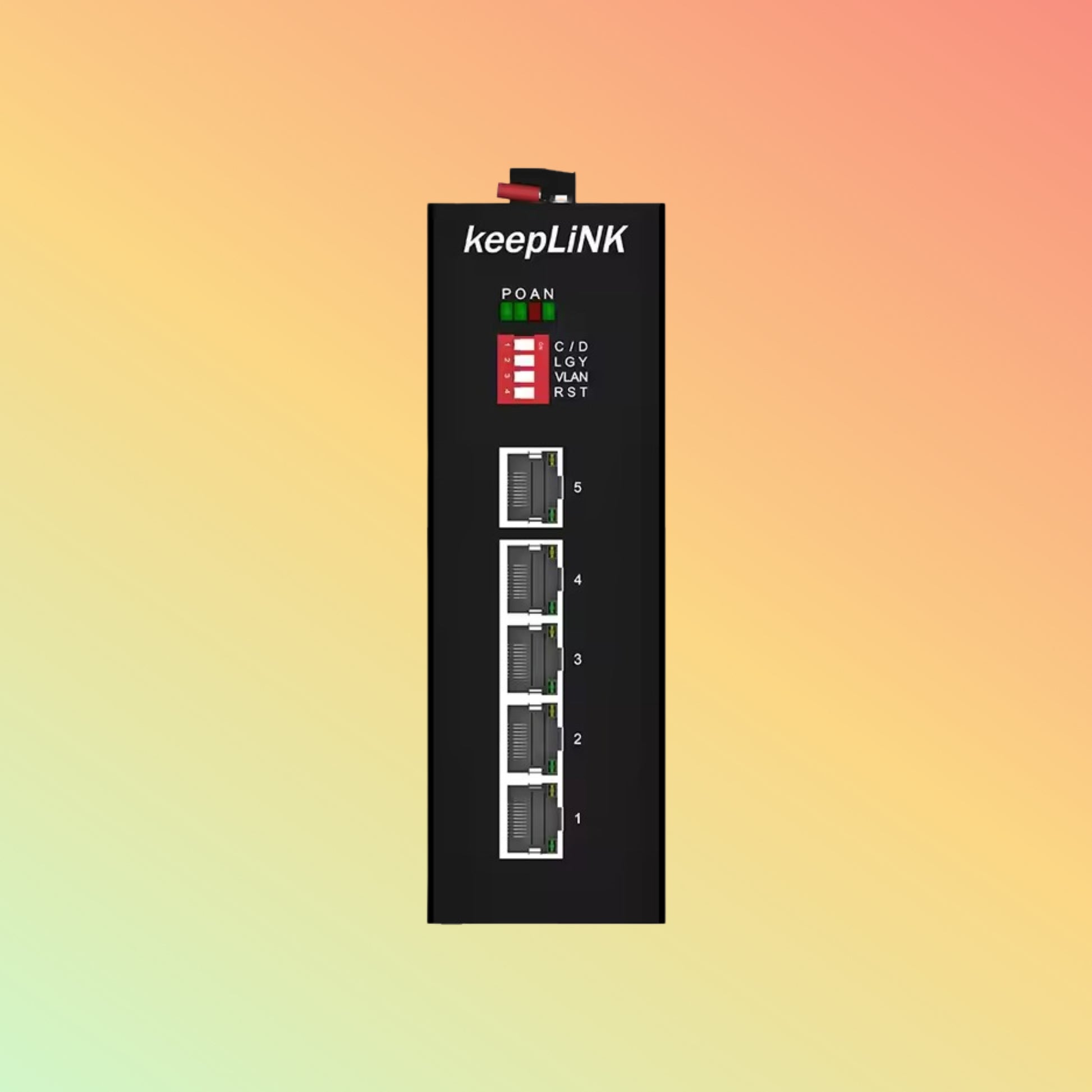

This 5-Port Unmanaged Industrial Ethernet Switch is engineered for performance, simplicity, and reliability. Ideal for harsh environments, it supports plug-and-play connectivity and is available with or without PoE. Built for industrial networks, it offers strong surge protection and stable data transmission—perfect for IoT, factory automation, and smart infrastructure.
✅ Product Description
Compact yet powerful, this unmanaged 5-port switch provides a cost-effective solution for expanding network connections in industrial setups. Designed by a trusted China manufacturer, the switch offers optional PoE support, making it ideal for applications requiring both data and power through a single cable.
Housed in rugged aluminum with DIN-rail or wall-mount options, it operates reliably in extreme temperatures and harsh conditions. With zero configuration required, the unit supports seamless deployment in edge network applications like IP surveillance, access control, and automation.
✅ Key Features
-
5 x 10/100/1000 Mbps RJ45 ports
-
Optional PoE (IEEE 802.3af/at) for up to 30W per port
-
Plug-and-play, no configuration required
-
Fanless aluminum housing for quiet operation
-
Wide operating temp: -40°C to 75°C
-
Surge & ESD protection for industrial environments
-
DIN-rail & wall-mount compatible
✅ Specifications
-
Ports: 5 x RJ45 Gigabit Ethernet
-
PoE Standard: IEEE 802.3af/at (on PoE models)
-
Switching Capacity: 10 Gbps
-
Power Supply: 12–57V DC (PoE model supports 48–57V)
-
Cooling: Fanless, passive
-
Material: Industrial-grade aluminum
-
Mounting: DIN-rail or wall-mount
-
Operating Temp: -40°C to 75°C
-
Dimensions: ~104mm x 81mm x 28mm
✅ Supported OS/Application/Industries
-
Platform: OS-independent, no driver needed
-
Use Cases: IP cameras, access points, factory PLCs
-
Industries: Manufacturing, IoT systems, Energy grids, Transport
✅ Benefits & Compatibility
-
Ideal for space-constrained deployments
-
Compatible with PoE-powered devices
-
Improves network uptime and reduces wiring complexity
-
Seamless integration with industrial control systems
-
Energy-efficient and maintenance-free design
✅ Purpose of Use
Perfect for local area network expansion in rugged environments. Suited for remote sensor clusters, edge computing nodes, and PoE camera networks.
✅ How to Use
-
Mount the unit to DIN-rail or wall surface
-
Connect Ethernet cables to the 5 ports
-
(If PoE model) Plug in power supply to activate PoE
-
Begin transmitting—no setup required
✅ Packaging/Weight/Dimension
-
Dimensions: 104mm × 81mm × 28mm
-
Weight: Approx. 0.35 kg
-
In the Box: 1x Switch Unit, Mounting Kit, User Guide
✅ Warranty and FAQs
Warranty: 12-month manufacturer warranty
FAQs:
Q1: Is this switch managed?
A1: No, it’s an unmanaged switch.
Q2: Does it support PoE out of the box?
A2: Only on the PoE variant.
Q3: Can I use this outdoors?
A3: Yes, in a sealed industrial enclosure.
✅ Performance, Quality, Durability, and Reliability
Built to withstand industrial abuse, this switch ensures stable operation with ESD and surge protection. It performs reliably under wide temperature swings and non-stop industrial loads.
✅ Best Price Guarantee
Found a better price? We’ll match it! NEOTECH offers top-tier value on all industrial-grade networking gear.
✅ Shop Today & Receive Your Delivery Across the UAE!
Order now and enjoy fast, secure delivery to all major UAE cities. We ship reliably to Dubai, Abu Dhabi, Sharjah, Ajman, and beyond.
✅ Request for Customer Reviews and Testimonials
Have a story to share? Let others know how this compact industrial switch solved your connectivity challenges.
✅ After Sales Support
We provide top-tier support from purchase to post-deployment. Need help? Contact our technical team for troubleshooting, firmware tips, and warranty claims.
✅ Get in Touch
Questions? Our experts are ready to assist. Contact NEOTECH for details, quotes, or technical consultations.
✅ Stock Availability
Stock is updated daily. Please confirm availability with our team before placing high-volume or project-based orders.
✅ Disclaimer
Specs and product visuals are subject to change without notice. Content is for informational purposes only. Verify all product details with our sales team prior to purchase.
