Rugged 12.1–21.5″ IP65 fanless panel PC with RJ45 & RS232 ports. Dust- and water-proof for harsh sites. Fast 3-day UAE delivery.
Overview
Built for extreme conditions, this 12.1–21.5″ industrial panel PC combines a fully sealed IP65 front with silent, fanless cooling. Multiple RJ45 and RS232 ports make networking and legacy integration simple. Designed for factory floors, outdoor kiosks, and wet-wash zones, it delivers reliable Windows or Linux performance without downtime.
Product Description

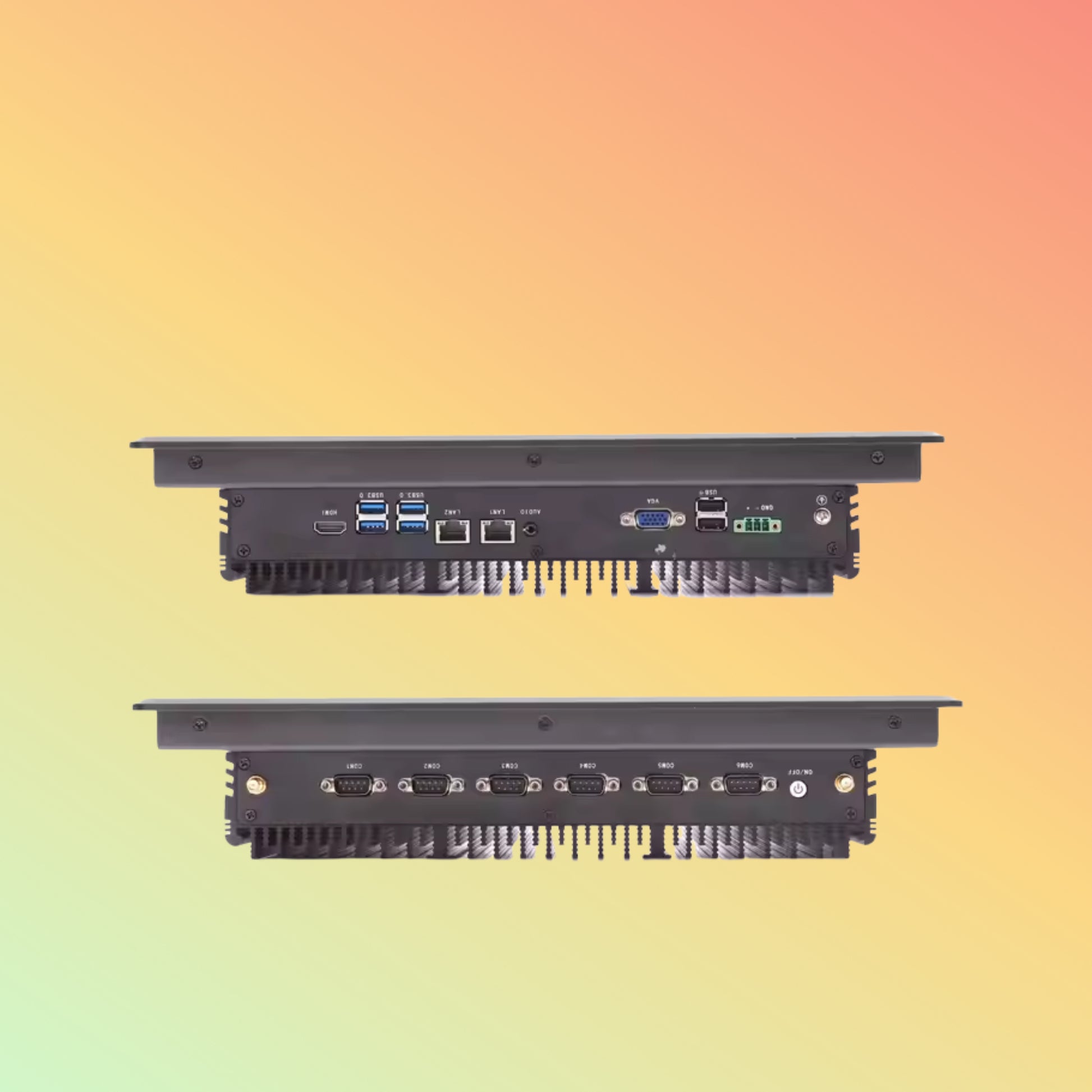

This all-metal panel PC uses a die-cast aluminum chassis and internal heat pipes to remove heat passively. The IP65-rated front resists dust, spray and washdowns. Choose screen sizes from 12.1″ up to 21.5″, all offering crisp 1024×768 to 1920×1080 touch displays. Dual Gigabit RJ45 and RS232/485 ports connect PLCs, barcode scanners, printers or legacy machines. Plug-and-play Windows IoT, Windows 10, or your favorite Linux distro keeps your HMI and SCADA apps running instantly. VESA and panel-mount brackets let you install it flush on any control cabinet or bulkhead.
Key Features
-
IP65-rated front panel (water & dust proof)
-
Fanless thermal design for silent operation
-
Screen sizes: 12.1″, 15.6″, 17″, 19″, 21.5″
-
Multiple RJ45 & RS232/485 serial ports
-
USB 3.0, HDMI, audio out, optional GPIO
-
Windows IoT/10 & Linux ready
-
VESA 75×75 mm to 100×100 mm & panel-mount kits
-
Wide 9–36 V DC input
Specifications
| Spec |
Details |
| Display |
12.1″–21.5″ TFT touch, up to 1920×1080 |
| Touch |
Capacitive 5–10-point or resistive (optional) |
| CPU |
Intel Atom, Celeron J1900, Core™ i3/i5 (configurable) |
| Memory |
4 GB–16 GB DDR3/DDR4 |
| Storage |
64 GB–512 GB SSD |
| Network |
2× Gigabit RJ45 |
| Serial |
2× RS-232/485 |
| Other I/O |
4× USB 3.0, HDMI, audio out, optional GPIO |
| OS |
Windows IoT, Windows 10 Pro, Ubuntu/CentOS Linux |
| Mounting |
VESA 75×75 mm–100×100 mm; panel cutout |
| Power Input |
9–36 V DC |
| Protection Rating |
IP65 front; IP54 rear |
| Operating Temp. |
–10 °C to +60 °C |
Supported OS / Applications / Industries
-
Operating Systems: Windows IoT/10 Pro, Ubuntu & CentOS
-
Applications: HMI, SCADA, digital signage, kiosks
-
Industries: Manufacturing, food & beverage, marine, outdoor signage, pharmaceuticals
Benefits & Compatibility
-
Sealed against washdowns, dust storms, oil spray
-
Silent fanless cooling lowers maintenance costs
-
Legacy support via RS232 for older equipment
-
Gigabit Ethernet for fast data transfer
-
Compatible with PLCs, scanners, sensors, cameras
Purpose of Use
Ideal for control rooms, washdown stations, outdoor kiosks, and any site requiring robust, always-on panel computing in tough environments.
How to Use
-
Cut panel opening per supplied template.
-
Secure with panel-mount clamps or VESA bracket.
-
Wire 9–36 V DC power and Ethernet.
-
Install or boot preloaded OS and HMI software.
-
Connect peripherals via USB, serial, HDMI.
Packaging / Weight / Dimensions
-
Packaging: Foam-lined, recyclable carton
-
Weight: 3 kg–9 kg depending on size
-
Dimensions: Varies by screen:
-
12.1″: 310×230×50 mm
-
21.5″: 540×345×60 mm
-
Cutout Sizes: Provided in spec sheet
Warranty and FAQs
Warranty: 12-month full device coverage
FAQs:
-
Q: Can it handle high-pressure washdowns?
A: Yes, front meets IP65 spray specs.
-
Q: Does touchscreen work with gloves?
A: Capacitive supports PPE; resistive available.
-
Q: Which OS images ship preloaded?
A: Windows IoT or Ubuntu LTS by default.
More at NEOTECH Support
Performance, Quality, Durability,
-
Industrial-grade components rated for 24/7 operation
-
Vibration, shock and thermal-cycle tested
-
Fanless design removes moving-part failures
-
Operates reliably from –10 °C to +60 °C
Best Price Guarantee
Found a lower price in the UAE? We’ll match it—shop NEOTECH worry-free.
Shop Today & Receive Your Delivery Across the UAE!
Fast 3-day shipping to Dubai, Abu Dhabi, Sharjah, and beyond. Fully tested before dispatch.
Request for Customer Reviews and Testimonials
Installed it on your line? Share your review and help peers choose the right panel PC.
After-Sales Support
NEOTECH offers 24/7 remote diagnostics, firmware updates, and RMA services. We’ve got you covered beyond purchase.
Get in Touch
Need custom I/O configs or volume quotes? Reach out to our tech squad for instant support.
Stock Availability
Confirm live stock before ordering—most sizes ship within 3 business days.
Disclaimer
All specs, images, and pricing are indicative and may change without notice. Always verify details with NEOTECH sales before purchase.
