80mm ESC/POS embedded printer module with paper stand. Ideal for kiosks, terminals, and OEM devices. Clean prints, fast setup. Shop NEOTECH UAE.
✅ Overview

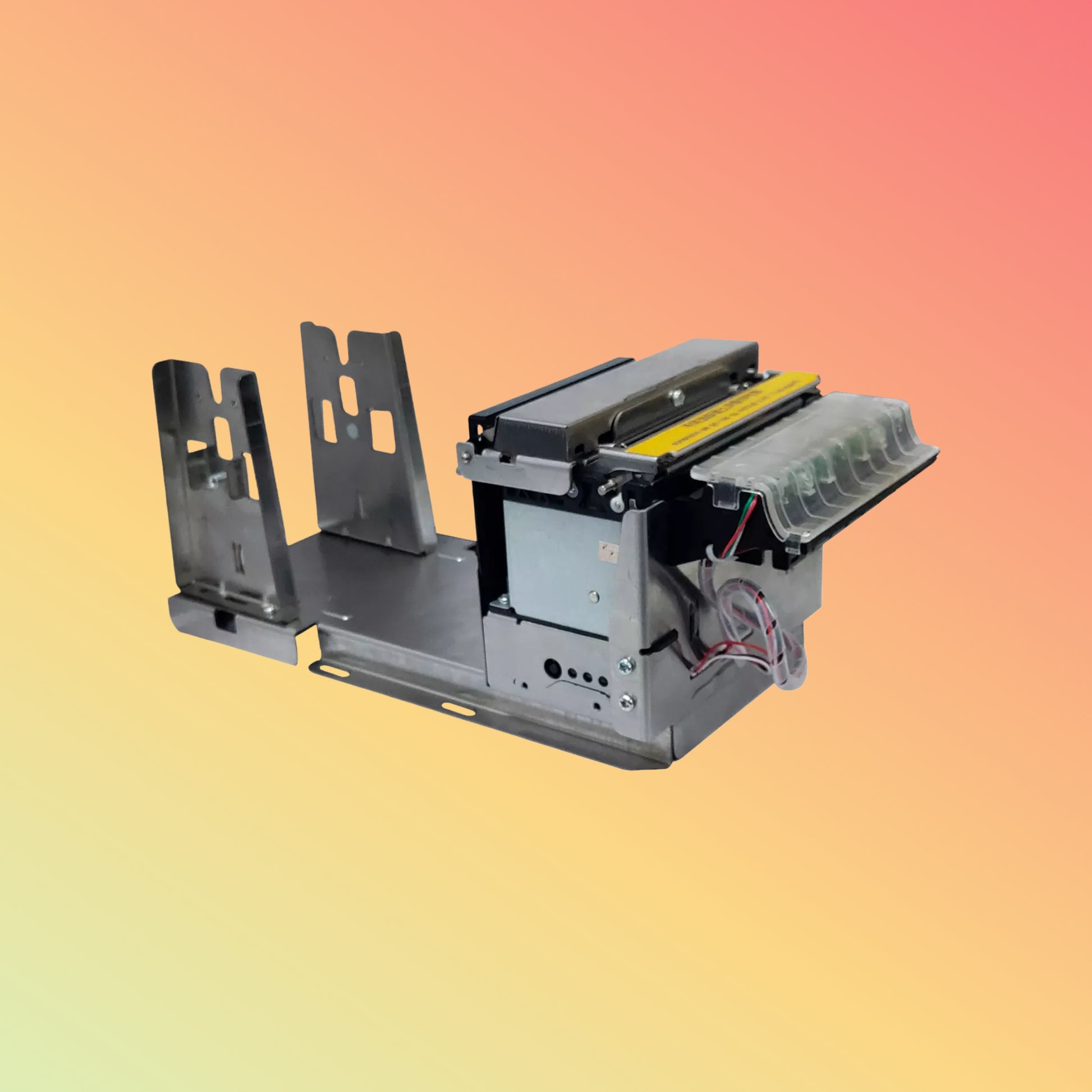

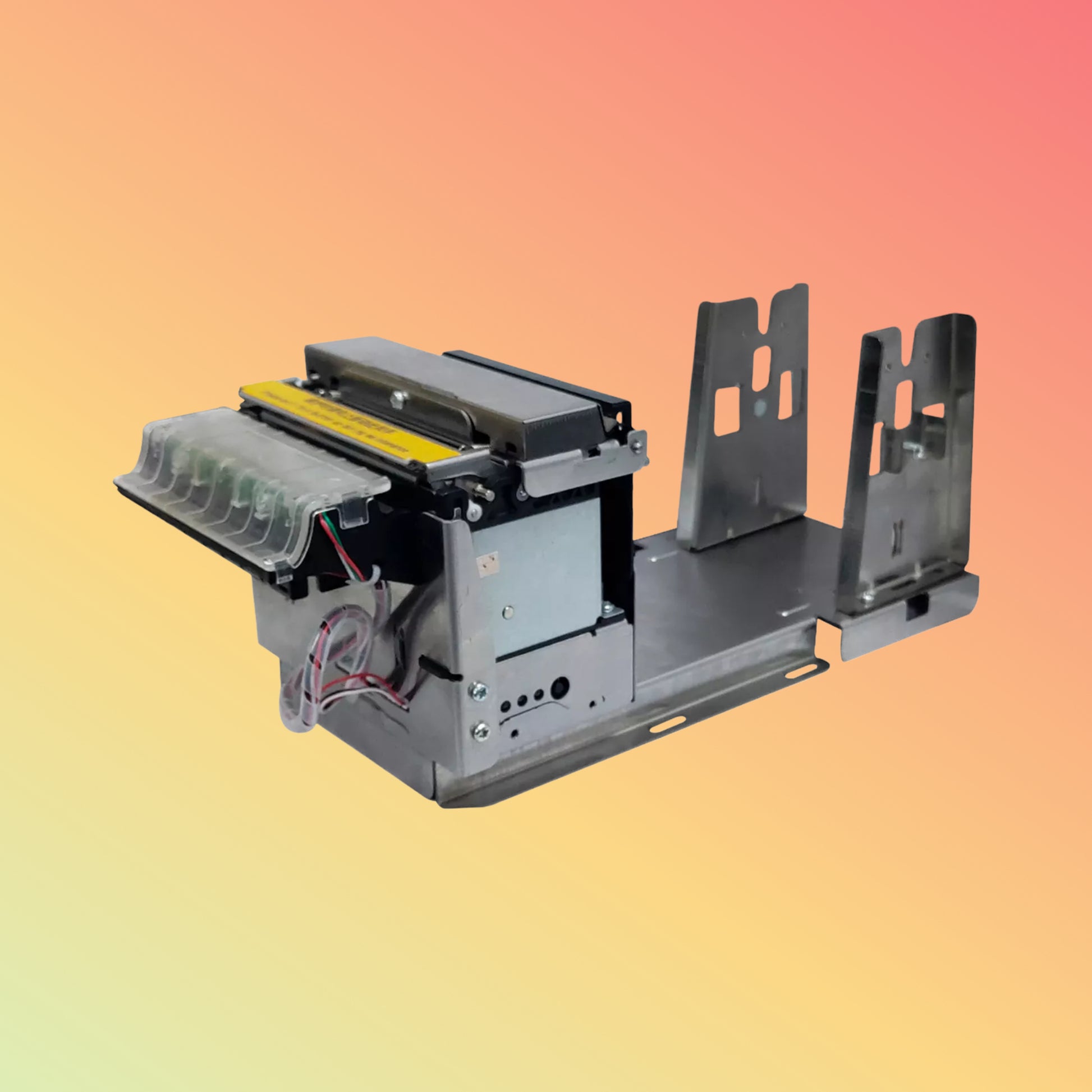

The HCC-EU805 Kiosk Printer Module is a high-performance, embedded thermal receipt printer designed for self-service kiosks, terminals, and vending machines. With ESC/POS compatibility, 80mm paper support, and an integrated paper stand, it's a flexible solution for OEM developers and kiosk integrators.
✅ Product Description
Built for compact kiosk integration, the HCC-EU805 Embedded Receipt Printer supports 80mm thermal paper, ESC/POS commands, and offers stable, high-quality printing. It features a modular paper stand that simplifies installation, routing, and servicing—perfect for ATMs, info kiosks, or vending machines.
With its front paper loading, stable paper feed mechanism, and multiple interface options (USB, RS232, TTL), this module delivers seamless printing performance. It’s ideal for developers seeking space-saving, high-speed embedded printing with reliable auto-cutting.
✅ Key Features
-
🧾 80mm Paper Width Support – Full-size thermal receipt compatibility
-
⚙️ Built-In Paper Stand – Supports large rolls & secure feeding
-
🧠 ESC/POS Compatibility – Integrates with most POS systems
-
🔌 Multiple Interfaces – USB, RS232, TTL support
-
✂️ Auto Cutter Included – Smooth, clean receipt tearing
-
⚡ Fast Output Speed – Optimized for kiosk environments
-
📦 Front Paper Loading – Easy access and low maintenance
-
💼 OEM/ODM Friendly – Compact footprint for kiosk integration
✅ Specifications
-
Print Method: Direct Thermal
-
Resolution: 203dpi
-
Print Speed: Up to 220mm/s
-
Print Width: Max 72mm
-
Paper Width: 80mm
-
Interfaces: USB, RS232, TTL (model dependent)
-
Auto Cutter: Full and partial cut support
-
Command System: ESC/POS
-
Dimensions: 145 x 135 x 100 mm
-
Weight: Approx. 1.2 kg
✅ Supported OS / Applications / Industries
-
Operating Systems: Windows, Linux (driver required)
-
Applications: Self-service kiosks, ticketing machines, vending units
-
Industries: Retail, Public Service, Transport, Banking, Hospitality
✅ Benefits & Compatibility
-
🔌 Compatible with POS, kiosks, terminals, and embedded systems
-
🛒 Works with standard 80mm thermal rolls
-
🔧 Reduces design time for OEM developers with included paper stand
-
🖨️ Supports logos, barcodes, QR codes, and formatted receipts
-
💡 Designed for public-use terminals with minimal maintenance
✅ Purpose of Use
Ideal for developers integrating printers into kiosks, vending units, or self-service terminals. Built to print tickets, receipts, and confirmations quickly and reliably.
✅ How to Use
-
Mount printer and paper stand inside kiosk or device enclosure
-
Connect via USB, RS232, or TTL interface
-
Load 80mm thermal paper using the paper stand holder
-
Send print commands using ESC/POS compatible software
-
Printed receipt dispenses via the kiosk output slot with auto cut
✅ Packaging / Weight / Dimension
-
Weight: 1.2 kg
-
Dimensions: 145 x 135 x 100 mm
-
Package Includes: Printer module, paper stand, cables (USB/TTL/RS232 as applicable), sample paper roll, manual
-
Packaging: Anti-static OEM-ready box
✅ Warranty and FAQs
Warranty: 12 months standard coverage
FAQs:
-
Can it print images or QR codes? Yes
-
Is the paper stand detachable? Yes, modular and install-ready
-
Is it plug and play? For Windows with included drivers—yes
Need help with integration? Contact NEOTECH
✅ Performance, Quality, Durability, and Reliability
The HCC-EU805 is tested for long service cycles, minimal paper jams, and stable printing in embedded kiosk systems. Its cutter and feed mechanism are designed for continuous public-use scenarios.
✅ Best Price Guarantee
We offer UAE’s most competitive pricing for kiosk printer modules. Found it cheaper? We’ll match or beat it—guaranteed.
✅ Shop Today & Receive Your Delivery Across the UAE!
We deliver to Dubai, Abu Dhabi, Sharjah, and all other Emirates. Each unit ships with verified components and integration-ready packaging.
✅ Request for Customer Reviews and Testimonials
Have you used the HCC-EU805 in a kiosk deployment? Drop a short review to help fellow developers choose confidently.
✅ After Sales Support
Enjoy expert assistance with driver setup, firmware questions, and interface matching. NEOTECH offers full post-sale service for technical teams.
✅ Get in Touch
Need bulk pricing or engineering support? Reach out now via the NEOTECH Contact Page. We’re ready to support your project.
✅ Stock Availability
This model is generally in stock. For large-scale OEM deployments or interface customization, please allow 10–15 business days lead time.
✅ Disclaimer
Specs, packaging, and visuals are for reference and may change. Confirm with NEOTECH before finalizing your purchase.
