✅ Overview

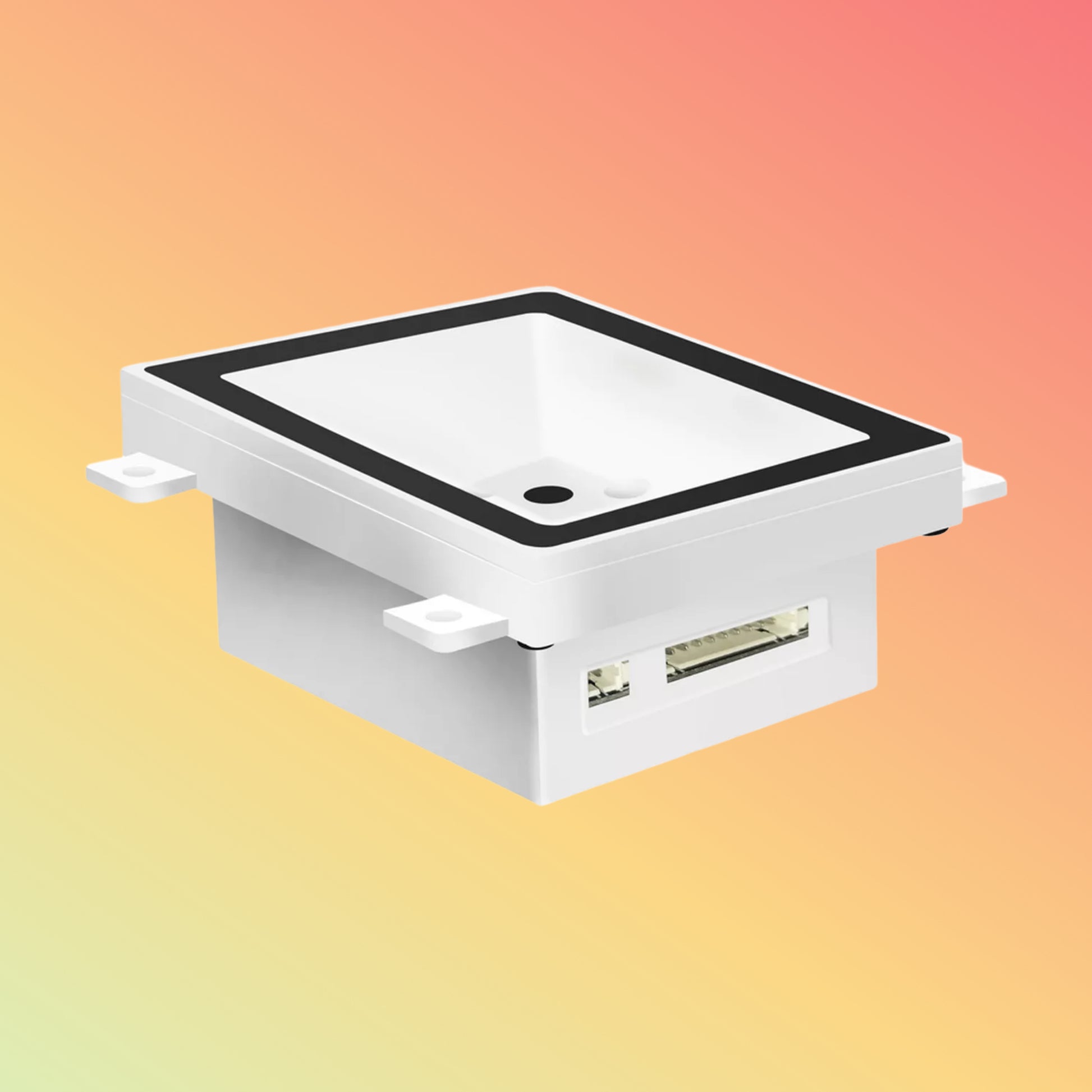

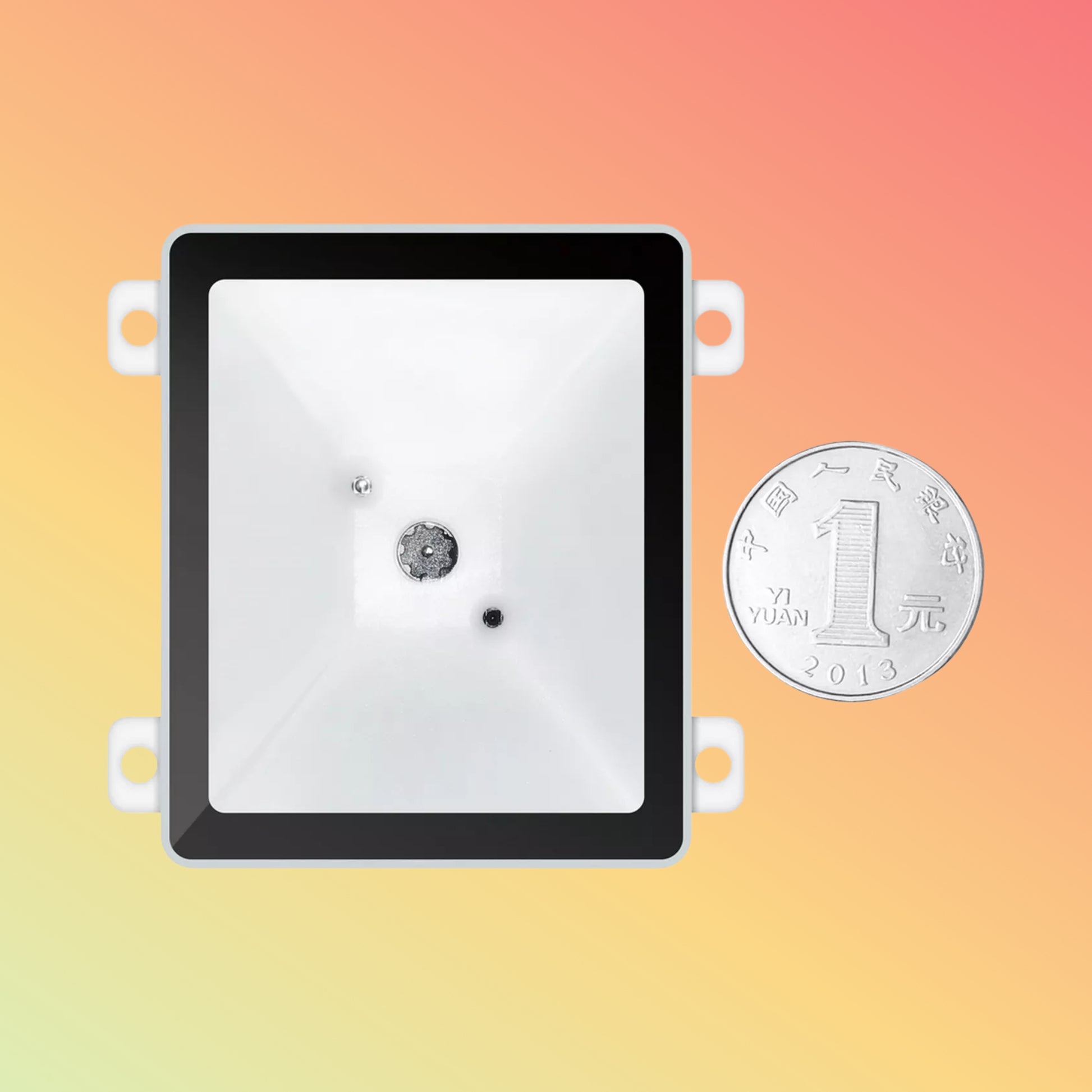

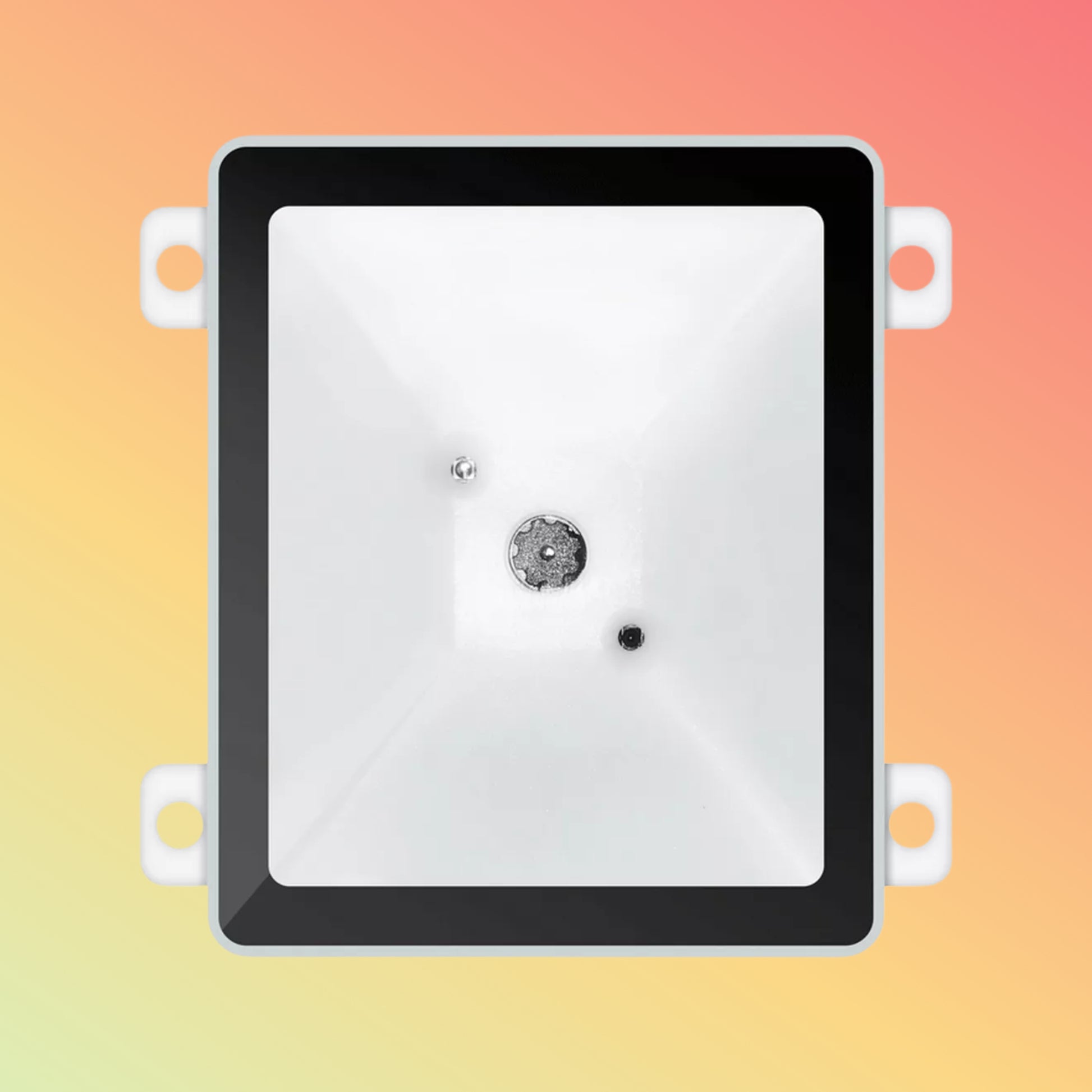

The HS-205XM is a high-performance embedded 1D/2D barcode scanner module with auto-sensing technology, built for seamless integration in self-service kiosks, ticketing terminals, retail POS, and vending machines.
With dual interface (USB & RS232), compact design, and powerful decoding engine, this scanner offers unbeatable speed, accuracy, and reliability—perfect for demanding industrial environments.
✅ Product Description
The HS-205XM auto-sensing embedded scanner delivers lightning-fast scanning of 1D and 2D barcodes, including QR, PDF417, Data Matrix, and more. With built-in motion detection, it activates instantly when an object is detected—no buttons needed.
Its USB/RS232 dual interface allows for easy integration across multiple systems, while its compact body makes it perfect for embedded projects in limited spaces.
Engineered for durability, this module operates effectively even in low light or reflective surfaces, making it ideal for high-traffic installations like payment stations, kiosks, and ID check-in systems.
✅ Key Features
-
Auto-sensing mode for hands-free scanning
-
Dual interface: USB & RS232
-
Reads from mobile phones, LCD, paper, or cards
-
Decodes all major 1D/2D barcodes
-
Fast response time under 0.1 seconds
-
Compact design ideal for embedded use
-
LED & buzzer feedback
-
Easy integration with existing systems
✅ Specifications
-
Model: HS-205XM
-
Scan Engine: CMOS, 640×480
-
Supported Codes:
• 1D: EAN-13, Code128, Code39, UPC-A
• 2D: QR, PDF417, Aztec, Data Matrix
-
Interfaces: USB 2.0 / RS232
-
Reading Distance: 30mm–350mm
-
Trigger Method: Auto-sensing (Infrared)
-
Scan Speed: ≥ 30fps
-
Ambient Light Resistance: 0–100,000 lux
-
Power Supply: DC 5V ± 0.25V
-
Operating Temp: -20°C to 60°C
-
Dimensions: 62mm x 52mm x 36mm
-
Weight: ~95g
✅ Supported OS / Applications / Industries
Compatible OS:
-
Windows 7/8/10/11
-
Linux
-
Android (via OTG)
Ideal Applications:
✅ Benefits & Compatibility
-
Plug-and-play with most OS & embedded boards
-
Reads codes in low contrast and from curved surfaces
-
Improves efficiency with hands-free operation
-
Small form factor supports tight space integration
-
Ideal for industrial or public installations
✅ Purpose of Use
Designed for OEMs, system integrators, and kiosk manufacturers, the HS-205XM enables fast and accurate barcode scanning in automated environments. From self-checkout to secure entry, it performs reliably under continuous use.
✅ How to Use
-
Connect using USB or RS232 port
-
Mount securely in the desired panel or enclosure
-
Place barcode/QR code in scan zone
-
Scanner detects motion & auto-reads the code
-
Data sent instantly to host device
No manual trigger required—ideal for unattended operation.
✅ Packaging / Weight / Dimension
-
Packaging Type: Anti-static, shockproof box
-
Unit Dimensions: 62mm × 52mm × 36mm
-
Weight: 95g
-
Shipping Weight: ~180g
-
Contents: Scanner, Cable, Setup Guide
✅ Warranty and FAQs
Warranty: 1-Year Standard Warranty
FAQs:
Q1: Does it support barcode reading from smartphone screens?
✔ Yes, even with low brightness.
Q2: Is it waterproof?
✖ No, but it’s suitable for enclosed environments.
Q3: Can I switch from RS232 to USB?
✔ Yes, via plug change or pre-configuration.
✅ Performance, Quality, Durability, and Reliability
Tested for over 100,000+ continuous scans, the HS-205XM maintains fast decoding speeds and high reliability even in challenging lighting or dusty environments. Built for industrial-grade performance.
