Rugged 12.5″ IP65 industrial touch PC with built-in SIM slot for Windows. Fanless, waterproof, dustproof. Fast UAE delivery from NEOTECH.
Overview
Built for remote or harsh settings, this 12.5″ panel PC packs an IP65-rated front and embedded SIM support for always-on connectivity. Its fanless design runs silently while sealing out water and dust. Preconfigured for Windows Embedded or 10, it boots instantly and links via 4G/LTE—ideal for kiosks, factory floors, or outdoor monitoring stations.
Product Description
This industrial touch PC features a 4-wire resistive touchscreen that works with gloves or stylus. The anodized aluminum chassis and full IP65 sealing resist spray and particulates. Inside, you get an Intel Celeron J1900 (upgradable to Core™ i3) plus an integrated M.2 SIM module slot. Dual Gigabit LAN, USB and COM ports, plus optional GPS keep you covered. Preloaded Windows Embedded or Windows 10 IoT runs your HMI, SCADA, or edge-analytics apps in seconds. VESA and panel-cutout mounts simplify installation into any cabinet or control panel.
Key Features
-
12.5″ 4-wire resistive touchscreen (glove-compatible)
-
IP65 front for water/dust protection
-
Embedded SIM via M.2 slot for 4G/LTE connectivity
-
Intel Celeron J1900 CPU (option to i3)
-
Fanless aluminum body for silent, low-maintenance operation
-
2× USB 2.0, 2× RS-232/485, 2× Gigabit LAN
-
Preloaded Windows Embedded/10 IoT
-
VESA 75×75 mm & panel-mount kits included
Specifications
-
Display: 12.5″ TFT, 1024×768 resolution
-
Touch: 4-wire resistive
-
CPU: Intel Celeron J1900 (2.0 GHz) or Core™ i3-7100U
-
Memory: 2 GB–8 GB DDR3L
-
Storage: 32 GB–128 GB M.2 SSD
-

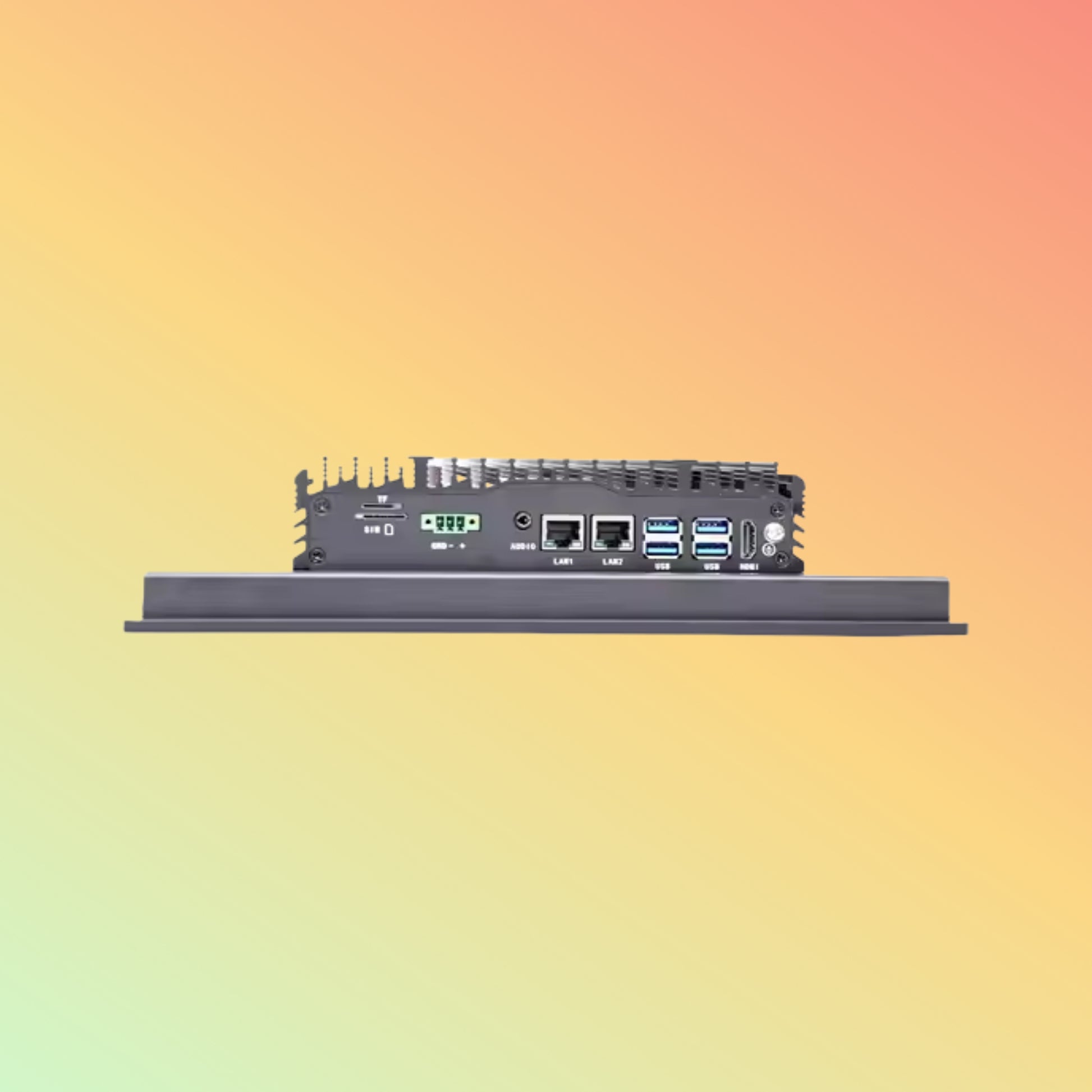

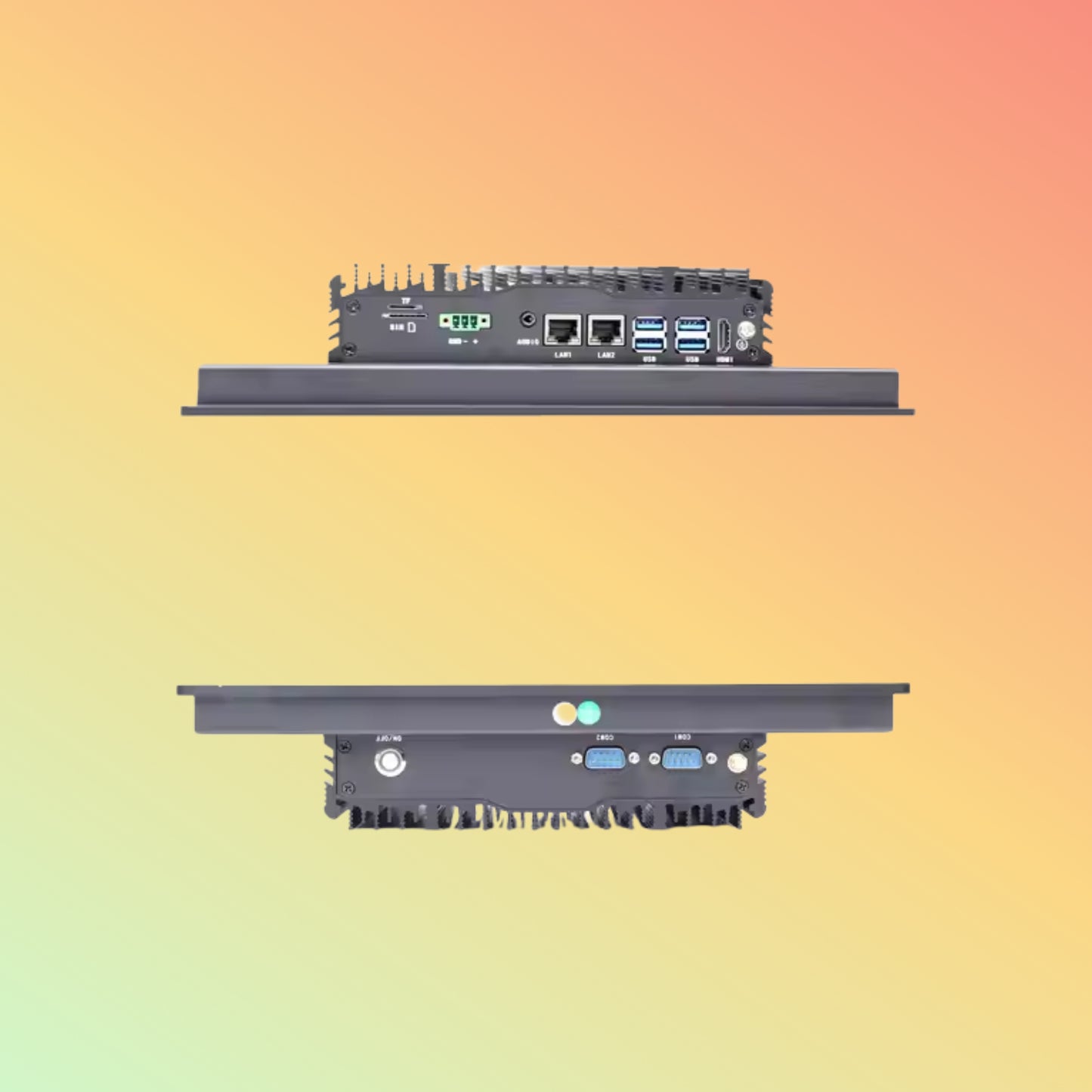

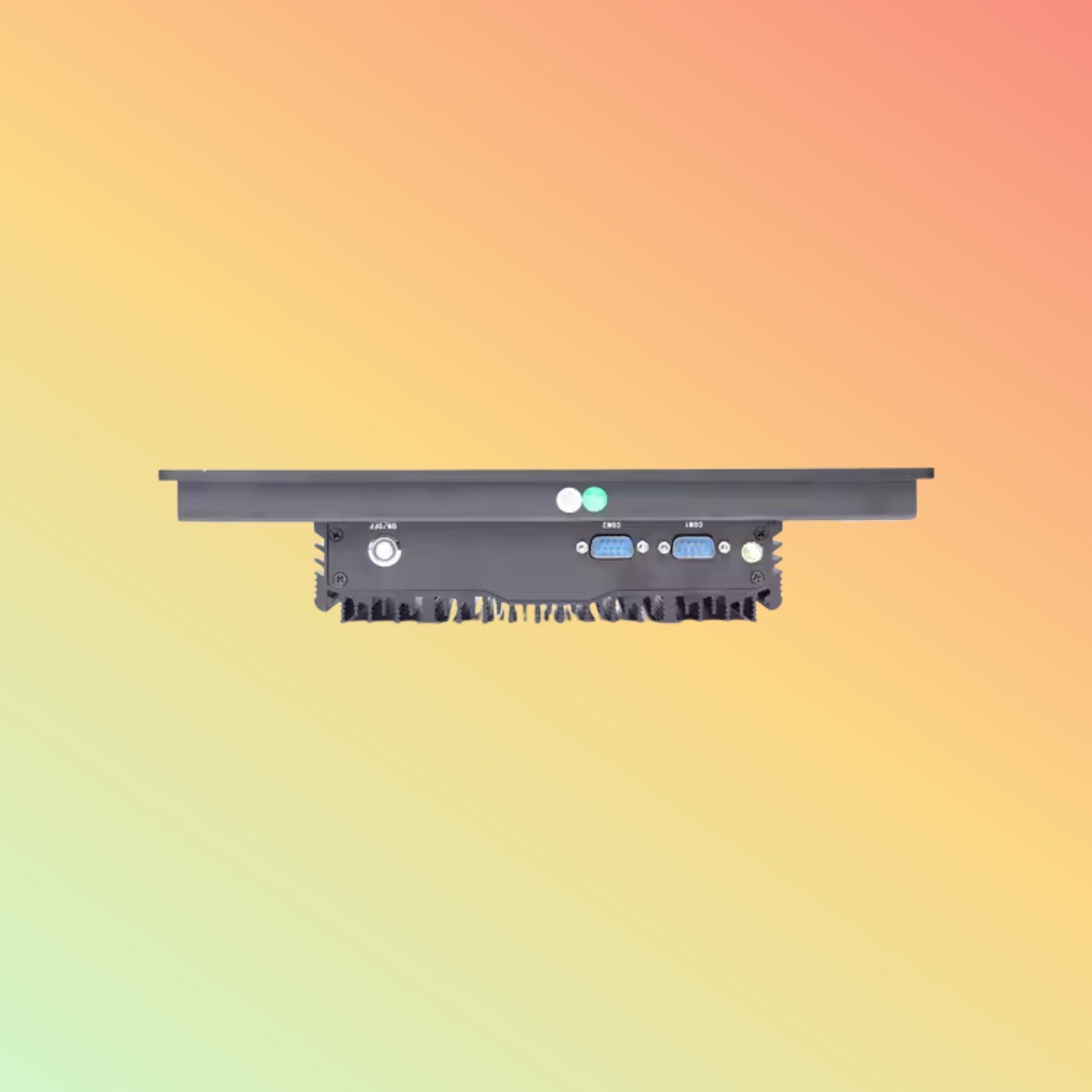

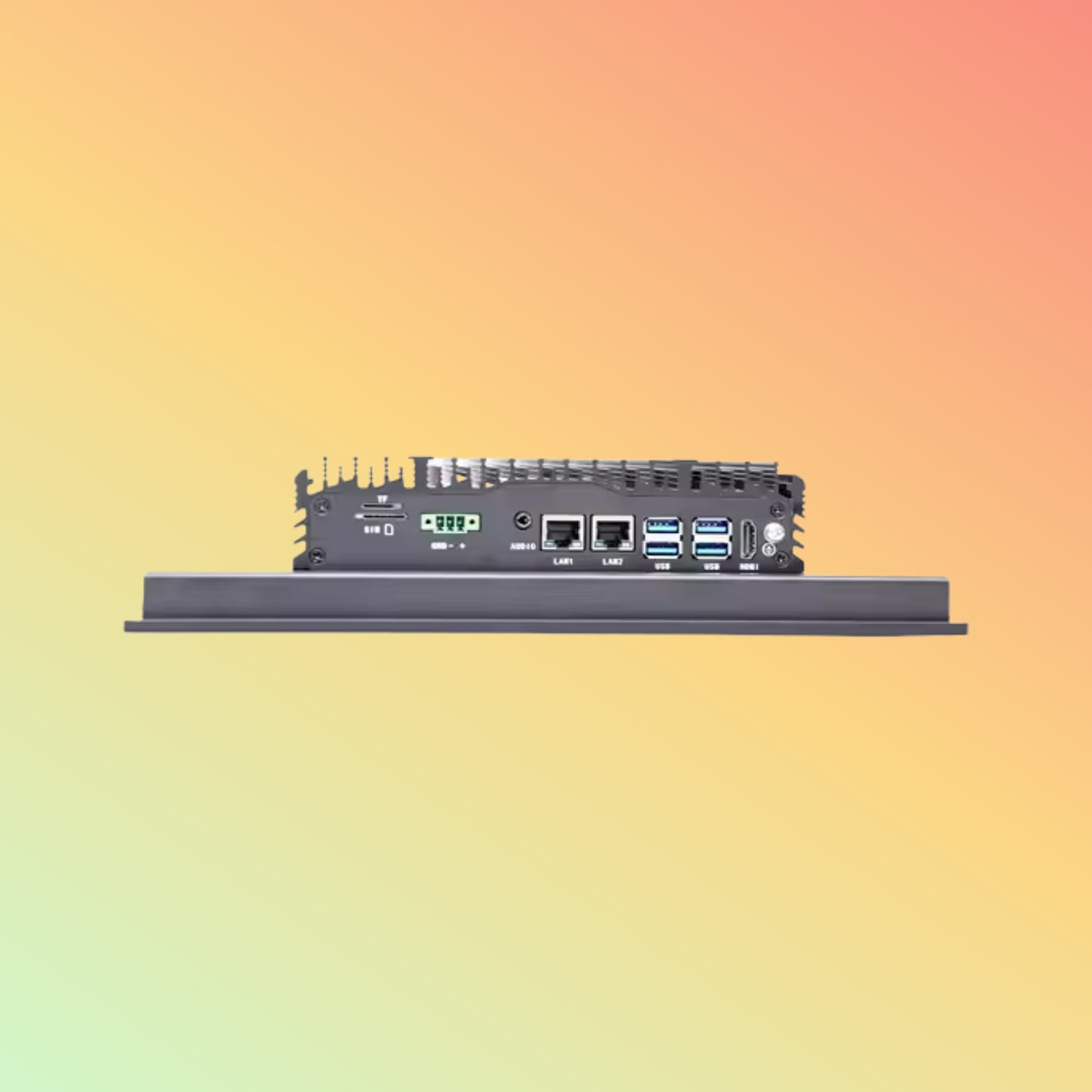

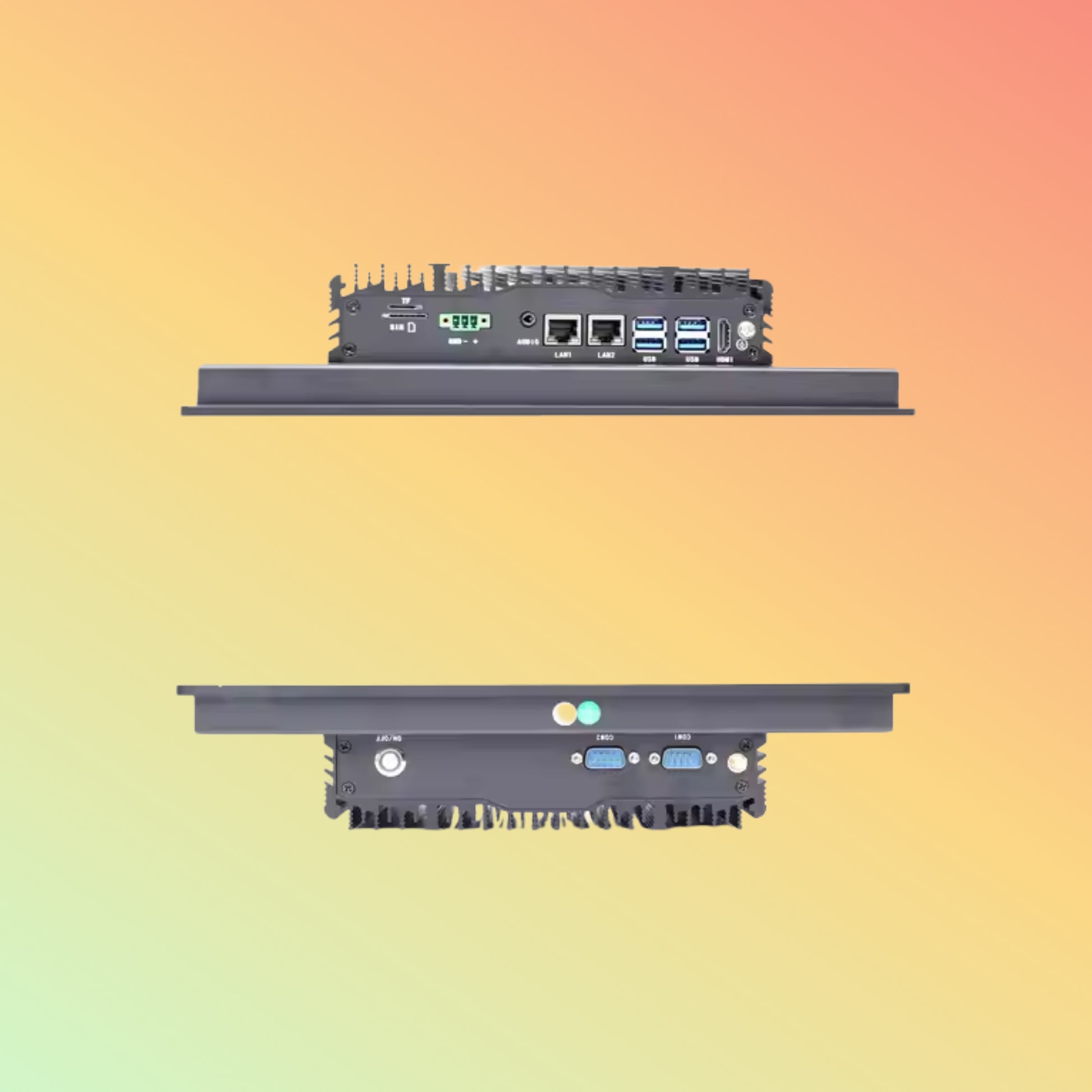

I/O: 2× USB, 2× RS-232/485, 2× LAN, audio out
-
Expansion: M.2 2242 for SIM/SSD/GPS
-
OS: Windows Embedded 7/10 IoT
-
Power: 9–36 V DC input
-
Mount: Panel cutout or VESA 75×75 mm
-
Protection: IP65 front, IP54 rear
-
Temp. Range: –20 °C to +60 °C
Supported OS / Applications / Industries
Operating Systems: Windows Embedded 7/10 IoT
Applications: HMI panels, SCADA control, remote monitoring, IoT gateways
Industries: Manufacturing, oil & gas, outdoor kiosks, smart agriculture, logistics
Benefits & Compatibility
-
Always-online via built-in 4G/LTE SIM slot
-
Works in wet or dusty zones without filter changes
-
Glove-friendly touch speeds up workflows
-
Integrates with PLCs, barcode scanners, GPS sensors
-
Compact fanless design fits tight spaces
Purpose of Use
Ideal for remote kiosks, mobile point-of-sale, outdoor signage, and industrial control where wired networks aren’t an option.
How to Use
-
Cut panel opening per template.
-
Secure with clamps or VESA bracket.
-
Install activated SIM into M.2 slot.
-
Wire 9–36 V DC and network as needed.
-
Power on—Windows boots and 4G connects automatically.
Packaging / Weight / Dimension
Warranty and FAQs
Warranty: 12 months full coverage
FAQs:
-
Q: Does the SIM slot support nano-SIM?
A: Yes, via included adapter.
-
Q: Can I upgrade to i3?
A: Choose i3 config at purchase.
-
Q: Is GPS supported?
A: Yes, via optional M.2 GPS module.
More at NEOTECH Support
Performance, Quality, Durability, and Reliability
-
Industrial-grade components rated for continuous operation
-
Passed thermal-shock and vibration tests
-
Fanless cooling avoids moving-part failures
-
Rated for –20 °C to +60 °C use without hiccups
Best Price Guarantee
Found a lower UAE price? We’ll match it—shop NEOTECH with confidence.
Shop Today & Receive Your Delivery Across the UAE!
Fast 3-day shipping to Dubai, Abu Dhabi, Sharjah, and all emirates. Fully tested before dispatch.
Request for Customer Reviews and Testimonials
Installed it on your site? Share your review and help peers choose wisely.
After Sales Support
NEOTECH offers phone, email, and remote-access support plus full RMA services. We stand by you beyond purchase.
Get in Touch
Need custom SIM profiles, volume quotes, or SDK kits? Reach out to our tech squad for rapid help.
Stock Availability
Check live stock before ordering—most units ship within 3 business days for urgent deployments.
Disclaimer
Specs, visuals, and pricing are indicative and may change without notice. Always verify details with NEOTECH sales before purchase.
