KS600H fixed-mount 2D kiosk scanner—360° omni-scan, 640×480 CMOS, USB HID & TTL-UART. Shop at NEOTECH.
Overview
Embed rapid, reliable barcode capture in your kiosks or vending machines with the KS600H. Its omni-directional scan head decodes QR, PDF417, Data Matrix & 1D codes at up to 120 scans/sec. Stream data via USB HID or TTL-UART, all in a rugged, low-profile bezel-mount design.
Internal Link: Explore our Embedded Scanner Modules.
External Link: Learn about QR standards on the GS1 website.
Product Description

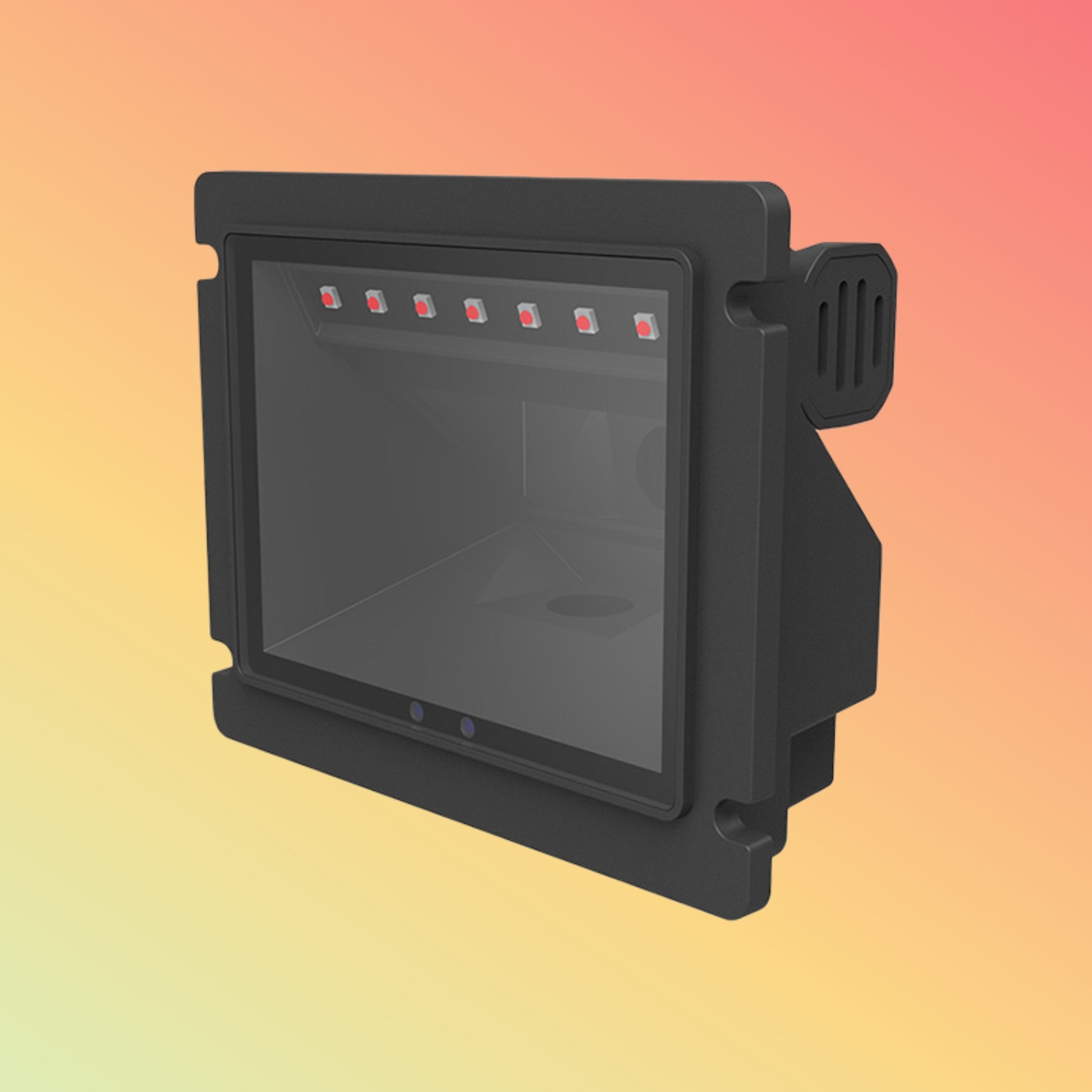

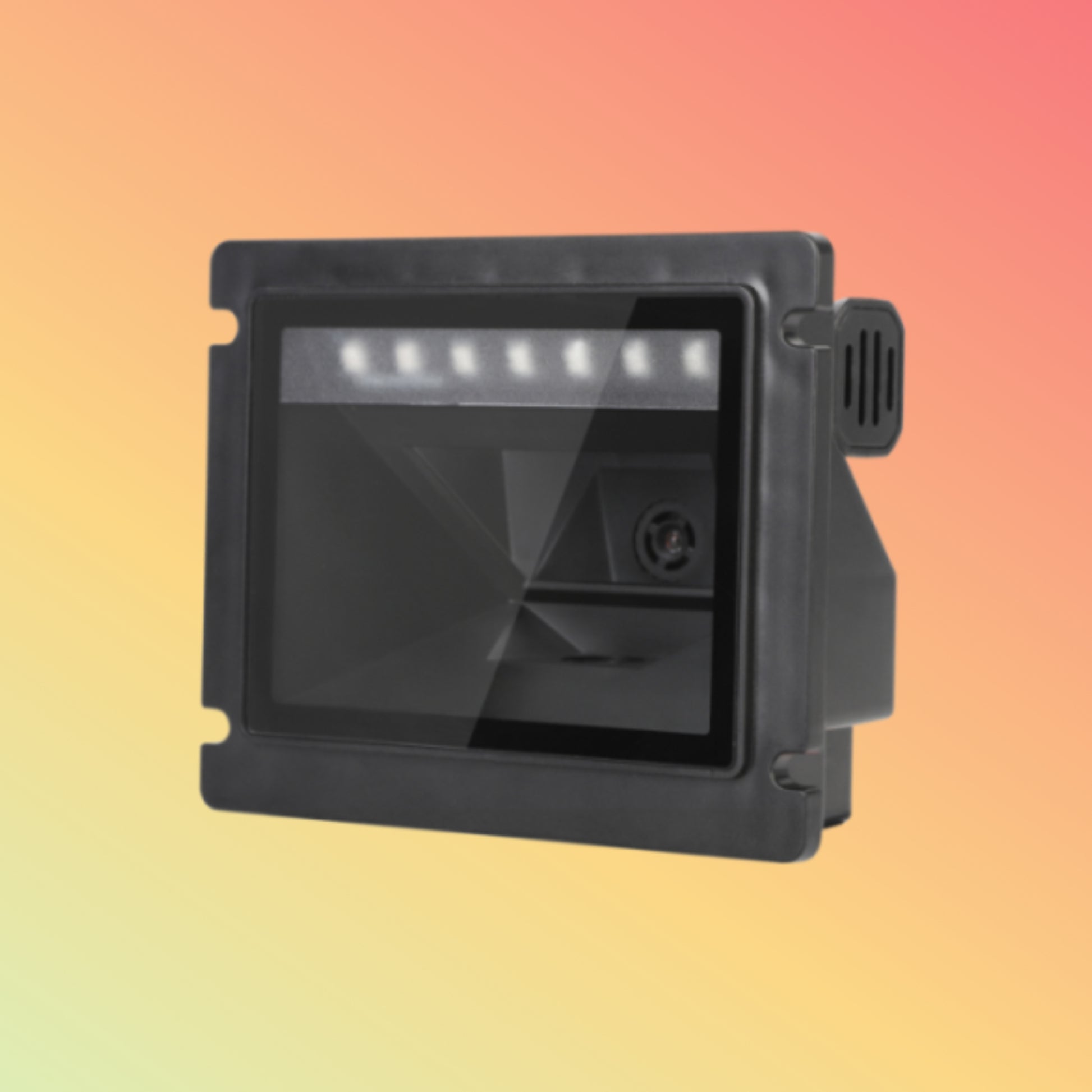

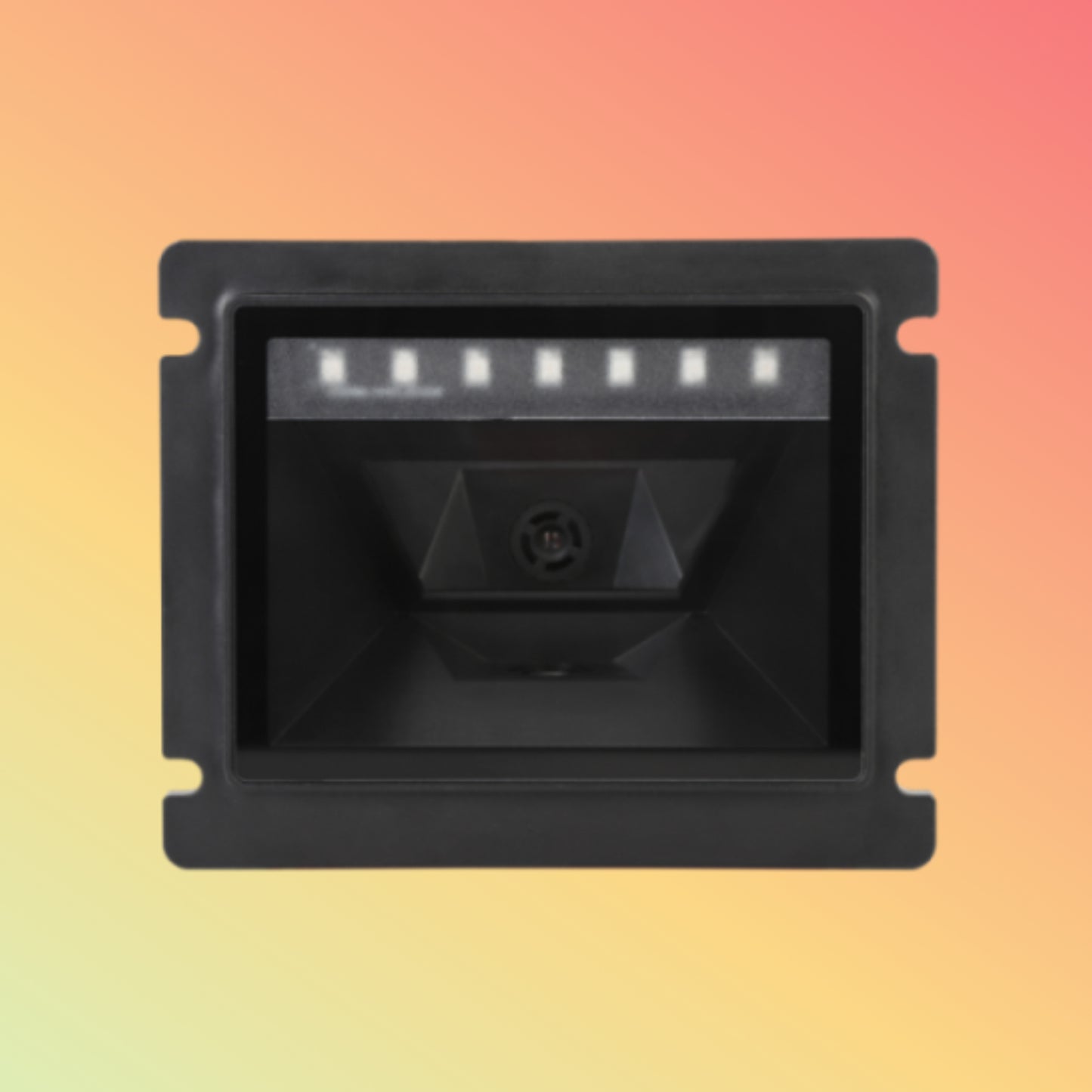

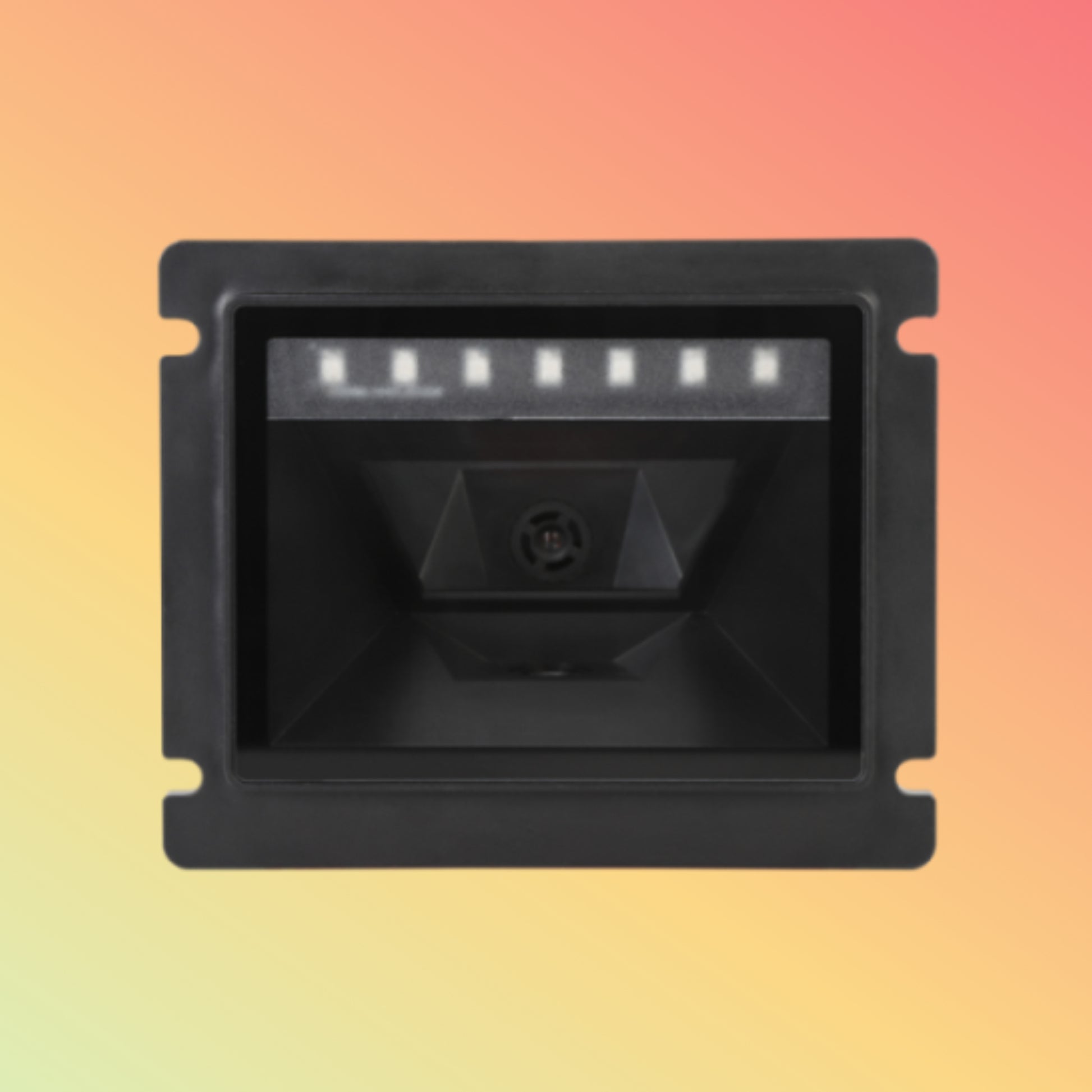

The KS600H features a 640×480 CMOS sensor paired with a 360° mirrored scan array for hands-free decoding. Its reinforced metal bezel mount (60 × 50 × 20 mm) installs flush in any terminal. Automatically switch between USB HID (keyboard emulation) and 115 200 bps TTL-UART. Bright LED aimer and an 85 dB buzzer confirm every read—perfect for self-checkout and access control.
Key Features
-
360° omni-directional mirror scan head
-
2D & 1D decoding: QR, PDF417, Data Matrix, UPC/EAN, Code 128
-
High speed: up to 120 scans/sec
-
Interfaces: USB HID & TTL-UART (5 V TTL)
-
Rugged bezel mount: 60 × 50 × 20 mm form factor
-
Feedback: LED aimer + buzzer (> 85 dB)
-
Low power: 5 V DC @ 200 mA typical
Specifications
| Parameter |
Details |
| Model |
KS-600H |
| Sensor |
640×480 CMOS |
| Decode Rate |
Up to 120 scans/sec |
| Supported Codes |
2D (QR, PDF417, Data Matrix) & 1D |
| Interfaces |
USB HID, TTL-UART (5 V TTL) |
| Mount Dimensions |
60 × 50 × 20 mm |
| Power |
5 V DC, 200 mA typical |
| Operating Temp. |
0 °C–50 °C |
| Storage Temp. |
–20 °C–70 °C |
| Indicators |
LED aimer, buzzer |
Supported OS / Applications / Industries
-
OS: Any USB HID host (Windows, Linux, Android)
-
Use Cases: Kiosks, vending, ticketing, access control
-
Industries: Retail, Hospitality, Transportation, Self-service
Benefits & Compatibility
-
Flush-mount bezel installs cleanly in panels
-
Dual interfaces for plug-and-play or direct UART
-
Omni-directional scanning eliminates alignment delays
-
LED & buzzer ensure user feedback
-
Rugged design for high-traffic installations
Purpose of Use
Ideal for self-service kiosks, ticket dispensers, vending machines, parking gates, and any embedded terminal requiring fast, reliable barcode capture.
How to Use
-
Cut standard bezel opening (60 × 50 mm)
-
Secure module with included screws
-
Connect USB or UART to host
-
Power with 5 V DC
-
Present barcode; data streams to your app
Packaging / Weight / Dimensions
-
Includes: KS600H module, USB cable, UART jumper wires, mounting screws, quick-start guide
-
Module size: 60 × 50 × 20 mm
-
Package weight: ~ 50 g
Warranty & FAQs
-
Warranty: 1 year limited
-
FAQs:
-
Q: Reads on phone screens?
A: Yes—adjustable exposure handles low-contrast displays.
-
Q: Switch to UART?
A: Auto-detects USB; enable UART via jumper.
-
Q: Dust/moisture proof?
A: IP54-rated bezel; avoid full immersion.
Performance, Quality, Durability & Reliability
Built with industrial optics and a sealed bezel, the KS600H withstands dust, moisture, and heavy use—achieving first-pass reads on damaged or curved codes.
