1U rack server with dual Intel Xeon®6 CPUs, DDR5-6400, 12×2.5″ bays, 7 PCIe slots, hot-swap PSUs, and enterprise RAS. Ideal for cloud & virtualization.
Overview

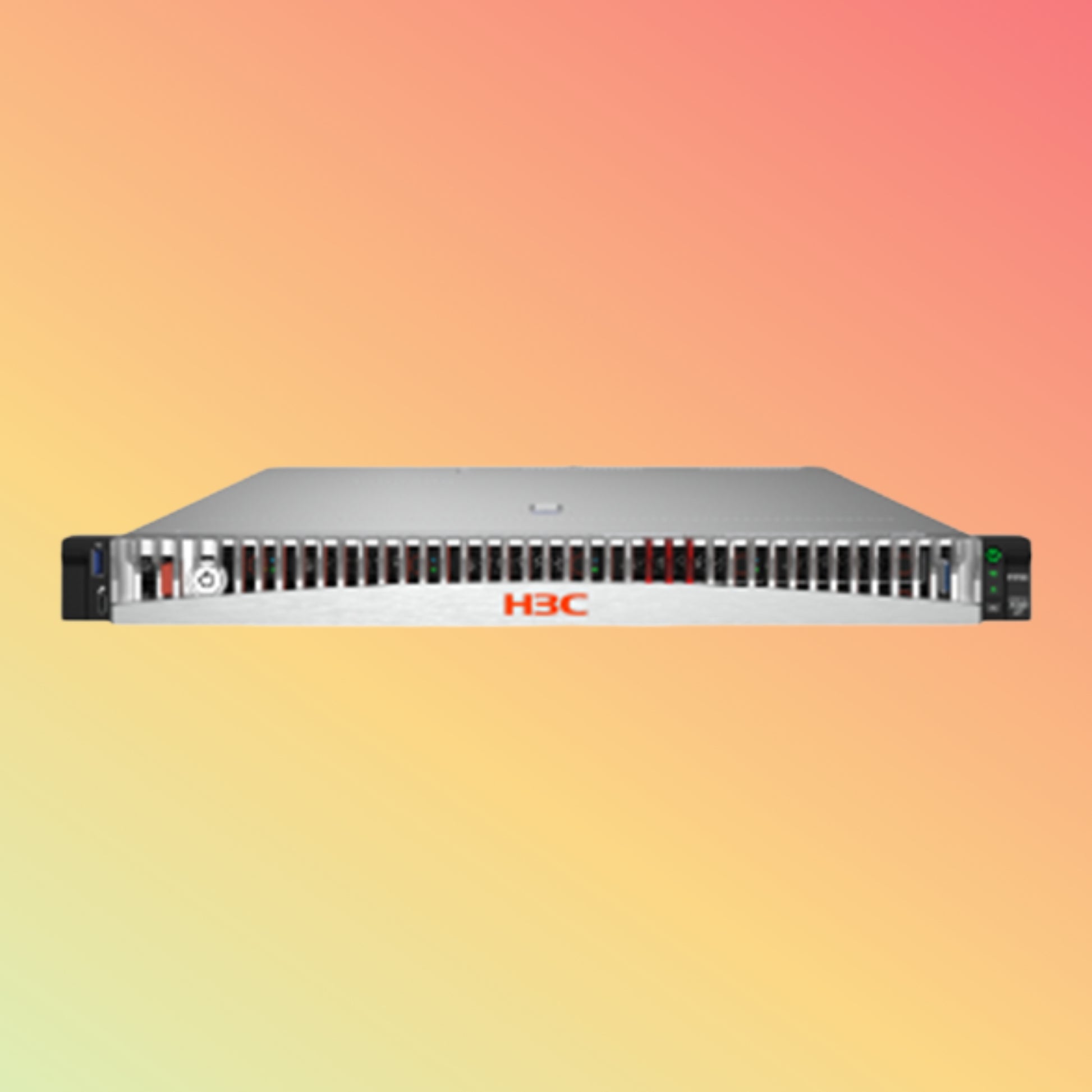

The H3C UniServer R4700 G7 is a 1U, 2-socket rack server built on Intel’s Birch Stream platform. It packs top-tier compute in minimal space and slashes TCO with space-optimized design and energy-smart PSUs h3c.com.
Product Description
This server nails general-purpose workloads with:
-
CPU: 1–2× Intel® Xeon®6 processors for up to 60 cores total wwwsg.h3c.com
-
Memory: 32× DDR5 slots @ 6400 MT/s + 16× MRDIMM @ 8000 MT/s (up to 4 TB + CXL expand) wwwsg.h3c.com
-
Storage: 12× 2.5″ SAS/SATA + 12× U.2 NVMe + up to 32× E1.S/E3.S options wwwsg.h3c.com
-
Expansion: 4× PCIe 5.0 + 2× OCP 3.0 + 1× Mezz slot (CXL 2.0 ready) wwwsg.h3c.com
-
I/O: Hot-swap VGA/USB, optional front mgmt port, 8 hot-swap fans (N+1)
-
Power: 800 W–3200 W platinum/titanium PSUs, 1+1 redundant wwwsg.h3c.com
-
Cooling: Air or optional liquid cold-plate
-
Security & Mgmt: TPM/TCM, chassis intrusion, HDM3 + touch LCD, UniSystem SW
Key Features
-
Birch Stream chips: Intel® Xeon®6 CPUs, up to 60 cores/socket
-
Next-gen DDR5/MRDIMM: 6400/8000 MT/s for ultra-fast apps
-
Mixed-bay flex: SAS/SATA HDDs + NVMe drives + E1.S/E3.S options
-
High-speed I/O: PCIe 5.0, OCP 3.0 & CXL readiness
-
Enterprise RAS: ECC, hot-swap fans/PSUs, health alerts
-
Space-smart: 1U density with 12–32 drive configs
-
Remote Ops: Out-of-band HDM3 and UniSystem tools
Specifications
| Spec |
Detail |
| Form Factor |
1U rack (42.9 × 434.6 × 777 mm) |
| Processors |
1–2× Intel® Xeon®6 (Birch Stream) |
| Memory |
32× DDR5 @6400 MT/s; 16× MRDIMM @8000 MT/s; CXL expand |
| Storage |
12×2.5″ SAS/SATA; 12×U.2 NVMe; up to 32× E1.S/E3.S |
| PCIe / OCP |
4× PCIe 5.0; 2× OCP 3.0; 1× Mezz slot (CXL 2.0) |
| Network |
1× 1 GbE mgmt; 2× OCP for NICs or InfiniBand |
| Power Supply |
Dual hot-swap 800–3200 W platinum/titanium (1+1) |
| Cooling |
8× hot-swap fans (N+1); air or liquid cold-plate |
| Security |
TPM 2.0/TCM; chassis lock & intrusion detection |
| Management |
HDM3 HTTP/CLI; touchscreen LCD; H3C UniSystem platform |
| Operating Temp. |
5 – 45 °C |
| Warranty |
3 yr 5×9 NBD |
Supported OS / Applications / Industries
-
OS: Windows Server, VMware ESXi, RHEL, SUSE, Ubuntu wwwsg.h3c.com
-
Apps: Databases, virtualization, cloud desktops, big data
-
Industries: Internet, enterprise, finance, research, telecom
Benefits & Compatibility
-
Density: 1U form with multi-bay/storage density
-
Scalability: CXL & OCP slots for future growth
-
Efficiency: Platinum/titanium PSUs & optimized airflow
-
Reliability: Enterprise RAS & hot-swap modules
-
Manageability: Intuitive HDM3 + UniSystem SW
Purpose of Use
Ideal for general-purpose compute: DB servers, virtualization hosts, cloud-desktop nodes, AI pre-prod, and mixed workloads.
How to Use
-
Rack-mount in 1U slot.
-
Install CPUs, memory, and drives per quick guide.
-
Connect power, network, and mgmt port.
-
Configure BIOS/RAID via HDM3 or LCD.
-
Deploy your OS and apps.
Packaging / Weight / Dimensions
-
Dimensions: 42.9 × 434.6 × 777 mm (no panel)
-
Depth w/ panel: 805 mm (E1.S model: 863 mm)
-
Weight: ~25 kg (max config)
-
Includes: Server, rails, power cords, quick guide
