Rugged IP65 fanless panel PC—10″/10.1″ capacitive touch, 10th-Gen Intel® Core™ i3/i5/i7, Win10/Linux ready. Silent, wash-down proof industrial HMI.
Overview

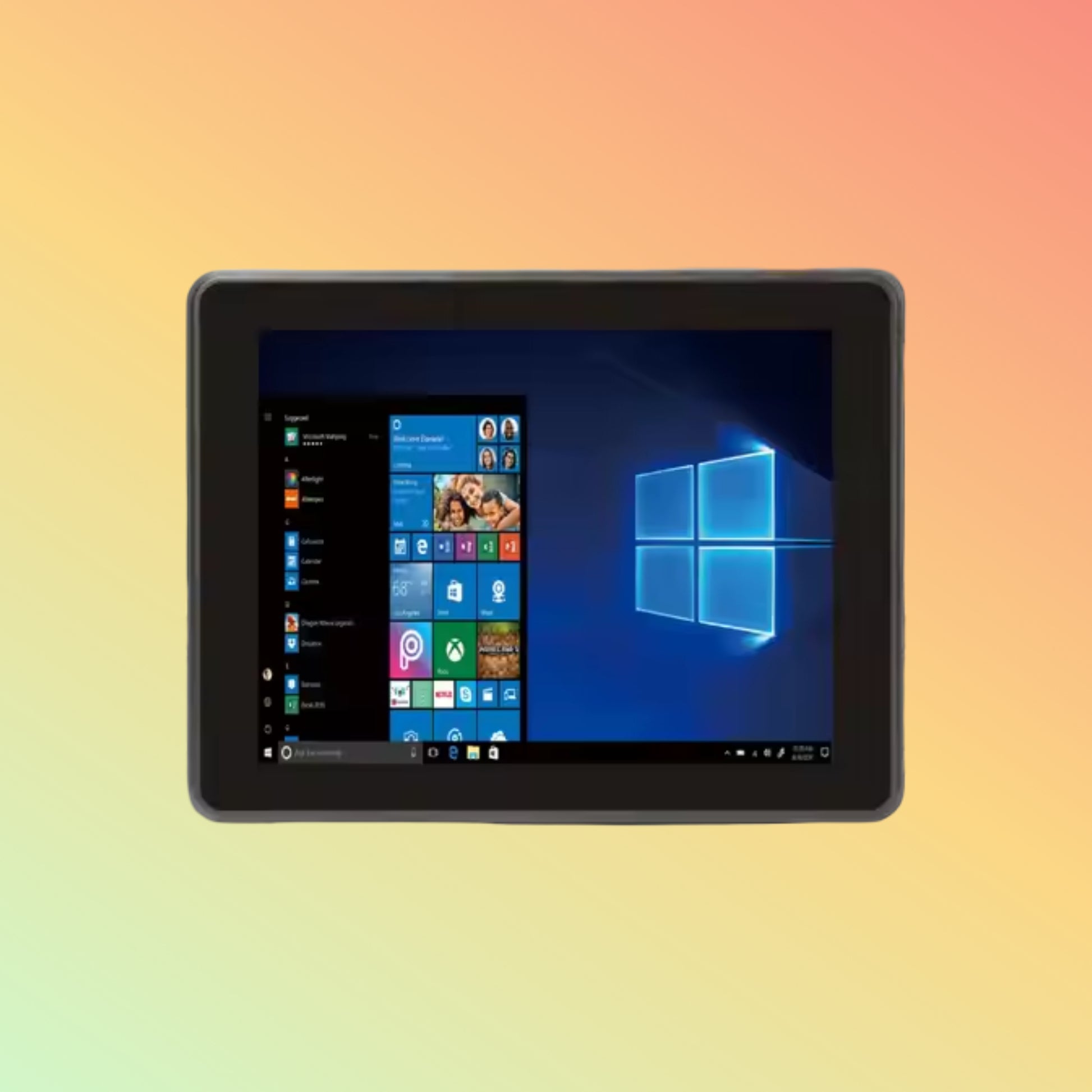

This 10–10.1″ Rugged Embedded Panel PC delivers desktop-class 10th-Gen Intel® Core™ i3/i5/i7 performance in a sealed, fanless chassis. Its bright, glove-friendly PCAP touchscreen and IP65-rated housing run Windows 10/11 IoT or Linux reliably in wash-down, dusty, or vibration-intense environments—zero maintenance, 24/7 uptime.
Product Description
Choose from Intel® Core™ i3-10110U, i5-10210U, or i7-10510U (4 cores/8 threads, up to 4.9 GHz) paired with 8–16 GB DDR4 and a 128–512 GB NVMe SSD. The 1280×800 (10″) or 1920×1080 (10.1″) PCAP touchscreen works under gloves and bright lighting. M12-sealed I/O includes USB 3.0, GbE LAN, RS-232/485 and HDMI output. Dual-band Wi-Fi/ac, Bluetooth 5.0, dual-voltage DC input, and passive cooling ensure robust connectivity and silent operation from –10 °C to +60 °C.
Key Features
-
10″ or 10.1″ PCAP Touch: multi-touch, glove-compatible
-
IP65 Fanless Chassis: dust- and wash-down proof, zero moving parts
-
10th-Gen Intel® Core™: i3-10110U / i5-10210U / i7-10510U CPUs
-
Memory & Storage: 8–16 GB DDR4; 128–512 GB NVMe SSD
-
M12-Sealed I/O: USB 3.0 ×2, GbE LAN, RS-232/485, HDMI out
-
Wireless: Wi-Fi 802.11ac & Bluetooth 5.0
-
Passive Cooling: silent, maintenance-free 24/7 operation
-
Wide-Voltage Input: 9–36 V DC w/ surge & reverse-polarity protection
-
Mounting: panel-cut & VESA 75×75 mm brackets
Specifications
| Feature |
Details |
| Display |
10″ (1280×800) or 10.1″ (1920×1080) IPS PCAP multi-touch |
| CPU Options |
Core™ i3-10110U (2C/4T, 2.1–4.1 GHz)
i5-10210U (4C/8T, 1.6–4.2 GHz)
i7-10510U (4C/8T, 1.8–4.9 GHz) |
| Memory |
8 GB–16 GB DDR4 |
| Storage |
128 GB–512 GB M.2 NVMe SSD |
| I/O Ports |
2× USB 3.0; 1× GbE LAN; 1× RS-232/485; 1× HDMI |
| Wireless |
Wi-Fi 802.11ac; Bluetooth 5.0 |
| Power Input |
9–36 V DC with surge & reverse-polarity protection |
| Protection |
IP65 front & full-body sealing |
| Operating Temp |
–10 °C to +60 °C |
| Mounting |
Panel cutout & VESA 75×75 mm brackets |
| Dimensions |
10″: 278×186×55 mm; 10.1″: 285×190×60 mm |
| Weight |
~2.2 kg |
Supported OS / Applications / Industries
-
OS: Windows 10/11 IoT, Linux (Ubuntu/Debian)
-
Applications: HMI, SCADA, CNC control, data acquisition
-
Industries: Manufacturing, food & beverage, logistics, robotics
Benefits & Differentiation
-
True Zero-Maintenance: fanless avoids clogging & noise
-
Wash-Down Ready: IP65 seals tolerate high-pressure cleaning
-
Glove-Friendly UX: precise PCAP touch under PPE
-
High-Performance CPU: desktop-class compute for edge AI or vision
-
Flexible Integration: sealed I/O, wide-voltage power, and mounting
Purpose of Use
Ideal as an operator interface on CNC machines, wash-down production lines, robotic work cells, and any application demanding sealed, high-precision touch control.
How to Use
-
Cut panel opening per supplied template
-
Mount with clamp brackets or VESA kit
-
Connect 9–36 V DC, network, USB/serial, and HDMI
-
Boot into Windows IoT or Linux; install your HMI/SCADA software
-
Clean front with low-pressure spray—no fans to service
Warranty & FAQs
Warranty: 1 year standard; extensions to 3 years available.
FAQs:
After-Sales Support
24/7 remote diagnostics, firmware updates, and optional on-site service ensure maximum uptime.
Get in Touch
Questions or custom configs? Email sales@neotech.ae for expert assistance.
Disclaimer
All specs subject to change without notice. Images are illustrative—verify details with our sales team prior to deployment.
