Overview

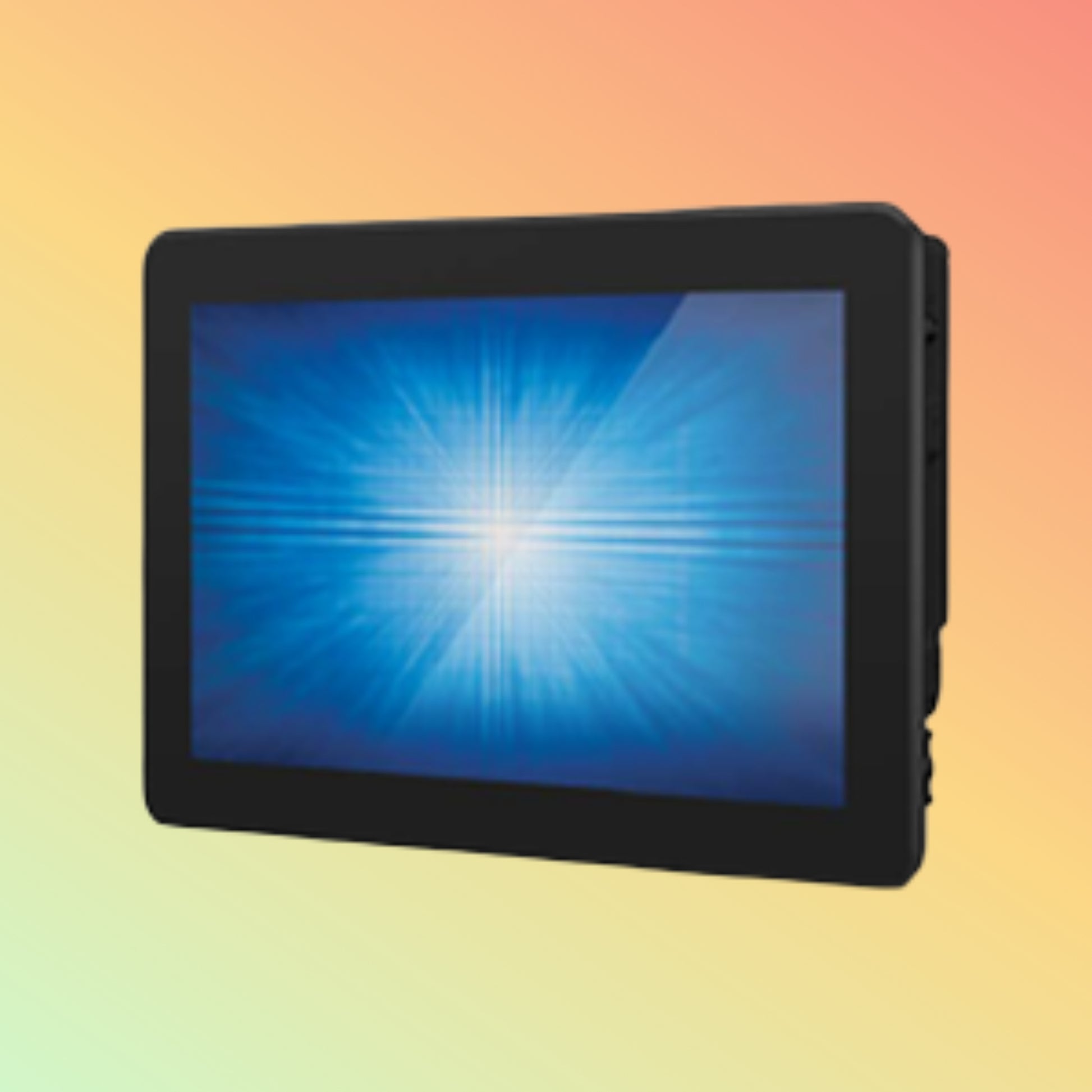

The Elo 1093L delivers a 10.1″ 1280×800 HD panel with 10-point PCAP touch in an 18 mm open-frame chassis. Its edge-to-edge glass and passive cooling make it ideal for high-traffic kiosks, industrial HMIs, and custom enclosures.
Product Description
Built for continuous use, the 1093L integrates a drift-free PCAP sensor and tempered, anti-glare glass. Standard HDMI, VGA, and USB ports enable plug-and-play setup. The fanless design cuts noise and maintenance. Mount it via VESA or flush-mount kits for a sleek, modular build without extra boxes.
Key Features
-
10.1″ HD (1280×800) IPS display
-
10-point projected-capacitive multi-touch
-
Edge-to-edge tempered, anti-glare glass
-
Slim 18 mm open-frame metal chassis
-
HDMI 1.4, VGA (DB-15) video inputs
-
USB 2.0 Type B touch interface
-
VESA 75×75 mm mounting pattern
-
Fanless, passive-cooling design
Specifications
| Specification |
Details |
| Display Size |
10.1″ diagonal |
| Resolution |
1280×800 (HD) |
| Touch Tech |
10-point PCAP (USB 2.0) |
| Brightness |
350 cd/m² |
| Contrast Ratio |
800:1 |
| Viewing Angle |
170° H / 160° V |
| Video Inputs |
HDMI 1.4, VGA (DB-15) |
| Touch I/O |
USB 2.0 Type B |
| Mounting |
VESA 75×75 mm, flush-mount kits |
| Power Input |
5 V DC via USB (optional adapter) |
| Operating Temp. |
0 °C to 50 °C |
| Weight |
~1.3 kg (unpackaged) |
Supported OS / Applications / Industries
OS Compatibility: Windows, macOS, Linux (HDMI + USB)
Applications: Interactive kiosks, POS terminals, wayfinding, digital menu boards
Industries: Retail, hospitality, healthcare, transportation, manufacturing
Benefits & Compatibility
-
Modular Integration: Fits bezel, faceplate, or rear-mount kits
-
Silent Operation: No fans mean zero noise and less upkeep
-
Durable Surface: Tempered glass resists scratches and spills
-
Easy Deployment: Standard HDMI/VGA and USB for fast setup
-
Scalable Management: Works with EloView® for remote updates
Purpose of Use
Ideal for OEMs and integrators building self-service kiosks, industrial HMIs, and embedded displays. It offers crisp graphics and precise touch where reliability matters most.
How to Use
-
Attach to enclosure via VESA 75×75 mm or flush-mount kit
-
Connect HDMI or VGA to video source
-
Plug USB for touch data
-
Power via USB port or 5 V DC adapter
-
Calibrate touch using Elo Touch Tools if needed
Packaging / Weight / Dimensions
-
Unit Weight: ~1.3 kg
-
Carton Size: 350 × 260 × 120 mm
-
Included: Display, HDMI & USB cables, mounting brackets, quick-start guide
Warranty and FAQs
Warranty: 1-year limited hardware; extensions up to 3 years available.
FAQs:
-
Q: Does it support gloved touch?
A: Yes—PCAP recognizes gloves and stylus.
-
Q: Can it run 24/7?
A: Yes—passive cooling enables continuous operation.
-
Q: How to seal against dust?
A: Use enclosed bezel kits for environmental protection.
Performance, Quality, Durability & Reliability
Built with industrial-grade aluminum and ANSI-rated glass, the 1093L withstands shock, vibration, and heavy use. Passive vents maintain optimal temperature without moving parts.
