Compact RS232/USB 2D barcode scanner for kiosks, vending, and POS. Fast decoding. Plug-and-play. Shop HS-2002B now at NEOTECH UAE.
✅ Overview

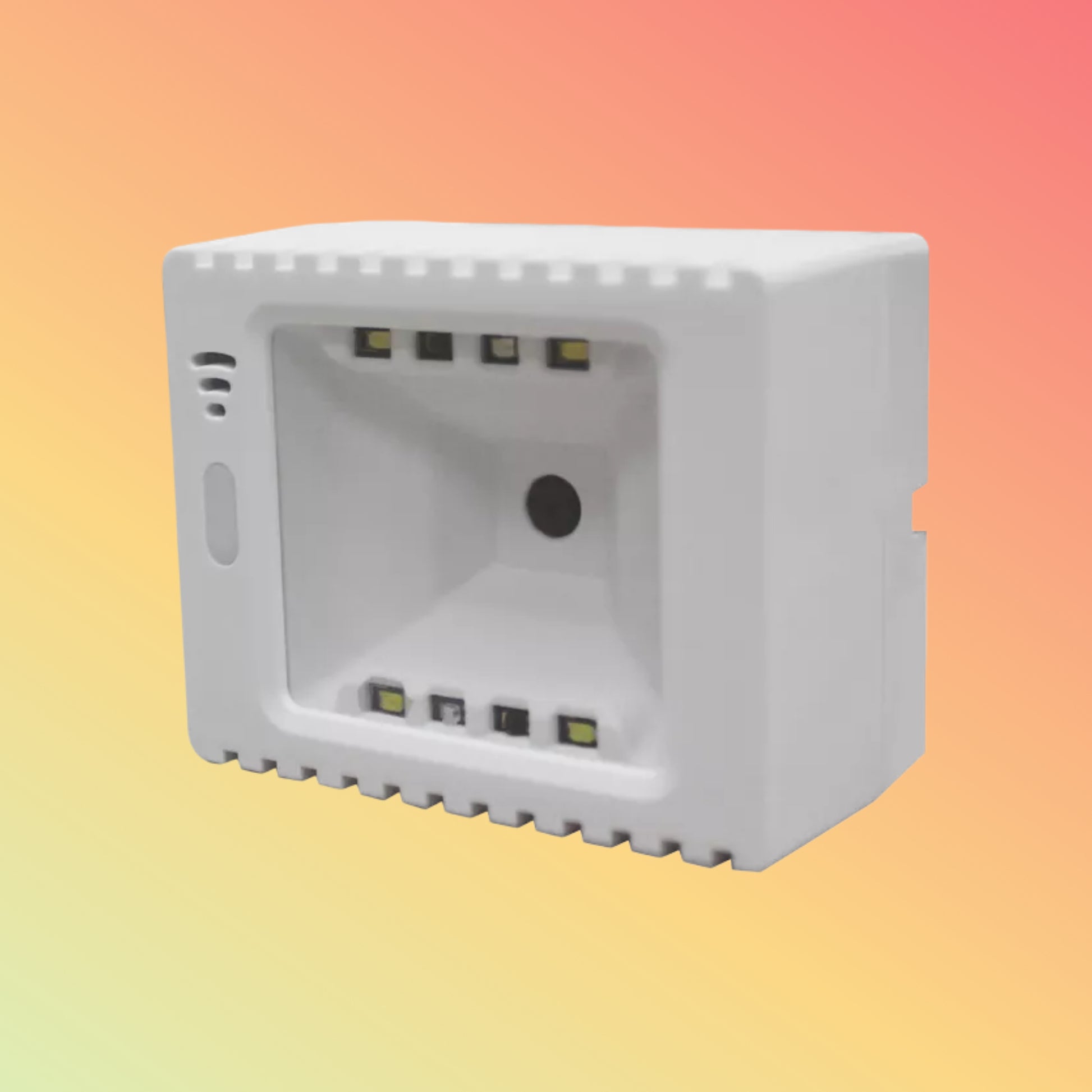

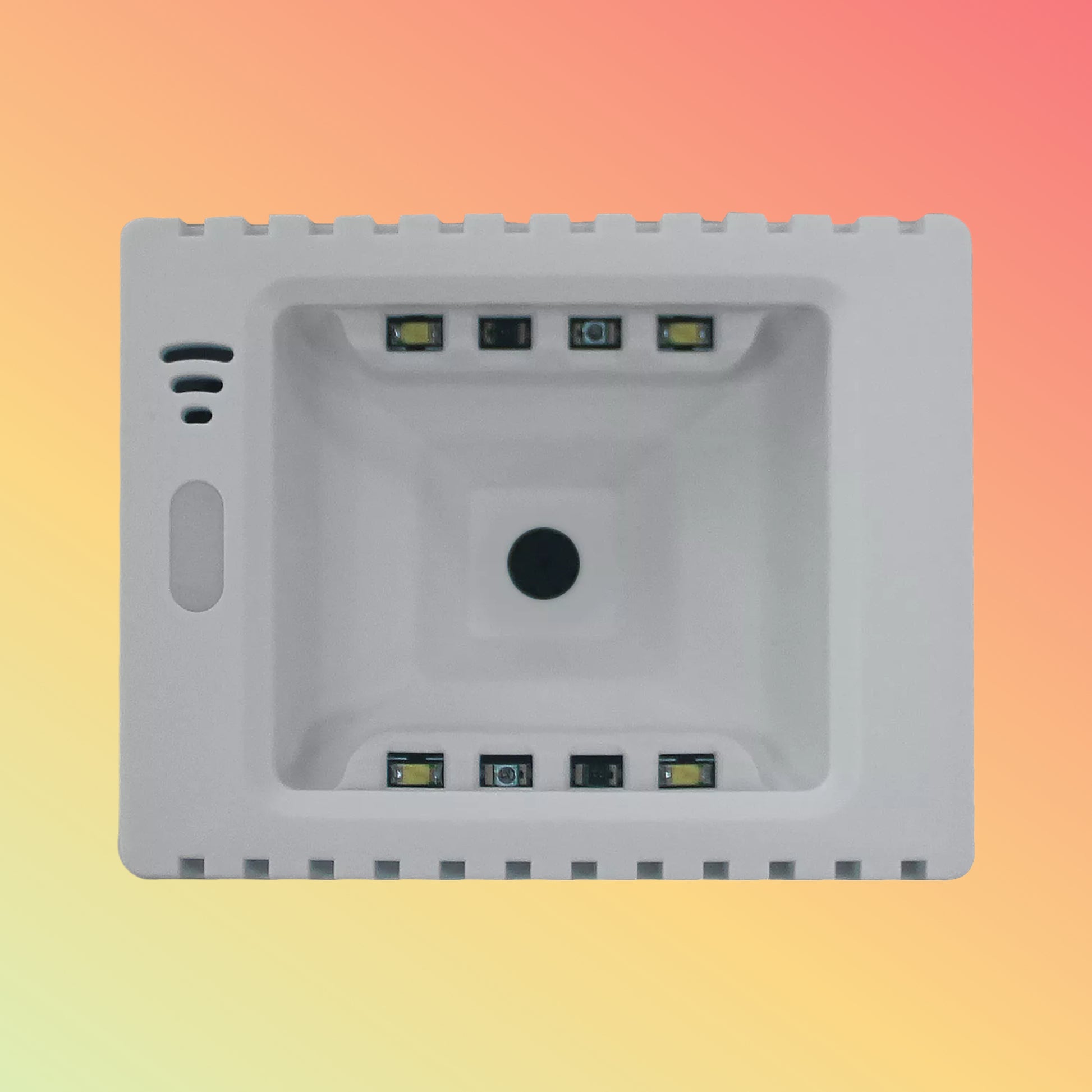

The HS-2002B Embedded 2D Barcode Scanner Module is your go-to solution for seamless barcode scanning in kiosks, vending machines, and POS terminals. With both RS232 and USB connectivity, this compact unit offers fast, accurate 1D/2D decoding, perfect for OEM integrations in space-constrained devices. Designed for durability and plug-and-play simplicity, it boosts operational speed without compromising reliability.
✅ Product Description
Built to fit tight spaces while delivering high-end scanning performance, the HS-2002B offers support for 1D and 2D barcodes, including QR, PDF417, and DataMatrix. Its CMOS imaging engine and infrared auto-sensing ensure fast, contactless barcode capture—even on low-light screens or damaged codes.
This scanner module is easy to embed, operates silently, and comes with customizable firmware for advanced applications. Whether you’re developing self-service kiosks, ticketing systems, or smart vending machines, this module delivers unmatched speed, size, and stability.
✅ Key Features
-
✅ Dual interface: RS232 & USB (plug & play)
-
✅ Supports QR, PDF417, DataMatrix, 1D/2D codes
-
✅ CMOS sensor for high-speed decoding
-
✅ Compact for embedded environments
-
✅ Infrared auto-detection & low-light reading
-
✅ Wide angle: reads barcodes at various tilt angles
-
✅ Industrial-grade performance in compact form
✅ Specifications
-
Model: HS-2002B
-
Scan Engine: CMOS 640×480 pixels
-
Scan Modes: Auto-sensing, Continuous, Manual
-
Supported Codes: 1D (EAN-13, Code128), 2D (QR, PDF417, etc.)
-
Interfaces: RS232, USB 2.0
-
Dimensions: 49.3mm × 37.4mm × 25.8mm
-
Weight: 32g
-
Power Supply: 5V DC
-
Operating Temp: -20°C to +60°C
-
Certifications: CE, FCC, RoHS
✅ Supported OS / Applications / Industries
OS Compatibility:
-
Windows
-
Android (with USB OTG)
-
Linux
-
Embedded controllers
Applications:
Industries:
-
Retail
-
Hospitality
-
Transportation
-
Automation
-
Vending solutions
-
Government services
✅ Benefits & Compatibility
-
✅ Compact design perfect for OEM integration
-
✅ Fast reading of printed and digital barcodes
-
✅ Reads from screens and under poor lighting
-
✅ Simple wiring with flexible communication support
-
✅ Energy-efficient, low-heat operation
✅ Purpose of Use
Designed for high-volume scanning in embedded environments. Perfect for developers building smart kiosks, vending machines, ticket dispensers, and POS terminals that need reliable barcode capture.
✅ How to Use
-
Connect the module via USB or RS232
-
Mount securely inside your hardware housing
-
Power it up – no driver needed for most systems
-
Automatically scans codes placed within its reading window
-
Integrate with POS or software system for data capture
✅ Packaging / Weight / Dimension
-
Unit Weight: 32g
-

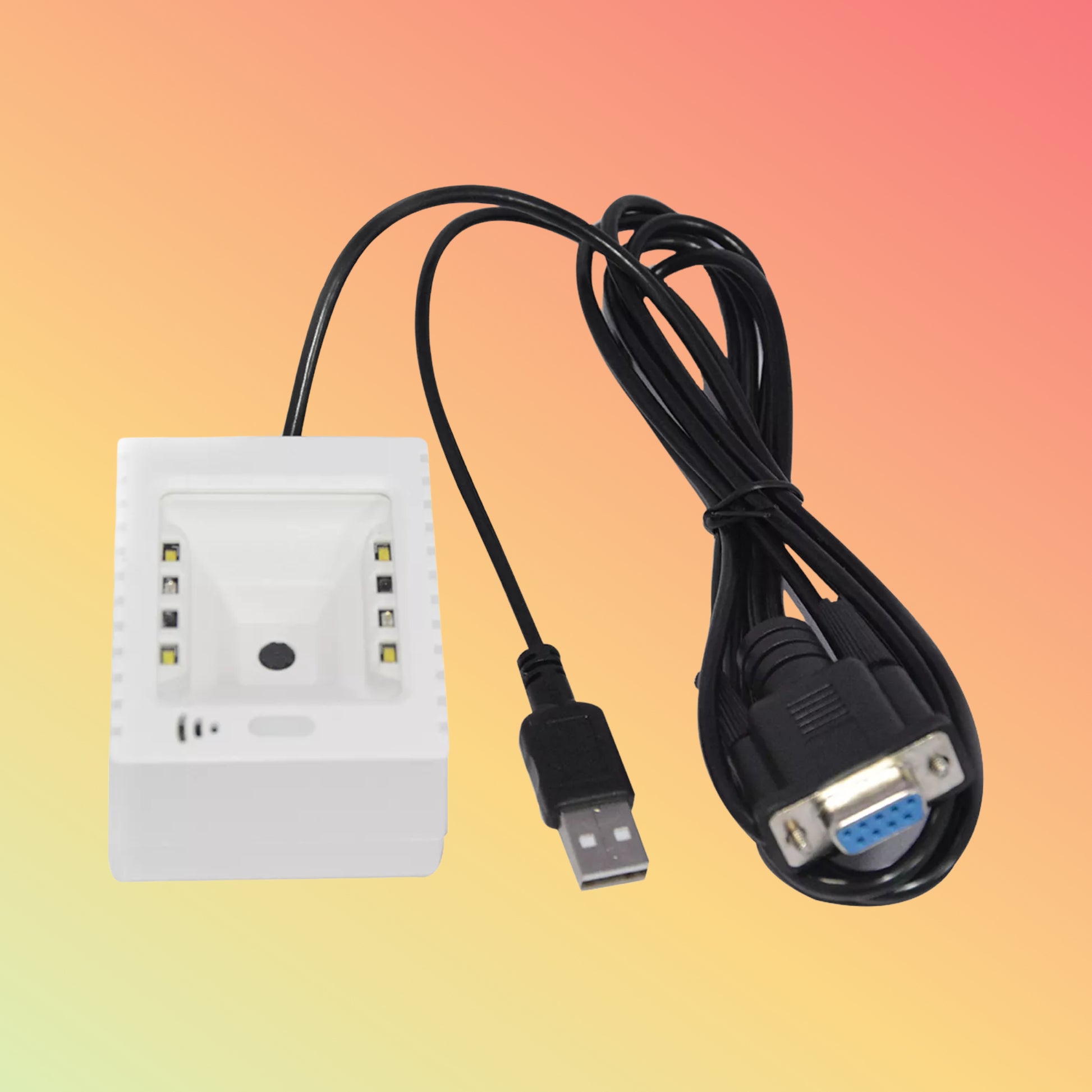

Packaging: 1x Scanner module, cables, mounting guide
-
Box Size: 10cm x 8cm x 6cm
✅ Warranty and FAQs
Warranty: 1-year manufacturer warranty
FAQs
Q: Can it read phone screen barcodes?
Yes, including low-brightness displays.
Q: Is it suitable for outdoor use?
Yes, if housed in weather-protected enclosures.
Q: Can I customize scan settings?
Yes, firmware supports config commands.
✅ Performance, Quality, Durability, and Reliability
Rated for millions of scans, the HS-2002B ensures consistent high-speed decoding, even in low-light or damaged barcode scenarios. Backed by CE and RoHS certifications, it’s made to endure 24/7 embedded use.
✅ Best Price Guarantee
We’ll beat any price in the UAE for the HS-2002B module. Found a better offer? We'll match it—no questions asked.
✅ Shop Today & Receive Your Delivery Across the UAE!
Get the HS-2002B shipped same-day across Dubai, Sharjah, Abu Dhabi, Ajman, and more. Secure delivery with live tracking and full support.
✅ Request for Customer Reviews and Testimonials
Have you used the HS-2002B in your kiosk or POS project? Share your feedback and help others choose confidently.
✅ After Sales Support
We’re here even after your purchase. From tech support to troubleshooting, our NEOTECH support team’s got your back.
✅ Get in Touch
Need help integrating this module? Looking for bulk pricing? Contact us now for expert guidance.
✅ Stock Availability
This product is usually in stock for small and mid-size orders. For large-scale projects, reach out for lead time confirmation.
✅ Disclaimer
All product info provided is for general reference only and may change without notice. Please confirm details with our team before purchasing.
