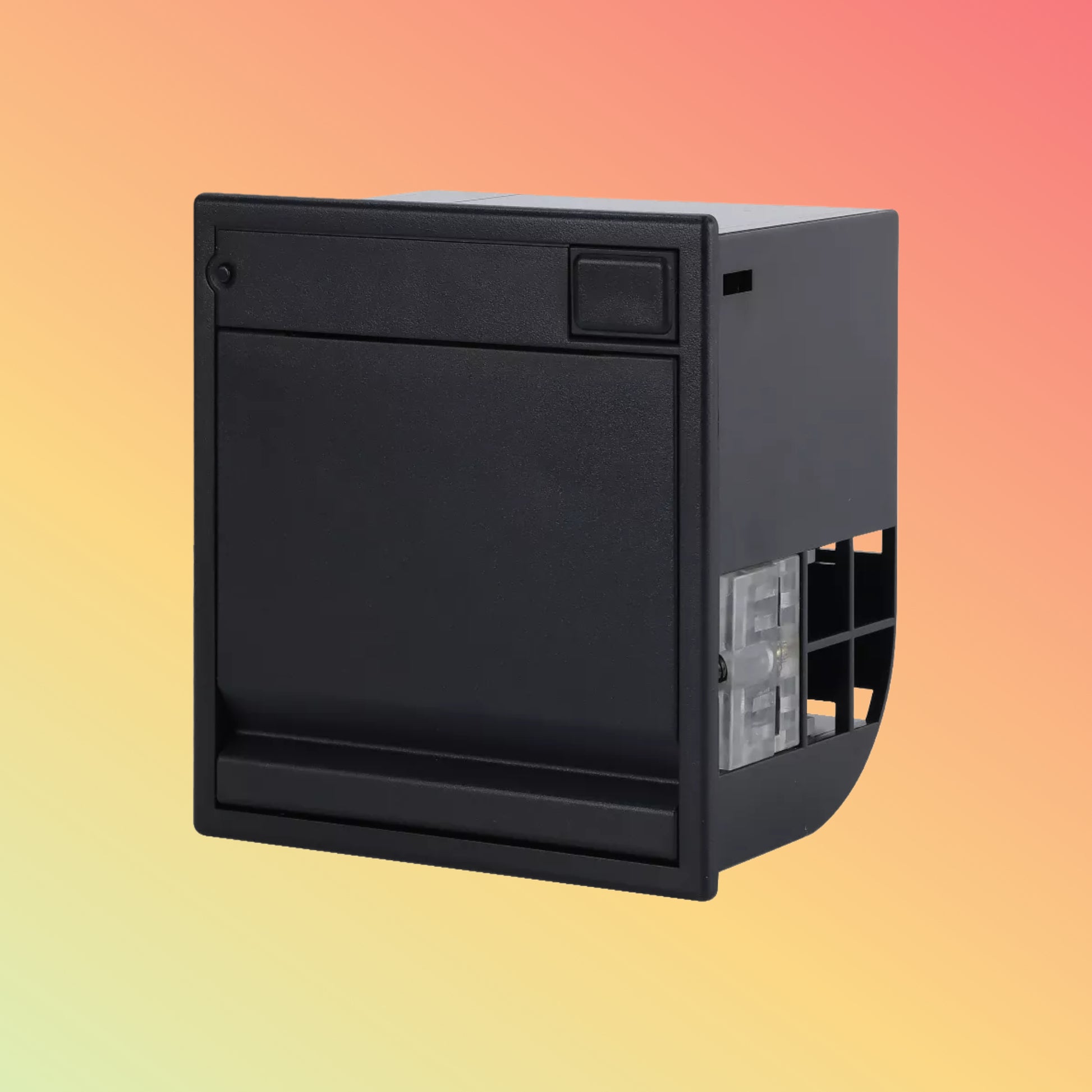

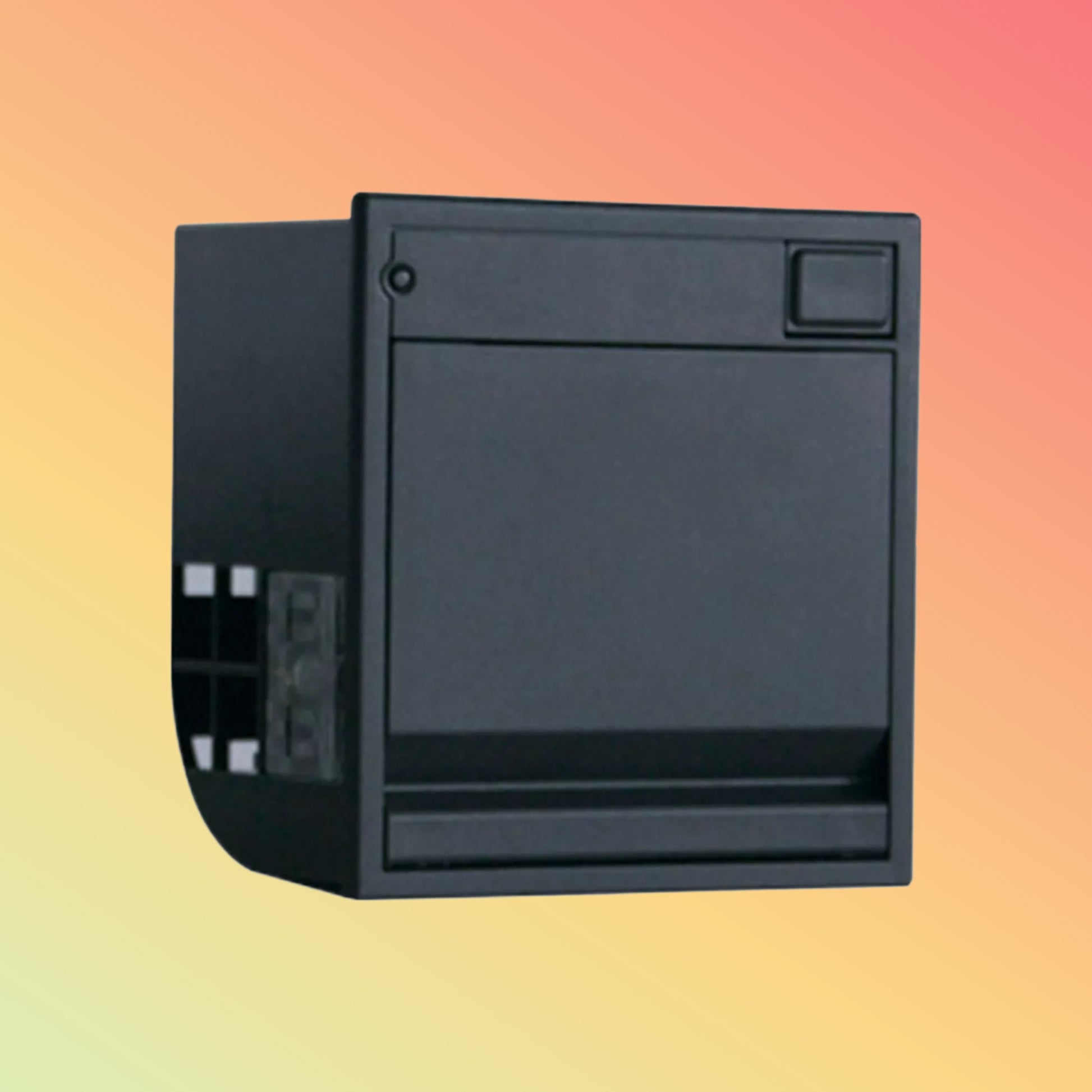

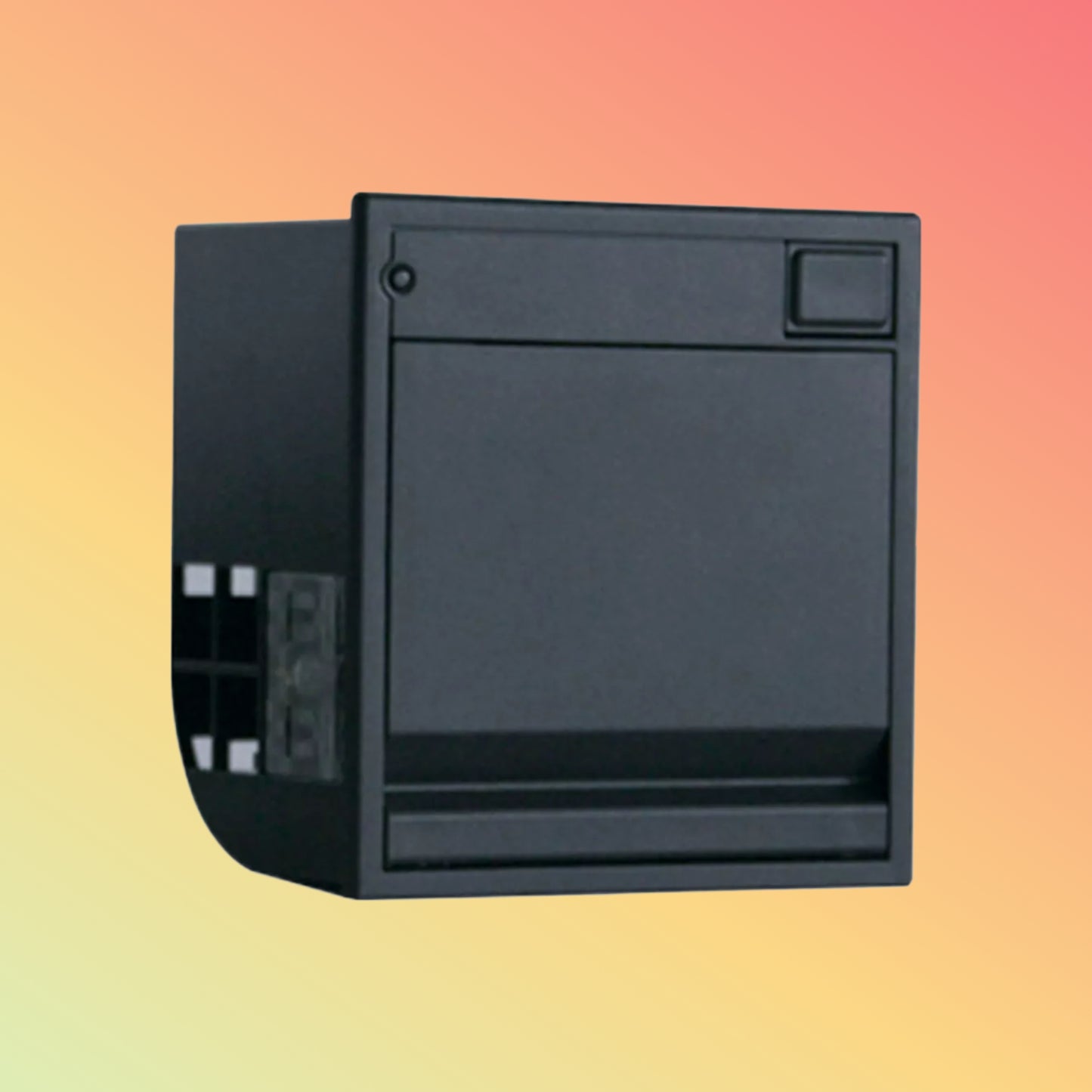

HCC-E3 RS232 USB 8 Dots/mm 58mm Embedded Thermal Receipt Panel Printer

Compact 58mm embedded panel thermal receipt printer with USB & RS232. Fast, durable, and ESC/POS compatible. Ideal for kiosks. Shop now at NEOTECH.

✅ Overview

The HCC-E3 Embedded Thermal Receipt Printer is a compact, 58mm panel mount printer with USB and RS232 connectivity. Designed for seamless integration into kiosks, ticketing systems, and vending machines, it delivers clear and fast receipts using 8 dots/mm print resolution and ESC/POS commands.

✅ Product Description

Built for embedded installations, the HCC-E3 58mm thermal receipt printer ensures stable performance and efficient thermal printing. It combines compact form factor with high-performance output, making it the ideal solution for space-constrained setups. It supports direct thermal print technology, requires no ink, and offers low noise, low maintenance, and long cutter life.

Its panel-mount design allows fast installation into self-service terminals, while USB + RS232 interfaces ensure easy integration with most host systems.

✅ Key Features

• 🖨️ 58mm Wide Thermal Receipt Printing

• 🔌 USB + RS232 Interface

• 💡 ESC/POS Command Compatibility

• ✂️ Optional Auto Cutter Support

• 📏 8 Dots/mm Resolution (203dpi)

• ⚙️ Panel Mount Design – Easy Kiosk Integration

• 🔇 Silent Print Operation

• 🧠 Supports Logo, QR, Barcode Output

✅ Specifications

• Print Width: Max 48mm

• Paper Width: 58mm

• Resolution: 8 dots/mm (203dpi)

• Print Speed: Up to 90mm/s

• Interfaces: RS232 + USB

• Command Set: ESC/POS

• Auto Cutter: Optional

• Power Supply: DC 9–24V

• Paper Diameter: Max 50mm

• Dimensions: 115 x 85 x 70 mm

• Weight: ~0.8 kg

✅ Supported OS / Applications / Industries

• Supported OS: Windows, Linux

• Applications: Kiosks, Vending Machines, ATMs, Parking Terminals

• Industries: Banking, Retail, Self-Service, Transport, Government

✅ Benefits & Compatibility

• ✔️ Compact and Modular Design

• ✔️ Wide OS and Software Compatibility

• ✔️ ESC/POS Command Ready

• ✔️ Long-Life Thermal Head

• ✔️ Reduced Power Consumption

✅ Purpose of Use

Perfect for environments that need small-format receipts like vending machines, ticket dispensers, public kiosks, and self-service counters.

✅ How to Use

1. Install securely via panel-mount slots

2. Connect via USB or RS232 to host device

3. Load 58mm thermal roll

4. Use standard ESC/POS software to initiate prints

5. Cut manually or auto (if cutter is included)

✅ Packaging / Weight / Dimension

• Weight: Approx. 0.8 kg

• Size: 115mm (L) x 85mm (W) x 70mm (H)

• Box Contents: Printer unit, cables, user manual

• Packing: Foam-protected industrial carton

✅ Warranty and FAQs

Warranty: 12-month warranty from NEOTECH
FAQs:

• Can it print barcodes? ✔️ Yes, including 1D/2D formats

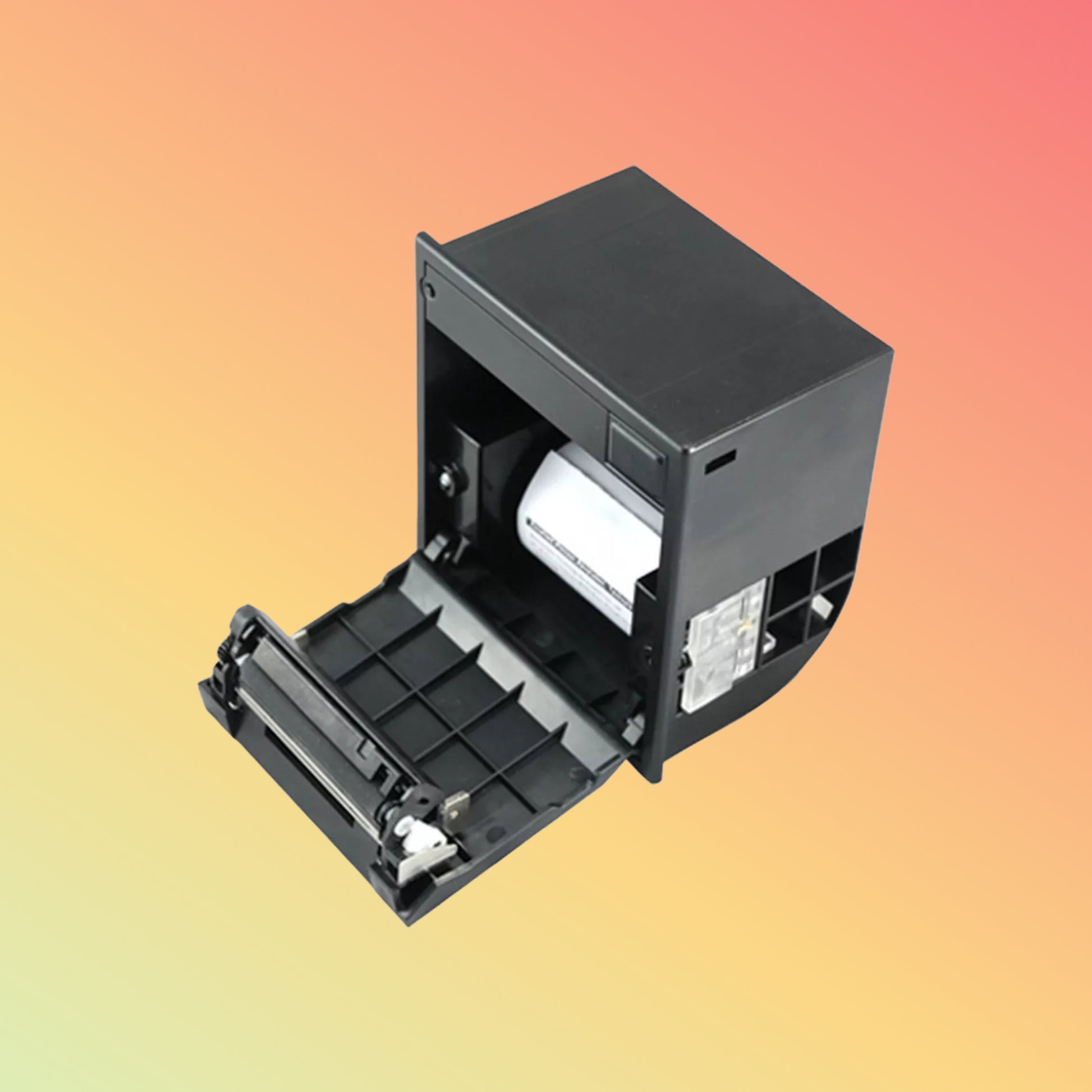

• Is paper easy to load? ✔️ Front paper loading system

• Is cutter included? ✔️ Available in select variants

✅ Performance, Quality, Durability, and Reliability

The HCC-E3 maintains stable output, supports high duty cycles, and delivers excellent performance in tough, high-use kiosk environments. Its components are built to last, ensuring long-term value.
