Explore the 15.6″ IP65 industrial touchscreen laptop with Intel® 10th Gen CPU, rugged chassis and fanless design. Ideal for HMI & field use.
Overview
Delivering desktop-class power in a sealed, fanless chassis, this 15.6″ industrial notebook features an IP65-rated front panel and Intel® 10th Gen processor. It’s optimized for demanding environments—control rooms, factory floors or outdoor kiosks—ensuring reliable, 24×7 operation.
Product Description
Built for mission-critical deployments, this rugged laptop combines a Full HD capacitive touchscreen with a durable aluminum-magnesium alloy housing. Powered by Intel® Core™ i5-10210U or i7-10510U processors, it supports up to 32 GB DDR4 RAM and PCIe NVMe storage. The IP65 front bezel resists dust and water jets, while passive cooling eliminates moving parts. A broad array of I/O—including USB 3.2, RS-232, HDMI and Gigabit Ethernet—enables easy integration with PLCs, barcode scanners and other field devices.
Key Features
-
IP65 Sealing: Dust-tight, protects against low-pressure water jets
-
Intel® 10th Gen CPU: Core™ i5-10210U or i7-10510U for balanced performance
-
15.6″ Full HD Touch: 1920×1080 capacitive panel, 10-point multi-touch
-
Fanless Design: Silent, maintenance-free operation
-
Rugged Chassis: Aluminum-magnesium alloy meets MIL-STD-810G
-

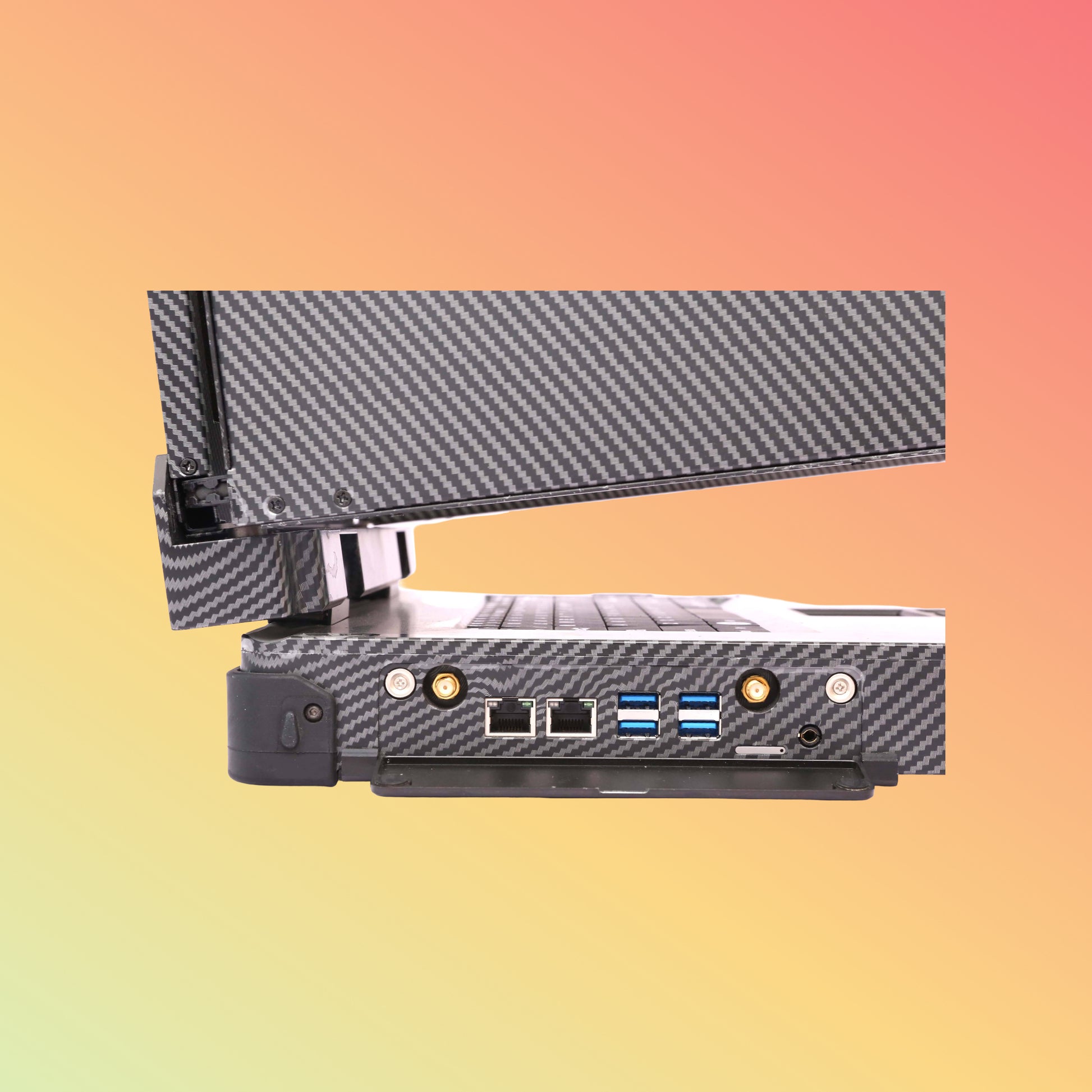

Flexible I/O: 2× USB 3.2, 2× USB 2.0, RS-232, HDMI, GbE LAN, audio
Specifications
| Attribute |
Details |
| Processor |
Intel® Core™ i5-10210U (1.6–4.2 GHz) or i7-10510U (1.8–4.9 GHz) |
| Memory |
Up to 32 GB DDR4 SO-DIMM |
| Storage |
256 GB–1 TB PCIe NVMe SSD |
| Display |
15.6″ IPS, 1920×1080, 10-point capacitive touch |
| Protection |
IP65 front bezel, MIL-STD-810G certified |
| I/O Ports |
2× USB 3.2 Gen 1, 2× USB 2.0, 1× RS-232, 1× HDMI, 1× GbE LAN, audio jack |
| Power Input |
19–24 V DC via locking barrel connector, 65 W max |
| Operating Range |
–20 °C to 60 °C; 10–95 % RH (non-condensing) |
| Dimensions (W×D×H) |
380 × 245 × 35 mm |
| Weight |
~3.1 kg |
Supported OS / Applications / Industries
-
Operating Systems: Windows 10 IoT/Pro, Ubuntu 20.04
-
Applications: HMI/SCADA, digital signage, kiosk automation
-
Industries: Manufacturing, logistics, food & beverage, transportation
Benefits & Compatibility
This notebook streamlines deployment with industry-standard I/O and power rails. IP65 and MIL-STD ratings minimize downtime from dust, splash or vibration. Passive cooling and robust storage ensure data integrity under shock and continuous workloads.
Purpose of Use
Ideal as a control-panel terminal, mobile diagnostic station or outdoor kiosk. Its sealed touch display and versatile I/O suite make it a turnkey solution for harsh-environment automation.
How to Use
-
Mount via VESA bracket or place on desktop.
-
Connect 19–24 V DC input and network cable.
-
Attach USB/RS-232 peripherals (scanners, sensors).
-
Boot into Windows 10 or Ubuntu and load your HMI software.
-
Operate with gloved or bare-finger touch.
Packaging / Weight / Dimension
-
Packaging: Shock-absorbent foam in sealed carton
-
Net Weight: 3.1 kg
-
Gross Weight: 4.5 kg (with accessories)
-
Package Size: 430 × 290 × 120 mm
Warranty and FAQs
Warranty: 1-year limited hardware warranty
FAQs:
-
Q: Can I upgrade RAM?
A: Yes, via two SO-DIMM slots up to 32 GB.
-
Q: Does it support RS-485?
A: Yes, via optional COM port adapter.
Performance, Quality, Durability, and Reliability
Engineered with industrial-grade capacitors and soldered components, this unit achieves an MTBF exceeding 50,000 hours. Tested to MIL-STD-810G for shock, vibration and thermal extremes to guarantee mission-critical uptime.
Best Price Guarantee
We benchmark daily to ensure competitive pricing. Spot a lower official quote for the same specs and we’ll match it without fuss.
Shop Today & Receive Your Delivery Across the UAE!
Order now for express shipping to Dubai, Abu Dhabi, Sharjah and beyond. On-site delivery in as little as 3 days to keep your operations on schedule.
Request for Customer Reviews and Testimonials
Deployed this industrial laptop in your project? Share your feedback to guide peers and help us innovate further.
After Sales Support
NEOTECH provides remote diagnostics, driver updates and optional on-site service plans for seamless lifecycle management.
Get in Touch
Questions or custom configurations? Visit our Industrial Laptops page or connect with a NEOTECH specialist today.
Stock Availability
Models sell fast. Please confirm real-time availability with our sales team before placing bulk orders.
Disclaimer
All specifications and images are indicative and subject to change without notice. Verify final product details with NEOTECH prior to purchase.
