Overview

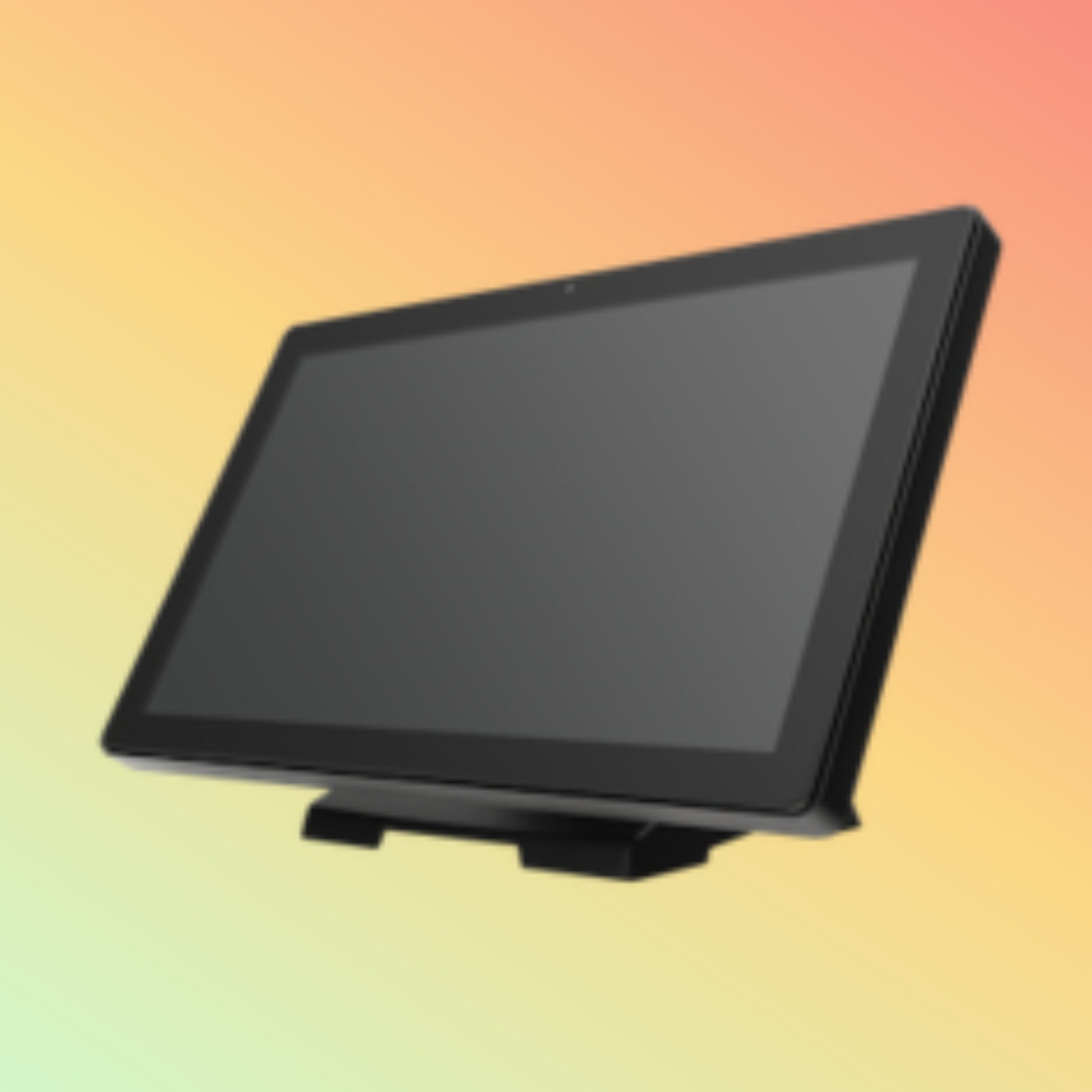

The Touch Dynamic QK22 All-In-One Panel PC delivers desktop-class power in a sleek, IP65-rated chassis. It’s engineered for HMI, kiosk, and control-room use where uptime and reliability are non-negotiable.
Product Description
Featuring a 22″ Full HD P-CAP touchscreen, the QK22 runs on an Intel® Celeron® J6412 quad-core CPU and boots in seconds. Its fanless design and full-metal enclosure shrug off dust and vibration. With modular I/O, you can tailor ports on the fly—no tools needed. This panel PC turns complex installations into plug-and-play wins.
Key Features
-
22″ Full HD 10-point capacitive touchscreen
-
Intel® Celeron® J6412 4-core processor @ 2.0 GHz
-
Fanless, IP65 front-panel for dust/water resistance
-
Modular I/O slots: add USB, COM, GPIO, PoE
-
Dual M.2 SSD slots + 4 GB DDR4 (upgradable to 8 GB)
-
Connectivity: Gigabit LAN, Wi-Fi 6, Bluetooth 5.1
-
VESA-mountable for wall or arm installation
-
Windows 10 IoT & Linux ready
Specifications
-
Display: 22″ IPS, 1920 × 1080, 300 nits
-
CPU: Intel® Celeron® J6412 (4C/4T)
-
Memory: 4 GB DDR4 (max 8 GB)
-
Storage: 1 × M.2 2280 NVMe SSD (optional 2nd slot)
-
I/O Ports: 2×USB 3.0, 2×USB 2.0, 2×LAN, 2×COM (RS-232/422/485), HDMI
-
Wireless: Wi-Fi 6 (802.11ax), Bluetooth 5.1
-
Power Input: 12–36 VDC terminal block
-
Dimensions: 570 × 345 × 60 mm (W × H × D)
-
Weight: 6.8 kg
Supported OS / Application / Industries
-
OS: Windows 10 IoT, Ubuntu LTS, Fedora
-
Applications: HMI dashboards, digital signage, kiosk automation
-
Industries:
Benefits & Compatibility
-
Seamless integration with existing SCADA and PLC networks
-
Future-proof I/O expansion via plug-and-play modules
-
Robust connectivity: pairs with NEOTECH IoT Gateways for edge analytics
-
Space-saving design that blends into any control panel
-
Energy-efficient: low-power draw in idle mode
Purpose of Use
Ideal for:
-
Industrial machine monitoring
-
Self-service kiosks and wayfinding
-
Control-room operator panels
-
Point-of-sale and order entry
-
Medical device interfaces
How to Use
-
Mount via VESA bracket or enclosure cut-out.
-
Insert or upgrade DDR4 and NVMe modules.
-
Connect power and LAN or Wi-Fi antenna.
-
Install OS image from USB or network.
-
Launch HMI or kiosk software—touch, swipe, done.
Packaging / Weight / Dimensions
-
Includes: QK22 panel PC, power terminal block, quick-start guide, mounting kit
-
Gross Weight: 8.2 kg
-
Box Size: 650 × 425 × 150 mm
Warranty & FAQs
Warranty: 2-year hardware warranty
FAQs:
-
Can I add PoE?
✔ Yes, via optional PoE I/O module.
-
Is the touchscreen glove-compatible?
✔ Yes, supports glove and stylus input.
-
Does it support 4G LTE?
✔ Optional M.2 Key B modem module available.
Performance, Quality, Durability & Reliability
Built for nonstop 24/7 operation, the QK22’s IP65 front and industrial-grade components ensure 99.9% uptime in harsh factory or outdoor settings.
