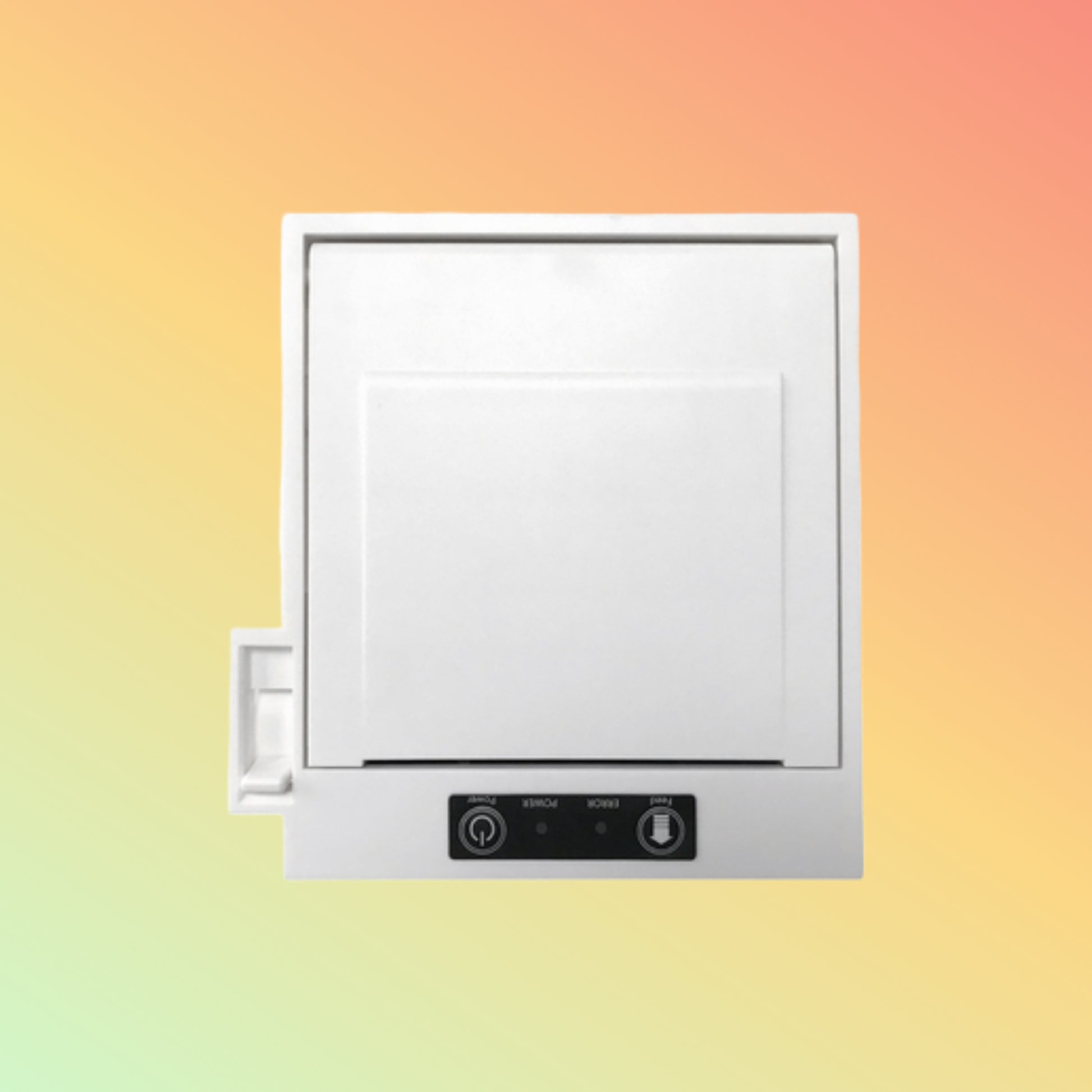

Panel Printer XJ-80IM

Print crisp labels on demand with XJ-80IM Panel Printer. Fast, reliable, fits control panels & kiosks—ideal for factory floors and retail displays.

Overview

Meet the XJ-80IM Panel Printer, your go-to for on-the-spot label printing. Its compact panel-mount design snaps right into control boards or kiosks. With 80 mm/sec speed and 203 dpi clarity, you get sharp text and barcodes in seconds—no PC needed.

Product Description

The XJ-80IM pairs speedy thermal printing with a rugged panel-mount form. Simply feed standard 80 mm thermal labels, hit “Print,” and watch it churn out up to 80 mm/sec of high-resolution text, logos or QR codes. Built-in cutter and auto-peel options save you extra hands. Its IP54-rated front bezel handles dust and splashes—perfect for industrial or retail setups.

Key Features

• Panel-Mount Design snaps into 68 × 170 mm cutouts

• Fast Printing up to 80 mm/sec

• High Resolution 203 dpi thermal head

• Auto Cutter & Peel options for hands-free use

• IP54 Front resists dust & water splashes

• USB & Serial interfaces for easy integration

• Supports 80 mm-wide thermal rolls

• Compact Depth (120 mm) fits tight spaces

Specifications

Supported OS / Industries

• Stand-alone panel operation

• Windows, Linux, macOS via USB/Serial

• Factory automation & PLC panels

• Retail kiosks & self-service terminals

• Lab equipment & medical devices

Benefits & Compatibility

• Instantly prints labels where you need them

• Saves space with shallow 120 mm depth

• Withstands dust and splashes in industrial zones

• Integrates via USB or legacy serial ports

• Works with standard 80 mm thermal label rolls

Purpose of Use

Ideal for control-room labeling, on-site ticketing, shelf-edge tags or diagnostic logs. Print exactly what you need—right on your panel.

How to Use

1. Mount into a 68×170 mm cutout

2. Plug in 24 V DC power

3. Load an 80 mm thermal roll

4. Connect USB/Serial to your controller

5. Send your print job—get crisp labels instantly

Packaging / Weight / Dimension

• Includes: XJ-80IM unit, mounting bracket, power cable, USB cable, starter roll, user manual

• Carton Size: 200 × 150 × 250 mm

• Gross Weight: ~2 kg

Warranty and FAQs

• 1-Year Limited Warranty

• Tech Support: Email/phone within UAE

• RMA Option if front-end issues arise

FAQs

• Q: Can it print graphics?
  A: Yes—up to 203 dpi for logos & barcodes.

• Q: Does it work offline?
  A: Totally—just send data via serial/USB.

Performance, Quality & Reliability

Built for 24/7 uptime, the XJ-80IM uses industrial thermal heads rated for 100 km of print. IP54 bezel ensures reliable operation in dusty or damp areas.
