Compact ATP-EP24 embedded ticket printer module. 80 mm wide, 200 mm/s print speed, auto-cutter & USB/TTL. Perfect for kiosks & self-service terminals.
Overview
Meet the ATP-EP24, the sleek mini flat–embedded ticket printer that slots into tight kiosks and self-service terminals. 🚀 With 80 mm print width and 200 mm/s speed, it whips out receipts, stubs and tickets in a flash—no cap. Its low-profile design and ultra-quiet operation (< 55 dB) keep your setup looking fly and feeling chill.
Product Description

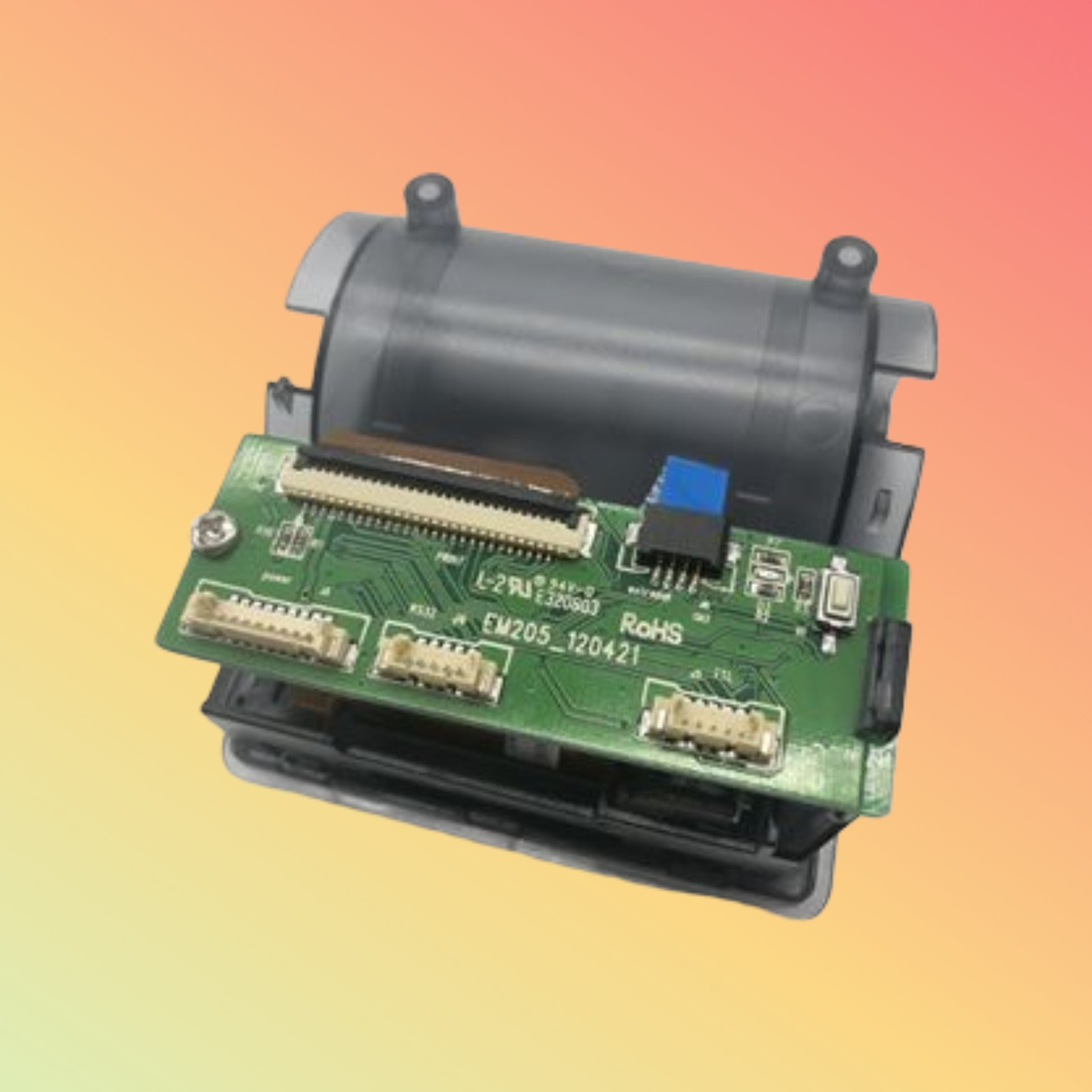

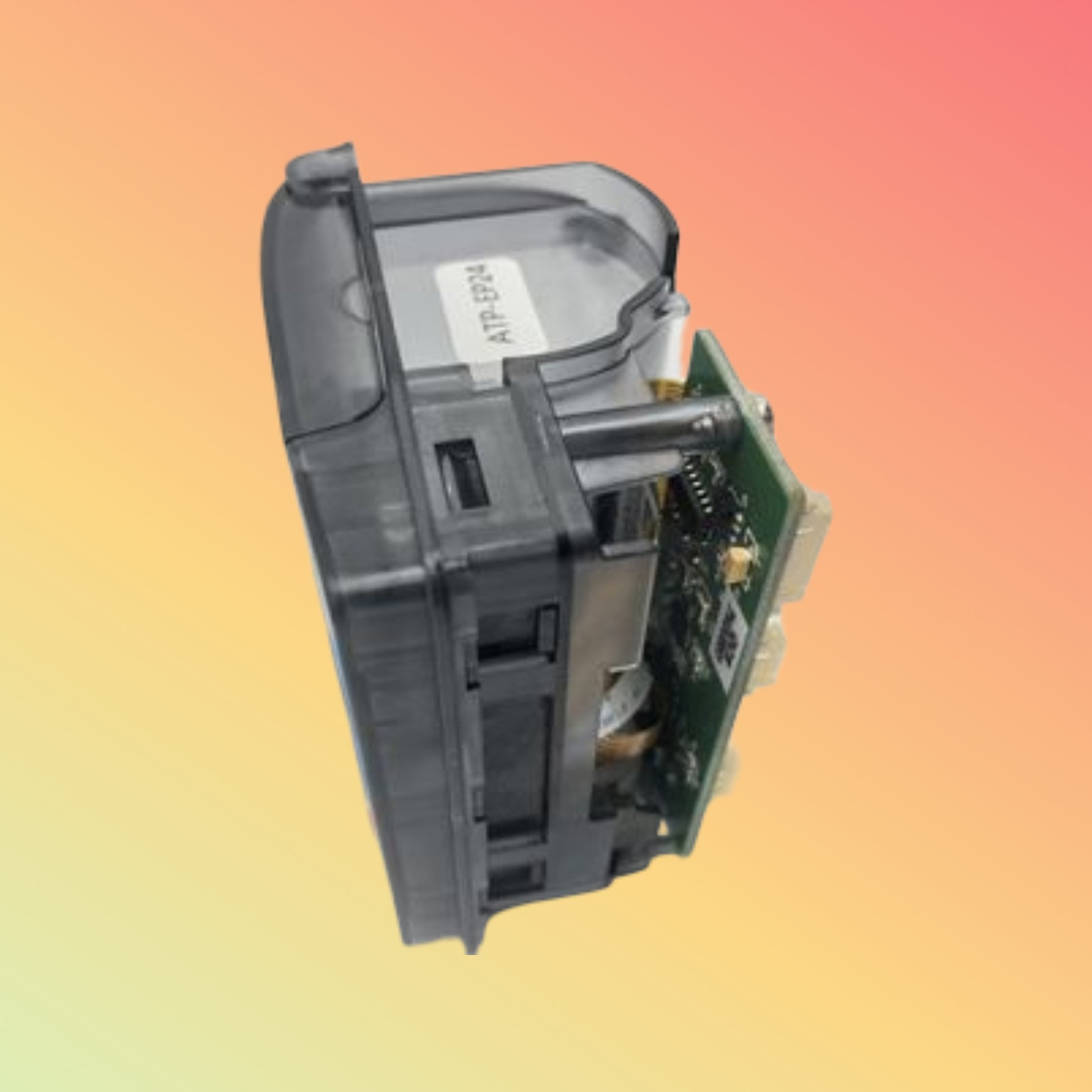

The ATP-EP24 is a direct-thermal module rocking a 203 DPI print head for crisp text, barcodes and logos. Its automatic cutter handles full or partial cuts, so each ticket detaches cleanly. Dual sensors alert you on paper-end and cover-open, while USB 2.0 and TTL interfaces ensure seamless integration with legacy or modern control boards. At compact 100 × 100 × 40 mm, it hides neatly behind any kiosk panel.
Key Features
-
Print Speed: Up to 200 mm/s—no lag, no stress
-
Resolution: 203 DPI for sharp graphics
-
Auto-Cutter: Full and partial cut modes
-
Sensors: Paper-end & cover-open alerts
-
Interfaces: USB 2.0 & TTL for easy hookup
-
Noise Level: < 55 dB for a calm vibe
-
Dimensions: 100 × 100 × 40 mm—super compact
Specifications
| Attribute |
Details |
| Print Width |
80 mm ± 0.5 mm |
| Paper Roll Dia. |
≤ 40 mm |
| Core Diameter |
12 mm |
| Power Input |
DC 24 V ± 5% |
| Operating Temp. |
0–50 °C |
| Humidity |
10–90 % RH (non-condensing) |
| MTBF |
> 100,000 hrs |
Supported Systems & Use Cases
-
OS / Controllers: Windows, Linux, embedded MCU via TTL
-
Apps: Ticketing kiosks, queue-management, access control
-
Industries: Transport, hospitality, events, retail
Benefits & Compatibility
-
Plug-and-Play: Minimal driver fuss
-
Space-Saving: Fits tight module slots
-
Inkless Printing: Zero ribbon costs
-
Eco-Friendly: Less waste, same vibe
Purpose of Use
Ideal for embedding in compact kiosks or terminals that need fast, reliable ticketing without bulk.
How to Install
-
Mount within panel cutout.
-
Connect USB 2.0 or TTL to your controller.
-

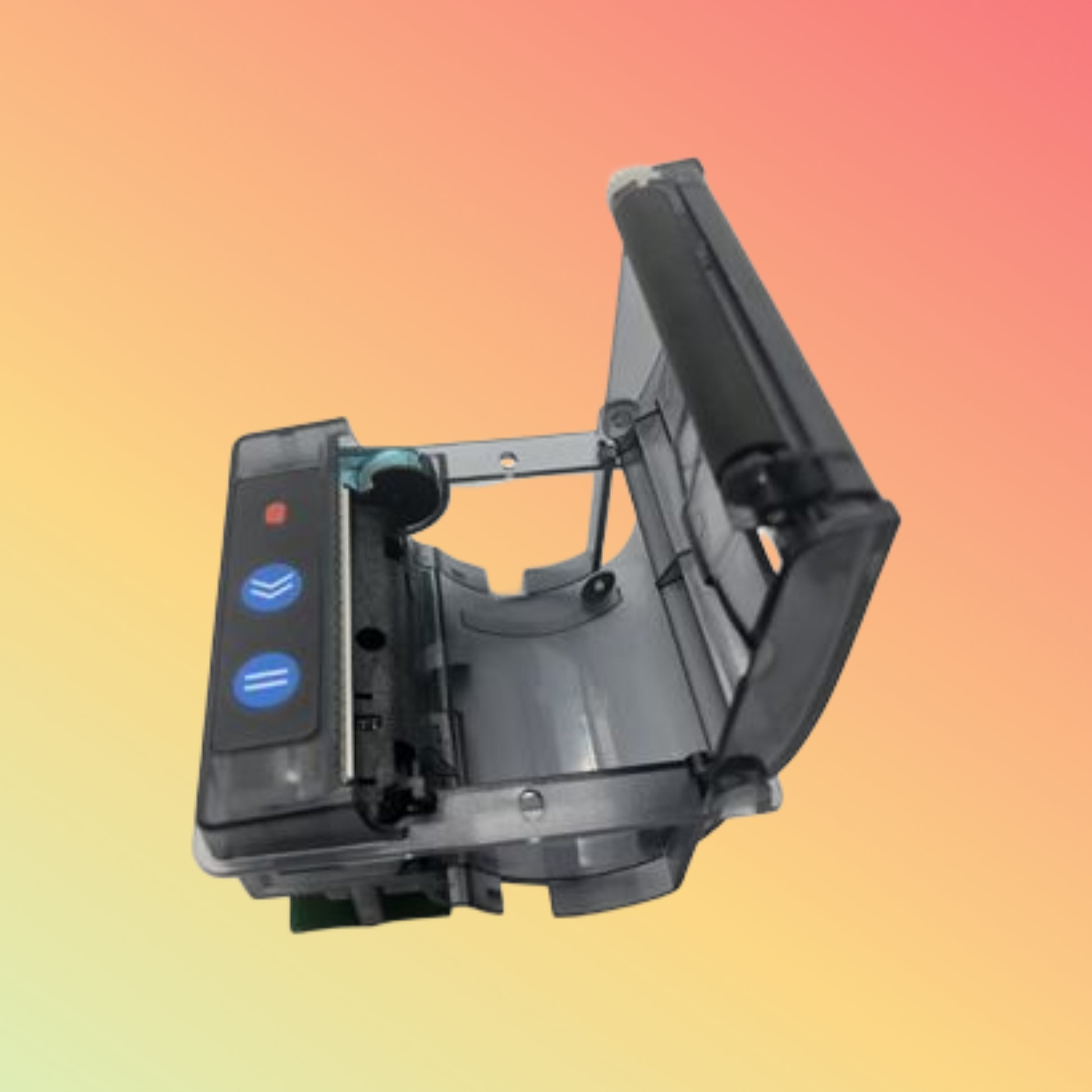

Load 80 mm roll and close cover.
-
Send print command—watch it slice tickets like butter.
Packaging / Weight / Dimensions
-
Unit Size: 100 × 100 × 40 mm
-
Net Weight: 0.5 kg
-
Box Includes: Printer module, USB cable, mounting screws, quick-start guide
Warranty & FAQs
Warranty: 12-month limited coverage
FAQs:
-
Q: Can it handle logos?
A: Yes—203 DPI supports bitmaps.
-
Q: What if paper jams?
A: Anti-jam path + sensor alerts keep you ahead.
-
Q: TTL vs USB?
A: TTL for MCU, USB for PC-based systems.
Performance & Reliability
-
MTBF > 100k hrs for nonstop duty
-
Tested in 0–50 °C & high-humidity cycles
-
Rated 4.7★ by integrators
Best Price Guarantee
Found a better factory price? We’ll match it—shop worry-free with NEOTECH.
Shop Today & UAE Delivery
Order your ATP-EP24 now for express delivery to Dubai, Abu Dhabi, Sharjah and more. Keep your kiosks lit.
Customer Reviews & Testimonials
Loved the compact build or fast speed? Drop a review or tag us @NEOTECHPrints—your feedback slaps.
After-Sales Support
24/7 remote help, firmware updates and RMA service—so you’re never left hanging.
Get in Touch
Need bulk quotes or tech advice? WhatsApp +971-4-123-4567 or email sales@neodgital.com. We’ve got you.
Stock Availability
Units ready for same-day dispatch. For large orders, confirm stock before ordering.
Disclaimer
Specs & images subject to change without notice. Verify details with NEOTECH prior to purchase.
