Overview

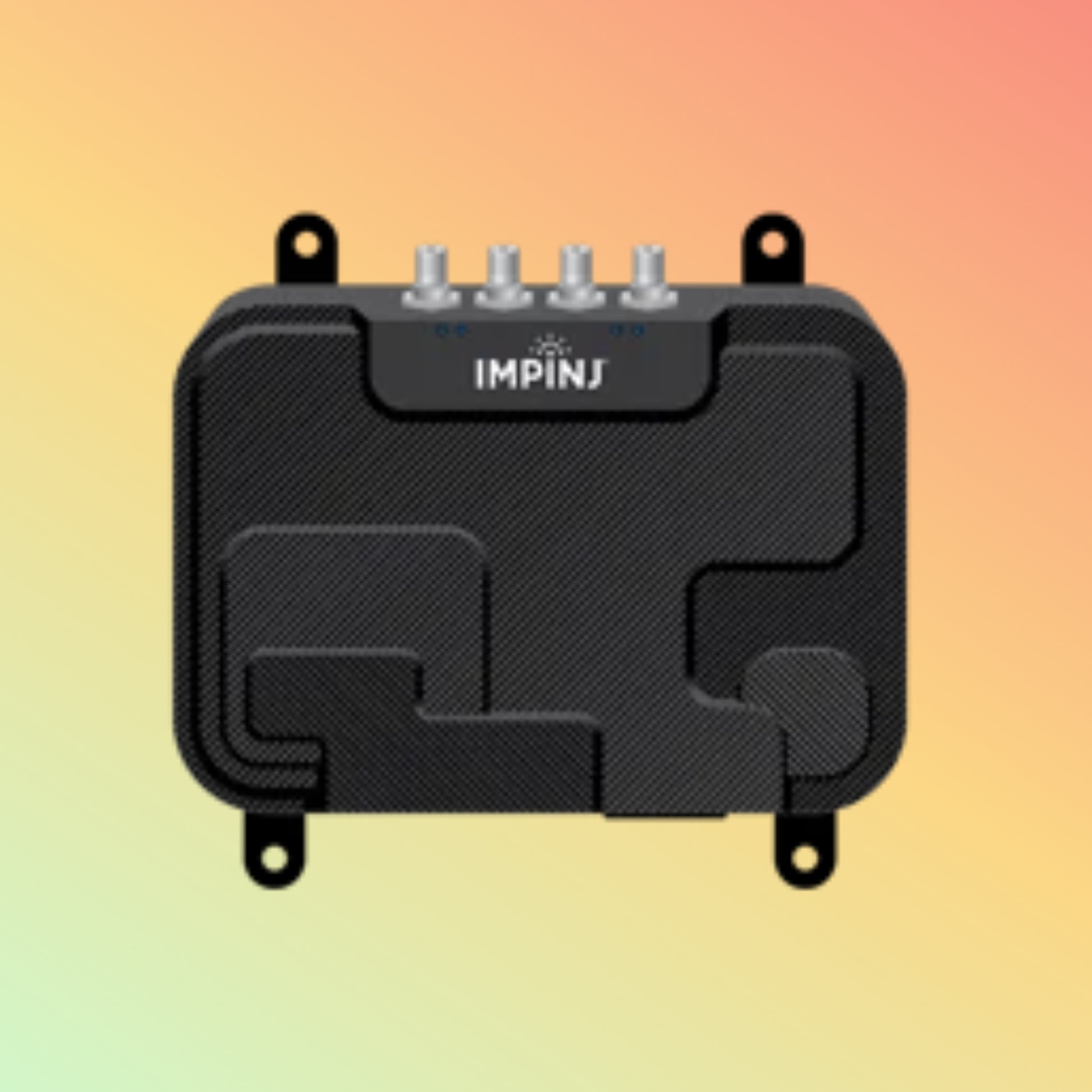

The Impinj R700 (FCC) IPJ‑R700‑341 is a next‑generation, fixed RAIN RFID reader designed for enterprise‑scale deployments. FCC‑certified, it delivers best‑in‑class read rates, multi‑antenna support, and onboard edge compute—ideal for warehouses, portals, and IoT applications.
Product Description
Built on Impinj’s leading RAIN RFID platform, the R700 supports up to four Gen2‑compliant antennas directly or via PoE+ antenna hubs. With up to 30 dBm RF output per port, dual Gigabit PoE+ Ethernet, and an embedded Linux OS capable of running Docker containers, you can process, filter, and forward only essential tag events at the network edge—reducing backend load and latency.
Key Features
-
Up to 4× 30 dBm Antenna Ports for wide coverage
-
Dual Gigabit PoE+ Ethernet for power redundancy & data
-
Embedded Edge Compute: run custom Docker apps on‑device
-
Multiple Protocols: MQTT, HTTP(S), WebSocket, TCP/UDP
-
Enterprise Security: TLS 1.2, SSH, VPN client, secure boot
-
FCC‑Certified (902–928 MHz) for North America
-
Real‑Time Diagnostics: on‑board logging and health metrics
-
Versatile Mounting: wall, rack, or DIN‑rail installation
Specifications
| Feature |
Details |
| Model |
IPJ‑R700‑341 |
| Frequency Range |
902–928 MHz (FCC) |
| RF Output Power |
Up to 30 dBm per port |
| Antenna Ports |
4× RP‑SMA |
| Ethernet |
2× Gigabit PoE+ (802.3at) |
| Edge Compute |
Embedded Linux + Docker |
| Data Interfaces |
MQTT, HTTP(S), WebSocket, TCP/UDP |
| Security |
TLS 1.2, SSH, Secure Boot, VPN |
| Power Input |
PoE+ or 12–48 V DC |
| Storage |
16 GB eMMC + microSD slot |
| Memory |
2 GB DDR4 |
| Operating Temp |
–20 °C to 60 °C |
| Dimensions (W×D×H) |
215 × 120 × 40 mm |
| Weight |
1.2 kg |
Supported Systems / Applications / Industries
Integration & Management
-
Impinj ItemSense, AWS IoT, Azure IoT, third‑party middleware
-
Zero‑touch provisioning via Impinj Cloud or NEOTECH CMS
Applications
-
High‑density warehouse inventory tracking
-
Retail self‑checkout and portal monitoring
-
Asset management and dock‑door control
-
Cold chain monitoring with on‑edge alerts
Industries
-
Warehousing & Distribution
-
Retail & E‑commerce
-
Manufacturing & Pharmaceuticals
-
Transportation & Logistics
-
Smart Building & IoT
Benefits & Compatibility
-
Superior Read Rates: Four high‑power ports capture tags in dense environments
-
Edge Processing: Onboard Docker apps reduce network traffic and latency
-
Secure & Compliant: FCC‑certified with enterprise‑grade security features
-
Flexible Deployment: PoE+ power redundancy and multiple mounting options
-
Cloud‑Managed: Centralized monitoring, firmware updates, and diagnostics
Purpose of Use
Ideal for organizations scaling RFID across multiple zones. Deploy the R700 at conveyors, portals, or workstations to capture millions of tag reads per hour—and process only the events you need at the edge.
How to Use
-
Mount the reader on a wall, rack, or DIN‑rail.
-
Connect antennas (direct or via a PoE+ antenna hub) to RP‑SMA ports.
-
Power via PoE+ or DC and link to your network.
-
Provision in Impinj Cloud or NEOTECH CMS for zero‑touch setup.
-
Deploy edge apps to filter, enrich, or forward relevant tag data.
Packaging / Weight / Dimensions
Warranty & FAQs
Warranty
– 3‑Year Impinj manufacturer warranty via NEOTECH. Extended support plans available.
FAQs
Q: How many antennas can the R700 drive?
A: Up to four direct‑connect antennas at 30 dBm each.
Q: Can I run my own code on the reader?
A: Yes—deploy Docker containers for on‑device edge processing.
Q: Is PoE+ required?
A: The reader supports PoE+, or you can use a 12–48 V DC input for power.
Performance, Quality, Durability & Reliability
Designed for continuous industrial operation, the R700 features fanless cooling, sealed connectors, and robust Linux‑based firmware—ensuring high uptime and consistent read performance.
Best Price Guarantee
NEOTECH matches or beats UAE pricing on Impinj readers. Inquire about bundled antenna‑reader packages and volume discounts.
Shop Today & Receive Your Delivery Across the UAE
Order by 3 PM for same‑day dispatch. Fast, tracked shipping to Dubai, Abu Dhabi, Sharjah, and all Emirates.
Request for Customer Reviews and Testimonials
Deploying the R700 in your facility? Share your success story to guide others in designing efficient, high‑performance RFID solutions.
After Sales Support
NEOTECH provides UAE‑based support for:
-
Edge app development and deployment
-
Firmware updates and troubleshooting
-
Integration with cloud platforms and WMS/ERP systems
Get in Touch
Need expert guidance on fixed RFID deployments? Our IoT specialists will help you architect the optimal R700 solution for your environment.
Stock Availability
In stock now.
Limited quantities—reserve your R700 units today for priority fulfillment.
Disclaimer
Specifications and features are subject to change without notice. Images shown are for reference only. Confirm final configurations with NEOTECH before ordering.
