13.56 MHz NFC MSR Fingerprint I-Button Card Reader MFR120

13.56 MHz NFC, MSR & fingerprint reader with iButton support. USB-C plug-and-play. Compact, secure—ideal for access control. Shop MFR120 UAE now!

✅ Overview

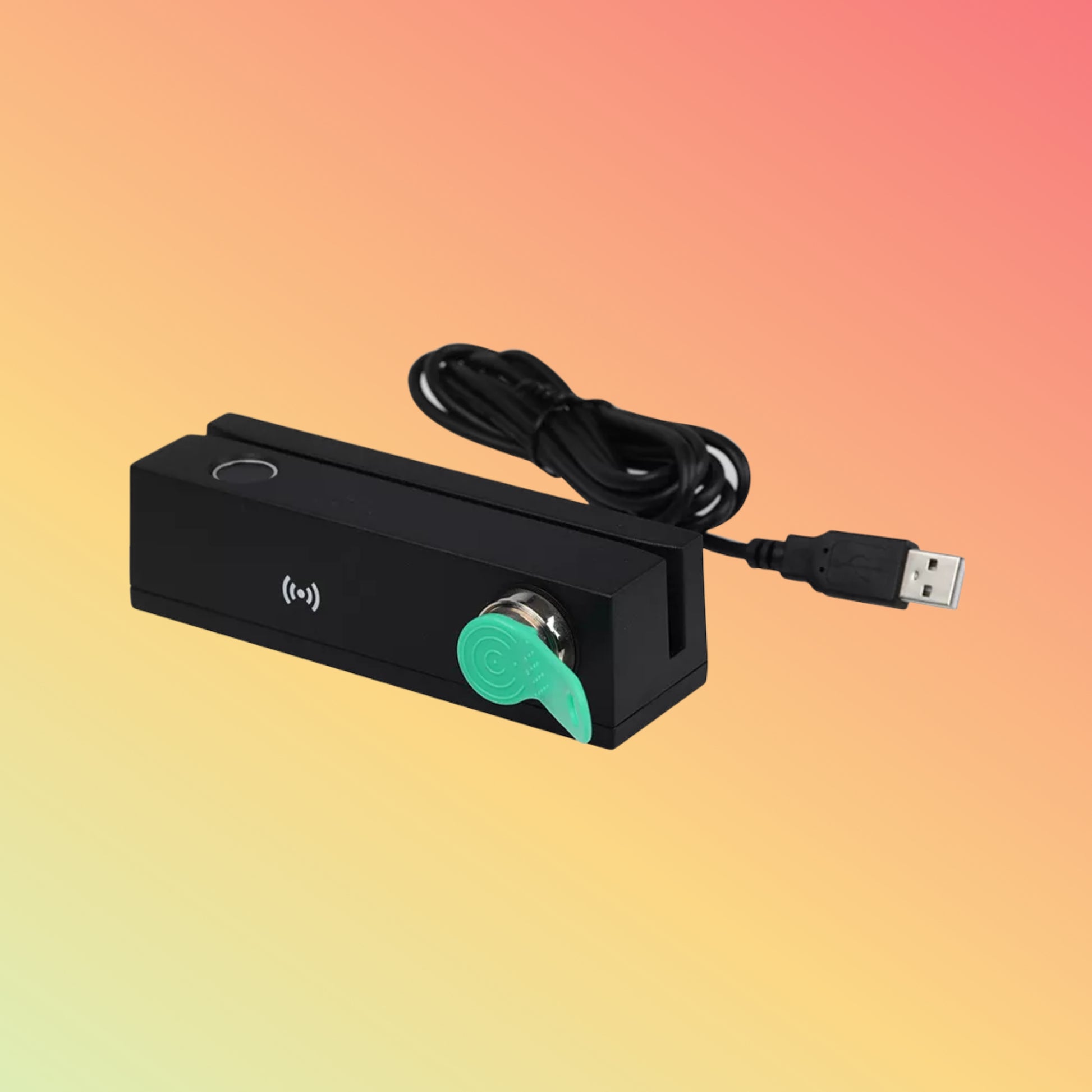

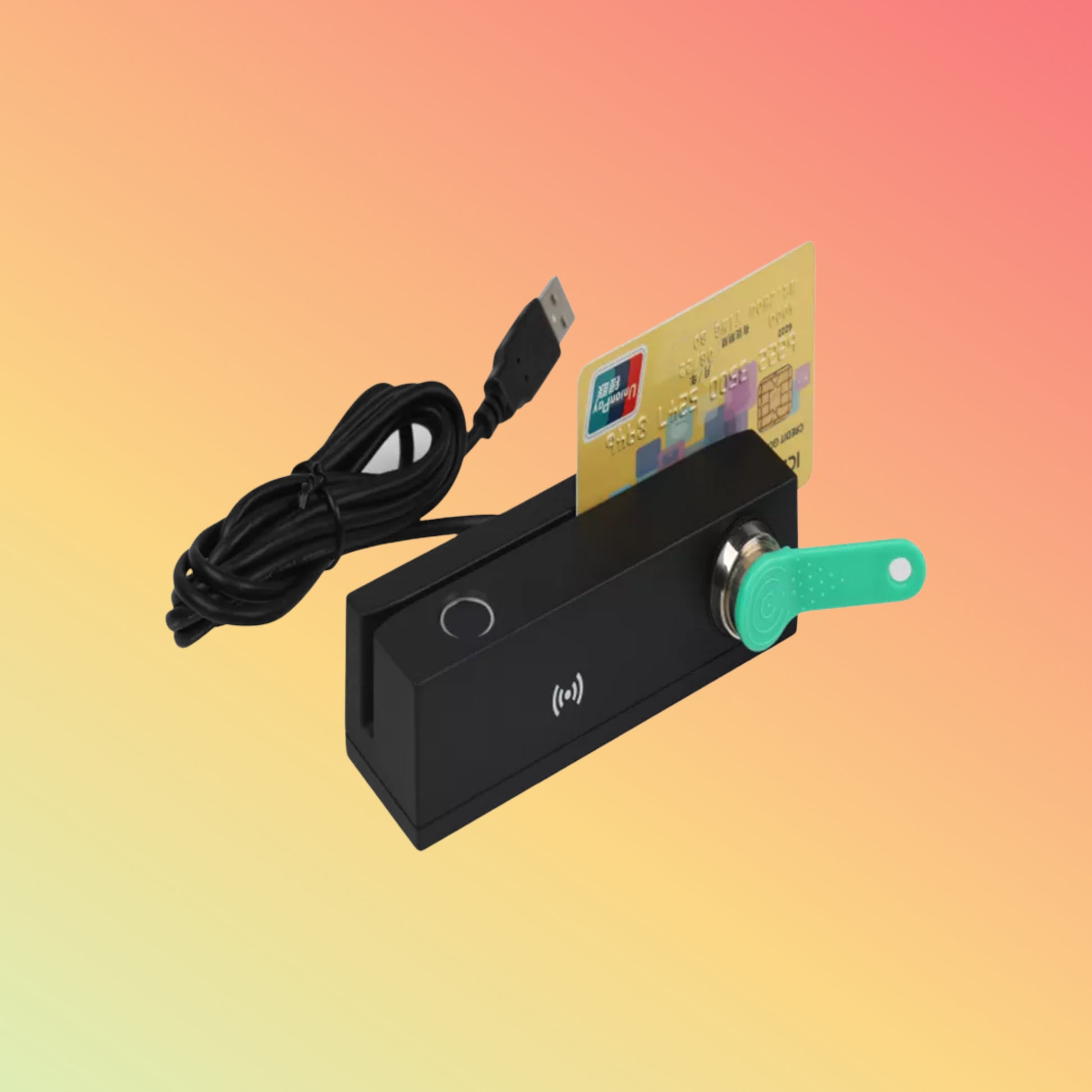

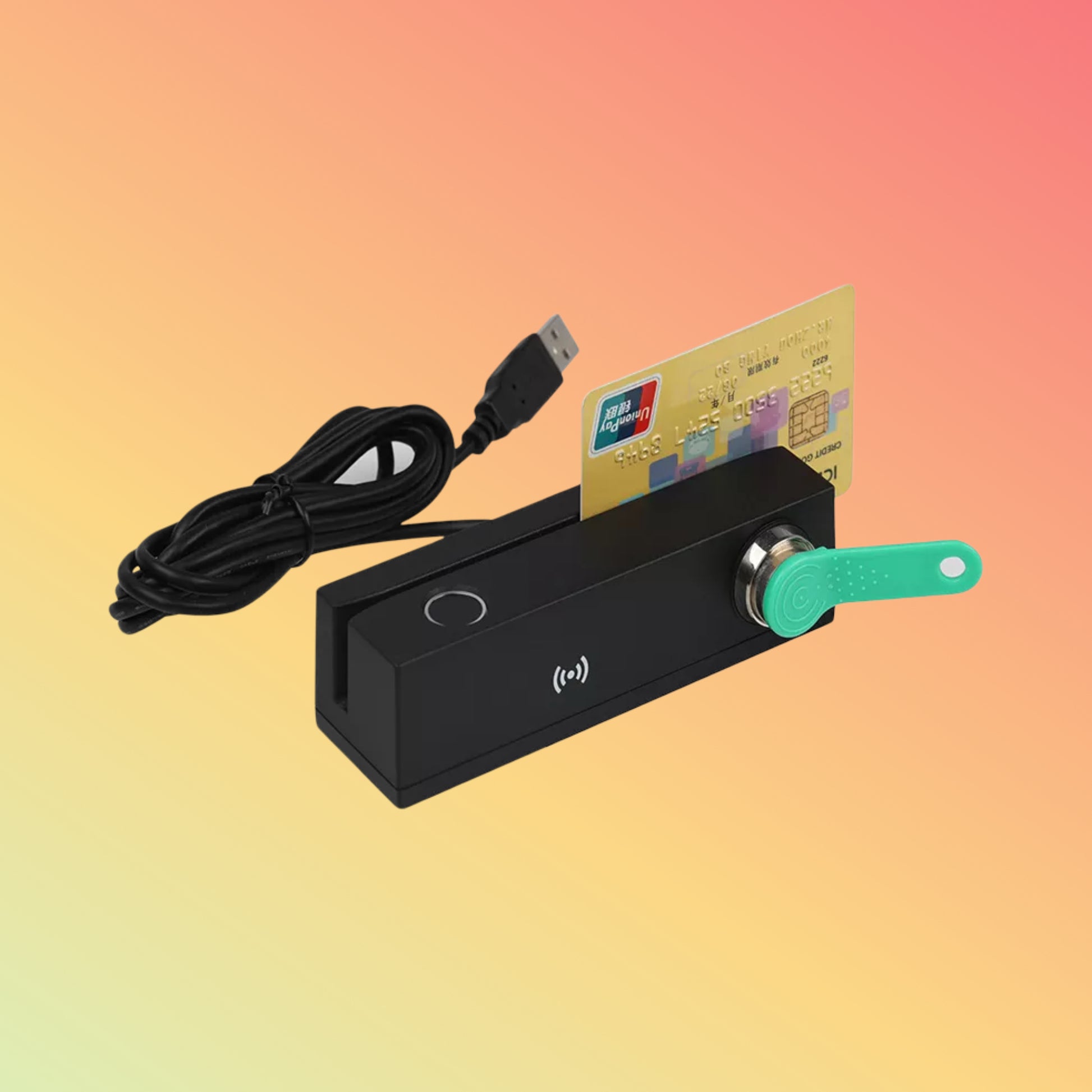

The NEOTECH MFR120 is an all-in-one desktop reader combining 13.56 MHz NFC/MIFARE, 3-track magnetic-stripe, optical fingerprint, and iButton (1-Wire) reading. Its USB-C interface delivers driver-free HID/CCID operation on Windows, macOS, Linux, and Android OTG. Perfect for secure authentication, loyalty programs, and multi-factor access systems.

✅ Product Description

MFR120 integrates four credential technologies into a sleek, desk-friendly housing. Tap NFC cards or MIFARE tags, swipe magnetic cards bi-directionally, scan fingerprints at 500 DPI, or insert iButtons—all in under half a second. USB-C HID/CCID modes mean instant plug-and-play with no special drivers. A single LED shows device status; a buzzer confirms successful reads. AES-encrypted fingerprint templates and secure 1-Wire iButton sessions ensure data privacy. Ideal for corporate access points, self-service kiosks, and multi-factor authentication stations.

✅ Key Features

• Multi-Technology: NFC (MIFARE, ISO14443A/B), 3-track MSR (ISO7801), 500 DPI fingerprint, iButton (DS1990A)

• Ultra-Fast: < 500 ms per credential read

• Interfaces: USB-C HID & CCID, driver-free; Android OTG support

• Security: AES-128 encrypted fingerprint templates; 1-Wire iButton security

• Compact Desktop Design: 110 × 60 × 25 mm, anti-skid feet

• LED & Buzzer: Visual/audio feedback for every read

• Cross-Platform SDK: Windows, Linux, macOS, Android, iOS

✅ Specifications

• NFC Frequency: 13.56 MHz; Standards: ISO14443A/B, MIFARE Classic/Ultralight/DESFire

• MSR: ISO7811 Tracks 1/2/3; bi-directional, 5–60 cm/s swipe speed

• Fingerprint Sensor: Optical, 500 DPI, FAR < 0.01 %, FRR < 0.1 %

• iButton: 1-Wire DS1990A support

• Interface: USB-C (HID/CCID), 5 V DC; OTG on Android

• Read Time: < 100 ms (NFC/MSR), < 500 ms (fingerprint)

• Dimensions: 110 × 60 × 25 mm; Weight: 120 g

• Operating Temp: 0–50 °C; Humidity: 10–90 % non-condensing

✅ Supported Applications / Industries

• Applications: Secure building access, time & attendance, loyalty kiosks, e-payment, multi-factor login

• Industries: Corporate, Hospitality, Healthcare, Retail, Education, Government

✅ Benefits & Compatibility

• Unified Reader: Four credential types in one device reduce hardware footprint

• Instant Integration: HID/CCID for seamless PC/mobile deployment

• Enhanced Security: Encrypted biometric and iButton data for tamper-proof sessions

• Versatile: Works with existing access control or POS software via SDK

• Durable Design: ABS shell with rubberized base for stable desktop use

✅ Purpose of Use

Engineered for environments requiring flexible, secure authentication—combine card, fingerprint, and iButton factors at reception desks, self-service stations, or secure areas.

✅ How to Use

1. Connect via USB-C to host (or OTG adapter for Android).

2. Launch your credential-capture application or browser-based HID form.

3. Present NFC card, swipe magnetic stripe, press finger to sensor, or touch iButton.

4. LED turns green and buzzer beeps on successful read; credential data streams as keystrokes or CCID frames.

✅ Packaging / Weight / Dimension

• Includes: MFR120 reader, USB-C cable, user guide, SDK download link

• Net Weight: 120 g

• Package Size: 140 × 100 × 40 mm

✅ Warranty and FAQs

• Warranty: 1-Year NEOTECH coverage

• FAQs

  • Q: Which fingerprint templates? ANSI & ISO standard templates supported.

  • Q: Driver required for Windows? No—HID/CCID is driver-free.

  • Q: Can it read multiple cards? Only one credential per read cycle; supports fast sequential reads.

✅ Performance, Quality, Durability & Reliability

Tested to 100 000+ fingerprint captures and 500 000 magnetic swipes, the MFR120’s precision components deliver consistent, reliable performance in 24/7 operations.

✅ Best Price Guarantee

Found a lower UAE price? Send proof and we’ll match it—NEOTECH guarantees you the best deal.

✅ Shop Today & Receive Your Delivery Across the UAE!

Order now for express shipping to Dubai, Abu Dhabi, Sharjah, and beyond. MFR120 units are in stock and ready to ship!

✅ Request for Customer Reviews and Testimonials

Using MFR120? Drop a quick review to share how it streamlined your secure authentication setup.

✅ After Sales Support

Our support team is on call via chat, email, or phone—ready to assist with SDK integration, firmware updates, or troubleshooting.

✅ Get in Touch

Bulk orders or custom firmware? Contact us and we’ll assist you promptly.

✅ Stock Availability

High demand—confirm stock availability before placing large or urgent orders to secure your units.

✅ Disclaimer

All specifications and images are for reference and may change without notice. Verify final details with our sales team before purchase
