Silent 10.1″ fanless LED touch panel PC with capacitive screen, VGA & HDMI out. Rugged IP54 front, Windows & Linux ready. Fast UAE shipping.
Overview

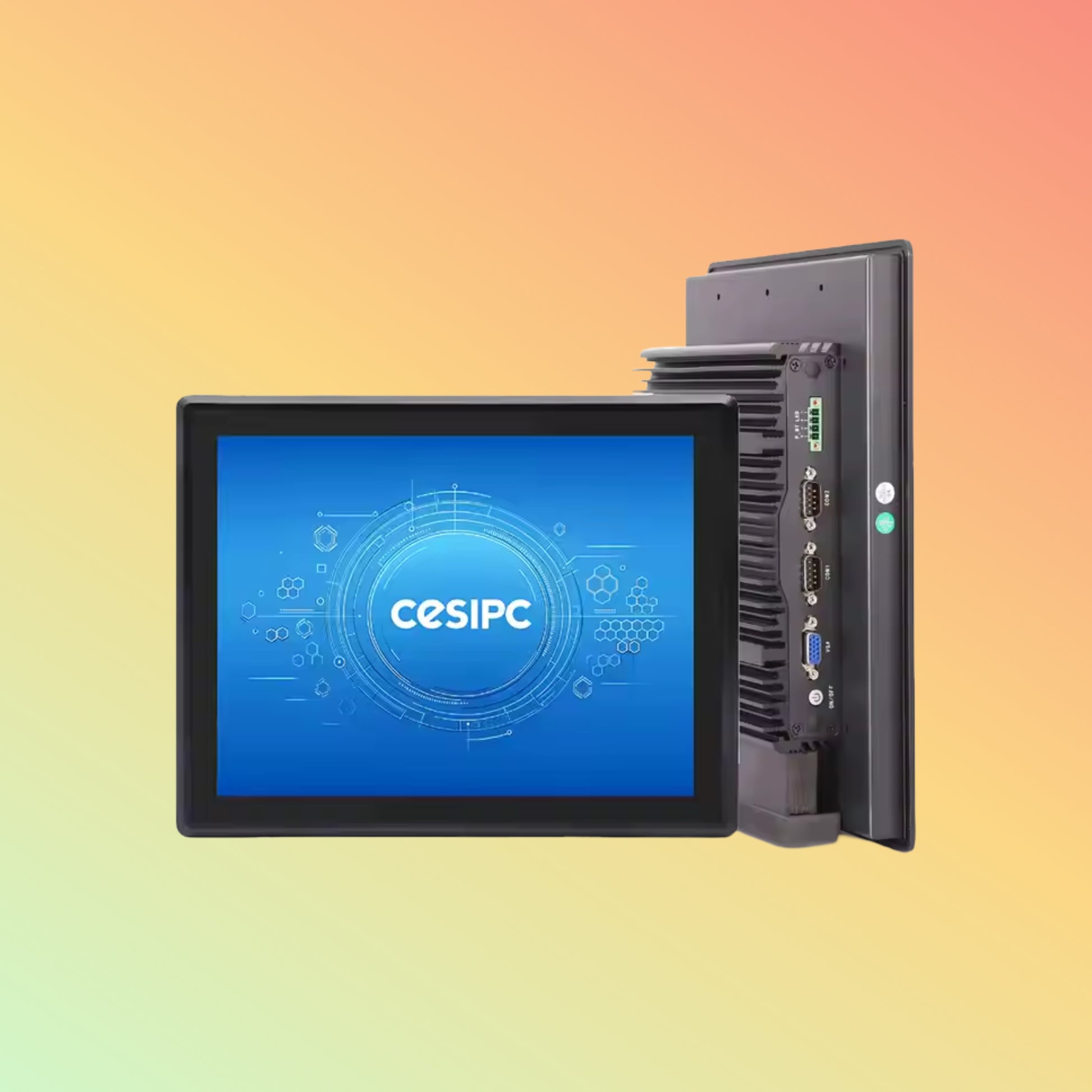

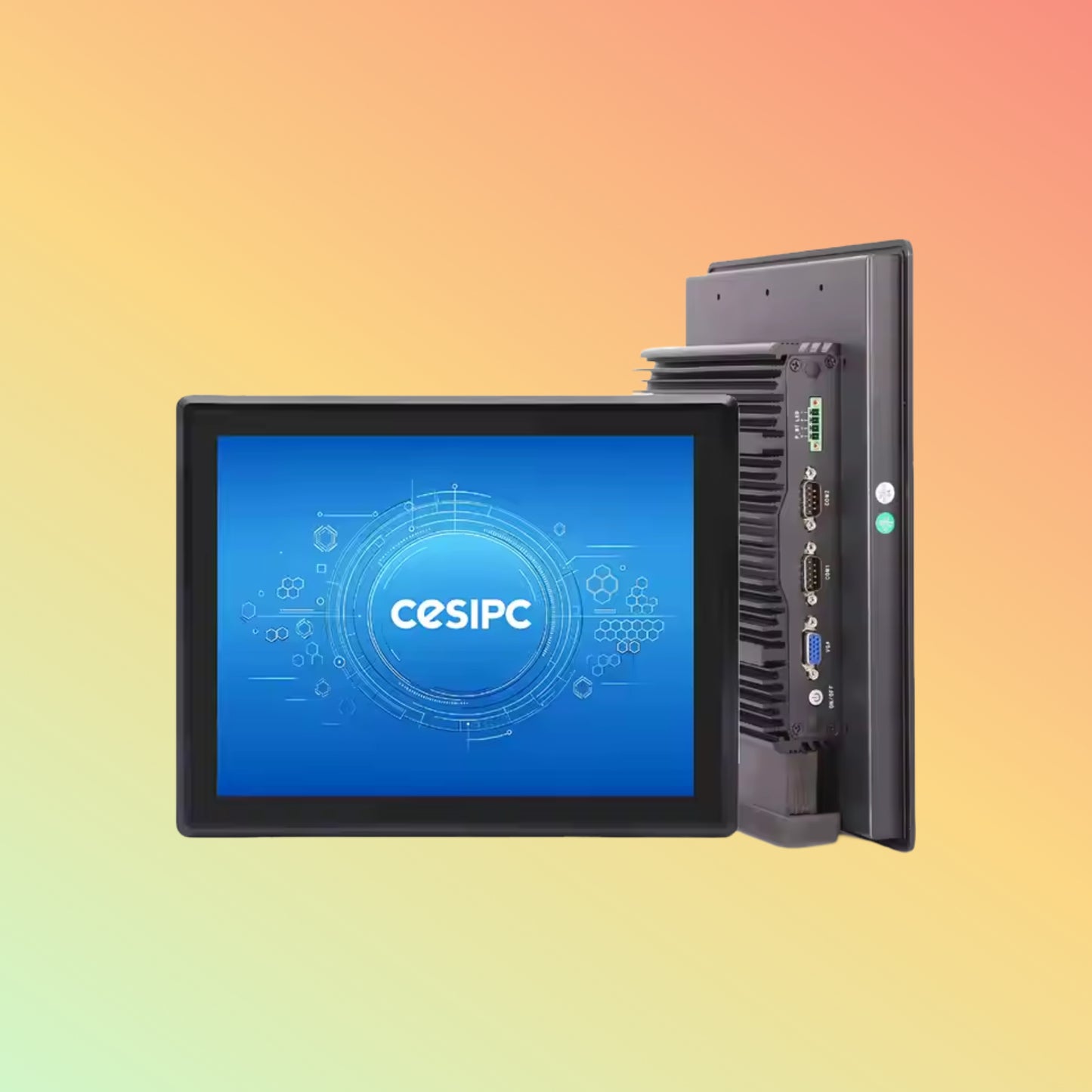

Upgrade your industrial HMI with this 10.1″ fanless LED touch panel PC. Its IP54-rated front keeps dust and splashes out, while passive cooling guarantees zero noise. Dual video outputs (VGA + HDMI) let you drive legacy displays and modern monitors. Preloaded for Windows 10 IoT or Ubuntu Linux, it boots in seconds and delivers rock-solid performance on the factory floor.
Product Description

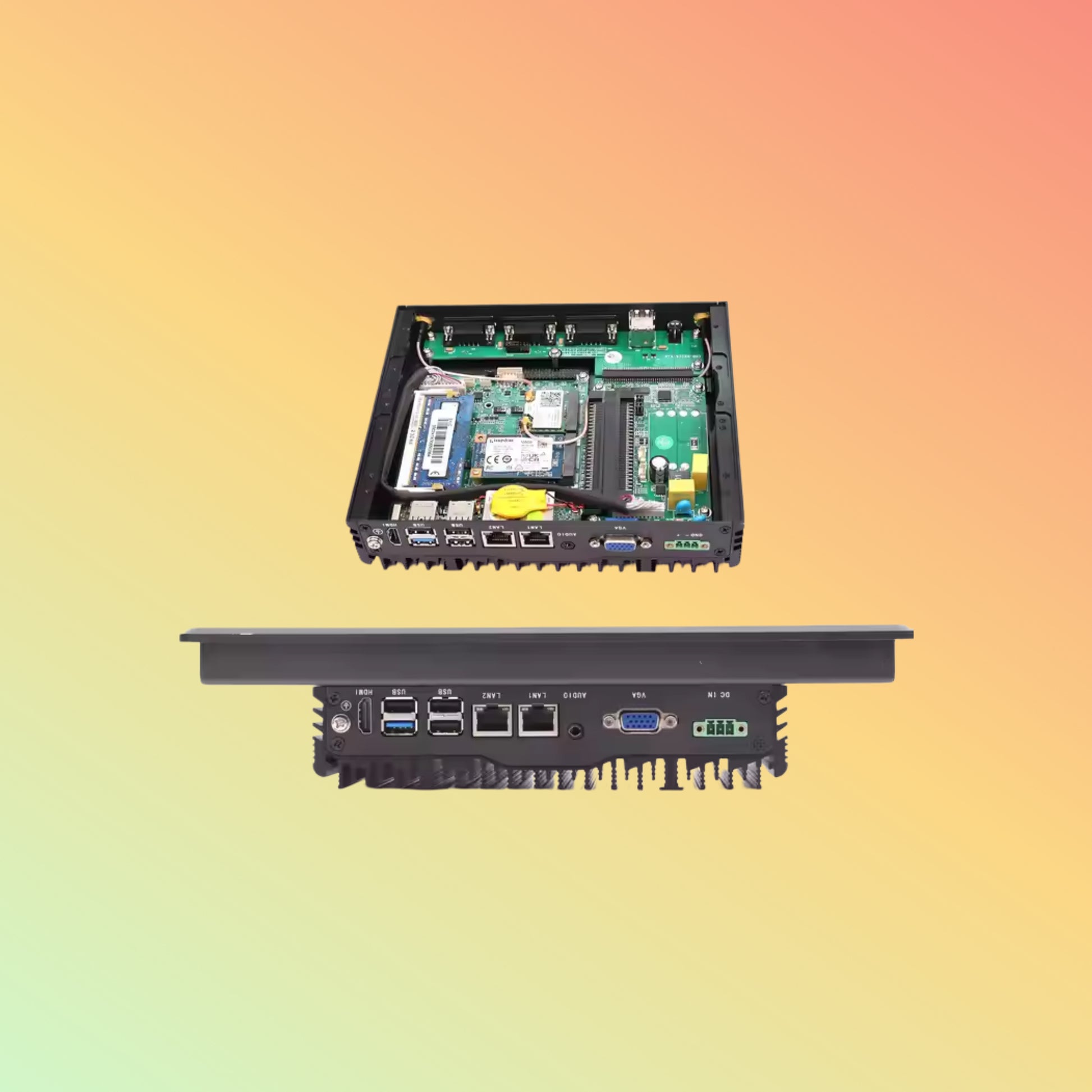

Built in a die-cast aluminum chassis, this panel PC uses heat-pipe technology to dissipate CPU heat without fans or filters. The 10.1″ LED Full HD capacitive touchscreen supports multi-touch input even with gloves on. Under the hood, pick a dual-core Intel® Celeron® or upgrade to Core™ i3 for extra horsepower. Dual video outputs—one VGA and one HDMI—let you connect older control screens and new HD displays simultaneously. Six USB ports, dual Gigabit LAN, and RS-232/485 ensure broad device compatibility. Mount flush via VESA or panel-cutout kits for a clean, secure install.
Key Features
-
Fanless, passive-cooling heat-pipe design
-
10.1″ LED Full HD capacitive multi-touch display
-

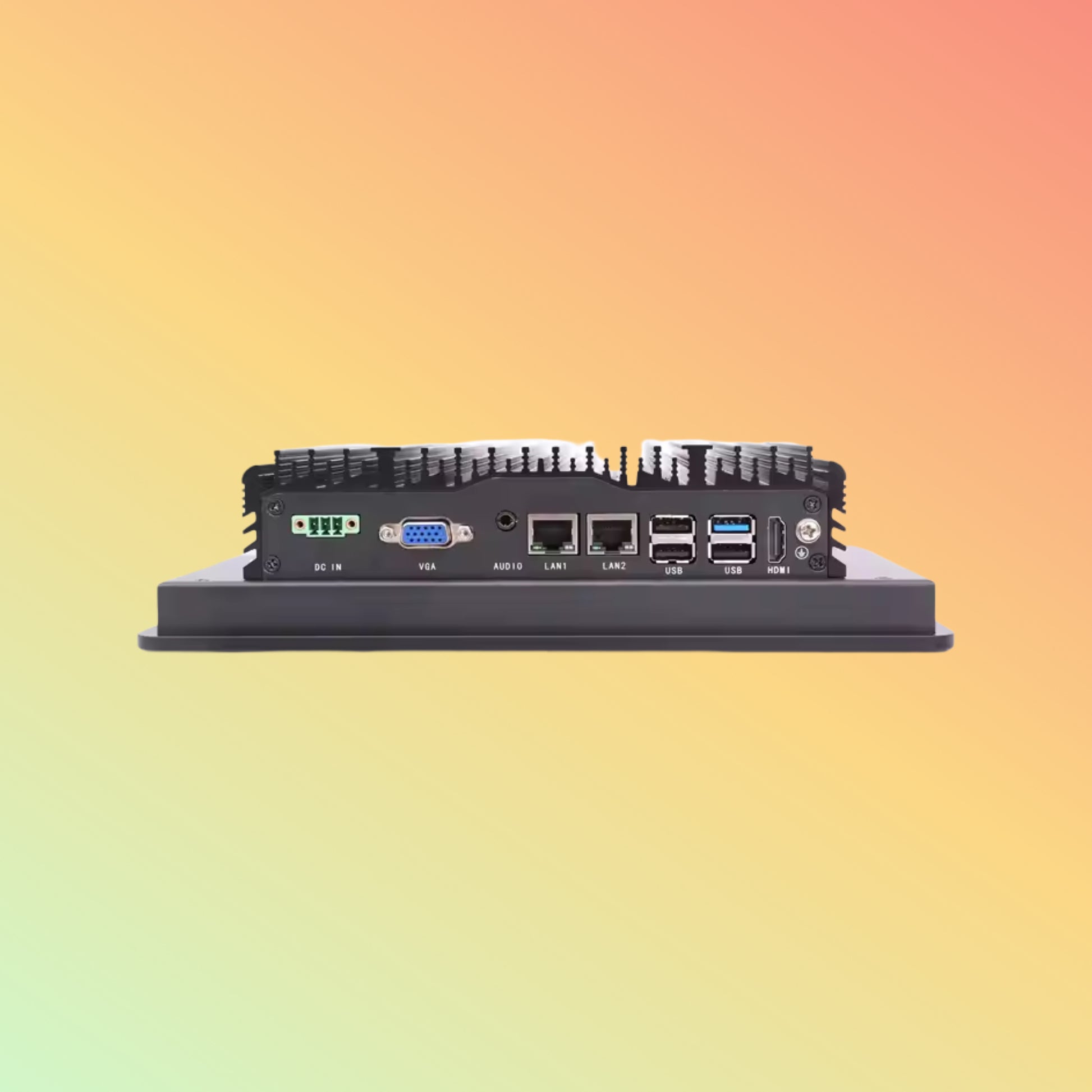

Video: 1× VGA + 1× HDMI outputs
-
CPU options: Intel® Celeron® N3450 or Core™ i3-7100U
-
IP54-rated front bezel for dust & splash resistance
-
4× USB 3.0 + 2× USB 2.0, dual Gigabit LAN, 2× RS-232/485
-
Preloaded Windows 10 IoT or Ubuntu Linux
-
VESA 75×75 mm & panel-mount kits included
Specifications
| Spec |
Details |
| Display |
10.1″ LED, 1920×1200, capacitive 5-point touch |
| CPU |
Intel Celeron N3450 @1.1–2.2 GHz
i3-7100U @2.4 GHz |
| Memory |
4 GB–8 GB DDR3L |
| Storage |
64 GB–256 GB SSD |
| Video Outputs |
1× VGA, 1× HDMI |
| Network |
2× Gigabit Ethernet |
| USB Ports |
4× USB 3.0, 2× USB 2.0 |
| Serial |
2× RS-232/485 |
| OS |
Windows 10 IoT / Ubuntu Linux |
| Mounting |
VESA 75×75 mm / panel cutout |
| Ingress Rating |
IP54 front; IP20 rear |
| Power Input |
9–36 V DC |
| Operating Temp |
–10 °C to +60 °C |
Supported OS / Applications / Industries
-
Operating Systems: Windows 10 IoT, Ubuntu Linux
-
Applications: HMI control, data logging, digital signage
-
Industries: Manufacturing, food & beverage, warehousing, kiosks
Benefits & Compatibility
-
Zero Noise: Fanless design eliminates dust ingress
-
Dual Display Support: VGA for legacy, HDMI for HD
-
Glove-Ready: Capacitive touch works with PPE
-
Sealed Front: IP54 rating survives washdowns
-
Versatile I/O: USB, serial, ethernet for all gear
Purpose of Use
Perfect for control cabinets, washdown zones, and kiosk displays that require silent, reliable panel computing with dual-display flexibility.
How to Use
-
Cut the panel opening per supplied template.
-
Secure with panel-mount clamps or VESA bracket.
-
Wire 9–36 V DC power and network cables.
-
Connect VGA and HDMI monitors as needed.
-
Boot into Windows 10 IoT or Linux—launch your apps.
Packaging / Weight / Dimensions
-
Packaging: Foam-lined, recyclable carton
-
Weight: ~2.7 kg
-
Dimensions: 280 × 190 × 55 mm (incl. bezel)
-
Cutout Size: 263 × 173 mm
Warranty and FAQs
Warranty: 12 months full coverage
FAQs:
-
Q: Can I use both VGA and HDMI at once?
A: Yes, dual outputs run in clone or extended mode.
-
Q: Is the touchscreen glove-compatible?
A: Capacitive mode supports standard work gloves.
-
Q: Does it handle light spray?
A: Front bezel is rated IP54 for splashes.
Performance, Quality, Durability, and Reliability
-
Industrial-Grade: Components rated for 24/7 operation
-
Vibration & Shock: Tested to MIL-STD-810G standards
-
Wide Temp: -10 °C to +60 °C continuous use
-
Sealed Build: Dust and splash resistant for harsh floors
Best Price Guarantee
Spotted a lower UAE price? We’ll match it—shop NEOTECH worry-free.
Shop Today & UAE-Wide Fast Delivery
3-day shipping to Dubai, Abu Dhabi, Sharjah, and all emirates. Each unit fully tested before dispatch.
Request for Customer Reviews and Testimonials
Tried it on your line? Drop a review and help peers choose the right panel PC.
After-Sales Support
NEOTECH offers 24/7 remote diagnostics, firmware updates, and RMA services—your partner beyond purchase.
Get in Touch
Need custom I/O mappings or volume quotes? Reach out to our tech squad for rapid assistance.
Stock Availability
Confirm live stock before ordering—most units ship within 3 business days.
Disclaimer
All specs, images, and pricing are indicative and may change without notice. Verify final details with NEOTECH sales before purchase.
