Reliable KP581 ATM kiosk printer module with fast thermal printing, 80 mm roll support, RS232/USB interfaces. Built for uptime in self-service.
Overview

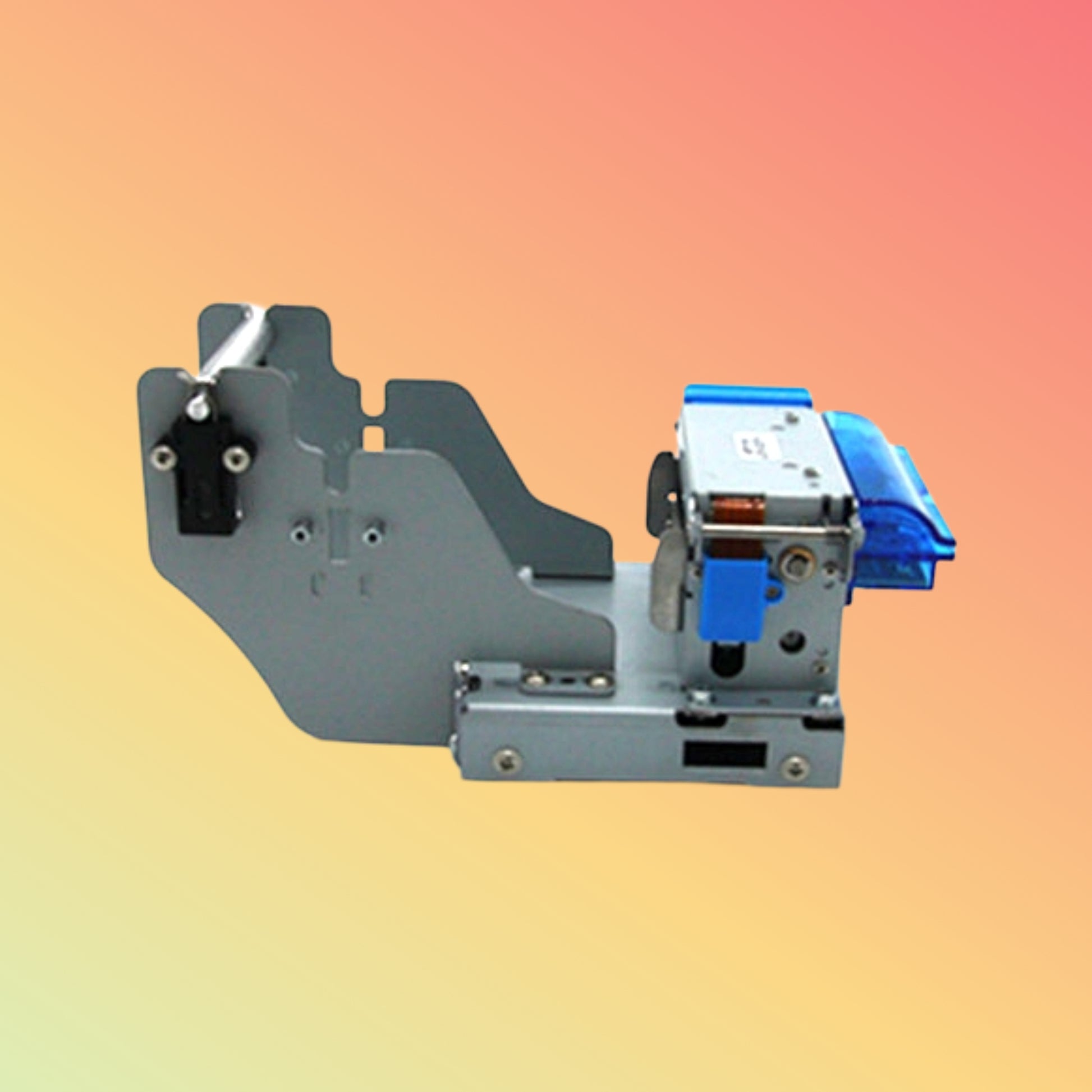

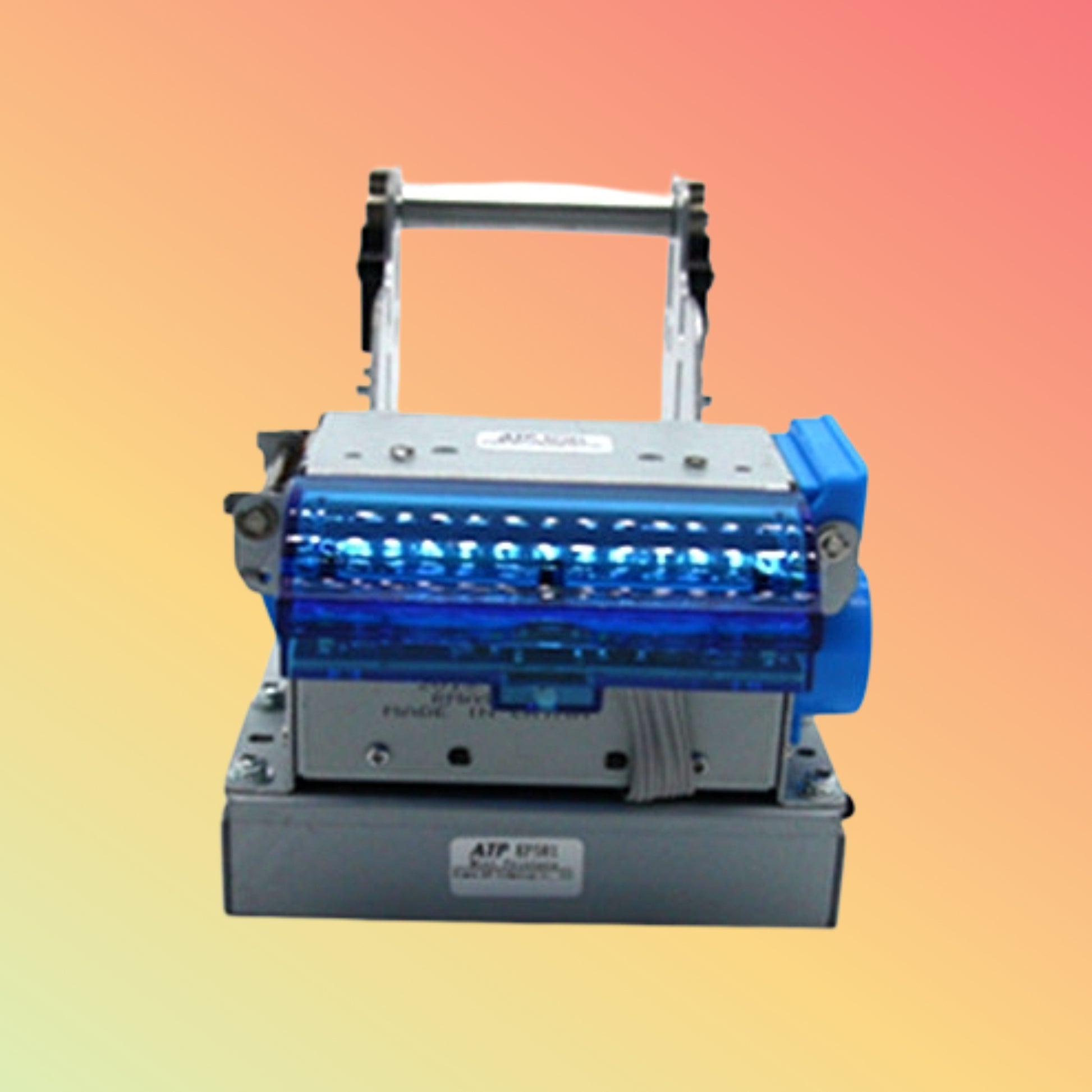

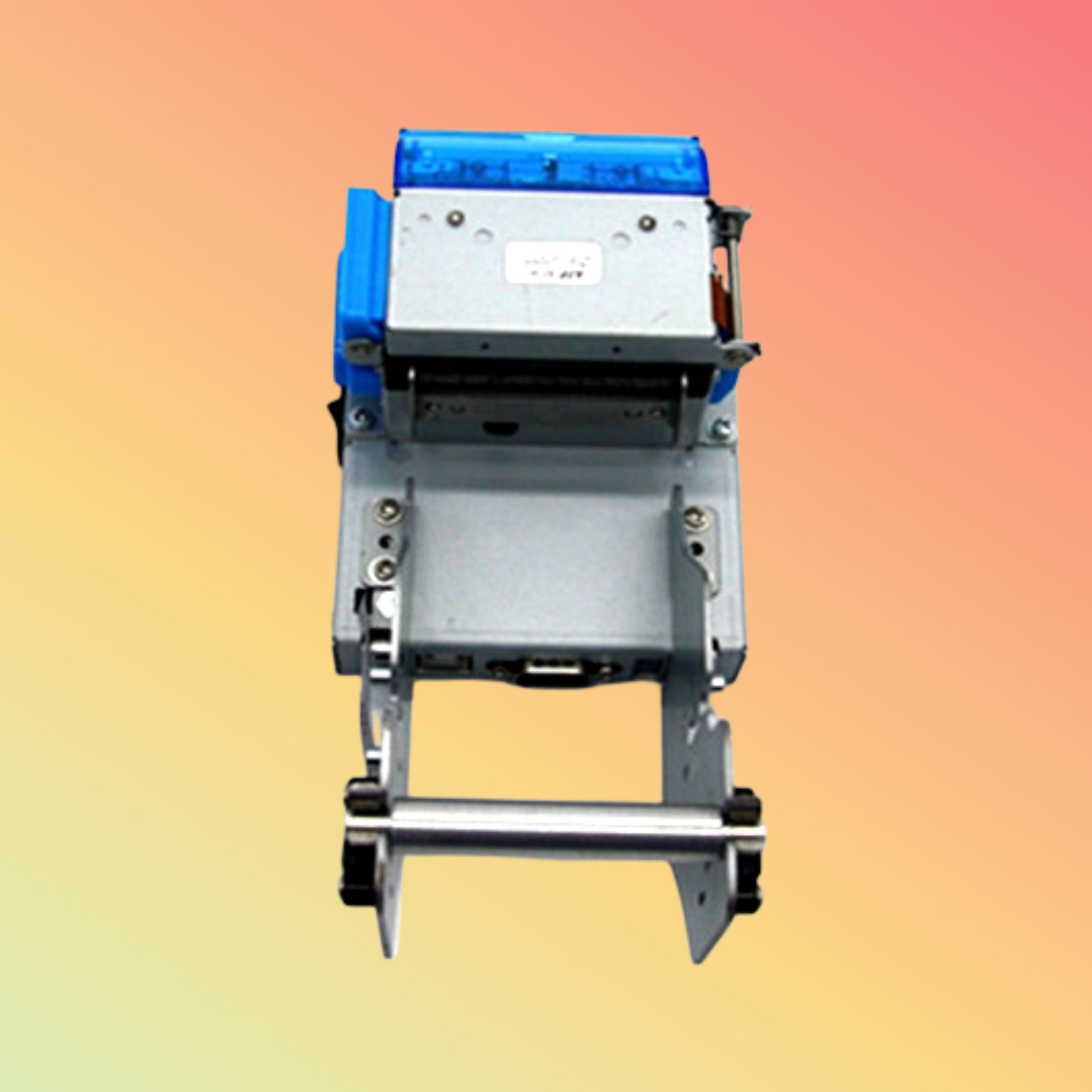

Upgrade your ATM or kiosk with the NEOTECH KP581 Printer Module. This rugged, direct-thermal engine spits out receipts, tickets, and vouchers at 150 mm/s, supporting 80 mm rolls. With RS232 and USB links, it integrates smoothly into any self-service setup. Its compact metal housing and jam-free design deliver 24/7 reliability in banking, ticketing, retail, and more.
Product Description
The KP581 is a heavy-duty thermal printing core engineered for high-volume ATMs and kiosks. It handles paper widths up to 80 mm, prints logos or barcodes with crisp 203 dpi clarity, and features auto-cutter options for clean, quick cuts. Its industrial stepper motor and precision mechanism minimize jams and maintenance. Rated for MTBF ≥ 20,000 hours, it’s built to keep your machines online.
Key Features
-
Direct-thermal printing up to 150 mm/s
-
80 mm paper width support (core Ø 12.7 mm)
-
203 dpi resolution for sharp text & graphics
-
RS232 & USB interfaces for easy integration
-
Optional full- or partial-cut auto-cutter
-
Metal chassis rated for ≥ 20K hours MTBF
-
Jam-free paper path with precision rollers
Specifications
| Parameter |
Details |
| Model |
KP581 |
| Print Speed |
Up to 150 mm/s |
| Resolution |
203 dpi |
| Paper Width |
80 mm |
| Core Diameter |
12.7 mm (0.5″) |
| Interface |
RS232, USB 2.0 |
| Cutter Options |
Full cut / Partial cut |
| MTBF |
≥ 20,000 hours |
| Operating Temp. |
0 °C–50 °C |
| Storage Temp. |
-20 °C–60 °C |
| Dimensions (L×W×H) |
200×125×110 mm |
| Weight |
1.2 kg |
Supported OS / Applications / Industries
-
OS: Windows, Linux, Android (via SDK)
-
Apps: ATM firmware, kiosk software, POS systems
-
Industries: Banking, Ticketing, Retail, Vending, Self-service
Benefits & Compatibility
-
Seamless integration via RS232/USB
-
Low maintenance with jam-free design
-
High uptime thanks to industrial MTBF
-
Clean cuts with auto-cutter options
-
Compact footprint fits tight enclosures
Purpose of Use
Designed for high-demand self-service terminals—ATMs, ticketing kiosks, payment booths, and vending machines.
How to Use
-
Mount KP581 inside your kiosk chassis
-
Connect RS232 or USB cable to host controller
-
Load 80 mm thermal paper roll (Ø 12.7 mm core)
-
Configure driver settings via SDK
-
Power on and run test print
-
Replace cutter blade as per maintenance schedule
Packaging / Weight / Dimension
-
In the box: KP581 module, interface cables, mounting screws, user manual
-
Module size: 200×125×110 mm
-
Module weight: 1.2 kg
-
Package weight: ~1.5 kg
Warranty & FAQs
Performance, Quality, Durability & Reliability
With a 20,000-hour MTBF rating and precision thermal head, the KP581 delivers consistent, high-quality prints in harsh environments. Its metal frame and reinforced gears ensure long-term durability.
Best Price Guarantee
If you find a lower price on the same spec module, NEOTECH will match it. Get the best value without compromise.
Shop Today & Receive Your Delivery Across the UAE!
Order the KP581 now for fast, trackable shipping to Dubai, Abu Dhabi, Sharjah, and beyond. Keep your kiosks running smoothly.
Request for Customer Reviews & Testimonials
Installed your KP581? Drop a quick review and share how it’s boosting uptime and customer satisfaction.
After-Sales Support
Our UAE support team is on standby via phone, email, or live chat. We’ll guide you through integration, troubleshooting, and RMA if needed.
Get in Touch
For bulk quotes, SDK access, or custom integration support, contact NEOTECH’s sales engineers. We’ve got the expertise and parts kits ready.
Stock Availability
Check real-time inventory with our sales team before ordering—custom firmware or cutter options may affect lead times.
Disclaimer
Specifications, prices, and availability are subject to change without notice. Product images are illustrative; actual module may vary. Verify all details with NEOTECH before purchase.
