2U rack: 2× AMD EPYC CPUs, 24×3.5″ bays, 8 NVMe, 16 DDR4 slots (4 TB), PCIe Gen4, redundant PSUs, iDRAC9 remote mgmt.
Overview

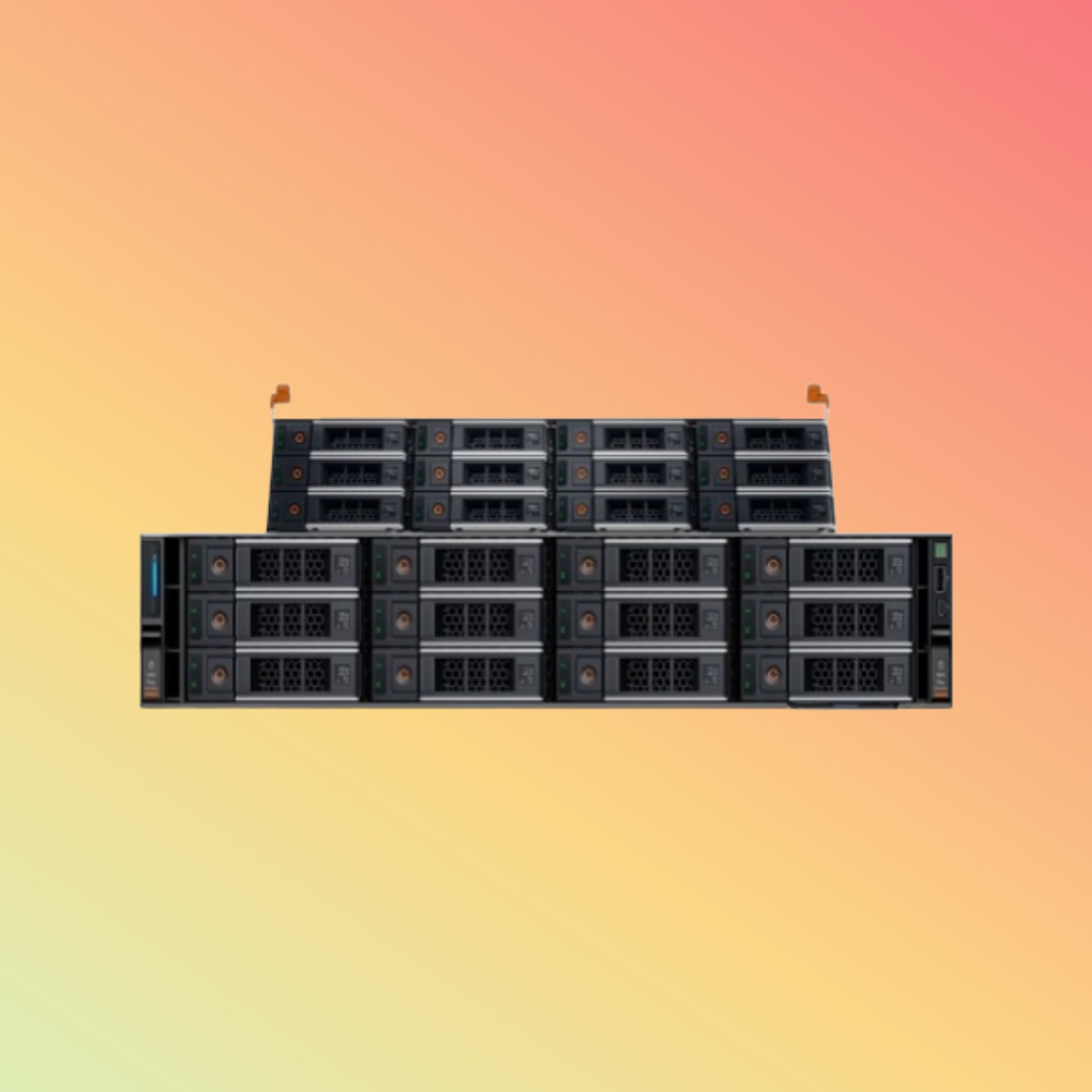

The PowerEdge R760xd2 crams massive storage and EPYC compute into 2U. It hosts two AMD EPYC 7003/7002 CPUs, up to 4 TB DDR4, 24 hot-swap 3.5″ bays plus 8 front U.2 NVMe slots. Perfect for software-defined storage, virtualization, and big-data workloads.
Product Description
• Dual EPYC Power: Up to 64 cores per socket for peak parallelism
• 4 TB Memory: 16× DDR4-3200 DIMMs for in-memory caching
• Ultra-Dense Storage: 24× hot-swap 3.5″ SATA/SAS bays for bulk capacity
• NVMe Tiering: 8× front U.2 NVMe for cache/OS acceleration
• Expansion: 6× PCIe Gen4 ×16 slots for NICs, HBAs, GPUs
• Enterprise-Grade: Dual 2000 W Titanium PSUs (N+1 redundant) + hot-swap fans
• Remote Management: iDRAC9 with Lifecycle Controller & OpenManage
Slide in drives, power up, and crush data-intensive apps.
Key Features
-
Massive Capacity: 24× HDD + 8× NVMe in 2U
-
Dual EPYC Compute: Extreme core counts for virtualization
-
Tiered Storage: Balance cost and performance
-
Next-Gen I/O: PCIe Gen4 for accelerators & networking
-
Always-On: Redundant PSUs & fans, ECC memory
-
Central Ops: iDRAC9 & OpenManage streamline updates
Specifications
| Spec |
Detail |
| Form Factor |
2U rack |
| Processors |
2× AMD EPYC 7003/7002 (64-core max each) |
| Memory |
16× DDR4-3200 DIMMs (4 TB max) |
| 3.5″ Drive Bays |
24× hot-swap SATA/SAS |
| NVMe Bays |
8× front U.2 NVMe |
| PCIe Expansion |
6× PCIe Gen4 ×16 |
| Network |
2× 1 GbE LOM; optional OCP for 10/25/100 GbE NICs |
| Power Supplies |
2× 2000 W Titanium (N+1 redundant) |
| Cooling |
Hot-swap high-capacity fans |
| Management |
iDRAC9 with Lifecycle Controller & OpenManage |
| Security |
TPM 2.0, Secure Boot, chassis intrusion alert |
| Dimensions (H×W×D) |
88.5 × 447 × 765 mm |
| Weight |
~32 kg (empty) |
Supported OS / Apps / Industries
-
OS: RHEL, Ubuntu, VMware ESXi, SUSE, Windows Server
-
Apps: SDS, virtualization, databases, big-data analytics
-
Industries: Telecom, finance, cloud providers, enterprise IT
Benefits & Compatibility
-
Extreme Density: 24 HDD + 8 NVMe in compact 2U
-
High-Core Scale: Dual EPYC for massive VM density
-
Data Tiering: HDD capacity + NVMe speed in one box
-
Future-Proof I/O: PCIe Gen4 for GPUs & NVMe fabrics
-
24/7 Uptime: Redundant PSUs/fans and ECC memory
-
Easy Management: iDRAC9 & OpenManage for health & firmware
Purpose of Use
Ideal for software-defined storage clusters, virtual server farms, and data-heavy analytics.
How to Use
-
Rack-mount the 2U chassis.
-
Install EPYC CPUs, populate DIMMs, slide in drives.
-
Connect PSUs, network, and iDRAC cables.
-
Configure BIOS, RAID, and firmware via iDRAC UI.
-
Deploy storage software or hypervisor and allocate volumes.
Packaging & Dimensions
-
Includes: Chassis, rail kit, PSUs, quick-start guide
-
Size: 88.5 × 447 × 765 mm (H×W×D)
-
Weight: ~32 kg (empty)
