HENEX H22 2D Scan Engine Module

Compact HENEX H22 2D scan engine for OEM integration. Fast decode, UART/USB, low-power design. Ideal for kiosks, handhelds, and embedded systems.

Overview

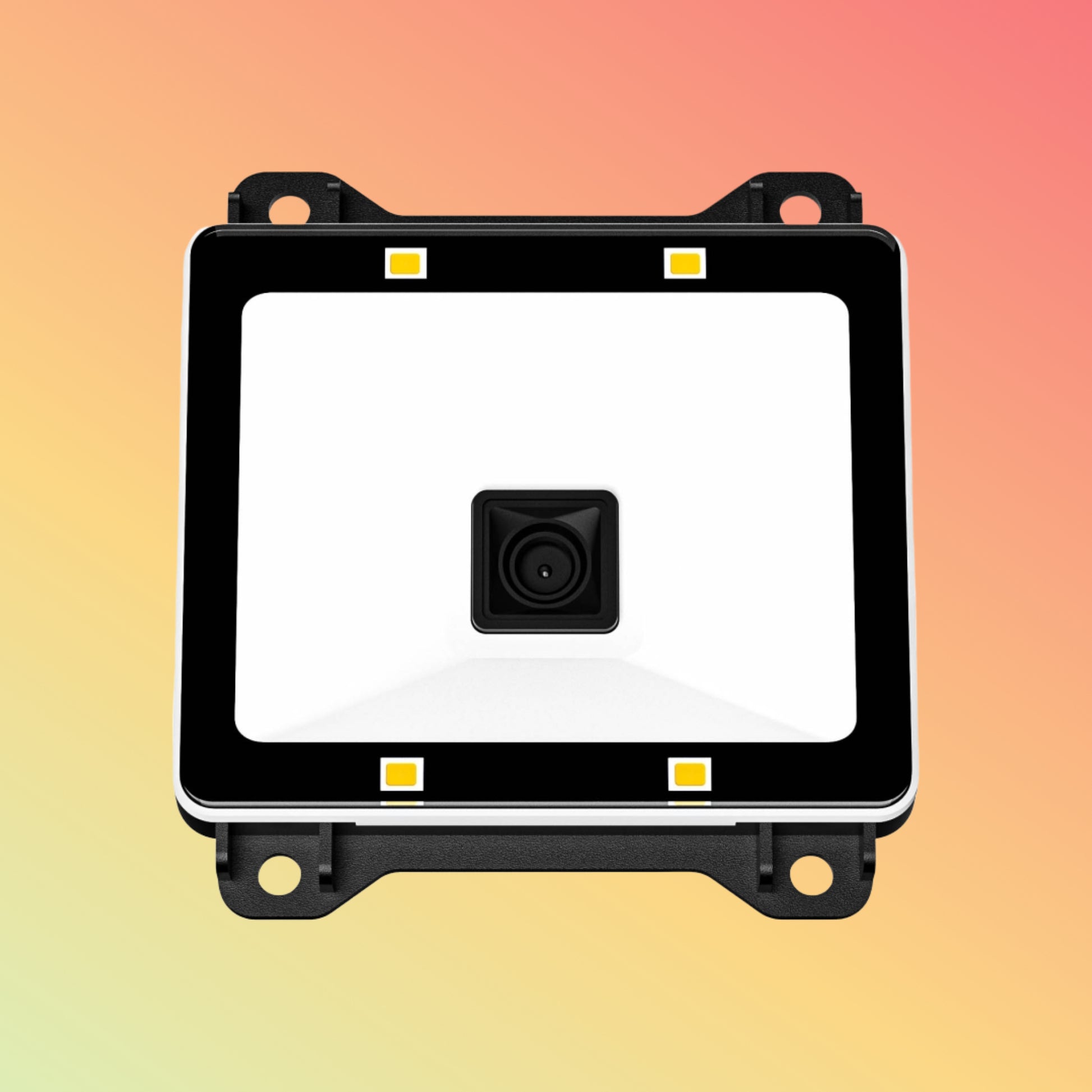

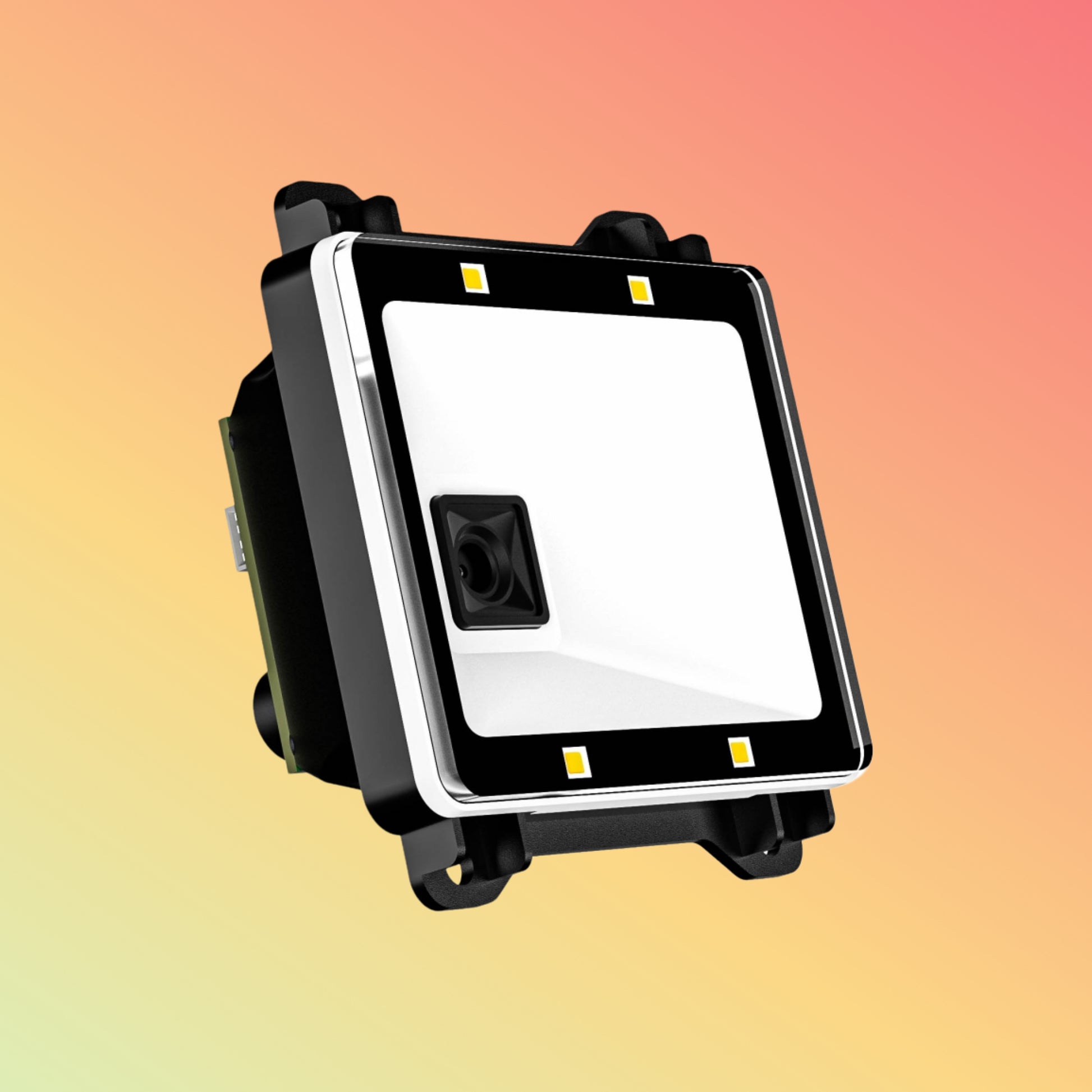

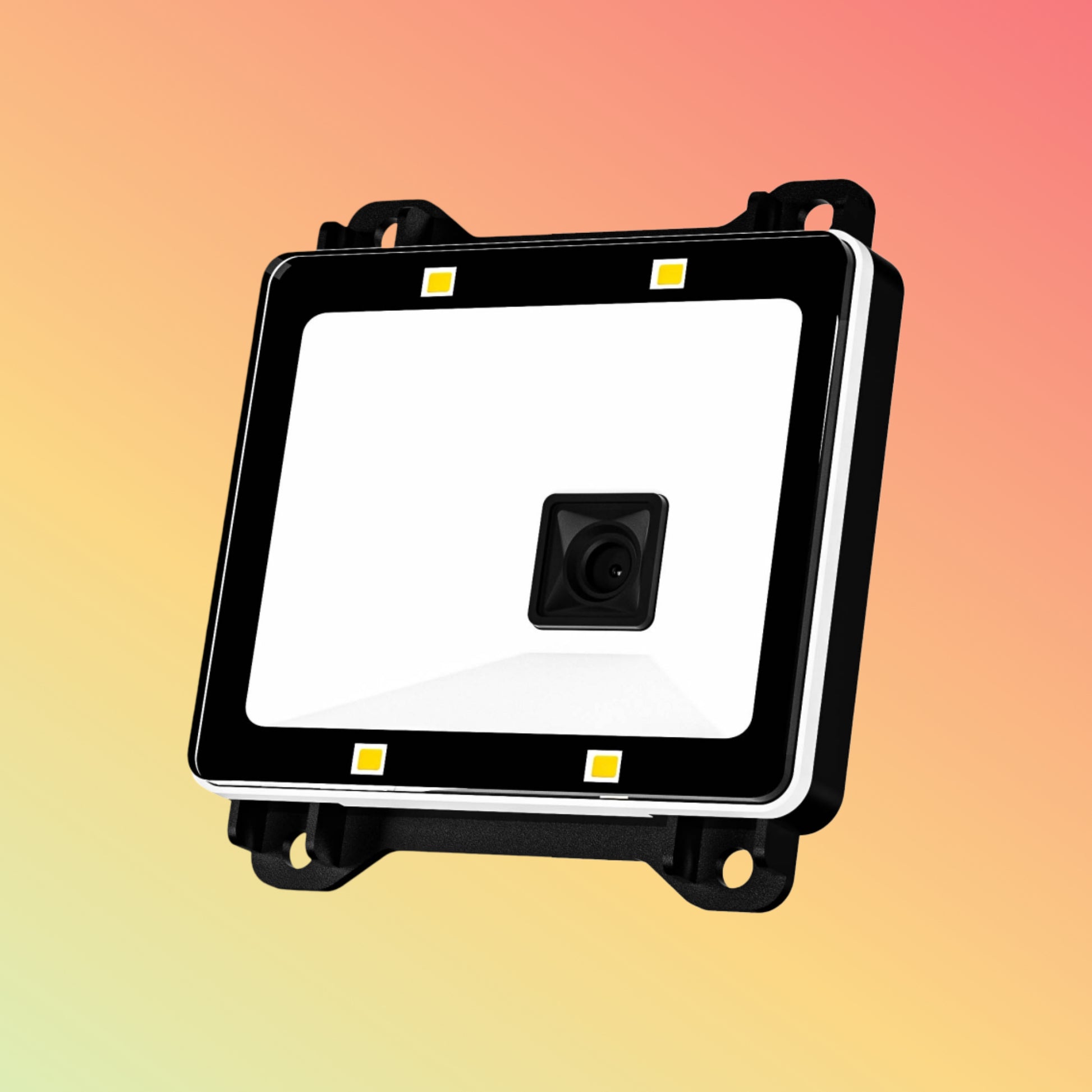

The HENEX H22 is a miniature 2D scan engine built for seamless integration in space-constrained devices. It decodes QR, DataMatrix, PDF417, UPC and EAN codes at over 120 scans/sec, making it perfect for self-service kiosks, handheld terminals, and IoT applications.

Product Description

This engine packs a high-resolution CMOS sensor and optimized decode firmware into a 28 × 18 × 4 mm module. It supports UART (TTL-RS232) and USB-CDC interfaces, plus a GPIO trigger input. Under 200 mA active current and microamp sleep modes extend battery life in portable products. Error-correction handles low-contrast or partially damaged barcodes.

Key Features

• Ultra-compact footprint (28×18×4 mm) for OEM designs

• High-speed decode: ≥120 scans/sec

• Flexible interfaces: UART TTL-RS232, USB-CDC

• Low-power modes: 200 mA active, <10 µA sleep

• Wide symbology support: QR, PDF417, DataMatrix, UPC, EAN

• Built-in illumination: enables low-light scans

Specifications

Supported OS / Applications / Industries

• Hosts: Embedded Linux, Windows Embedded, Android, RTOS

• Use Cases: Self-service kiosks, POS terminals, handheld PDAs, smart lockers

• Industries: Retail, logistics, industrial automation, vending, healthcare

Benefits & Compatibility

• Space-saving design fits tight PCB layouts

• Dual interface options simplify integration

• Low-power sleep extends battery-powered device life

• Robust decoding supports damaged or faded codes

Purpose of Use

Ideal for OEMs embedding scan capability into:

• Self-checkout and ticketing kiosks

• Rugged handheld terminals

• Automated vending and parcel lockers

• Industrial control panels

How to Use

1. Mount module footprint on your PCB.

2. Wire VCC (3.3–5.5 V), GND, TX/RX (UART) or USB data lines.

3. Pull GPIO high or send serial command to trigger a scan.

4. Read decoded output via serial or USB-CDC.

5. Enter sleep mode via GPIO or command to save power.

Packaging / Weight / Dimension

• Includes: H22 module, spacer adhesive, datasheet PDF

• Module Size: 28 × 18 × 4 mm

• Weight: < 4 g

Warranty and FAQs

• Warranty: 1 year limited hardware support

• FAQs:

  • Q: Does it require USB drivers?
    A: No—native USB-CDC class is supported on Windows and Linux.

  • Q: Can it scan under low light?
    A: Built-in LED illumination enables dark-environment scanning.

  • Q: How to adjust focus range?
    A: Use optional lens shims; see the integration guide.

Performance, Quality, Durability, and Reliability

Tested for over 10 million trigger cycles. Industrial-grade electronics and an IR-filtered lens ensure stable decode performance in dusty and vibration-prone settings. Conforms to RoHS and CE standards.
