Engage customers with Elo 04/54 Series touch signage: ultra-slim bezel, PCAP multi-touch, 4K & Full HD options. Order now for UAE-wide delivery!
Overview

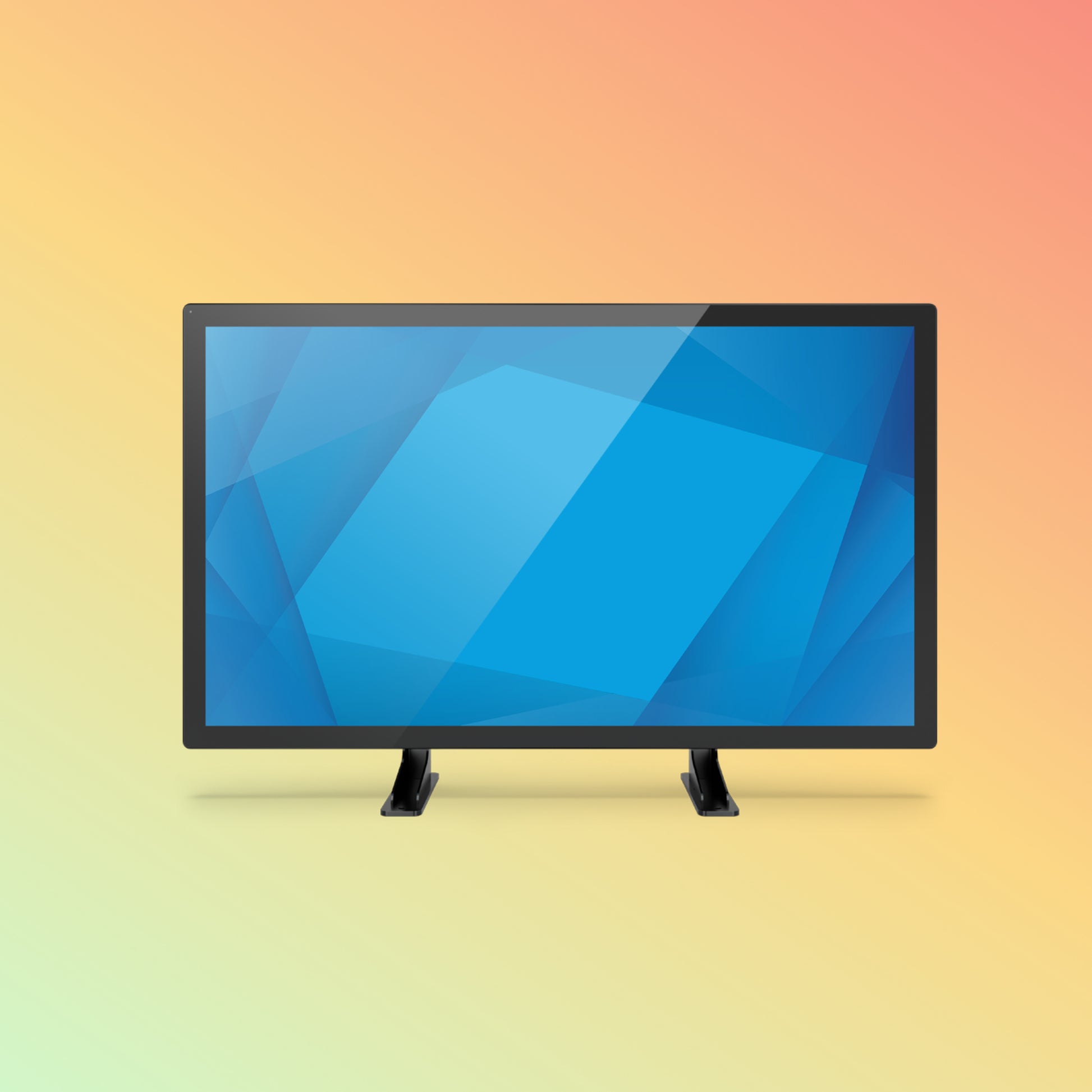

The Elo 04/54 Series delivers dynamic touchscreen signage in Full HD and 4K resolutions. Available in multiple sizes, these commercial-grade displays feature edge-to-edge glass, 10-point projected-capacitive touch and ultra-narrow bezels. Built for 24/7 digital signage, wayfinding and interactive kiosks, the 04/54 Series combines impeccable clarity with reliable performance.
Product Description
Designed for high-impact environments, the Elo 04/54 Series integrates a commercial LCD panel, PCAP touch sensor and rugged metal housing into one sleek module. Choose from Full HD (1080p) or Ultra HD (4K) models, each offering anti-glare glass and optional integrated Android or Windows compute modules. Standard HDMI, DisplayPort and USB inputs make installation plug-and-play, while VESA mounting simplifies integration into kiosks, walls or stands.
Key Features
-
Available in 32″, 43″, 49″, 55″ & 65″ Full HD or 4K UHD
-
10-point projected-capacitive multi-touch for precise input
-
Ultra-narrow bezel (<10 mm) maximizes viewing area
-
Edge-to-edge, anti-glare tempered glass
-
Optional Android 11 or Windows 10 compute modules
-
HDMI 2.0, DisplayPort 1.2 & USB 3.0 I/O
-
VESA 400×400 mm (large sizes) or 200×200 mm (smaller)
-
Fanless, passive-cooling commercial design
Specifications
| Spec Category |
Details |
| Sizes & Resolution |
32″–55″: 1920×1080; 49″–65″: 3840×2160 |
| Touch Technology |
10-point PCAP (USB 3.0) |
| Brightness |
350 cd/m² (HD); 400 cd/m² (4K) |
| Contrast Ratio |
1200:1 |
| Viewing Angle |
178° H / 178° V |
| Glass |
Anti-glare, 7 H hardness |
| Video Inputs |
HDMI 2.0, DisplayPort 1.2 |
| Touch I/O |
USB 3.0 Type B |
| Compute Module |
Optional Elo Android 11 or Windows 10 IoT (sold separately) |
| Mounting |
VESA 400×400 mm (≥43″); 200×200 mm (≤32″) |
| Power |
100–240 VAC, 50/60 Hz |
| Operating Temp. |
0 °C – 40 °C |
| Cooling |
Passive, fanless commercial |
Supported OS / Applications / Industries
OS Compatibility: Windows, Android, macOS, Linux
Applications: Digital signage, wayfinding, menu boards, interactive catalogs
Industries: Retail, hospitality, corporate, education, transportation
Benefits & Compatibility
-
High Impact: Crisp visuals draw attention in busy environments
-
Robust Touch: PCAP sensor supports gloves and stylus use
-
Seamless Integration: Ultra-slim bezel and VESA mounts fit any build
-
Maintenance-Free: Fanless design eliminates dust intake and noise
-
Scalable Management: Use EloView® or third-party CMS for content updates
Purpose of Use
Ideal for deploying interactive digital signs in retail storefronts, hotel lobbies, corporate reception areas or transport hubs. Engage users with video, touch menus and real-time information.
How to Use
-
Mount display via appropriate VESA bracket.
-
Connect video (HDMI/DP) and USB for touch.
-
Install optional compute module or connect external PC.
-
Power on and load signage software or apps.
-
Manage content remotely via your CMS or EloView®.
Packaging / Weight / Dimensions
-
Unit Weight: Varies by size (10 kg–28 kg)
-
Box Dimensions: Size-specific cartons with foam protection
-
Includes: Display, power cable, HDMI & USB cables, Quick-Start Guide
Warranty and FAQs
Warranty: 1-year standard; up to 3-year extension available.
FAQs:
-
Q: Can I use outdoors?
A: Designed for indoor use; for semi-outdoor, specify higher-brightness option.
-
Q: Are compute modules hot-swappable?
A: Power down before module swap.
-
Q: How narrow is the bezel?
A: Bezel width is under 10 mm all around.
Performance, Quality, Durability & Reliability
Crafted with commercial-grade panels and industrial components, the 04/54 Series operates 24/7. Tempered glass and E-coated metal housings resist scratches and corrosion, while passive cooling sustains performance.
Best Price Guarantee
Found a lower price in the UAE on equivalent signage displays? We’ll match it—no questions asked. Buy with confidence from NEOTECH.
Shop Today & Receive Your Delivery Across the UAE!
Order now for fast, secure shipping to Dubai, Abu Dhabi, Sharjah and beyond. Our logistics network ensures on-time arrival.
Request for Customer Reviews & Testimonials
Deployed the Elo 04/54 Series? Share your experience to guide others and help us innovate further. Your feedback matters.
After Sales Support
Benefit from dedicated technical assistance, remote diagnostics and streamlined RMA processing. We’ll get you back up and running quickly.
Get in Touch
Questions on specs, pricing, or integration? Contact our product specialists for tailored advice and quotes. We’re here to help you succeed.
Stock Availability
Before ordering, please confirm current stock levels. We maintain accurate inventory for seamless purchasing.
Disclaimer
All information is for general guidance and subject to change without notice. Product images are illustrative. Verify specs, availability and pricing with our sales team before purchase.
