TS860G7: 6U rack-mount server with Intel Xeon, 24×3.5″ bays, dual 10 GbE, redundant PSU. Enterprise-grade performance. Order OEM from NEOTECH UAE.
Overview

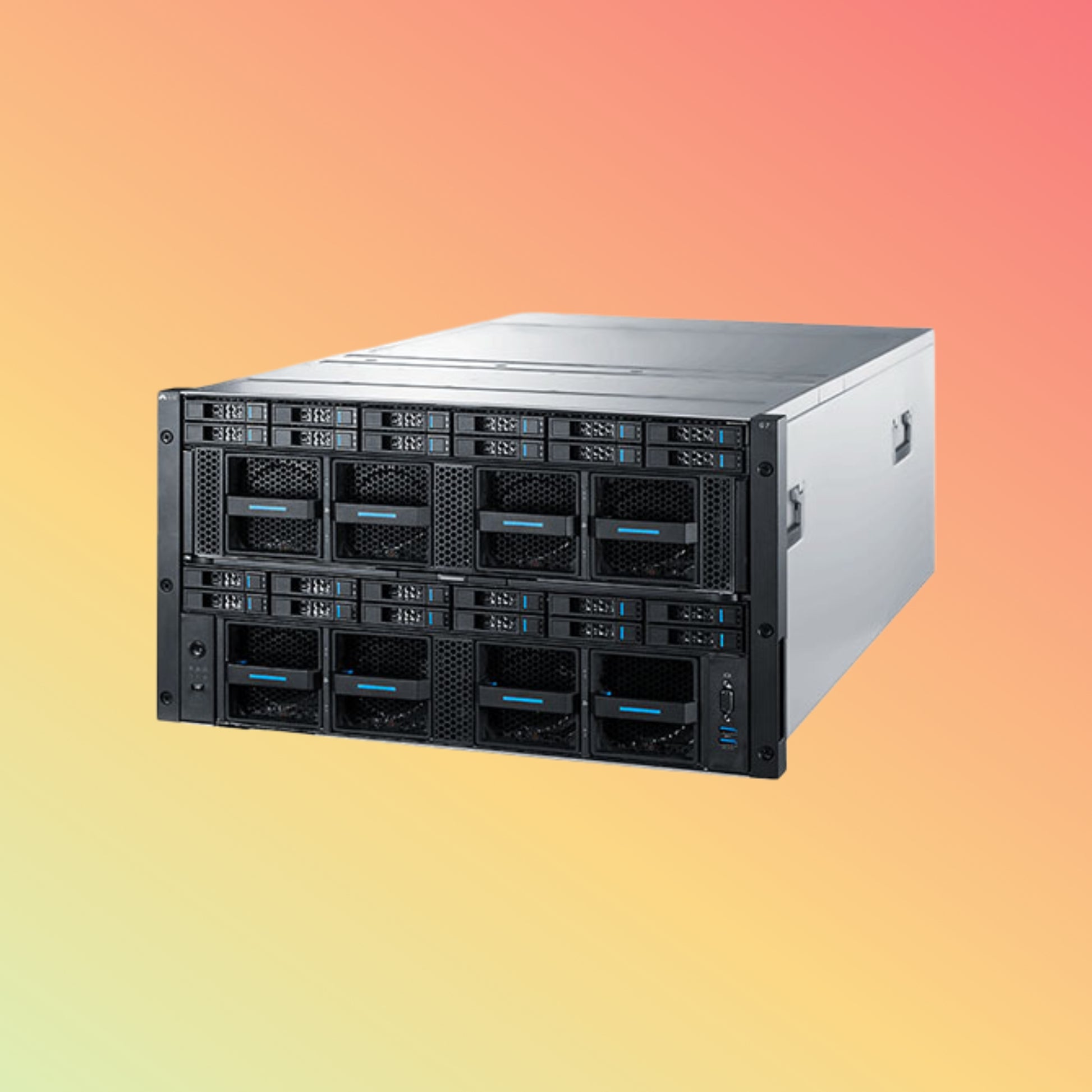

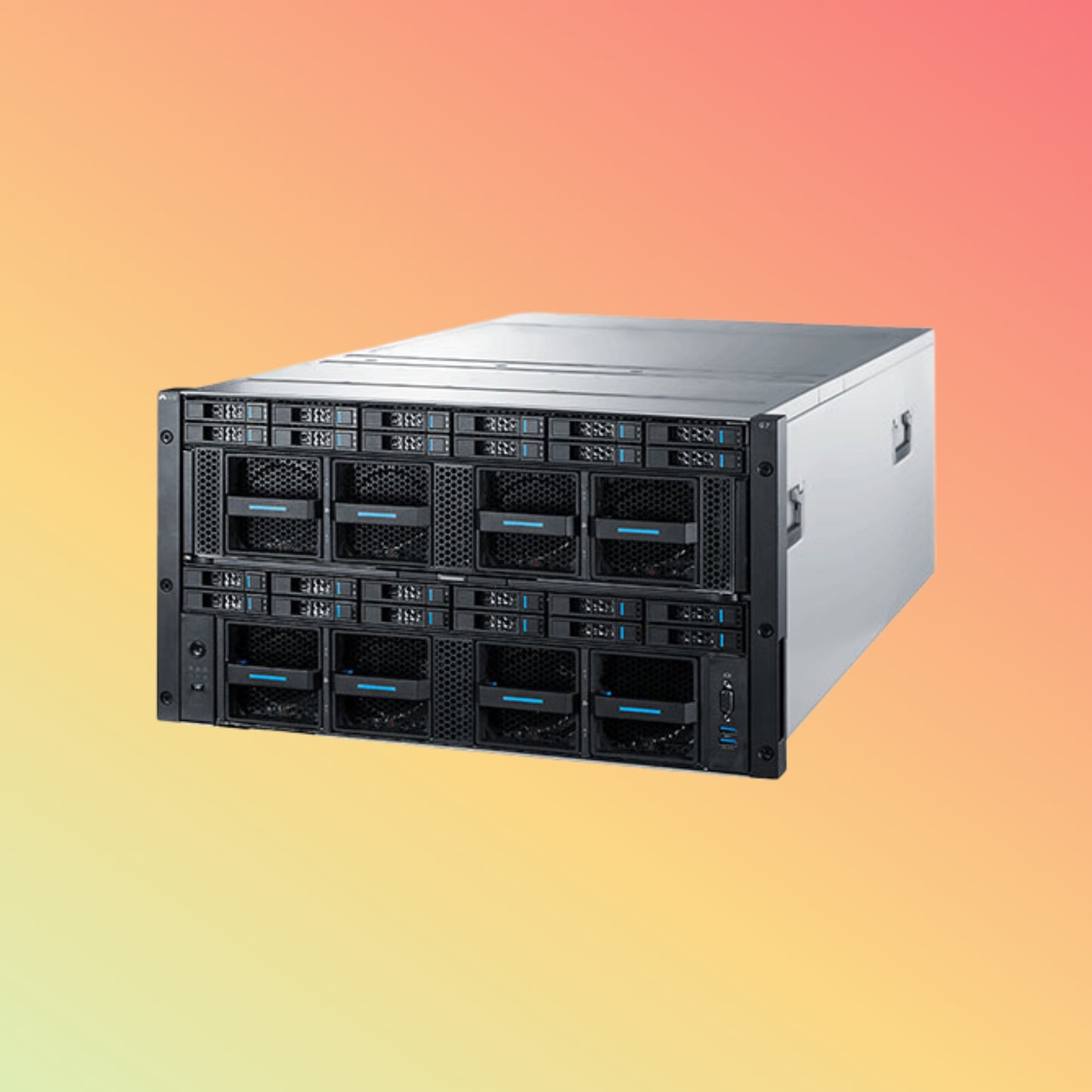

The Meta Brain TS860G7 delivers enterprise compute and storage in a 6U chassis. With dual Intel Xeon Scalable CPUs, up to 2 TB DDR4 memory, and 24 hot-swap drive bays, it’s built for virtualization, AI workloads, and massive data pipelines.
Product Description
This 6U rack server houses two Intel Xeon Scalable processors (up to 32 cores each) and supports up to 2 TB of ECC DDR4 RAM. Twenty-four 3.5″ SATA/SAS bays deliver up to 192 TB raw capacity, while NVMe caching accelerates I/O. Redundant 1600 W titanium PSUs, dual 10 GbE ports, and optional 100 GbE or InfiniBand keep your network blazing. Tool-less rails, intelligent management (IPMI), and front-panel LCD make deployment and maintenance a breeze.
Key Features
-
Dual Intel Xeon Scalable CPUs (up to 32 cores each)
-
Up to 2 TB ECC DDR4 memory across 16 DIMM slots
-
24×3.5″ hot-swap SATA/SAS drive bays (192 TB raw)
-
NVMe SSD slots for cache or tiered storage
-
Dual 10 GbE ports; optional 100 GbE / InfiniBand modules
-
Redundant 1600 W Titanium-efficiency power supplies
-
Integrated BMC with IPMI 2.0 & KVM over LAN
-
Front LCD & USB-C console port; tool-less rail kit
Specifications
| Spec |
Details |
| Form Factor |
6U rack-mount |
| CPUs |
2×Intel Xeon Scalable (up to 32 cores, 205 W TDP) |
| Memory |
16×DDR4 DIMM slots, up to 2 TB ECC (2933 MHz) |
| Storage Bays |
24×3.5″ SAS/SATA (12 Gb/s); 4×U.2 NVMe (optional) |
| Network |
2×10 GbE (SFP+); optional 2×100 GbE / InfiniBand |
| Expansion |
3×PCIe 3.0 x16; 2×PCIe 3.0 x8 |
| Power Supplies |
2×1600 W Titanium (96%+) redundant |
| Management |
IPMI 2.0, Redfish API, KVM over LAN |
| Operating Temp |
10 °C–35 °C |
| Dimensions & Weight |
482×438×267 mm; ~45 kg |
Supported OS / Applications / Industries
-
OS: VMware ESXi, Windows Server, Linux (RHEL, Ubuntu, CentOS)
-
Apps: Virtualization, AI/ML inference, HPC, database, storage arrays
-
Industries: Data centers, cloud providers, research institutes, enterprise IT
Benefits & Compatibility
-
Massive memory & core density for heavy virtualization
-
Hot-swap drives & PSUs minimize downtime
-
NVMe-accelerated storage for low-latency I/O
-
Standard 19″ rails & redundant fans for easy service
Purpose of Use
Ideal for hypervisor clusters, high-performance databases, AI model training/serving, and large-scale storage deployments.
How to Use
-
Mount in a standard 19″ rack with included rails.
-
Populate CPUs, DIMMs, and drives per your capacity/TCO needs.
-
Connect redundant PSUs and network uplinks.
-
Access BMC via IPMI or Redfish for OS install and monitoring.
Packaging / Weight / Dimension
-
Packaging: Heavy-duty crate with foam inserts
-
Unit Weight: ~45 kg (fully populated)
-
Crate Size: 650×600×500 mm
Warranty and FAQs
-
3-year limited warranty on parts & labor
-
24/7 global support & advanced replacement
-
RMA process for faulty components
-
FAQs & driver downloads at neotech.ae/support
Performance, Quality, Durability, and Reliability
Built under ISO 9001; enterprise burn-in and 24/7 stress testing ensure rock-solid uptime. Titanium PSUs and redundant cooling provide high efficiency and fault tolerance.
Best Price Guarantee
Find a lower OEM price? NEOTECH will match it. Secure the best bulk rates on Meta Brain servers in the UAE.
Shop Today & Receive Your Delivery Across the UAE!
Fast, tracked shipping from our Dubai warehouse. Expert rack-and-stack service available on request.
Request for Customer Reviews & Testimonials
Deploying TS860G7? Share your story to help peers choose the right server platform.
After-Sales Support
Comprehensive SLAs, proactive monitoring, and on-site spares ensure your cluster stays online.
Get in Touch
For quotes or custom configurations, email sales@neotech.ae or call +971 4 555 1234 for immediate assistance.
Stock Availability
Most standard configs ship in 5–7 business days. Custom builds require 10–15 days. Confirm availability before ordering.
Disclaimer
Specs and pricing are subject to change without notice. Images are illustrative; actual product may vary. Verify all details with NEOTECH before purchase.
