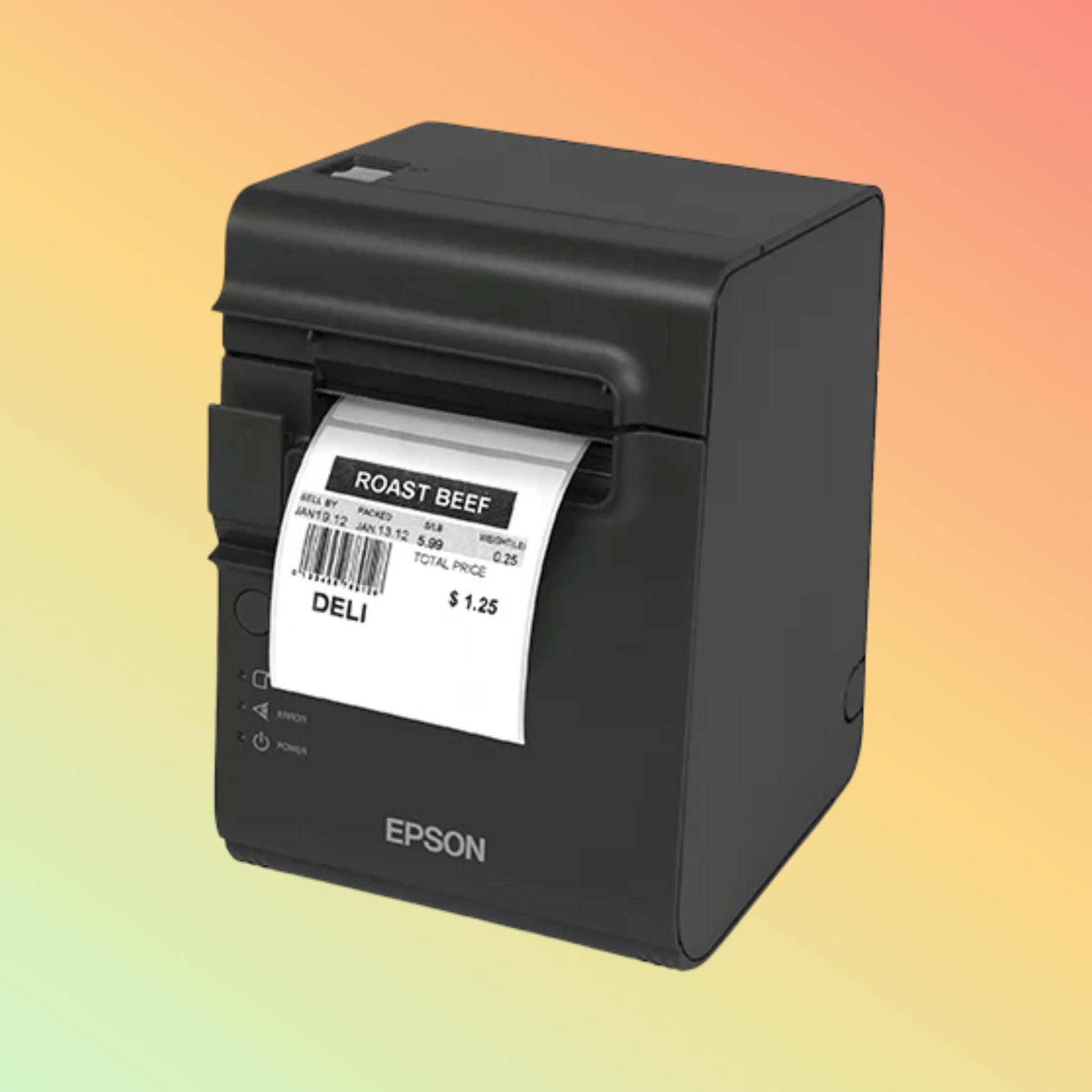

Epson TM-L90 Plus label and receipt

Print labels and receipts up to 150 mm/s with Epson TM-L90Plus. Auto-cutter, USB/Ethernet. Order now at NEOTECH UAE for fast delivery!

Overview

The Epson TM-L90Plus is a versatile direct-thermal printer engineered for both labels and receipts. With high-speed output and flexible media handling, it streamlines retail, logistics, and healthcare operations in one compact unit.

Product Description

Combining label and receipt printing in a single device, the TM-L90Plus delivers up to 150 mm/sec print speed on media widths from 25 mm to 82.5 mm. Its front-exit design, auto-cutter, and optional peel-off mode make roll changes and output management effortless. A rugged metal chassis and tool-free printhead replacement ensure reliable uptime with minimal maintenance.

Key Features

• High-speed direct-thermal printing at 150 mm/sec

• Supports labels, tags, and receipts (25–82.5 mm width)

• Built-in auto-cutter for clean, precise cuts

• Optional label peel-off module and tear-bar mode

• Multiple interfaces: USB 2.0, Ethernet 10/100Base-TX, RS-232 serial

• 203 dpi × 203 dpi resolution for crisp text, graphics, and barcodes

• Durable metal housing and snap-in printhead design

• ESC/POS & FP-11 emulation for seamless POS integration

• Compact footprint saves counter space

• Energy-efficient operation

Specifications

• Print Method: Direct thermal line printing

• Print Speed: Up to 150 mm/sec

• Resolution: 203 dpi × 203 dpi

• Media Width: 25 – 82.5 mm

• Max Roll Diameter: 83 mm

• Media Thickness: 0.06 – 0.19 mm

• Interfaces: USB 2.0, Ethernet 10/100Base-TX, RS-232 serial

• Memory: 4 MB flash, 128 KB SDRAM

• Power Supply: External AC adapter (PS-180)

• Dimensions: 198 × 152 × 235 mm (W × D × H)

• Weight: Approx. 2.2 kg

Supported OS / Application / Industries

• Operating Systems: Windows, Linux, macOS (ESC/POS drivers)

• Applications: Price labels, shipping/barcode labels, pharmacy tags, queue tickets

• Industries: Retail, warehousing, healthcare, hospitality, manufacturing

Benefits & Compatibility

Unify label and receipt workflows to reduce device count and simplify training. The TM-L90Plus works out of the box with leading POS and WMS software via ESC/POS or FP-11 commands. Ethernet connectivity enables centralized management and remote diagnostics.

Purpose of Use

Ideal for:

• Retail price-label and discount-tag printing

• Shipping and logistics barcode labels

• Pharmacy prescription labels and patient tags

• Queue-ticket issuance in service centers

• Hospitality name-badge and event-ticket printing

How to Use

1. Load your thermal label or receipt roll via front-exit mechanism.

2. Choose cut mode (auto-cutter, tear-bar, or peel-off).

3. Connect via USB, Ethernet, or serial port.

4. Install Epson ESC/POS driver or send FP-11 commands.

5. Print on demand; device handles cuts automatically.

Packaging / Weight / Dimensions

• Box Includes: TM-L90Plus unit, AC adapter, USB cable, setup guide

• Weight: 2.2 kg

• Dimensions: 198 × 152 × 235 mm

• Packaging: Protective retail box with foam inserts

Warranty & FAQs

• Warranty: 1-year limited warranty via NEOTECH

• FAQs:

  • Does it support pre-printed labels? Yes, within media specs.

  • Is peel-off standard? It’s an optional module—contact us.

  • Can it print receipts and labels in one job? Yes, switch media type in software.

Performance, Quality, Durability & Reliability

With a printhead life exceeding 100 km and a heavy-duty cutter rated for over 1 million cuts, the TM-L90Plus is built to run nonstop in high-volume settings. Its metal frame resists vibration and impact for long-term reliability.
