Compact USB 13.56 MHz MIFARE reader module. Plug-and-play CCID/HID on Windows, Linux, Android. OEM-ready for kiosks & access control. Shop UAE now!
✅ Overview

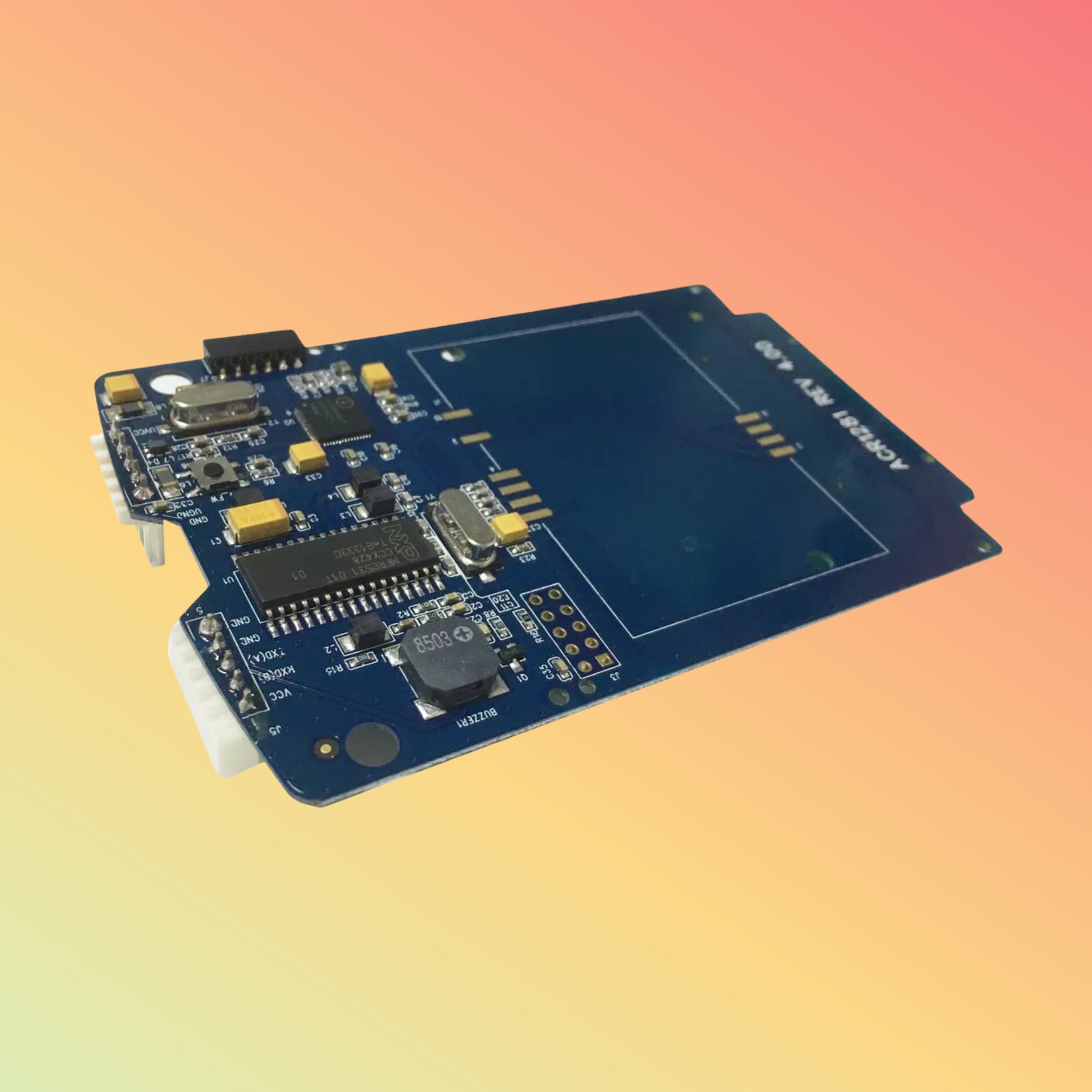

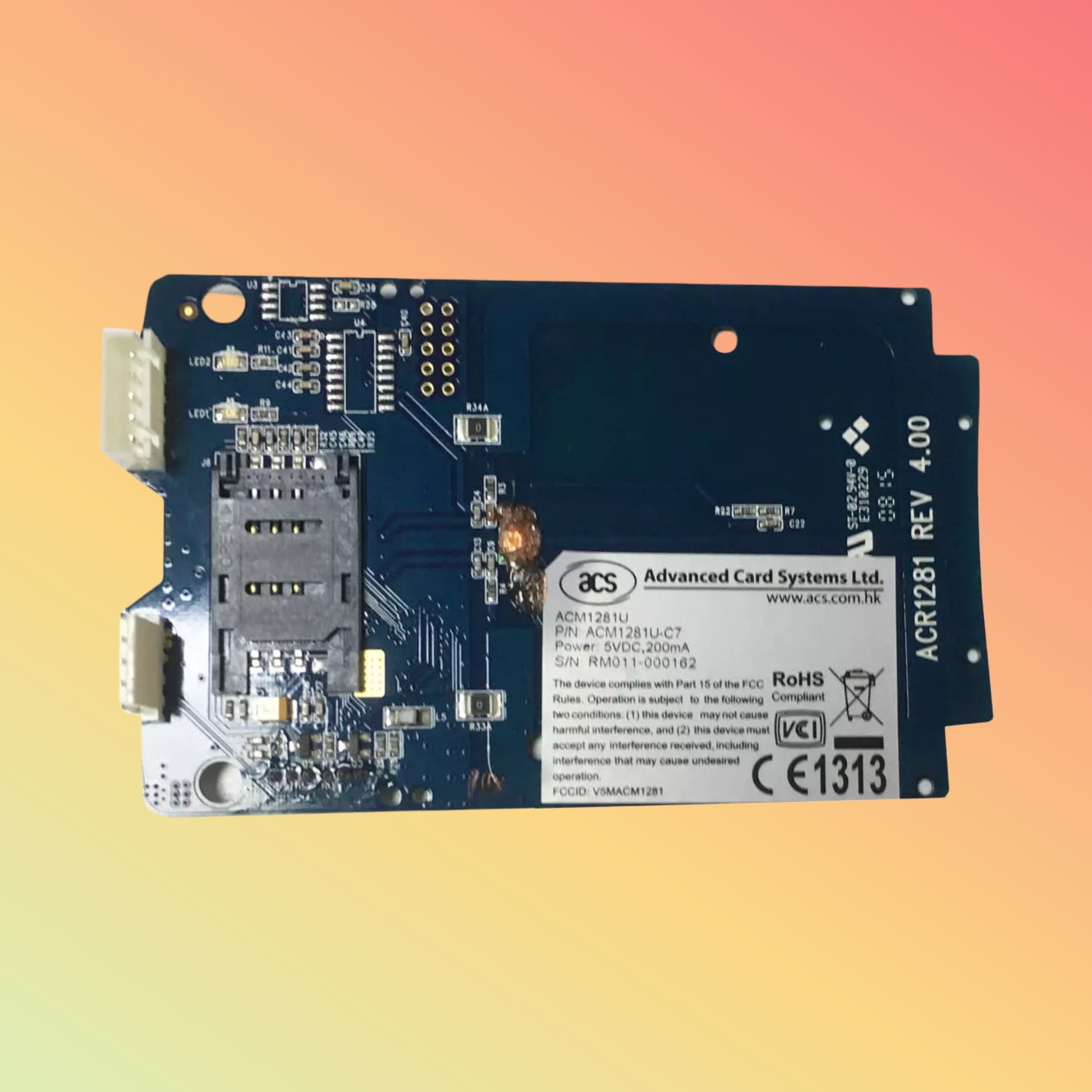

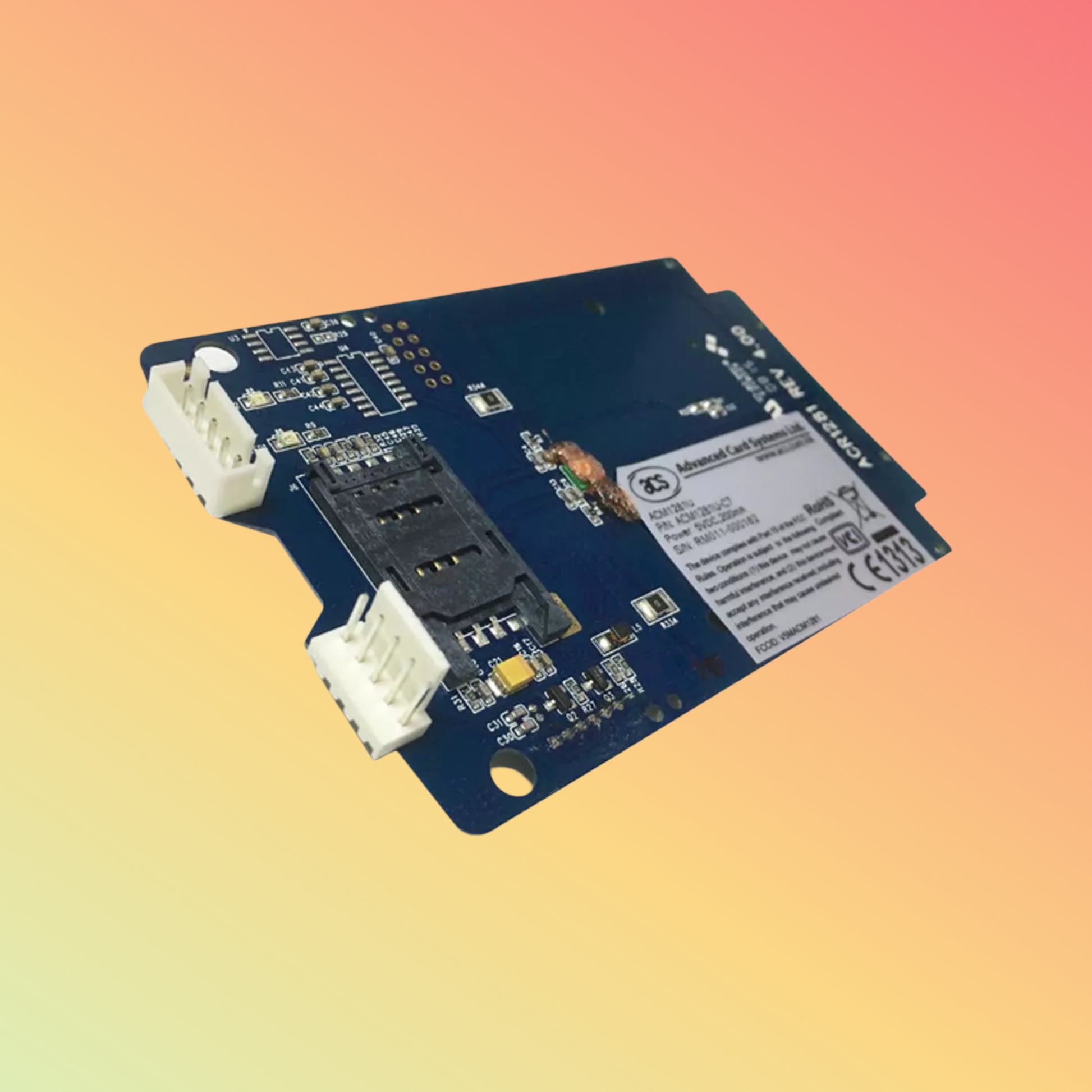

The NEOTECH ACM1281U is a slim USB-powered module for 13.56 MHz MIFARE® and NFC card reading. With native CCID and HID support, it integrates seamlessly into PCs, embedded systems, and Android OTG devices—no extra drivers required. Its compact PCB design fits OEM kiosks, access terminals, and desktop authentication stations.
✅ Product Description
Built for developers and integrators, the ACM1281U reads MIFARE Classic®, Ultralight®, DESFire®, plus all NFC Forum tags in under 200 ms. The USB-C interface delivers CCID/PCSC protocols for secure smart-card sessions or HID keyboard-emulation for rapid data entry. Its low-power design draws under 100 mA, making it ideal for battery-powered systems. A single status LED shows power and card detection. Backed by a cross-platform SDK, you’ll have your proof-of-concept up and running in no time.
✅ Key Features
-
13.56 MHz MIFARE: Classic, Ultralight, DESFire support
-
NFC Forum Tags: Type 1–4 compatibility
-
Dual USB Modes: CCID/PCSC & HID-keyboard emulation
-
Plug-and-Play: No drivers on Windows, Linux, macOS, Android OTG
-
Fast Read: < 200 ms tag detection
-
Low Power: < 100 mA from USB bus
-
Compact PCB: 60 × 36 × 12 mm for easy OEM integration
-
SDK & Samples: Windows, Linux, macOS, Android
✅ Specifications
-
RFID Standards: ISO14443A/B (MIFARE Classic®, Ultralight®, DESFire®)
-
NFC Tags: NFC Forum Type 1–4
-
Interface: USB-C (USB 2.0) supporting CCID & HID modes
-
Data Rate: 106 kbps
-
Read Range: Up to 5 cm (varies by card)
-
Power Consumption: < 100 mA active; < 20 mA idle
-
Dimensions: 60 × 36 × 12 mm
-
Operating Voltage: 5 V DC (USB-bus powered)
-
Operating Temp: –20 °C to 60 °C
✅ Supported Applications / Industries
-
Applications: Access control, e-payment kiosks, library systems, time & attendance
-
Industries: Security, Retail, Hospitality, Education, Healthcare
✅ Benefits & Compatibility
-
Rapid Integration: Standard CCID for smart-card frameworks, HID for legacy systems
-
Broad Tag Support: All major 13.56 MHz cards and NFC tags in one module
-
Driver-Free: Works out of the box on most platforms
-
OEM-Friendly: PCB form factor for embedding into custom enclosures
-
Energy-Efficient: Ideal for always-on or battery-backed devices
✅ Purpose of Use
Perfect for developers building secure entry readers, self-service terminals, or desktop authentication tools that require fast, reliable contactless card reads.
✅ How to Use
-
Connect ACM1281U via USB-C to your host device.
-
Select CCID mode for smart-card APIs or HID mode for keyboard input.
-
Present MIFARE card or NFC tag near the reader.
-
LED flashes on successful read; data appears in your application.
✅ Packaging / Weight / Dimension
-
Includes: ACM1281U module, USB-C cable, quick-start guide, SDK download link
-
Weight: 15 g
-
Package Size: 100 × 80 × 20 mm
✅ Warranty and FAQs
✅ Performance, Quality, Durability & Reliability
Tested for over 100 000 read cycles, ACM1281U’s precision RF front-end and robust PCB ensure consistent performance in 24/7 deployments.
✅ Best Price Guarantee
Found a lower UAE price? Send proof and we’ll match it—NEOTECH locks in the best deal.
✅ Shop Today & Receive Your Delivery Across the UAE!
Order now for express shipping to Dubai, Abu Dhabi, Sharjah, and beyond. ACM1281U stock is ready to go!
✅ Request for Customer Reviews and Testimonials
Integrating ACM1281U? Share a quick review to help others discover its ease and reliability.
✅ After Sales Support
Our support team is on call via chat, email, or phone—ready to assist with SDK integration, firmware updates, or troubleshooting.
✅ Get in Touch
Bulk orders or custom firmware? Contact us and we’ll assist you promptly.
✅ Stock Availability
High demand—please confirm availability before placing large or urgent orders to secure your modules.
✅ Disclaimer
All specifications and images are for reference and may change without notice. Verify final details with our sales team before purchase
