Granding 601-FE-L-60 barrier

Streamline vehicle flow with Granding 601-FE-L-60 barrier gate. 6 m reinforced boom, 2 s cycle, IP54 rated. Order now at NEOTECH UAE!

Overview

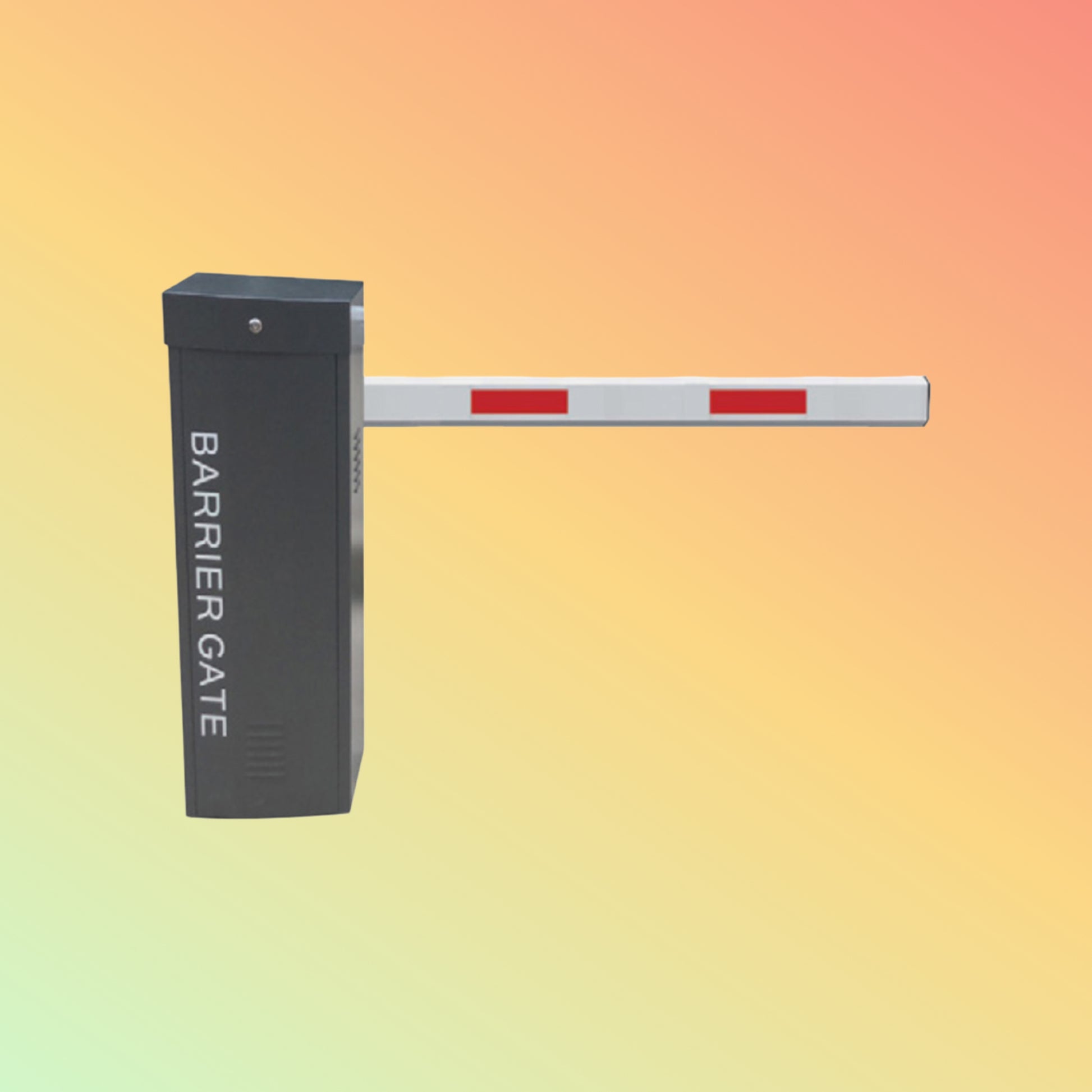

The Granding 601-FE-L-60 is a premium, fail-secure barrier gate with a 6 m reinforced boom. Engineered for toll plazas, logistics hubs, and high-traffic parking, it delivers lightning-fast cycles, industrial durability, and remote diagnostics for 24/7 uptime.

Product Description

Built around a 120 W brushless DC motor and IP54-rated steel enclosure, the 601-FE-L-60 achieves a 1.8–2 s open/close cycle. Its composite aluminium-steel boom resists wind up to 15 m/s. Integrated loop detectors, photoelectric sensors, and an emergency manual release ensure safety and reliability—even during power outages.

Key Features

• 6 m aluminium-steel composite boom

• Ultra-fast 1.8–2 s cycle (open/close)

• Fail-secure locking on power loss

• IP54 weatherproof cabinet; IP65 sensors

• High-torque 120 W DC brushless motor

• Wind-resistance up to 15 m/s

• Built-in loop detector & photoelectric safety sensors

• RS485 + dry-contact I/O integration

• LED status display & audible alert

• Emergency manual release lever

Specifications

• Model: 601-FE-L-60

• Boom Length: 6 m

• Motor: 24 V DC brushless, 120 W

• Cycle Time: 1.8–2 s

• Duty Cycle: 100% continuous

• Protection: IP54 cabinet; IP65 sensors

• Operating Temp: –35 °C to +75 °C

• Cabinet Size: 1020 × 310 × 310 mm

• Weight: 52 kg

• Control Interface: RS485; dry-contact I/O

• Power: AC 220 V ± 10%, 50/60 Hz

Supported Applications / Industries

• Toll plazas & highway checkpoints

• Airport & port terminals

• Logistics parks & warehouse entrances

• Multi-storey car parks

• Industrial and manufacturing sites

• Gated communities & campuses

Benefits & Compatibility

• Rapid throughput minimizes queues

• Fail-secure design locks barrier on power loss

• All-weather resilience for extreme climates

• Integrates seamlessly with NEOTECH ANPR cameras, RFID readers, ticket dispensers

• Remote diagnostics and firmware updates via network

Purpose of Use

Deploy the 601-FE-L-60 to:

• Automate secure vehicle entry/exit

• Enforce paid-parking and controlled access

• Enhance perimeter security at critical sites

• Streamline traffic flow in high-volume zones

How to Use

1. Bolt the cabinet onto a leveled concrete pad

2. Wire AC power, loop detectors, and I/O modules

3. Install and align the 6 m boom arm

4. Configure open/close timings and sensor logic via control module

5. Connect external devices (RFID, ANPR camera, keypad)

6. Test safety stops, manual release, then commission

Packaging / Weight / Dimensions

• Includes: Barrier unit, 6 m boom arm, loop detector kit, mounting hardware, user manual

• Packaged Size: 1100 × 400 × 350 mm

• Gross Weight: ~60 kg

• Crate: Reinforced plywood with foam inserts

After Sales Support

From design consulting to remote troubleshooting, our technical team is on call via email, phone, or live chat. We provide firmware upgrades and optional on-site service to ensure maximum uptime.

Get in Touch

Need a turnkey barrier solution? Contact our access-control specialists for custom layouts, fast quotes, and project support.

Stock Availability

Inventory updates daily. For urgent or bulk orders (5+ units), please confirm availability before checkout. Lead time: 10–15 business days.

Disclaimer

All specifications are for general guidance and may change without notice. Product images are illustrative. Verify final specs and pricing with our sales team before ordering.
